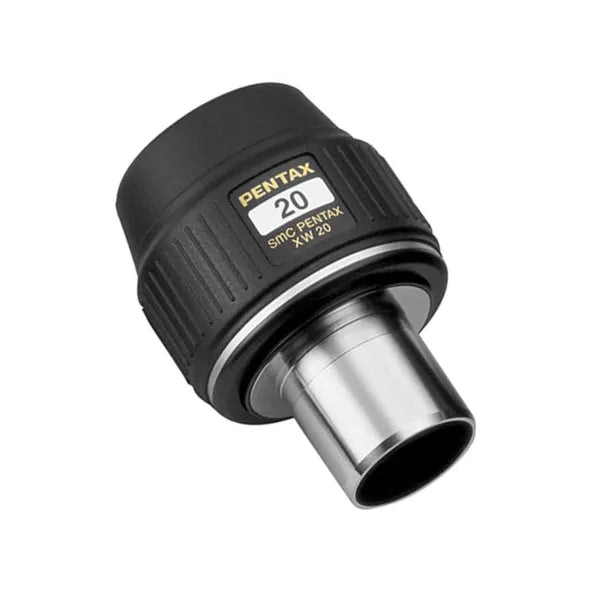

Pentax SMC XW 20mm Waterproof Fogproof Eyepiece for Spotting Scope 70516

Pentax SMC XW 20mm Waterproof Fogproof Eyepiece for Spotting Scope 70516

Price	$502.20
	Collect 502 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	See delivery details

Quantity

Add to wishlist

The XW 20 eyepiece is designed for use with a wide range of PENTAX spotting scopes and telescopes. Ideal for both ground and astronomical observations, this eyepiece features fully multi-coated lenses to increase light transmission and colour quality, high-refraction lanthanum glass elements for high-resolution images with minimal aberrations, and JIS Class 4 weatherproof construction for durability. Engineered using advanced computer simulation design technology, this high-performance eyepiece provides a 70 degree field of view and 20mm eye relief.

This Eyepiece is Compatible with the PF-65 and PF-65 ED II series spotting scopes, PF-80 series spotting scopes, PF-100 series spotting scopes.

- Improved 70 degree field of view for wider views

- XW 3.5mm, 5mm, 7mm, 10mm, 14mm, 20mm, 30mm, and 40mm provide a wider field of view than previous PENTAX eyepieces

- All Pentax XW series eyepieces may be used with astronomical telescopes with appropriate 1 ?? or 2? focusers

- XW 3.5mm, 5mm, 7mm, 10mm, 14mm, 20mm eyepieces may be used with our PF series Spotting Scopes (except PF 63 Zoom)

- Full multi-coated lenses increase light transmission and contrast

- High refraction, extra-low dispersion lanthanum glass elements deliver bright, high resolution images with minimal distortions and aberrations

- Advanced computer simulation design technology implemented to drastically reduce internal reflections, producing brighter, clearer images

- Weatherproof construction for greater durability

- Long eye relief for comfortable viewing with or without glasses

Specifications:

- LENS STRUCTURE: 6 elements, 4 groups

- FOCAL LENGTH: 20mm

- APPARENT FIELD OF VIEW: 70 degrees

- EYE RELIEF: 20mm

- ATTACHMENT DIAMETER: 1.25 (31.7mm)

- FILTER DIAMETER: 28.6mm

- FIELD STOP DIAMETER: 24.0mm

- EYEPIECE RING: Helicoid type

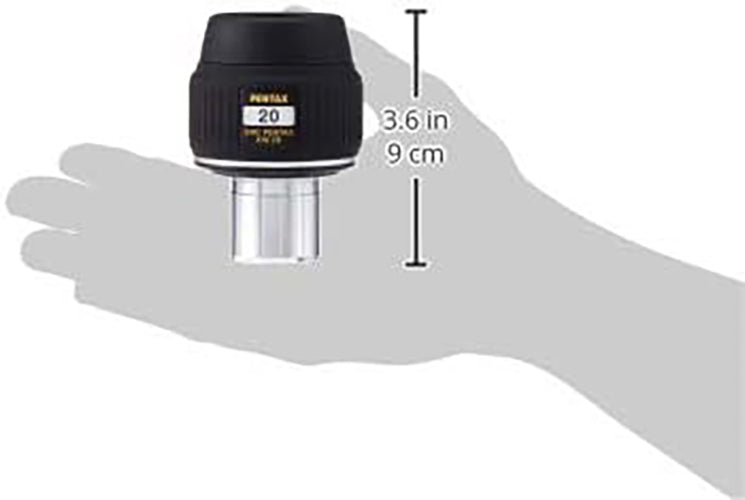

- DIMENSIONS: 3.4 x 2.4 in

- WEIGHT: 12.6 oz. (355g)

- LENS STRUCTURE: 6 elements, 4 groups

GTIN: 0027075075245
