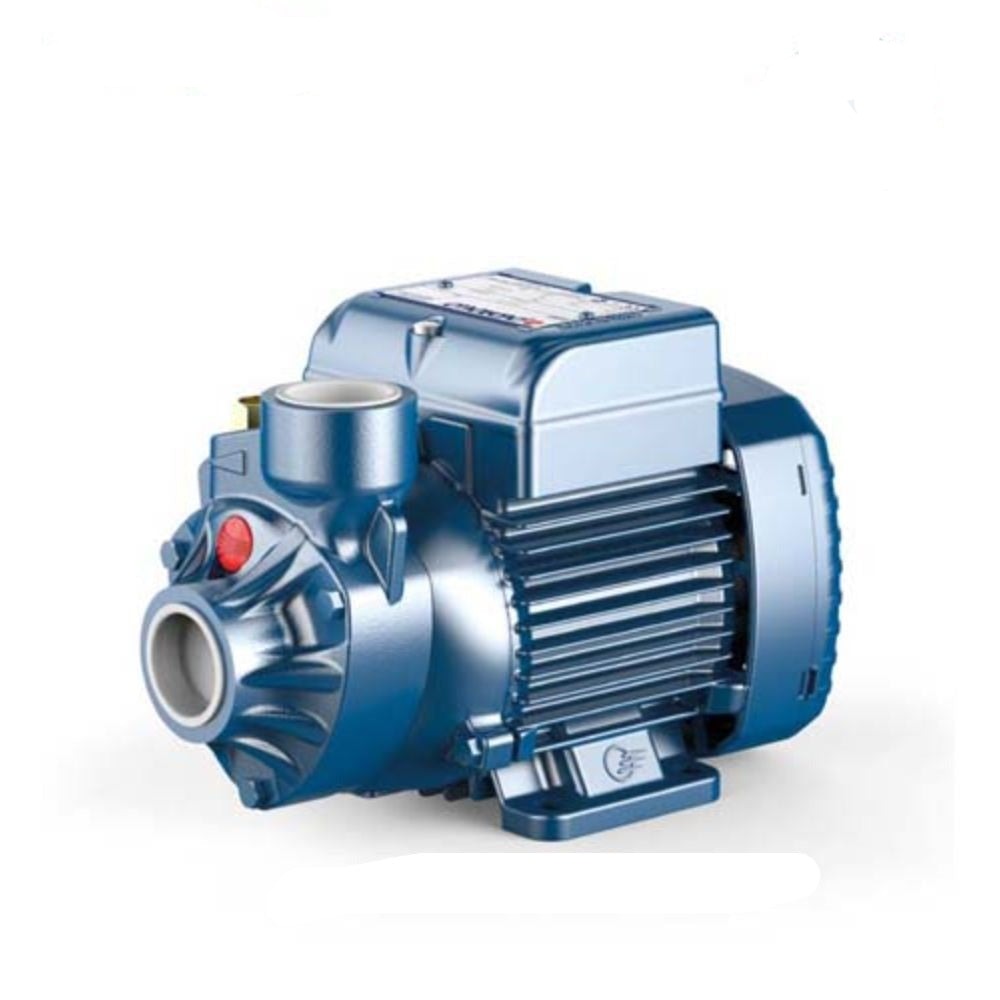

Pedrollo Peripheral Impeller Pump With EP1 Pressure Controller 0.37KW 0.5Hp 240V

 Application

• Suitable for use with clean water that does not contain abrasive
• particles and with liquids that are not chemically aggressive
• towards the materials from which the pump is made.
• Because of their reliability and the fact that they are easy to use and
• are economical, they are ideal for domestic use and in particular for
• distributing water in combination with small pressure tanks and for
• the irrigation of gardens and orchards.
• Installation needs to be undertaken in well ventilated closed areas
• or anyway protected from bad weather.

Features

• Manometric suction lift up to 8 m
• Liquid temperature between -10 °C and +60 °C
• Ambient temperature up to +40 °C (+50 °C for PK 60)
• Max. working pressure:
• 6 bar for PK 60, PK 60-MD, PK 65,
• 7 bar for PK 70, PK 80
• 10 bar for PK 90, PK 100, PK 200, PK 300
• Continuous service S1

Construction

• PUMP BODY Cast iron, with threaded ports in compliance with ISO 228/1 (PK 60, PK 60-MD with an Epoxy Electro Coating treatment)
• MOTOR BRACKET Aluminium with brass insert (patented), reduces the risk of impeller seizure
• IMPELLER Brass with peripheral radial vanes
• MOTOR SHAFT Stainless steel AISI 431 (EN 10088-3 - 1.4104 for PK 60, PK 60-MD, PK 65)
• MECHANICAL SEAL
• Pump Model

The product image shown is for illustration purpose only
