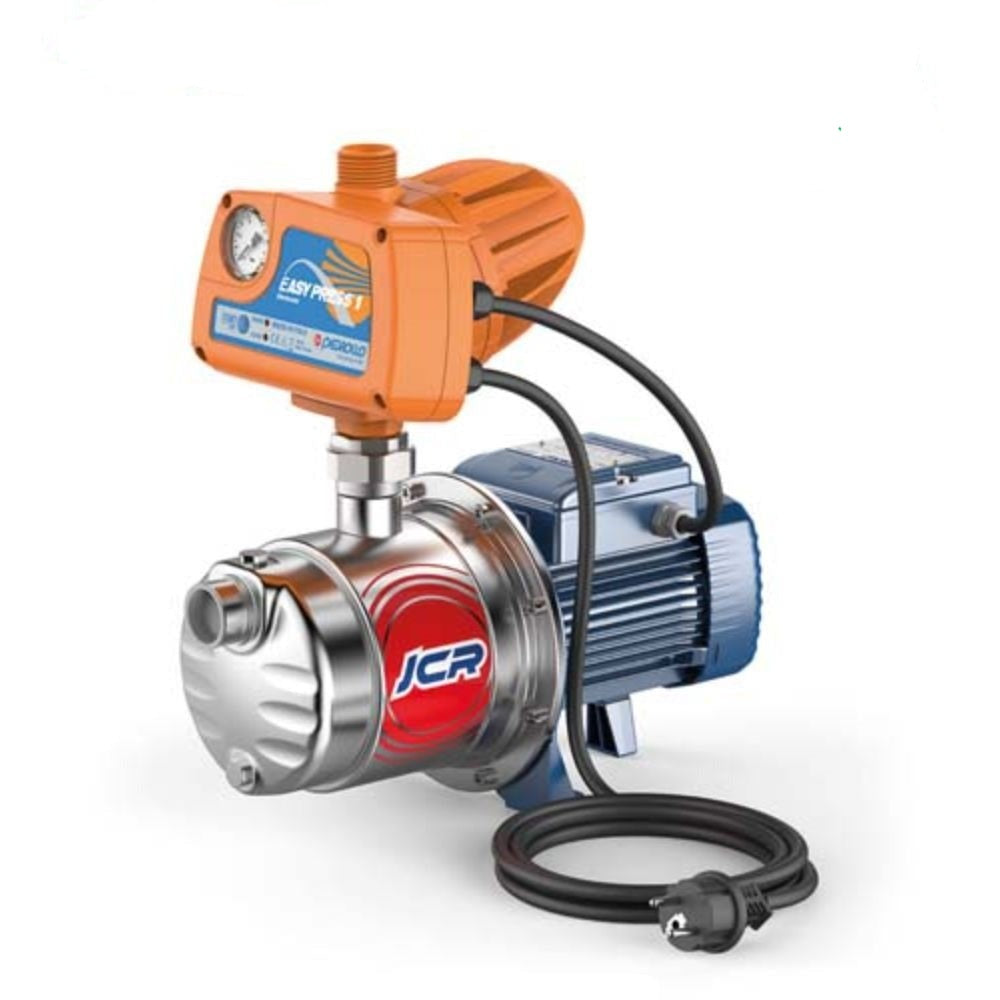

Pedrollo Horizontal Multistage Pump With EP1 Pressure Controller

Pedrollo Horizontal Multistage Pump With EP1 Pressure Controller

Price
From $967.98
Collect 967 Everyday Rewards points
Log in to MyDeal to link your card
Pump Model
Shipping
$75.00 Australia-wide (per item)

Quantity
Maximum item limit (40) has been reached.

Specifications

Pump Model

3CRm 80-EP1

4CRm 80-EP1

5CRm 80-EP1

5CRm 100-EP1

Kw

0.45

0.55

0.75

1.1

Hp

0.6

0.75

1

1.5

Max Flow L/Min.

80

80

80

130

Max Head (m)

38

50

66

62

AMPS

3.3

3.6

5.2

6.1

Voltage

240

240

240

240

Connection Outlet (mm)

25

25

25

25

Inlet

25

25

25

25

Cable

1.5

1.5

1.5

1.5

Size(mm) Height

373

373

373

373

Width

367

392

411

410

Size mm/Inch

25F

25F

25F

25F

GW

9.2

10.3

13.4

13.4

Phase

Single

Single

Single

Single

 Application

  • As a result of their quietness these pumps are widely used in domestic applications such as the distribution of water for the irrigation of gardens and farms, etc.

Features

  • Manometric suction lift up to 7 m
  • Liquid temperature between -10 °C and +40 °C
  • Ambient temperature up to +40 °C
  • Max. working pressure 7 bar
  • Continuous service S1

Construction

  • 1 PUMP BODY Stainless steel AISI 304 complete with threaded ports in compliance with ISO 228/1
  • 2 BODY BACKPLATE Stainless steel AISI 304
  • 3 IMPELLERS Noryl FE1520PW
  • 4 DIFFUSERS Noryl FE1520PW complete with anti-wear ring
  • 5 MOTOR SHAFT Stainless steel EN 10088-3 - 1.4104 (AISI 431 for 4CR 100, 5CR)
  • 6 MECHANICAL SEAL
  • Seal Model AR-13
  • Shaft Diameter Ø 13 mm
  • Materials
  • Stationary ring Ceramic
  • Rotational ring Graphite
  • Elastomer NBR

The product image shown is for illustration purpose only
