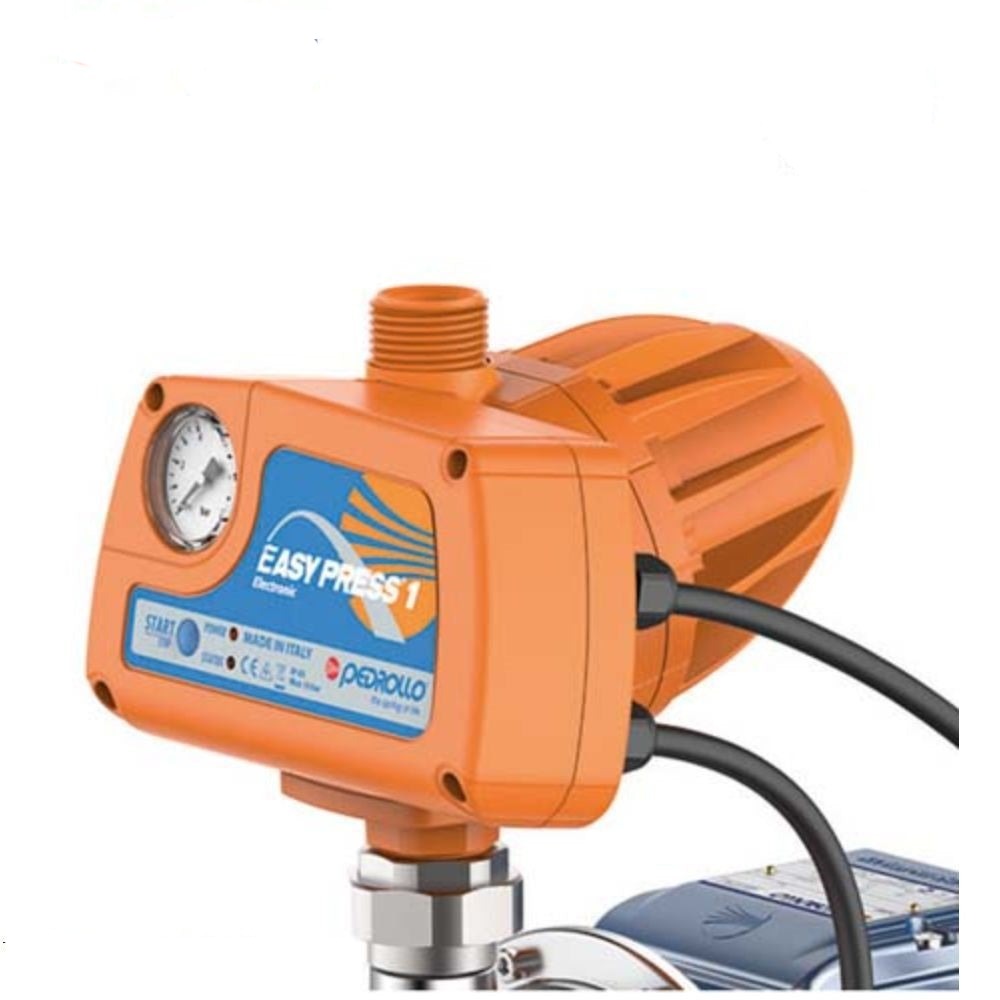

Pedrollo Easypress Pressure Controller 12A 1.5 Bar Start With Pressure Gauge

 Application

• The EASYPRESS series consists of electronic devices designed to start (when a tap is turned on) and stop (when a tap is turned off) single-phase pumps. A microprocessor protects the pump from dry running, and allows the pump to be restarted either automatically or manually. It also prevents the pump from starting too often when small leaks are present within an installation
• EASYPRO® stands out from the traditional PRESSURE FLOW SWITCHES because of a number of innovative characteristics: the air filled integrated expansion tank; selection of the restart pressure of the pump; the back-lit LCD display. PUMP START PRESSURE EASYPRO® enables you to select the restart pressure of the pump, between 1 and 5 bar. The pressure is selected using the control button and following the instructions on the LCD display. One model covers a wide range of installation requirements.

Features

• Maximum liquid temperature +55 °C
• Ambient temperature up to +40 °C
• Burst pressure > 40 bar
• Protection: IP 65
• Voltage: 230 V - Frequency: 50/60 Hz
• Max current: 16 A
• Maximum liquid temperature +65 °C
• Ambient temperature up to +40 °C
• Burst pressure 32 bar
• Protection: IP 65
• Voltage: 230 V - Frequency: 50/60 Hz - Max current: 16 A

Construction

• Resinated and easily replaced electronic card for complete protection from humidity, fitted in the case with an IP 65 protection. The electronic card inside EASYPRESS has undergone the strictest EMC tests of electromagnetic compatibility. EASYPRESS complete with pressure gauge
• Resinated and easily replaced electronic card for a complete protection from humidity. The electronic card inside EASYPRO has undergone the strictest EMC tests of electromagnetic compatibility.

The product image shown is for illustration purpose only
