Specification:
Model: PA-80D
Product Name: Car Amplifier
Subwoofer Type: Subwoofer Speaker
Color: Black
Material: Metal
Channels: 1-Channel
Operating Voltage: 12V
Frequency Response: 30Hz~280KHz
Rated Power: 600W
Peak Power: 1000W
Impedance: 4-8
SNR: 105dBA
THD: < 0.1%
Size: 23.5x15.5cm (LXW)
Qty: 1pc
Features:
Current Overload, Short Circuits, Thermal Overload, DC Offset.
Mono 1000 Watts Car Audio Amplifier gives you a wonderful in-car entertainment.
High power, good sound quality, no distortion, give you a great hearing enjoyment.
Light weight, handy and easy to install.
Powerful bass.

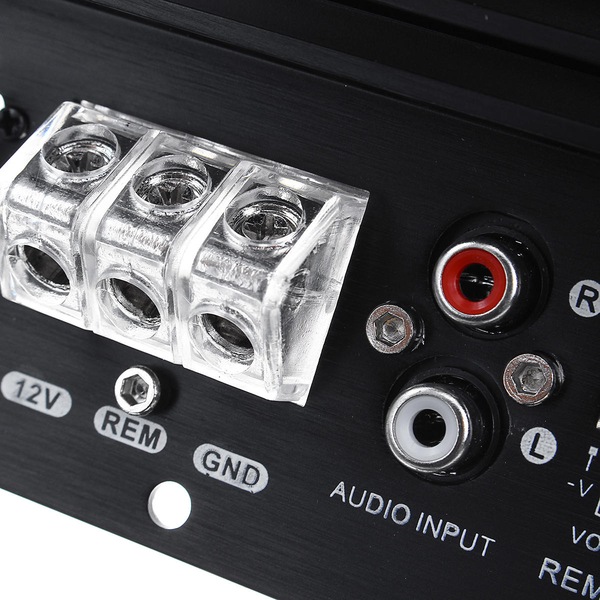

Wiring:
1.Speaker connection: amplifier board has a good piece of red and black wire welding can be accessed by a 4-8 Euro
100-150W bass or full-range speaker or speakers (red pick horn + , black pick speaker - is recommended to use 4 ohm
8-12 inch 45 core 100-170 magnetic bass ) ;
2.Power connection
A. Car has a CD player : GND then negative vehicle power ; 12V 12V power supply connected to the car 's positive ;
REM CD player connected to the control line (sothe CD player can directly control the subwoofer amplifier on and off )
B. Car no CD player : GND connected to the negative power of the car , + 12V and REM connected together in positive
12V car power ( + 12V can also be an indirect one with REM switch control amplifier switching function ) ;
C. Directly with the battery (battery) connection : GND connect the battery negative , + 12V and 12V REM then the positive
battery simultaneously .
Package Included:
1 x Car Audio Amplifier Board
