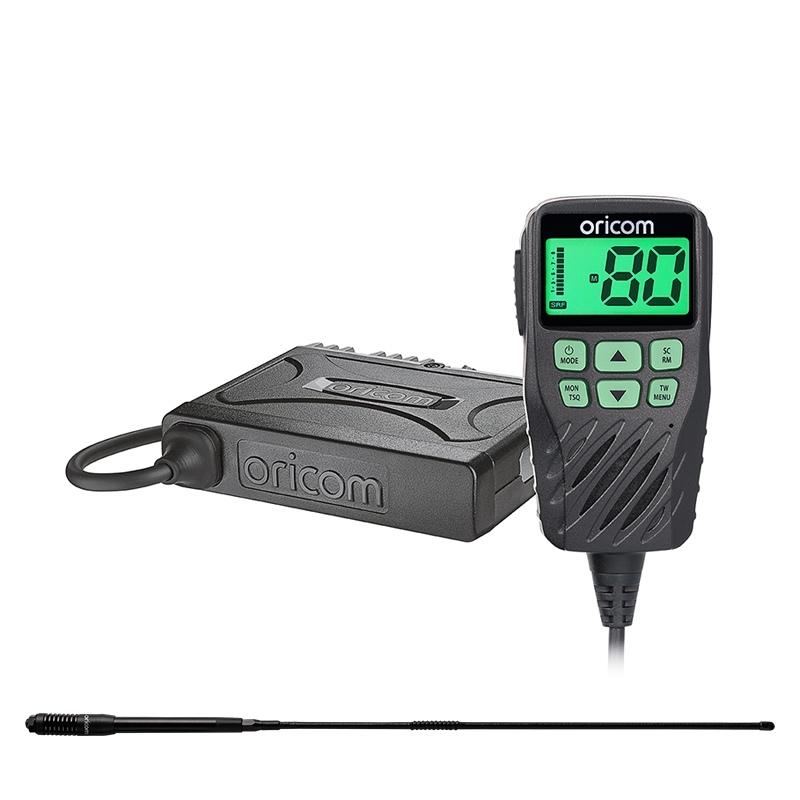

The Oricom Bundle Pack includes: UHF360 5 Watt UHF CB Radio with Controller Speaker Microphone AND ANU215 6.5dBi UHF CB Antenna (UHF360BFP). The UHF360 removes the need for a head unit, with all of the radio’s controls in the microphone. The integrated speaker in the controller mic works with the transceiver speaker to deliver exceptional sound quality and volume. Perfect for modern vehicles where space is limited.Transceiver Dimensions 27 (h) x 102 (w) x 85 (d) mm. General UHF360 Technical Specification:Frequency Range TX/RX 476.425 - 477.4125 MHz, Number of TX/RX Channels 80 UHF CB (75 Voice channels), Channel Spacing TX/RX 12.5KHz, Operating modes Simplex, Repeater TX offset (+750kHz), Scanning Speed 130 msec per channel, Antenna Impedance 50 Ohms, Operating Volts nominal 13.8VDC, Operating Volts Range 10 to 15 VDC, Over Voltage Protection voltage regulator, Over Current Protection 2 AMP fuse, Reverse Polarity, Protection Shunt diode, Frequency stability +/- 2.5ppm. Pack Includes: 1 X UHF CB Radio (UHF360), 1 X Heavy Duty Controller Speaker Microphone, 1 X Microphone mounting bracket, 1 X Transceiver mounting bracket, 1 X Pack of supplied mounting screws and User Guide. The ANU240 is a 6.5dBi ground independent UHF CB Antenna with elevated feed, heavy duty parallel spring base and fibreglass whip. The ANU240 allows for a variety of mounting options for bullbars. A specific bracket will be required depending on the mounting option chosen (bracket not supplied). The ANU215: A 6.5dbi antenna with elevated feed, counter balanced spring and solid black fiberglass whip. The counter balanced spring is designed to absorb the vibrations from the engine and/or rough corrugated roads for better performance. This unit include 4.2m of low-loss coaxial cable and a PL259 connector. This antenna configuration is by far the most popular on the Australian market. Ideal for use in off-road conditions with four-wheel drives, or for vehicles with diesel engines. This antenna allows for a variety of mounting options from bullbar, gutter to wing mount. A specific bracket will be required depending on the mounting option chosen (bracket not supplied). The 6.5dBi high-gain low SWR antenna gives the best “all-round” transmit and receive performance. Length including spring and base: 83cm. The thread size for the whip (not the spring base) is 5/16 UNC.
Specifications:
The Oricom Bundle Pack includes: UHF360 5 Watt UHF CB Radio with Controller Speaker Microphone AND ANU215 6.5dBi UHF CB Antenna (UHF360BFP). The UHF360 removes the need for a head unit, with all of the radios controls in the microphone. The integrated speaker in the controller mic works with the transceiver speaker to deliver exceptional sound quality and volume. Perfect for modern vehicles where space is limited.Transceiver Dimensions 27 (h) x 102 (w) x 85 (d) mm. General UHF360 Technical Specification:Frequency Range TX/RX 476.425 - 477.4125 MHz, Number of TX/RX Channels 80 UHF CB (75 Voice channels), Channel Spacing TX/RX 12.5KHz, Operating modes Simplex, Repeater TX offset (+750kHz), Scanning Speed 130 msec per channel, Antenna Impedance 50 Ohms, Operating Volts nominal 13.8VDC, Operating Volts Range 10 to 15 VDC, Over Voltage Protection voltage regulator, Over Current Protection 2 AMP fuse, Reverse Polarity, Protection Shunt diode, Frequency stability +/- 2.5ppm. Pack Includes: 1 X UHF CB Radio (UHF360), 1 X Heavy Duty Controller Speaker Microphone, 1 X Microphone mounting bracket, 1 X Transceiver mounting bracket, 1 X Pack of supplied mounting screws and User Guide. The ANU240 is a 6.5dBi ground independent UHF CB Antenna with elevated feed, heavy duty parallel spring base and fibreglass whip. The ANU240 allows for a variety of mounting options for bullbars. A specific bracket will be required depending on the mounting option chosen (bracket not supplied). The ANU215: A 6.5dbi antenna with elevated feed, counter balanced spring and solid black fiberglass whip. The counter balanced spring is designed to absorb the vibrations from the engine and/or rough corrugated roads for better performance. This unit include 4.2m of low-loss coaxial cable and a PL259 connector. This antenna configuration is by far the most popular on the Australian market. Ideal for use in off-road conditions with four-wheel drives, or for vehicles with diesel engines. This antenna allows for a variety of mounting options from bullbar, gutter to wing mount. A specific bracket will be required depending on the mounting option chosen (bracket not supplied). The 6.5dBi high-gain low SWR antenna gives the best all-round transmit and receive performance. Length including spring and base: 83cm. The thread size for the whip (not the spring base) is 5/16 UNC.
Specifications:
UHF360 Key Features:
- 5 watt (max TX power)

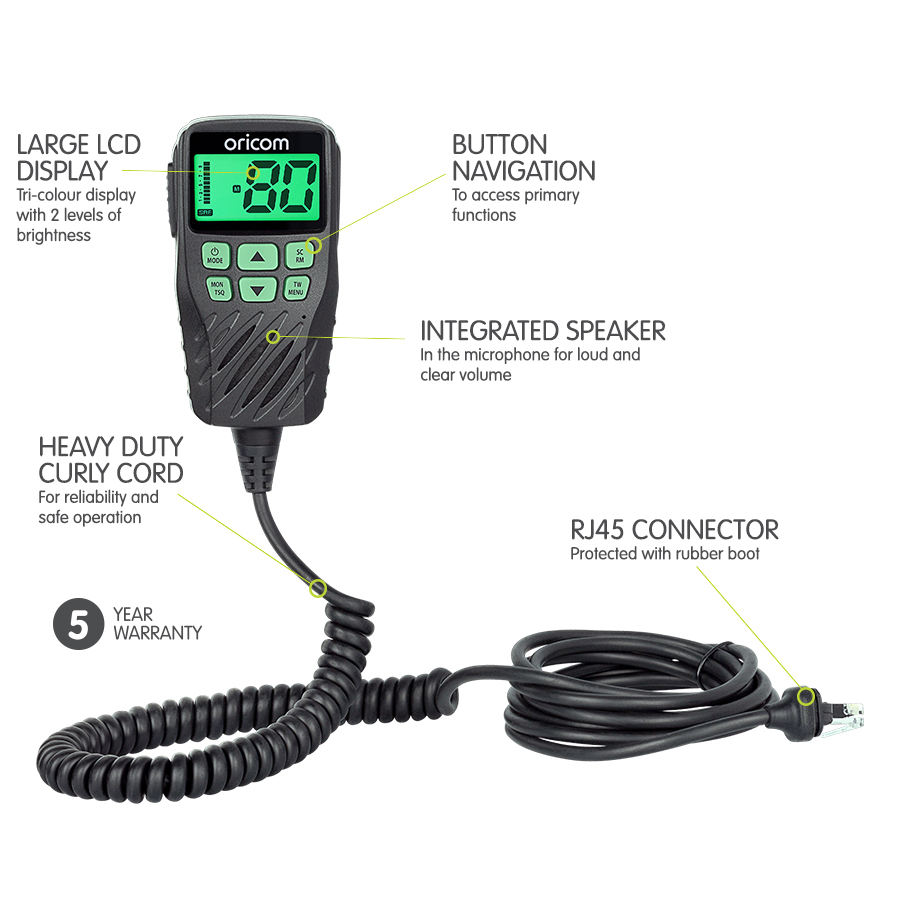

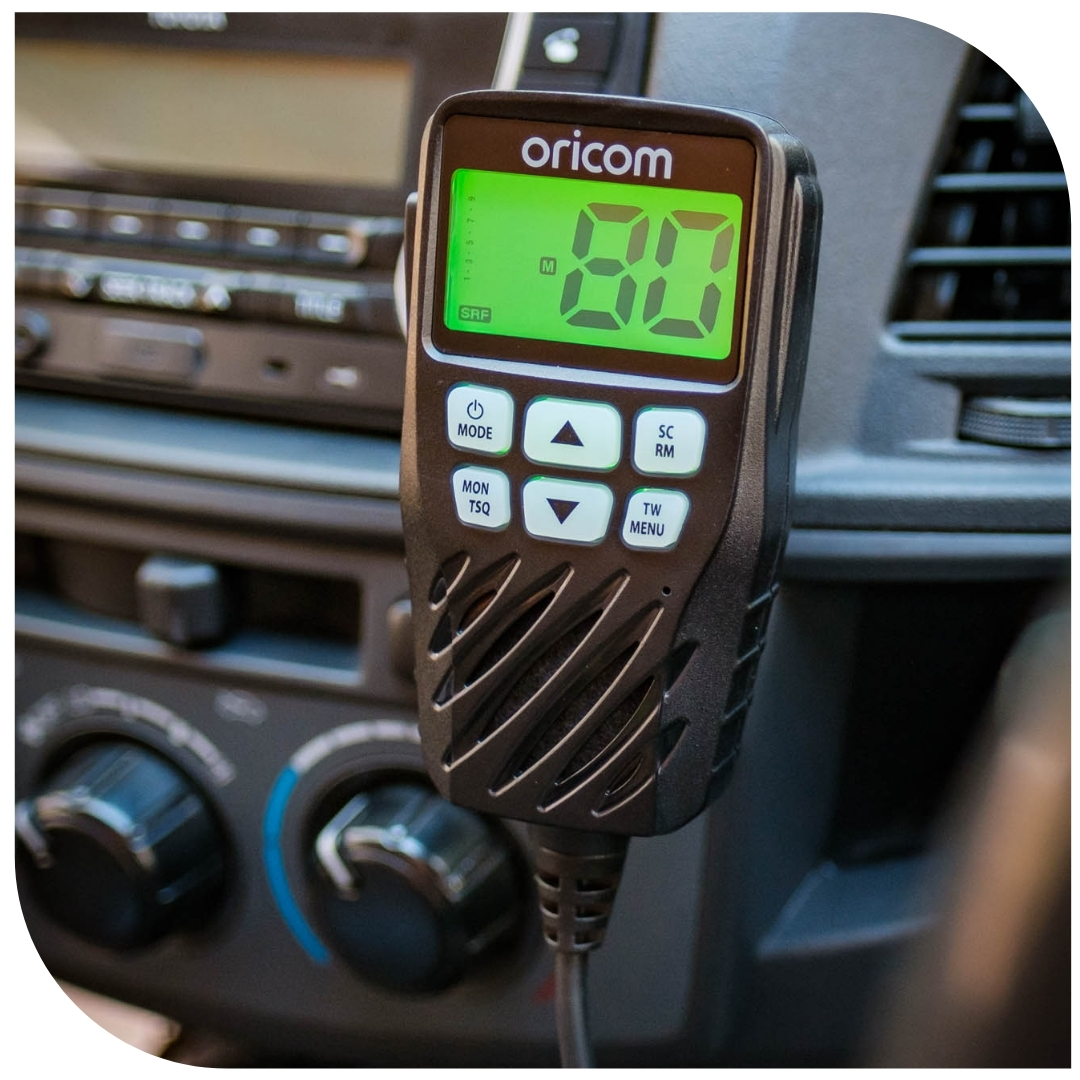

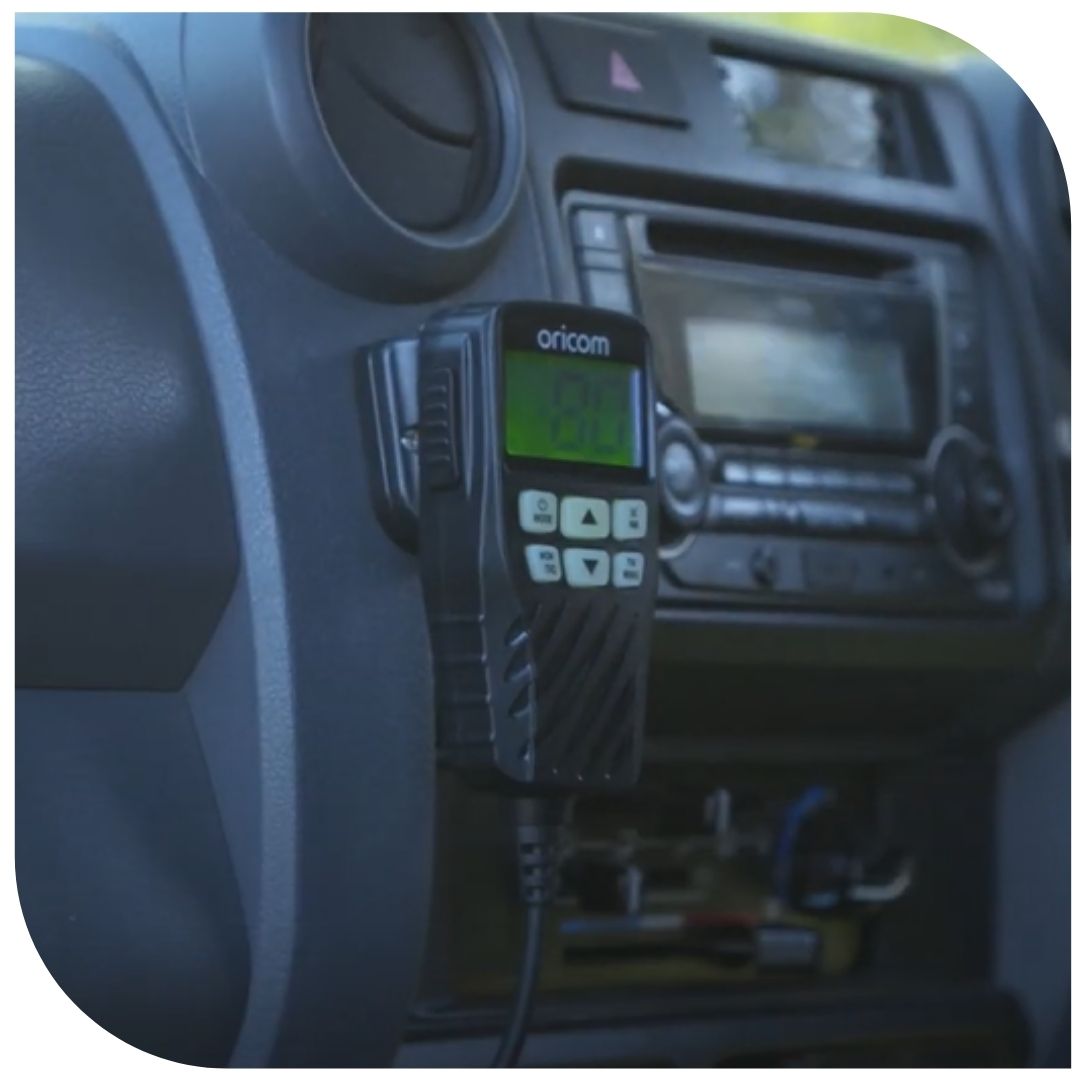

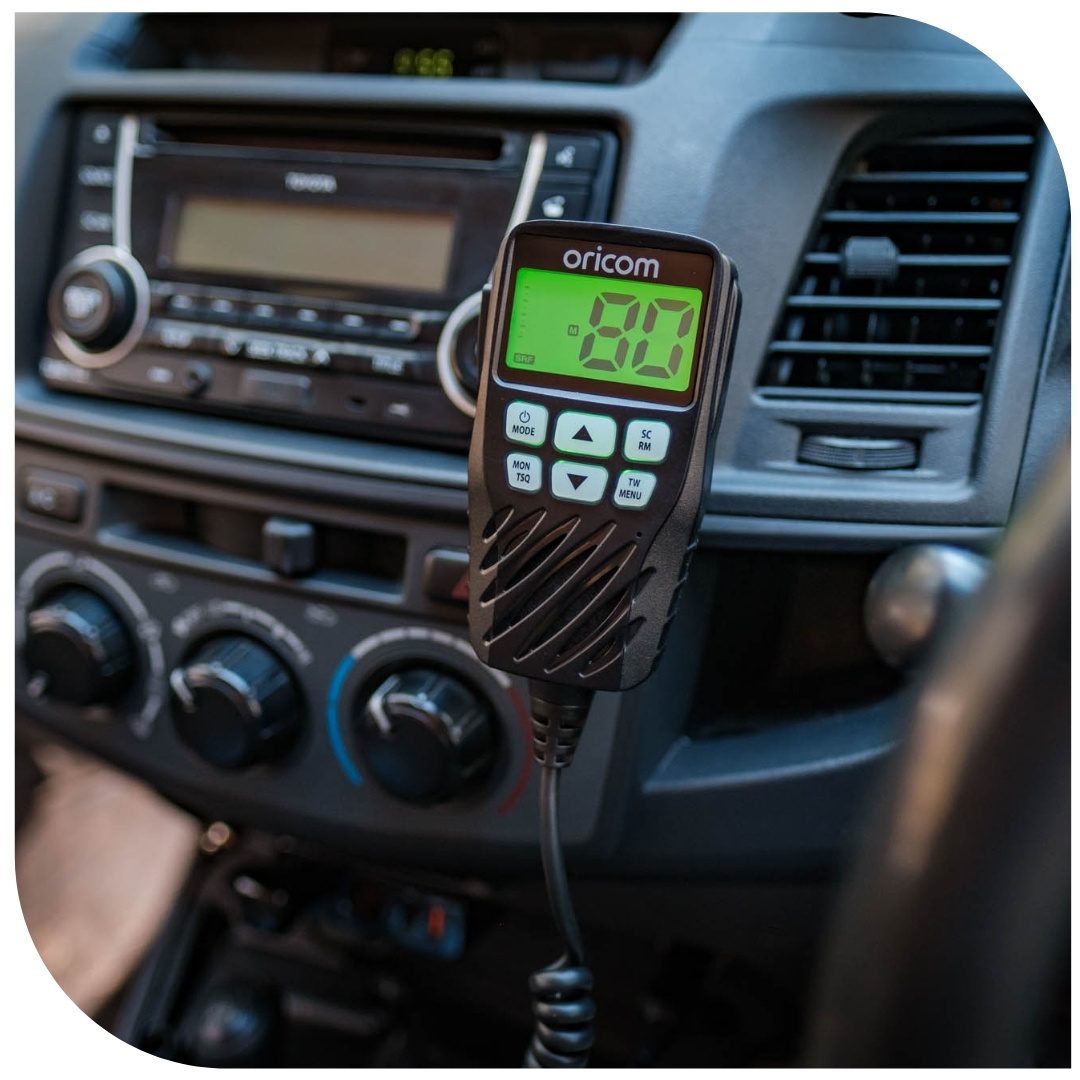

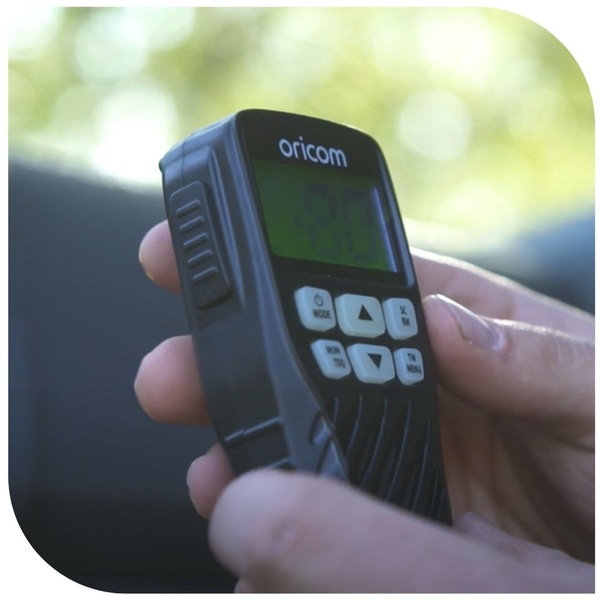

- Heavy duty controller speaker microphone

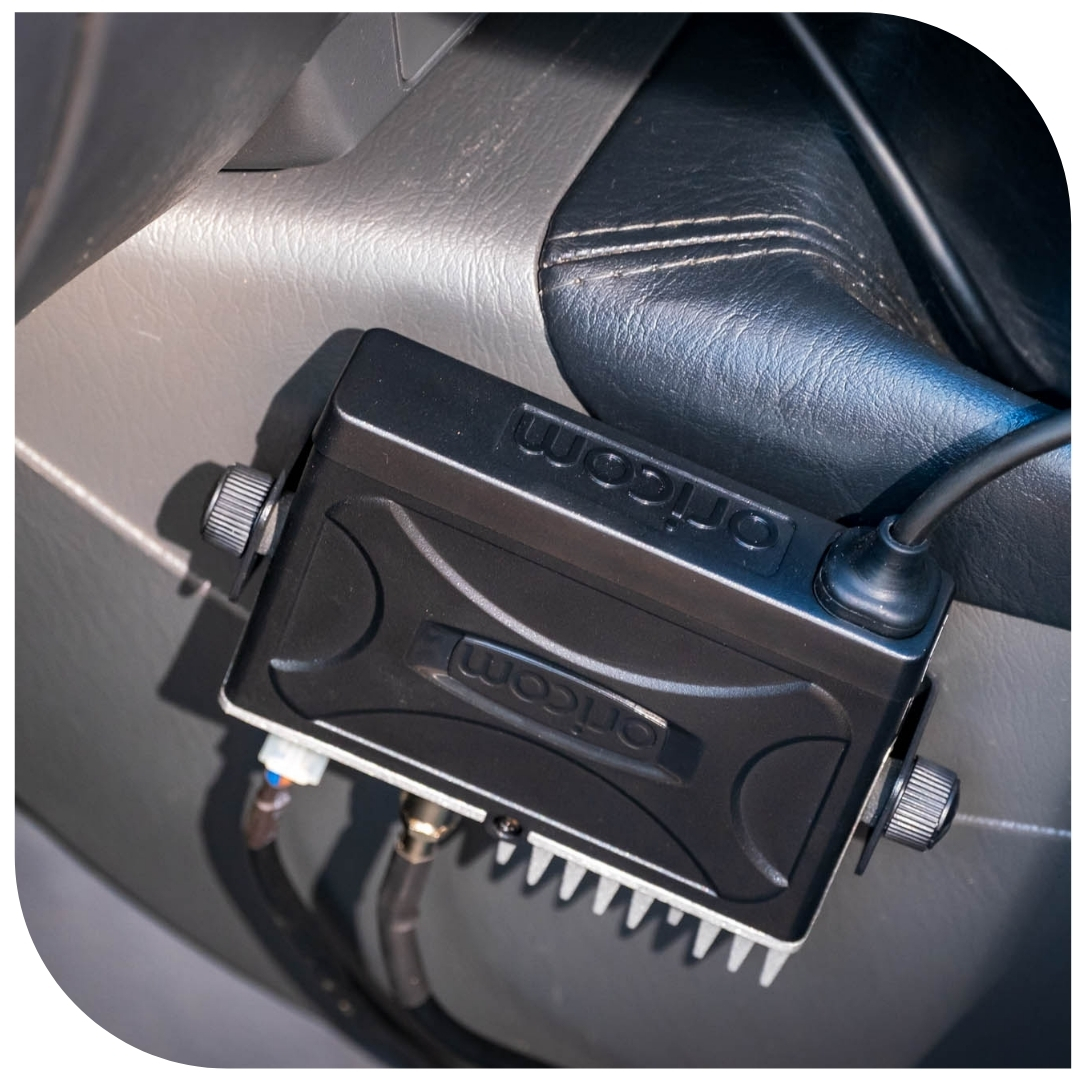

- Rugged micro size transceiver
- Large easy to read LCD display
- Audio equaliser
- 38 CTCSS and 104 DCS codes
- Duplex (range extender)
- Open/Priority scan
- Priority channel
- Tri colour backlit LCD display (Amber/Red/Green)
- 3.5mm external speaker jack
- Transceiver Dimensions 27 (h) x 102 (w) x 85 (d) mm
- Designed for Australian conditions. Made in Korea.
- 5 Year Manufacturers Warranty.
ANU215 Antenna Key Features:
- 6.5dBi Black Antenna
- High-gain low SWR antenna gives the best "all-round" transmit and receive performance
- Elevated feed, counter balanced spring and solid black fiberglass whip
- Coaxial Cable length: 4.5m
- Antenna Length: 830mm
