Oricom UHF360 5 Watt UHF CB Radio with Controller Speaker Microphone
(1) Review

Oricom UHF360 5 Watt UHF CB Radio with Controller Speaker Microphone

1 Review 5 1 Review
SOLD OUT

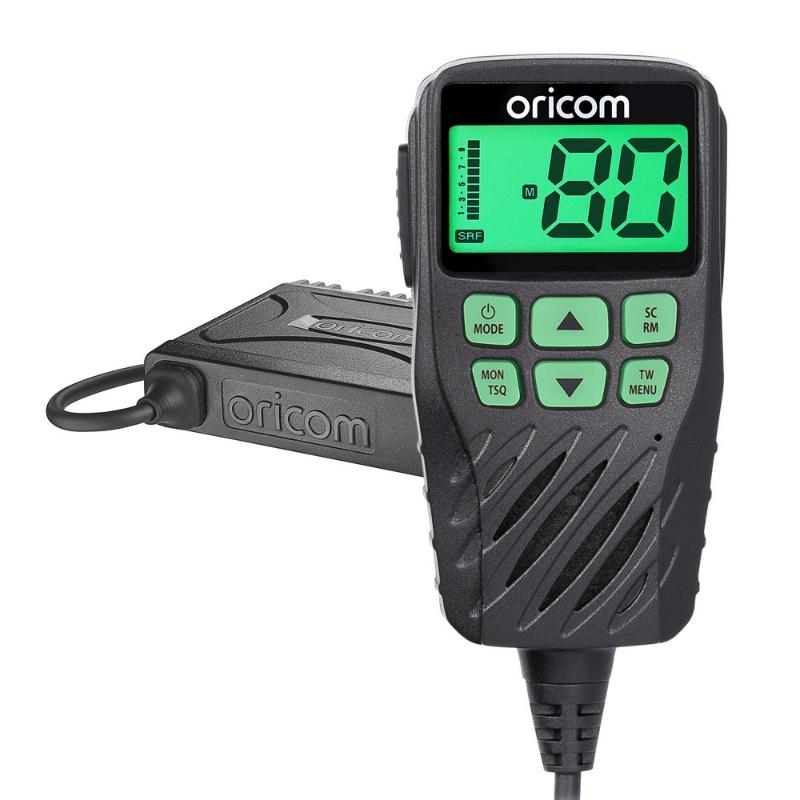

The UHF360 removes the need for a head unit, with all of the radio’s controls in the microphone. The integrated speaker in the controller mic works with the transceiver speaker to deliver exceptional sound quality and volume. Perfect for modern vehicles where space is limited. Transceiver Dimensions 27 (h) x 102 (w) x 85 (d) mm. General UHF360 Technical Specification: Frequency Range TX/RX 476.425 - 477.4125 MHz, Number of TX/RX Channels 80 UHF CB (75 Voice channels), Channel Spacing TX/RX 12.5KHz, Operating modes Simplex, Repeater TX offset (+750kHz), Scanning Speed 130 msec per channel, Antenna Impedance 50 Ohms, Operating Volts nominal 13.8VDC, Operating Volts Range 10 to 15 VDC, Over Voltage Protection voltage regulator, Over Current Protection 2 AMP fuse, Reverse Polarity, Protection Shunt diode, Frequency stability +/- 2.5ppm. Pack Includes: 1 X UHF CB Radio (UHF360), 1 X Heavy Duty Controller Speaker Microphone, 1 X Microphone mounting bracket, 1 X Transceiver mounting bracket, 1 X Pack of supplied mounting screws and User Guide.


Specifications:

The UHF360 removes the need for a head unit, with all of the radios controls in the microphone. The integrated speaker in the controller mic works with the transceiver speaker to deliver exceptional sound quality and volume. Perfect for modern vehicles where space is limited. Transceiver Dimensions 27 (h) x 102 (w) x 85 (d) mm. General UHF360 Technical Specification: Frequency Range TX/RX 476.425 - 477.4125 MHz, Number of TX/RX Channels 80 UHF CB (75 Voice channels), Channel Spacing TX/RX 12.5KHz, Operating modes Simplex, Repeater TX offset (+750kHz), Scanning Speed 130 msec per channel, Antenna Impedance 50 Ohms, Operating Volts nominal 13.8VDC, Operating Volts Range 10 to 15 VDC, Over Voltage Protection voltage regulator, Over Current Protection 2 AMP fuse, Reverse Polarity, Protection Shunt diode, Frequency stability +/- 2.5ppm. Pack Includes: 1 X UHF CB Radio (UHF360), 1 X Heavy Duty Controller Speaker Microphone, 1 X Microphone mounting bracket, 1 X Transceiver mounting bracket, 1 X Pack of supplied mounting screws and User Guide.


Specifications:
UHF360 Key Features:

  • 5 watt (max TX power)

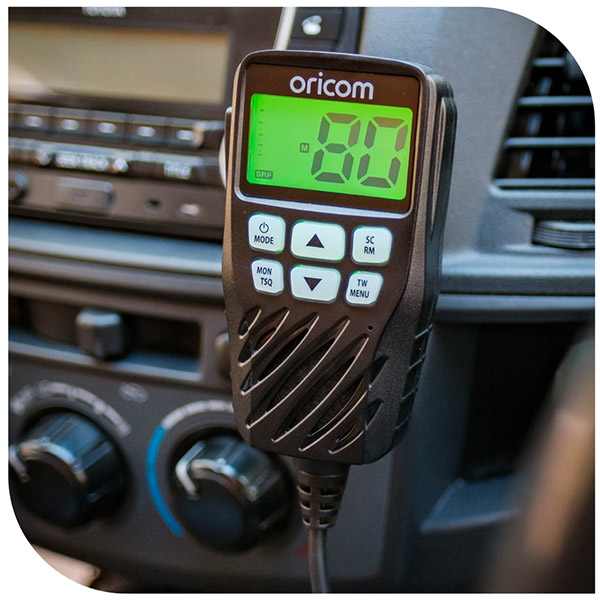

  • Heavy duty controller speaker microphone
  • Rugged micro size transceiver
  • Large easy to read LCD display
  • Audio equaliser
  • 38 CTCSS and 104 DCS codes
  • Duplex (range extender)
  • Open/Priority scan
  • Priority channel
  • Tri colour backlit LCD display (Amber/Red/Green)
  • 3.5mm external speaker jack

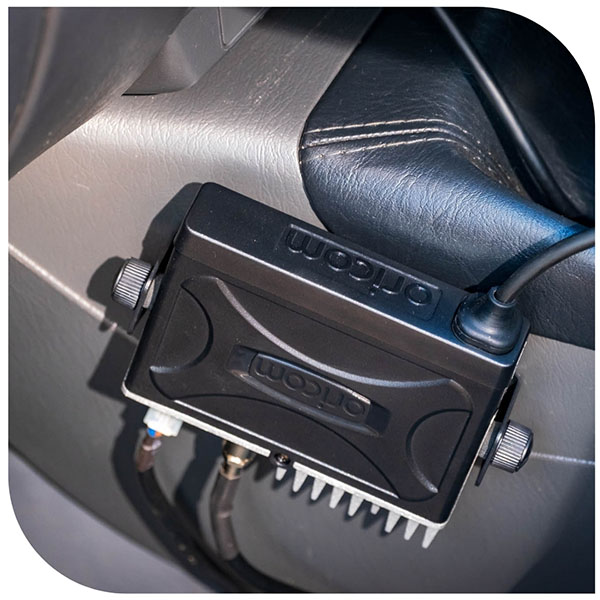

  • Transceiver Dimensions 27 (h) x 102 (w) x 85 (d) mm
  • Designed for Australian conditions. Made in Korea.
