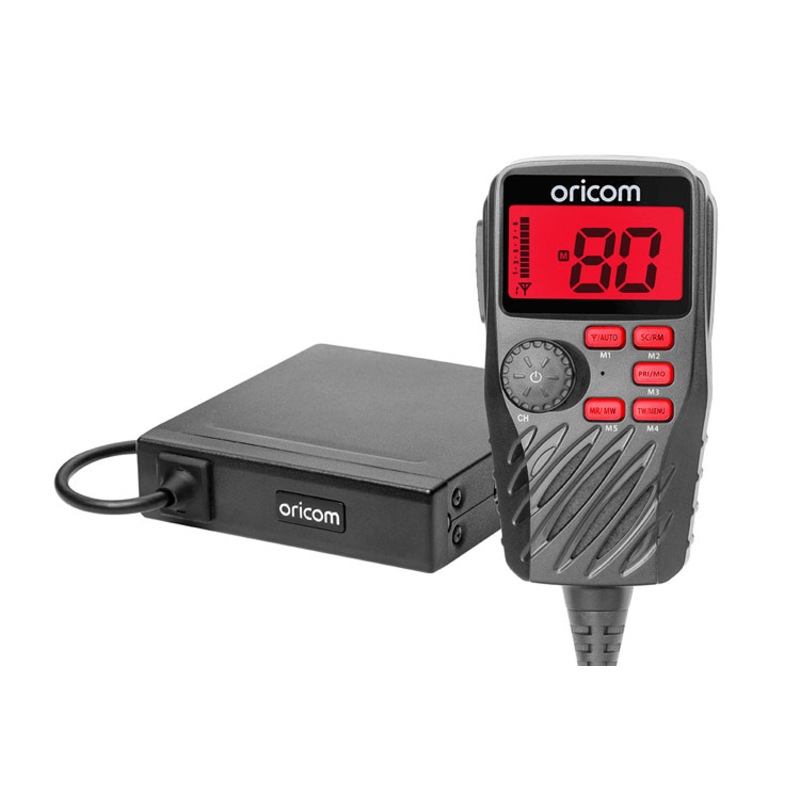

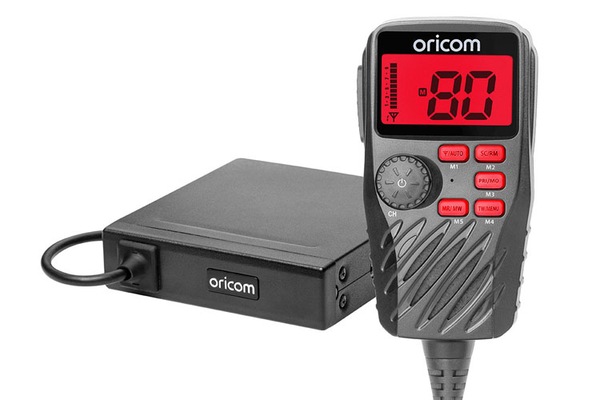

Oricom UHF182X Dual Antenna 5 Watt UHF CB Radio Heavy Duty
3x

Oricom UHF182X Dual Antenna 5 Watt UHF CB Radio Heavy Duty

Hurry! 3 items left!
Price
$358.85
Collect 1074 Everyday Rewards points
Score 3x points on every order
Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply
Log in to MyDeal to link your card
Shipping
Free Shipping

24-48 hour dispatch
Quantity
Maximum item limit (3) has been reached.

UHF182X Dual Antenna 5 Watt UHF CB Radio
  • Integrated Dual Antenna System

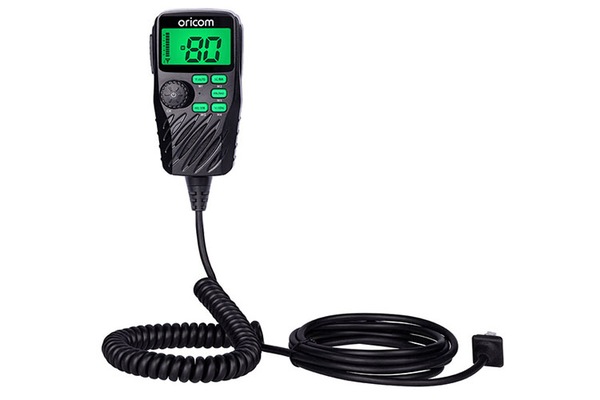

  • Heavy duty controller speaker microphone
  • 80 channels
  • Open/priority & memory scanning
  • 5 Memory channels
  • Over/under voltage alert function
  • 38 CTCSS & 104 DCS codes
  • 3 colour backlit display
  • 2 levels of brightness
  • Audio scrambler
  • Tri-watch
  • Automatic power off
  • Duplex (range extender)
  • Volume, channel & squelch control
  • 3.5mm external speaker jack
  • Requires at least one antenna (not supplied)
  • Designed, engineered and made in Korea
  • Transceiver Dimensions (29mm x 110mm x 115mm)



  • GENERAL
  • Compliance - AS/NZS 4365:2011
  • Frequency Range - TX/RX 476.425 - 477.4125 MHz
  • Number of TX/RX Channels - 80 UHF CB
  • Channel Spacing - TX/RX 12.5KHz
  • Operating modes - Simplex, Repeater TX offset (+750KHz)
  • Scanning Speed - 130mS per channel
  • Antenna Impedance - 50 Ohms for ANT1, ANT2
  • Operating Volts nominal - 13.8VDC
  • Operating Volts Range - 10 to 15VDC
  • Over Voltage Protection - Diode and Voltage regulator system
  • Over Current Protection - 2 AMP fuse
  • Reverse Polarity Protection - Shunt diode
  • Frequency stability - +/- 5 ppm
  • Dimensions (H) X (W) X (D) - 29mm X 110mm X 115mm

  • TRANSMITTER
  • RF Output Power - Nominal 5 watts
  • Modulation - F3E(FM)
  • Maximum deviation - 2.5KHz
  • Spurious Emissions - <-30dBm
  • TX Audio pre-emphasis - +6dB/Octave from 300Hz to 3KHz
  • Current consumption during TX - 1.6AMP with 50ohm antenna termination

  • RECEIVER
  • Circuit Type - Direct conversion by single DSP Chip
  • Intermediate Frequencies - 137kHz
  • Maximum useable sensitivity - Less than -122dBm for 12dB SINAD un-weighted
  • Audio output power - > 2 Watts at 8 ohm load
  • RX Audio de-emphasis - +6dB/Octave from 300Hz to 3KHz
  • Signal to Noise Ratio - >40dB
  • Conducted Spurious Emission - >-57dBm


* DISCLAIMER: Design, features and specifications subject to change without notice. Some features in videos on the Internet may not be available on all models, please contact us for the TECHNICAL SPECIFICATIONS for a complete list of features by model. This feature list is for reference only, please contact us to verify features and functionality.
