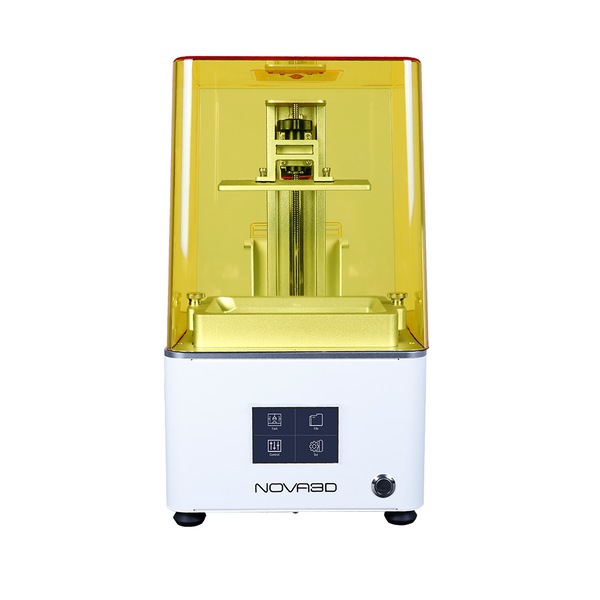

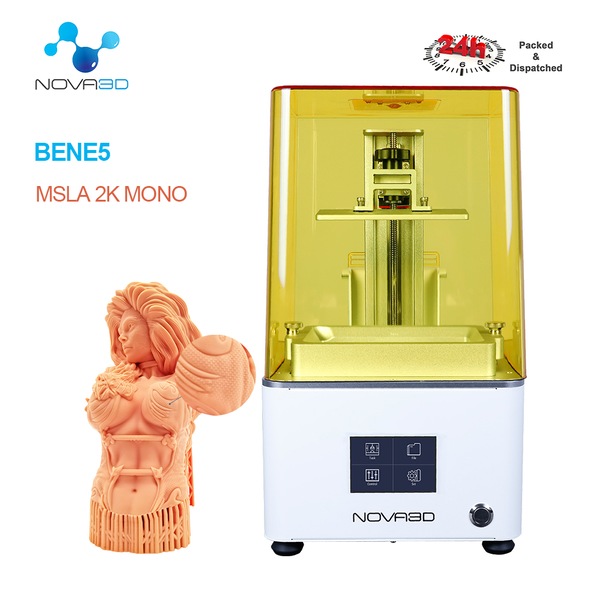

NOVA3D Bene5 mono SLA resin 3d printer
- Bene5 is equipped with a ultra-silent motor driver IC designed by NOVA3D, 35db Silent Motor Driver, it is hardly to hear the sound after close the UV cover.
- NOVA3D Bene5 carry #3rd Gen Crystal UV Light Source with uniform light, which provied outstanding Print Quality. Model Accuracy can be to ±0.04mm. 2560*1620 2K Monochrome Screen also greatly saved your printing time.
- Pre-Leveling design, WIFI transmission, and the All-Metal body bring you stability. At the same time, you can even DIY your own exhaust pipe with the reserved Air extraction port to remove the smell of resins.
- It support multiple slicing software ,like NovaMake , ChiTubox(plug in) , Lychee Scling.
- The Max Power of BENE5 only 20W! The screen temperature is 48℃ during working, which improve the service life of screen and save your maintenance costs.
About this item
Speed up your creativity
- Compared with Bene4 mono, the body design is more compact and cute, and the print volume remains unchanged;
- Equipped with a 2560*1620 6.08 inch monochrome screen like the Bene4 mono, while using a third-generation crystal light source, the UV transmittance is increased by 3.9% compared to the RGB screen.
- Brand new color matching, bright and moving.
- In order to respond to low carbon and environmental protection and reduce energy consumption, the power consumption of this NOVA3D Bene5 is 20W.
- An exhaust hole is designed on the back of the machine to exhaust the unpleasant and poisonous resin odor to the outdoors, eliminating customers' worries about indoor printing.
Note:Please note that when printing, do not remove the USB flash drive from the printer, otherwise printing will stop.
2K Monochrome screen 6.08 inches
Fast Printing
- The printing speed is increased by 3times compared to all the RGB screen resin printer, and the printing time is 17% decreased. Which greatly saved your time
- Longer Lifespan6.08 inches monochrome screen, 2560*1620px, transmittance increased by 3.9%, Service life is 3 times than normal RGB LCD and can reach 2000 hours.
- The temperature of mono LCD is 42℃, dropped by 22% compare with RGB LCD.
- So in this case, the monochrome screen has the illumination transmittance increased by 3.9%, the service life is approx.

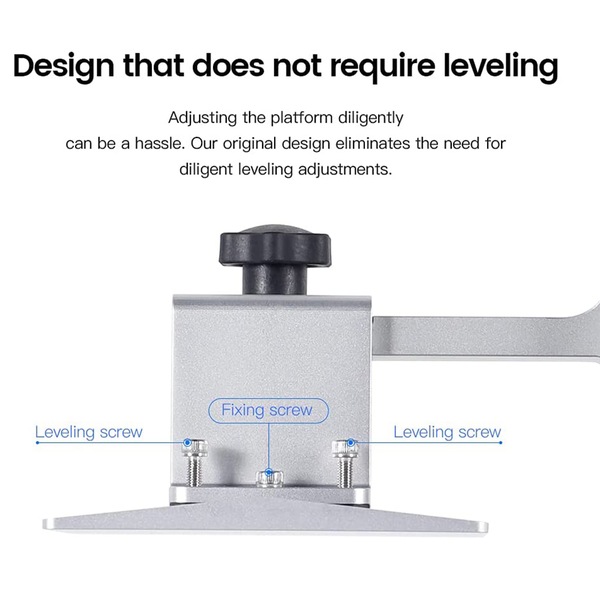

Truely Free Leveling
- Bene5 is also a truly free leveling and a the leveling method is brand new.
- 6 screws to fix the leveling condition.As long as the screws are not loose, they will remain leveled.
- Even if the platform is hit hard, it will not break the leveling.
Updated UV light source
- 3rd generation crystal light source-New light source improves uniformity by 10% and saves power by 8%.
- Effectively increases printing success rates and printing accuracy.
Ultra-quiet driving device
- Equipped with ultra-quiet driving device, you can't feel the printer printing when you close the hood.
- Even if you put it indoors, you can print at any time, no noise affects your rest and work
Multi-Software support
- NovaMake - suitable for basic users, connect your printer and PC via Wi-Fi
- Lychee Slices - help you slicing your models professionally
- ChiTu Box (Plug-in) - easy to use
Power-Saving
- In order to respond to low carbon and environmental protection and reduce energy consumption, the power consumption of this NOVA3D Bene5 is 20W.

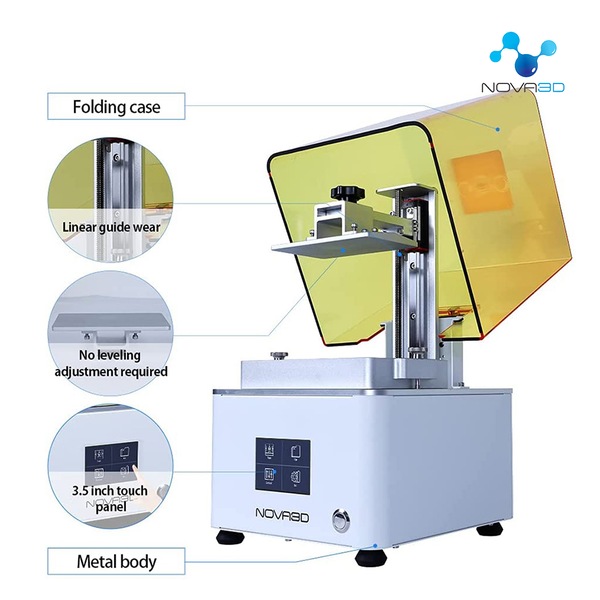

User-friendly Design
- Volume mark on Resin tank to show the MAX volume of the vat in case of resin spilling.
- Feet on the vat avoid the scratch between the FEP and the table.
- FEP quick release design will save your time of replace.
About NOVA3D:
- Founded in 2016,NOVA3D is a high-tech enterprise integrating 3D printer R&D, sales and service, and has established its own brand Nova3D.
- At present, Nova3D is mainly engaged in developing LCD 3D printer and 3D printing resins, devoting to bringing the users with better 3D printing experience.
- Nova3D has always been adhering to the principle of high-quality and simple-to-operate, and will move on to make consistent efforts for every creator to “print what you want”
- NOVA3D has been focusing on desktop-level printing, striving to bring the best products to customers. Not only can it meet the needs of ordinary players, but it can also meet the needs of industries such as dentistry, hand-made and jewelry.
Specifications：
Printing:
Technology：UV LCD/MSLA
Layer Height: 0.02 - 0.15mm
X/Y Printing Precision: 0.05mm
Z Precision: 0.01mm
Printing Speed: 18mm/h; 55mm/h
Build Size: 130*80*150mm
Compatible Materials: 405nm Resin
Output Formats: .cws
Hardware:

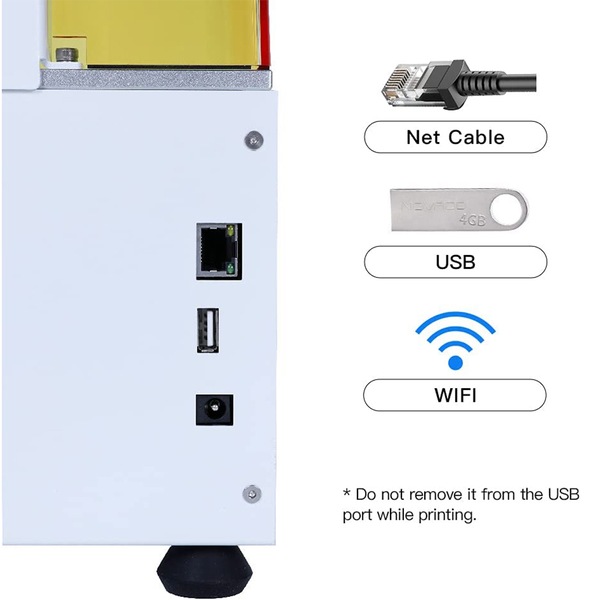

Connection: WIFI, LAN, USB
OS: LINUX
Touch Screen: 3.5inch
Lighting Source: 3rd generation crystal light source design
Working Temps：20 - 30 degree
Software Support:
Control Software: Novamaker / LycheeSlicer
Slicer Software: Novamaker / LycheeSlicer / CHITUBOX
Input Formats by Novamaker: .stl .obj .3mf .nmk
OS Supported: Mac OSX, Windows 7 or above
Power Supply:
Input: 100-240V/50-60Hz/1.8A
Output: 12V DC/3A
Max Power: 20W
Product Dimension:
Unit Size: 236*241*400mm
Package: 540*290*295mm / 9kg
