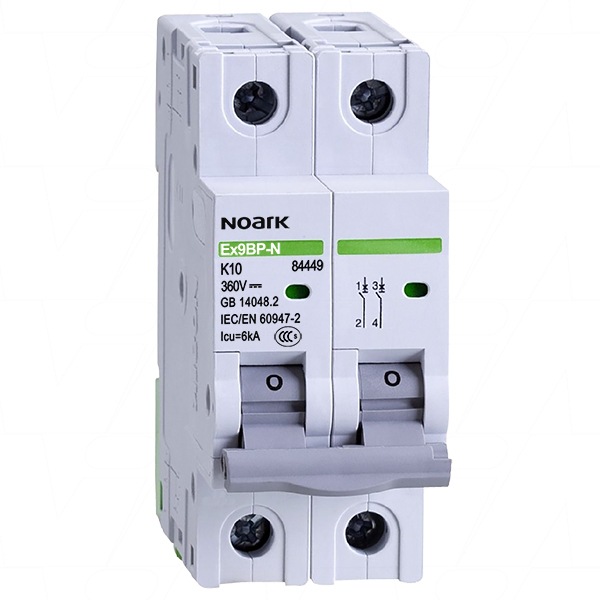

Noark N84449-2P-MCB 10A/360VDC EX9BP-N 2 Pole DC Circuit Breaker

Noark N84449-2P-MCB 10A/360VDC EX9BP-N 2 Pole DC Circuit Breaker

Price	$69.74
	Collect 207 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	See delivery details

Quantity

Add to wishlist

Brand New

Selling Unit	EACH
Description	N84449 MCB EX9BP-N 10A 360V 2 Pole DC Circuit Breaker
Application	Solar, Automation, Control, Telecommunications, DC circuit applications
Original Brand	Noark 10000146
Voltage	360V
Size	10A
Width	36mm
Height	89mm
Length/Breadth/Depth	74mm
Weight	240g
Brand

Noark Miniature 360V DC Circuit Breakers (Non-polarised)

Noark DC miniature circuit breakers are non-polarised and suitable for short-circuit and overload protection of general direct current applications up to 10 A, in solar, automation, control, telecommunications, and many other DC circuit applications.

Specifications

Article Code	10000146
Noark Series	Ex9BP-N2P K 10A 360VDC
Poles	2 (180VDC per pole)
Current Rating (A)	10A
Voltage (Max.)	360VDC
Voltage (Min.)	12VDC
Rated Breaking Capacity	6kA
Curve Type	K
Rated Insulation Voltage (VDC) Ui	1000VDC
Terminal Capacity	35 mm²
Terminal Torque (Nm)	2-3.5Nm
Mounting	35mm Din Rail
IP Rating (All sides/terminals)	IP40 / 20
Standards	IEC/EN/AS60947-2, SAA101238EA

SKU: 65002-050
