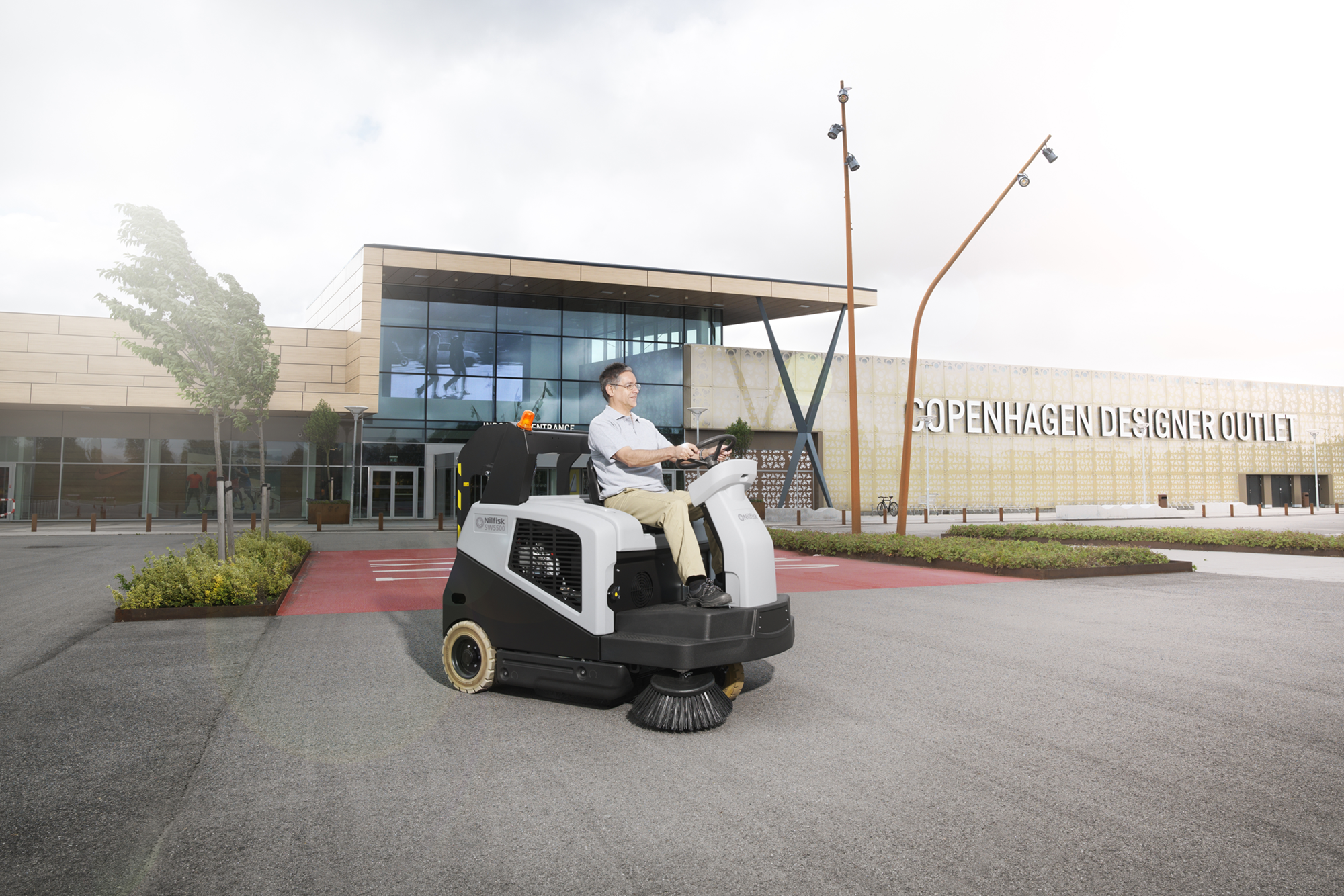

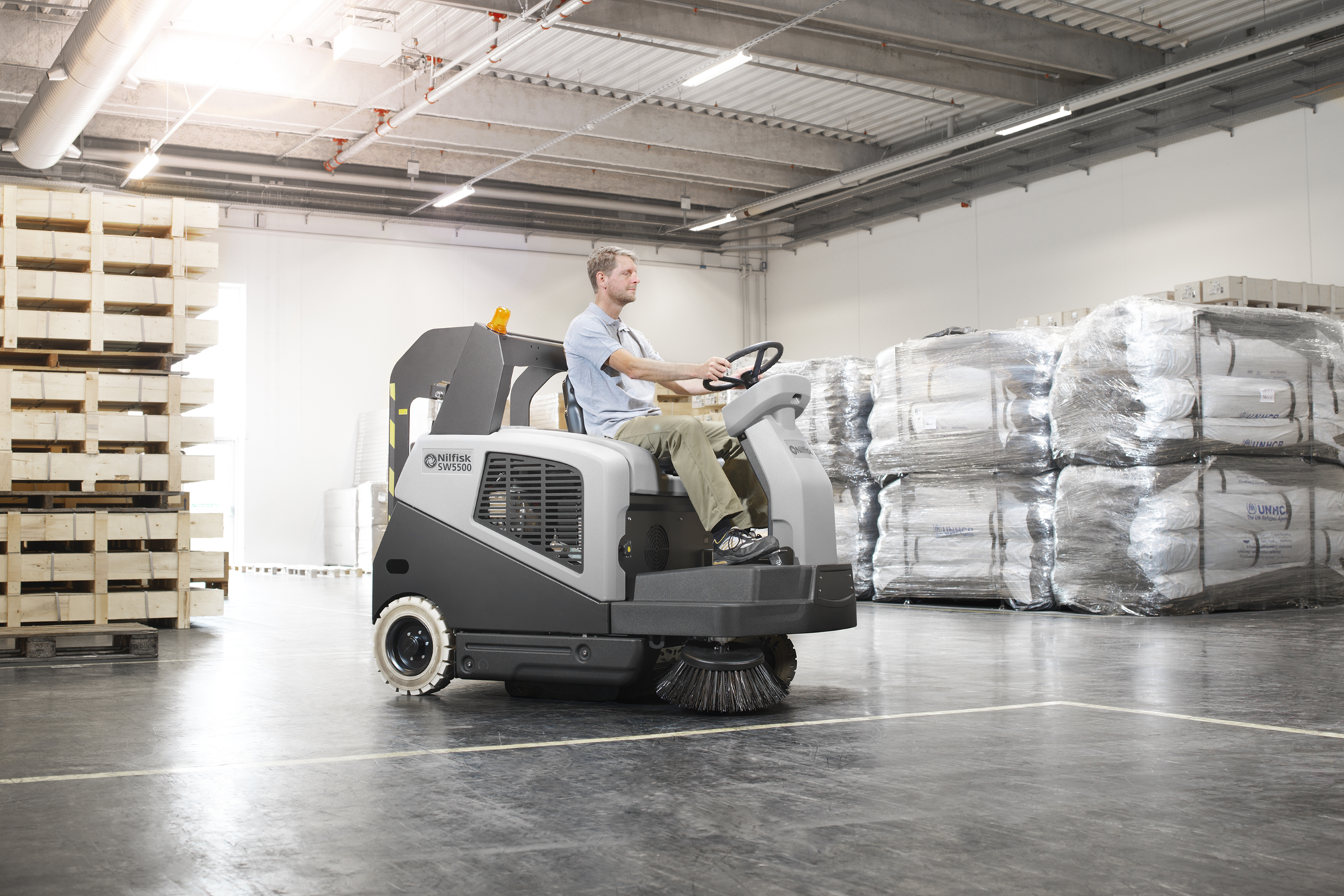

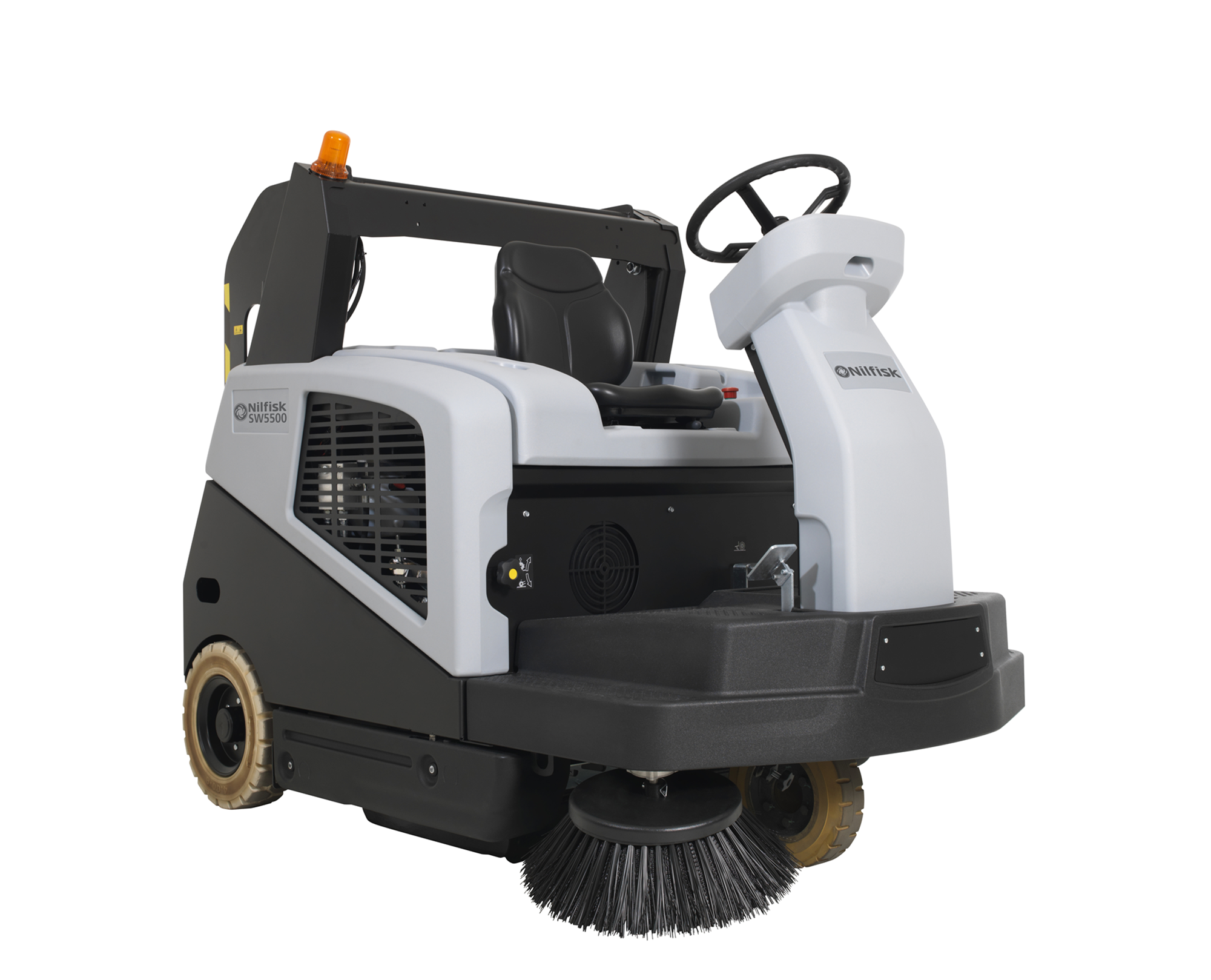

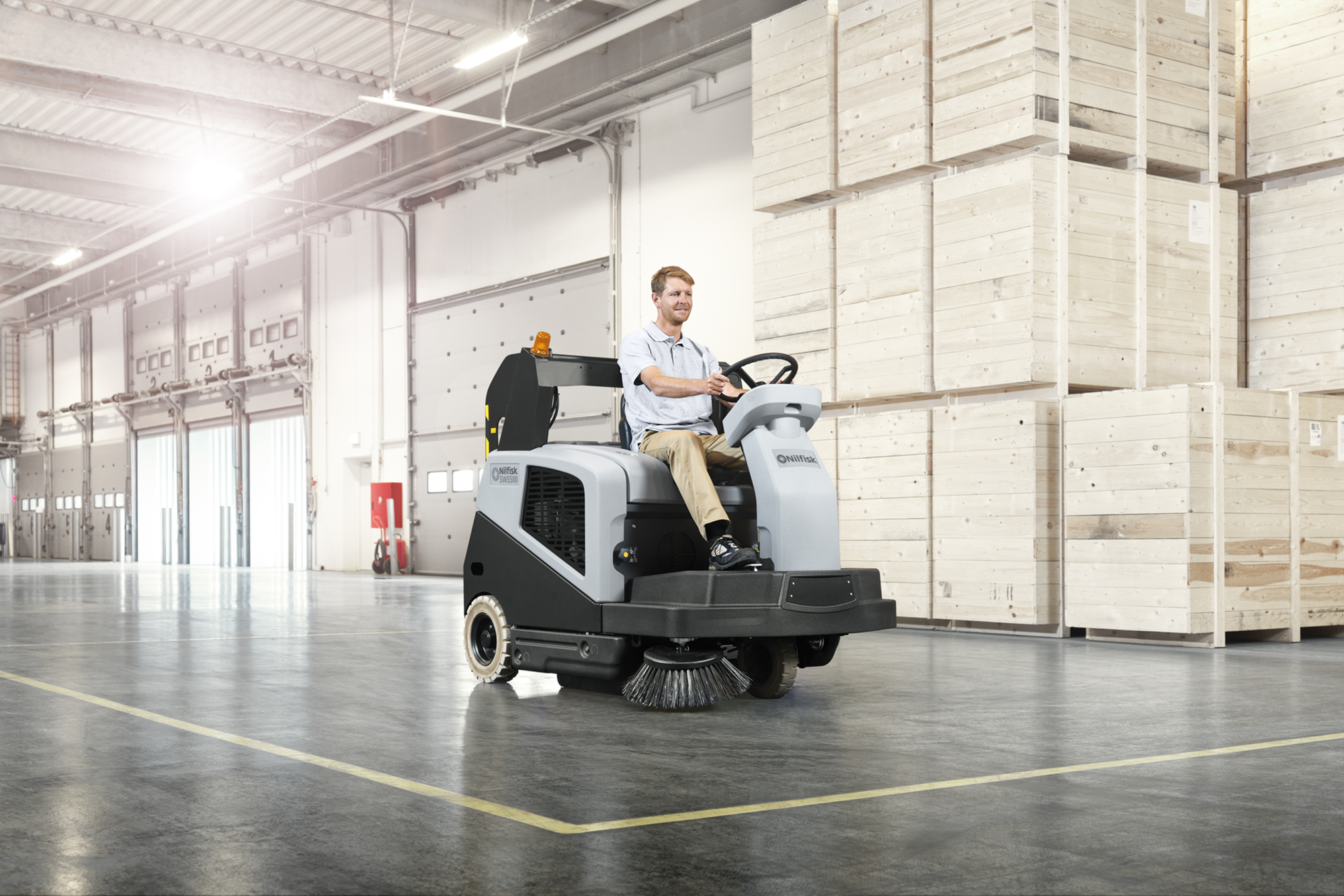

The SW5500 offers a highly productive, comfortable and cost-effective way to sweep large floors and outdoor areas of dust and debris. A ride-on sweeper with the size and capacity to speed up your cleaning.
Daily benefits like creating a safer environment and lowering the total costs of ownership make this machine an attractive choice for contract cleaners, industrial sites and factories, warehouses, distribution centers, sports arenas, parking lots of large retail stores or shopping malls, multi-store car parks, etc.
At the same time, SW5500 provides more sustainability with the optional hybrid technology reducing emission and the level of noise.What SW5500 does best for you:
1. Increases productivity at your fingertips
2. Lowers the total cost of ownership
3. Creates a safer and cleaner environment
Model No9084410010PA
Hopper volume (L)150
Max. speed (km/h)10
Motor power sourceDiesel, Yanmar 4.1 kW
Length x width x height (mm)1875x1200x1565
Operating weight (kg)838
Max. dumping height (cm)165
Working width (mm)850
Max. climbing rate (%)20
Working width with right side broom (mm)1175
Working width with 2 side brooms (mm)1500
Net weight (kg)757
Sound pressure level (dB(A))85
Side broom diameter (mm)500
Filter area (m )7
Side broom speed (RPM)40 - 155
Productivity 1 side broom theoretical/actual (m /h)11750/8225
Productivity 2 side brooms theoretical/actual (m /h)15000/10500
Productivity main broom theoretical/actual (m /h)8500/5950
Filter cleaning systemTimed multi-frequency
Flap lifting device Included
Paper panel filter Included
Hour Meter Included
Amber safety beacon Included
Back up warning alarm Included
Fuel indicator and gauge Included
Service indicator Included
Key switch Included
Parking brake Included

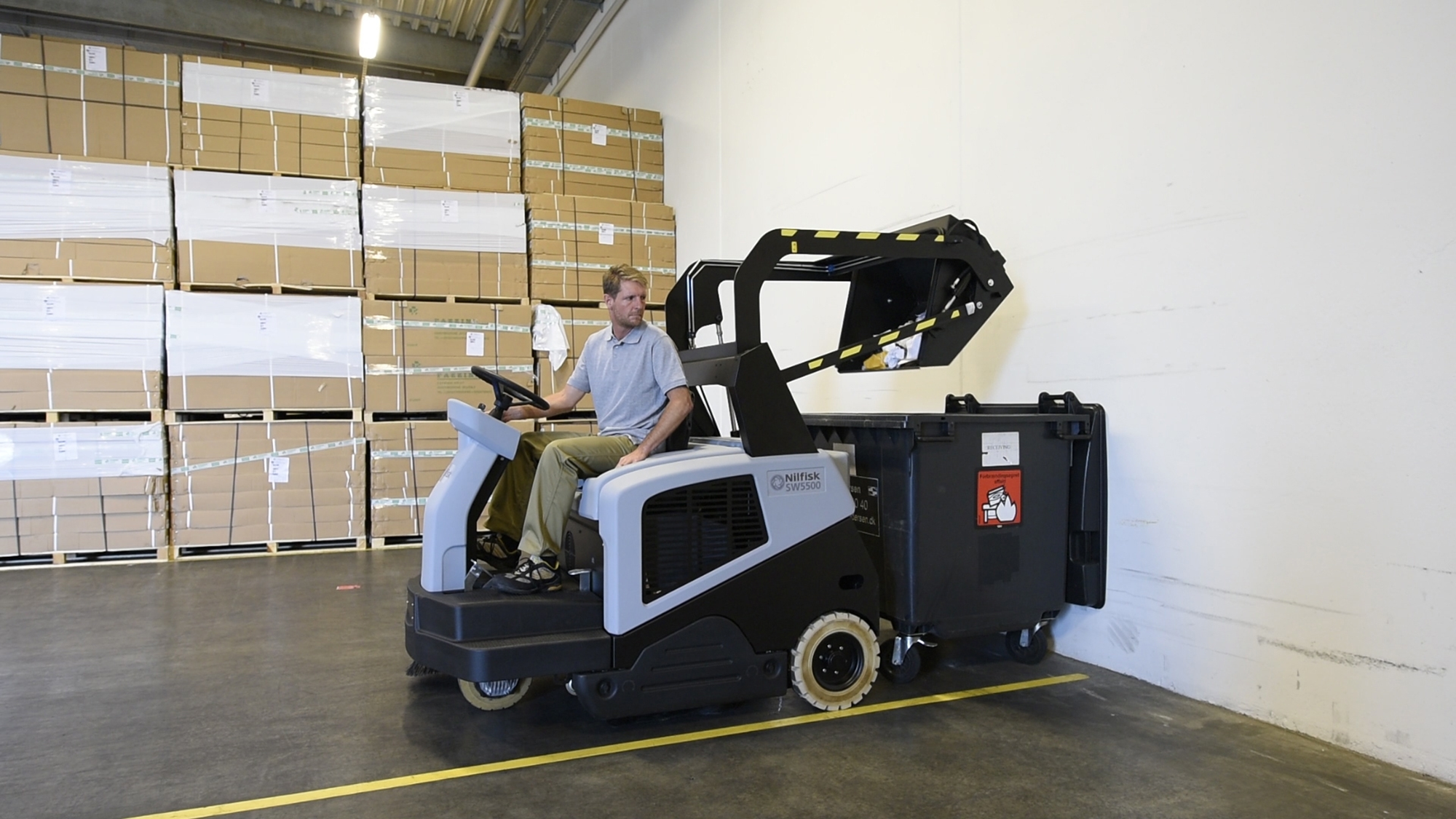

Variable high dump system Included
Diesel version Included
Non marking traction wheels Included
Horn Included
Wet sweep by-pass Included
Variable speed control Included
Automatic speed reduction Included
Adjustable side broom speed Included
Adjustable seat Included
Multi-frequency filter shaker Included
Electric start Included
Speed indicator Included
Overheat indicator Included
One-Touch Button Included
No tool broom adjustment Included
Foam filled rear wheels Included
Main broom worn alarm Included
Timed multi-frequency filter shaker Included
SW5500 Battery includes:
1467174000 Paper Filter Panel Ultra Web
1465717000 Main Broom Polypropylene
1466670000 Side Broom Polypropylene Black
EV506G-250 Battery 6 Volt (x4)
1466893000 Battery Charger
1467475000 Battery Tray
1464948000 Beacon Kit
