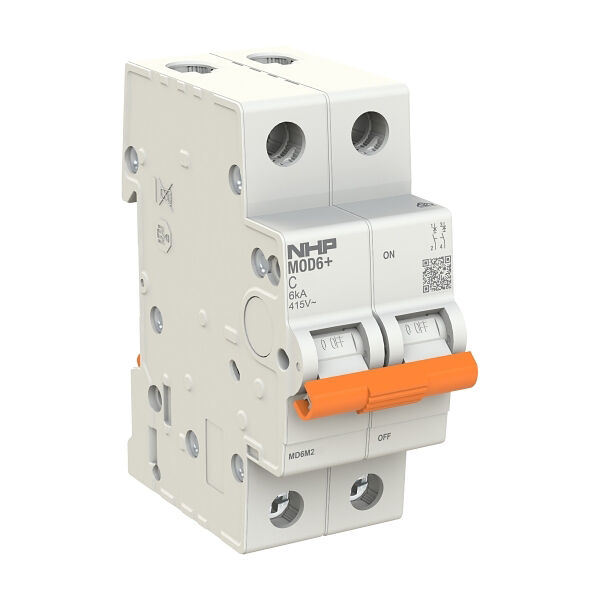

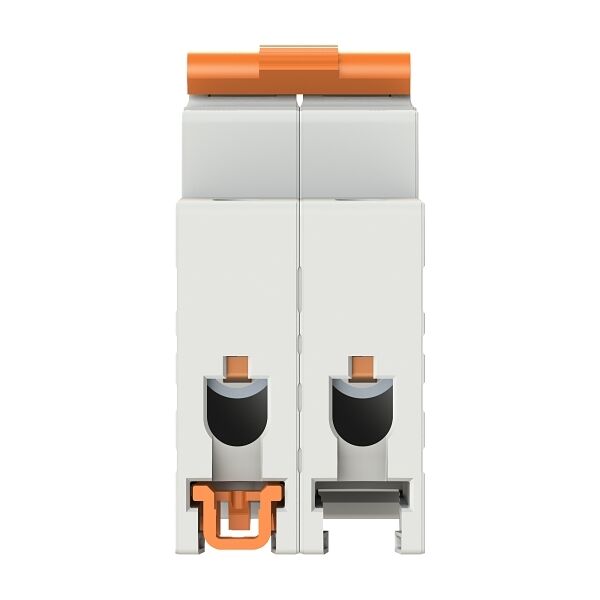

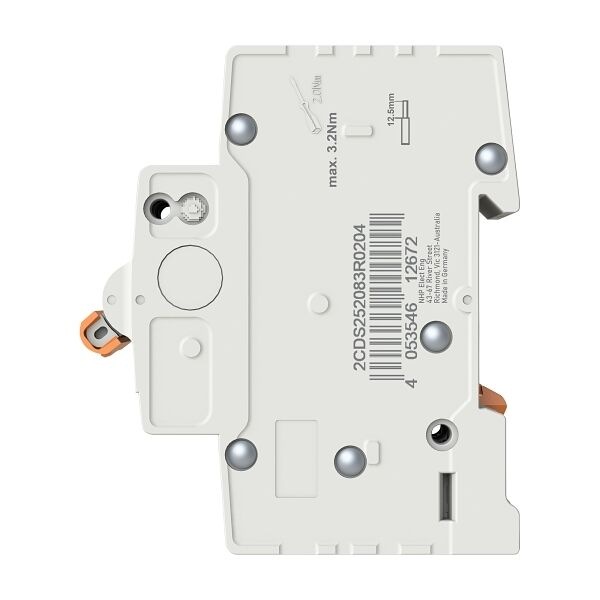

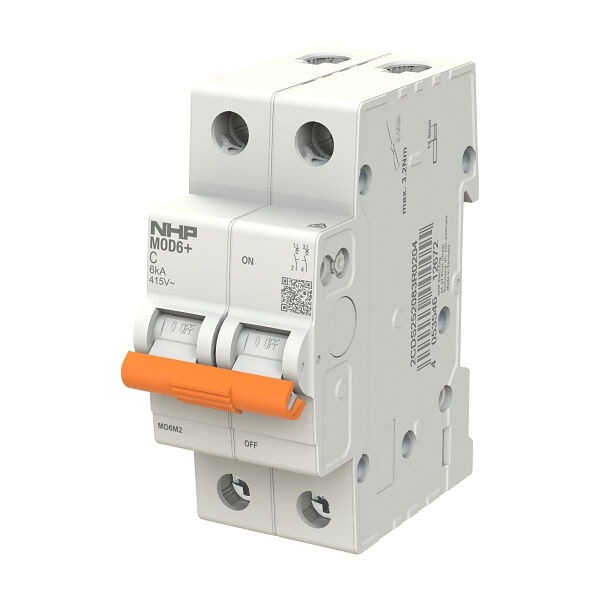

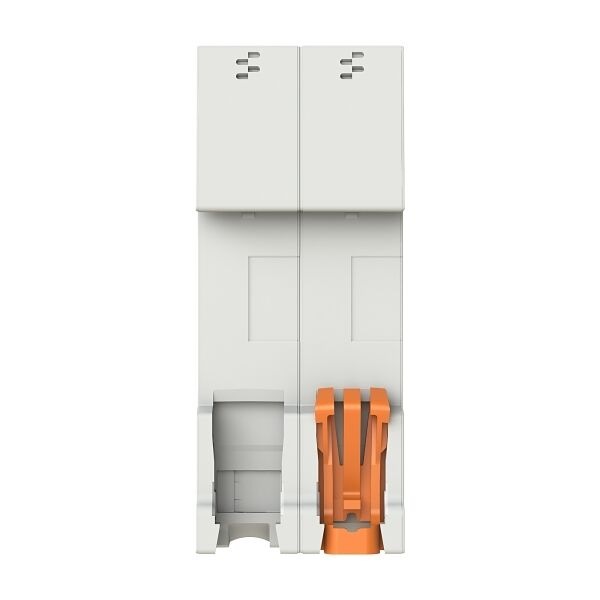

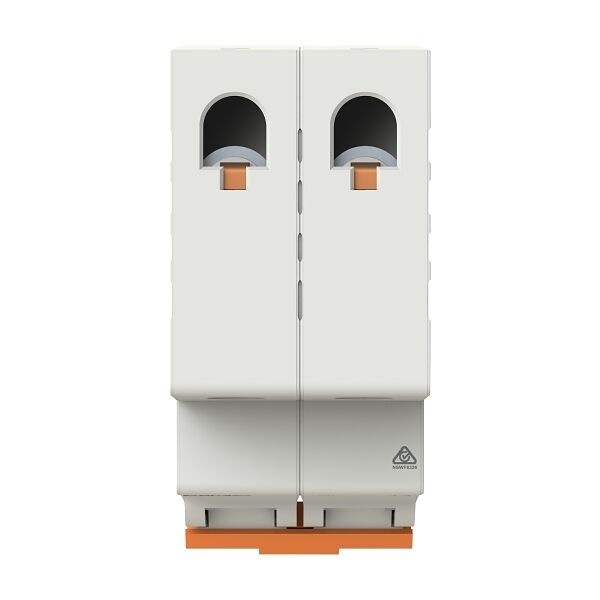

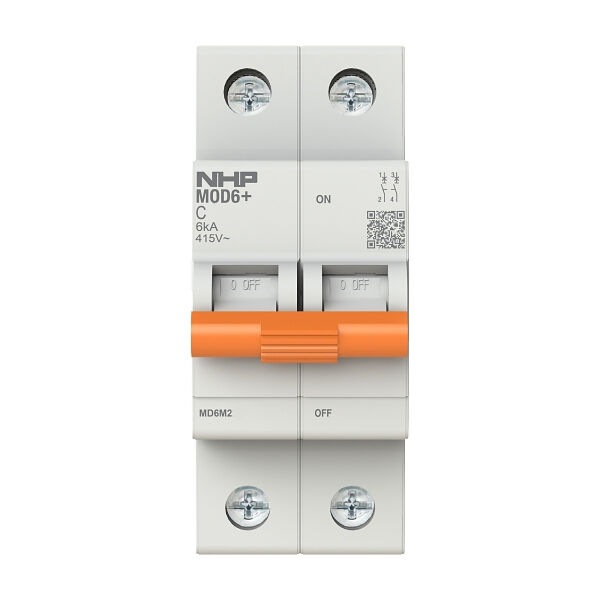

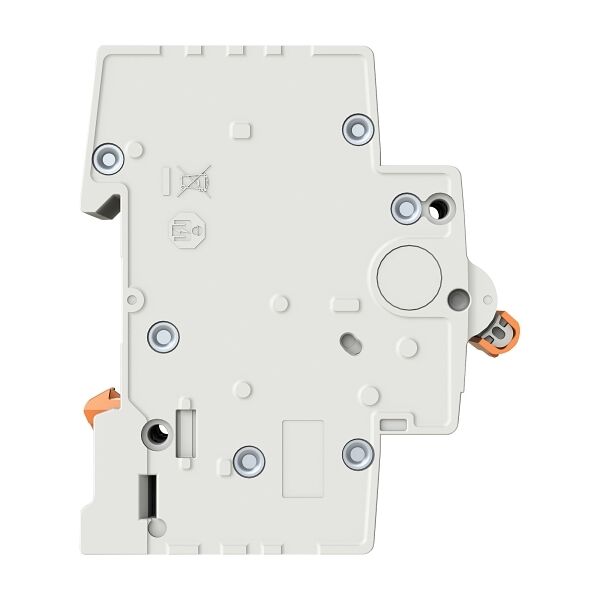

NHP MOD6+ 2 Pole Miniature Circuit Breaker 6kA

The NHP MOD6+ MD6M263 is a C Curve Miniature Circuit Breaker (MCB) designed for reliable overcurrent protection in residential, commercial, and light industrial applications. With a 6kA short-circuit rating and compliance with AS/NZS 60898, this breaker provides robust and efficient circuit protection for two-phase or single-phase with neutral systems.

Key Features:

• 2 Pole Protection: Simultaneously disconnects both active conductors or active and neutral, enhancing safety and compliance.
• C Curve Tripping Characteristics: Trips at 5 to 10 times the rated current, suitable for general-purpose applications such as lighting, appliances, and socket outlets.
• 6kA Short Circuit Rating: Tested to AS/NZS 60898 standards, providing protection against short-circuit currents at 230V and 400V AC.
• High Insulation & Impulse Withstand: Rated insulation voltage of 440V and impulse withstand of 4kV, ensuring safety under fault conditions.
• IP40 Protection: Ideal for installation within enclosures, offering resistance to dust and ingress.
• Dual Wiring Capability: Accepts both solid-core (0.75–25 mm²) and multi-stranded (0.75–16 mm²) conductors.

Specifications:

• Range / Model: MD6M2
• Poles: 2
• Available in Rated Current (In): 10A, 16A, 20A, 25A, 32A, 40A, 50A, and 63A
• Trip Curve: C
• Rated Voltage (Ue): 415V AC
• Rated Insulation Voltage (Ui): 440V
• Rated Impulse Withstand Voltage (Uimp): 4kV
• Short Circuit Breaking Capacity (Icn):
  • 6kA @ 230V AC
  • 6kA @ 400V AC
• Frequency: 50–60 Hz
• Conductor Sizes:
  • Solid Core: 0.75–25mm²
  • Multi-wired: 0.75–16mm²

Dimensions & Mounting:

• Height: 85mm
• Width: 35mm (2 DIN modules)
• Depth: 75.8mm
• Weight: 0.23kg
• Mounting: DIN rail

Environmental Ratings:

• Pollution Degree: 3
• Operating Temperature Range: -25°C to +70°C
• Without Derating: Up to 30°C ambient

Applications:

• Residential Distribution Boards: Protects double-pole circuits or active/neutral feeds.
• Commercial Installations: Used in retail, offices, and facility switchboards.
• Industrial Equipment Panels: Ideal for isolating and protecting medium-load circuits.
• General Load Protection: Suitable for air conditioners, lighting banks, and power outlets.

The NHP MOD6+ MD6M2 2 Pole MCB is a compact, high-performance circuit breaker designed for safe, effective overcurrent protection. Its C curve response, durable design, and wide operating temperature range make it a trusted choice for modern electrical installations requiring two-pole disconnection.
