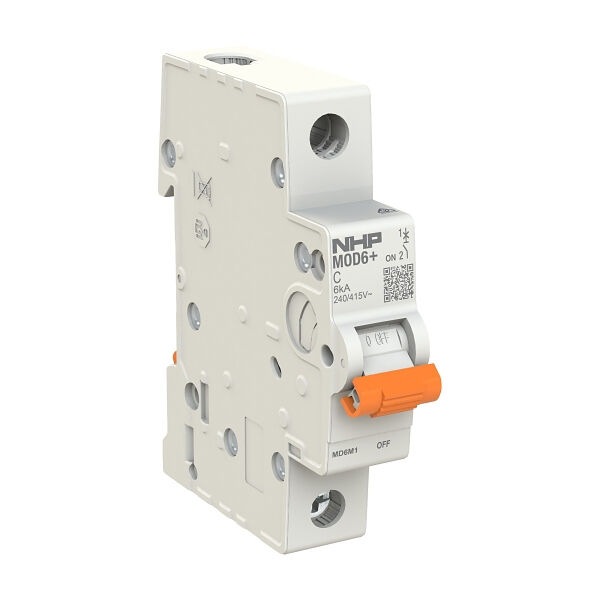

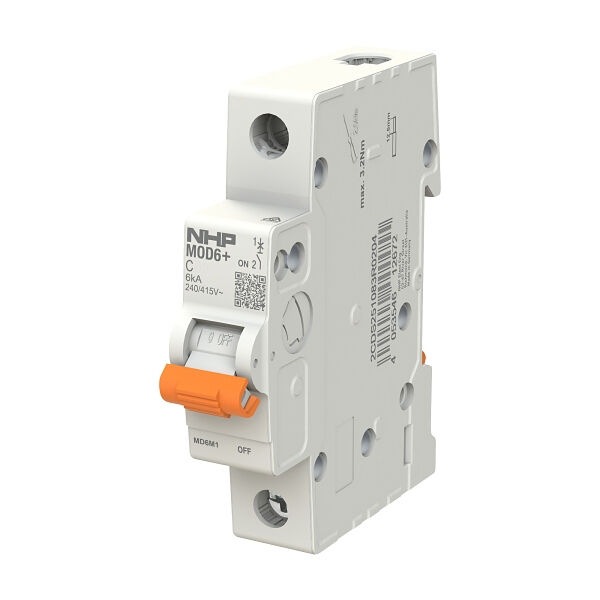

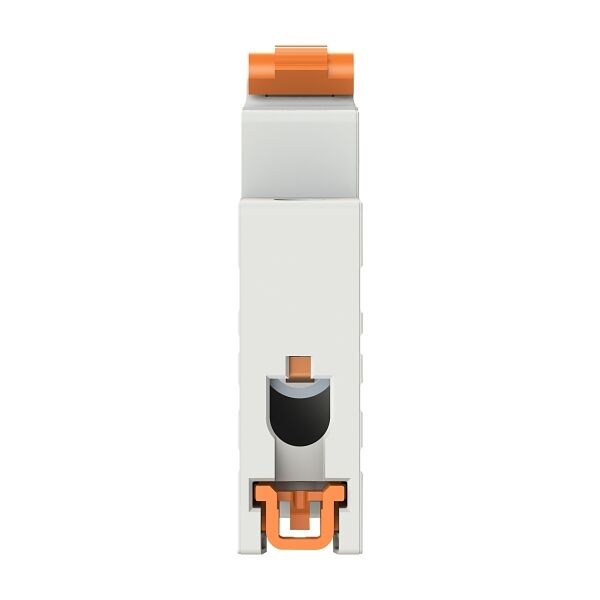

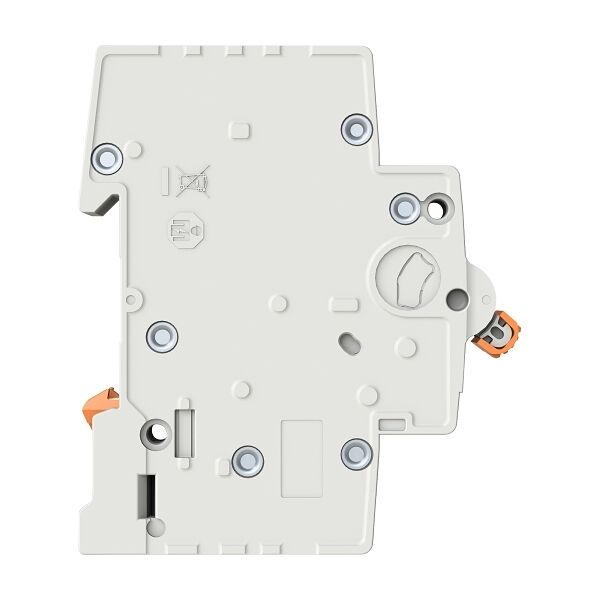

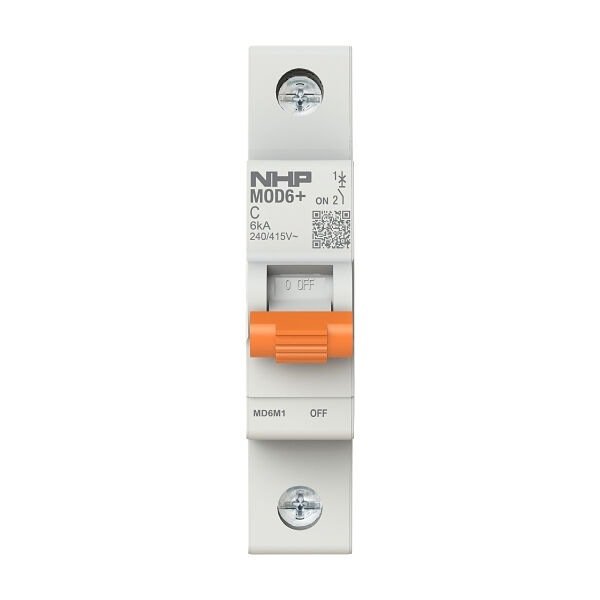

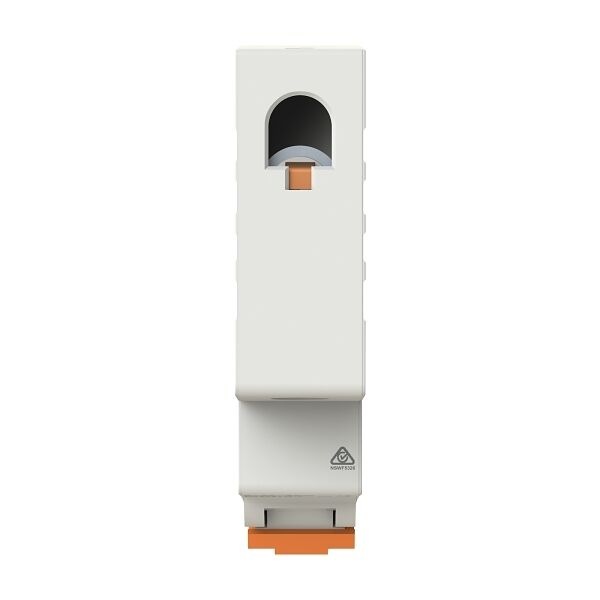

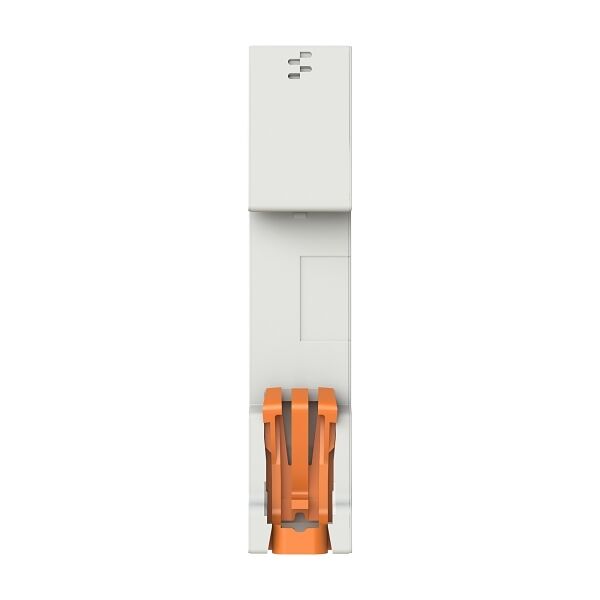

NHP MOD6+ 1 Pole Miniature Circuit Breaker 6kA

NHP MOD6+ 1 Pole Miniature Circuit Breaker 6kA

Price	$5.12
	Collect 5 Everyday Rewards points Log in to MyDeal to link your card
Amp	Please select an option
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

The NHP MOD6+ Miniature Circuit Breaker (MCB) is a 1 Pole, C Curve, 6kA-rated circuit protection device, designed for use in residential, commercial, and light industrial electrical installations. It offers reliable overcurrent protection with a robust construction and is compliant with AS/NZS 60898 standards.

Key Features:

C Curve Tripping Characteristics: Ideal for general-purpose loads such as lighting, socket outlets, and appliances with moderate inrush currents.
6kA Breaking Capacity: Provides protection against short-circuit faults up to 6,000A at 230V and 400V AC.
High Insulation & Impulse Withstand: Rated insulation voltage of 440V and impulse withstand of 4kV, ensuring safety under fault conditions.
Slim 1-Module Design: Occupies 17.5mm width on a DIN rail, ideal for space-constrained distribution boards.
IP40 Degree of Protection: Suitable for installation within enclosures, offering resistance to dust ingress.
Wide Operating Temperature Range: Performs reliably in ambient temperatures from -25°C to +70°C.

Specifications:

Range / Model: MD6M1
Available in Rated Current (In): 10A, 16A, 20A, 25A, 32A, 40A, 50A, and 63A
Poles: 1
Trip Curve: C
Rated Voltage (Ue): 240V AC
Frequency: 50–60Hz
Breaking Capacity (Icn):
- 6kA at 230V AC (AS/NZS 60898)
- 6kA at 400V AC (AS/NZS 60898)
Rated Insulation Voltage (Ui): 440V
Rated Impulse Withstand Voltage (Uimp): 4kV
IP Rating: IP40
Connectable Conductor Size:
- Solid-core: 0.75 – 25 mm²
- Multi-wired: 0.75 – 16 mm²

Dimensions:

Height: 85 mm
Width: 17.5 mm (1 module)
Depth: 75.8 mm
Weight: 0.12 kg

Environmental Ratings:

Pollution Degree: 3
Temperature (Without Derating): 30°C
Operating Temperature Range: -25°C to +70°C

Applications:

Residential Distribution Boards: Protects lighting, power outlets, and household circuits.
Commercial Installations: Suitable for office and retail environments.
Control Panels: Used in switchboards for equipment protection.
Light Industrial Use: For circuits with moderate inrush current loads like small motors and HVAC.

The NHP MOD6+ 1 Pole C Curve MCB (MD6M1) offers dependable protection in a compact form, making it a go-to solution for electricians and installers seeking performance, safety, and compliance with Australian standards.
