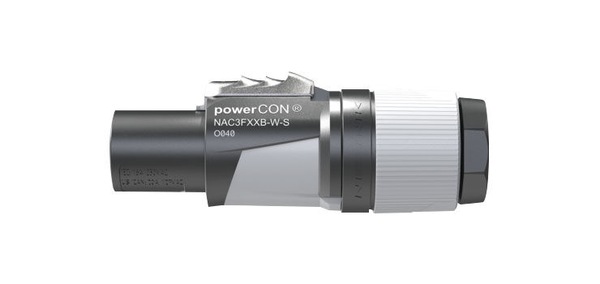

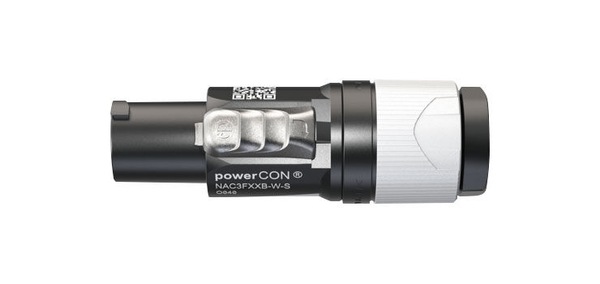

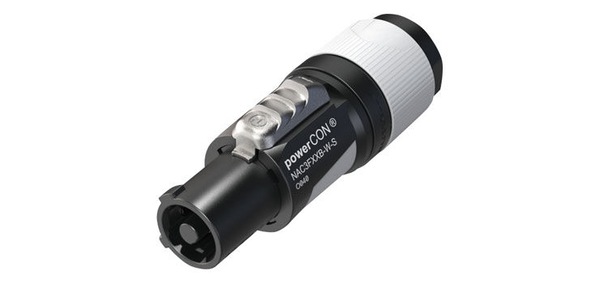

Neutrik P0772A Powercon Female Line 240V Mains Power Out 20A NAC3FXXB-W-S

Extra heavy duty Neutrik Powercon connector as used in commercial lighting and audio applications. Power Out version. NAC3FXXB-W-S 20A 240V. SAA approved.

• Locking 20 A / 240 V ac appliance coupler
• 3 contacts for line, neutral and premating safety ground
• Fast and easy twist lock latching system
• Extremely robust and reliable
• Ergonomic design
• User friendly latch design for easy handling
• Unique Neutrik chuck type strain relief

• Electrical
• Contact resistance: ≤ 2 mΩ
• Dielectric strength: > 3 kVac (after mating cycles)
• Insulation resistance: > 10 GΩ (initially)
• Number of electrical contacts: 2 + PE
•
• Mechanical
• Cable O.D.: 6 - 12 mm
• Lifetime: typically 5’000 mating cycles
• Wiresize (mm²): 1.5 – 2.5 mm²
• Wiresize (AWG): 16 – 12 AWG, see above cable list
• Locking device: Twist lock
• Termination: Screw type terminals
•
• Material
• Contact plating: Ag
• Contacts: Copper Alloy
• Insert: Polyamide (PA6.6)
• Locking element: Zinc diecast
• Shell: Polyamide (PA6) / TPE
• Strain relief: Polyketone
• Bushing: Polypropylene / TPE
•
• Environmental
• Temperature range: -33 °C to + 80 °C
• Protection class: IP20
• Flammability acc. to UL94: V-0
