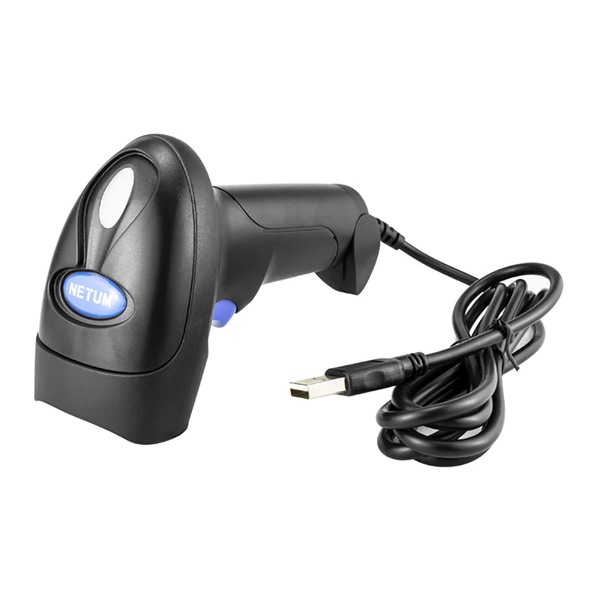

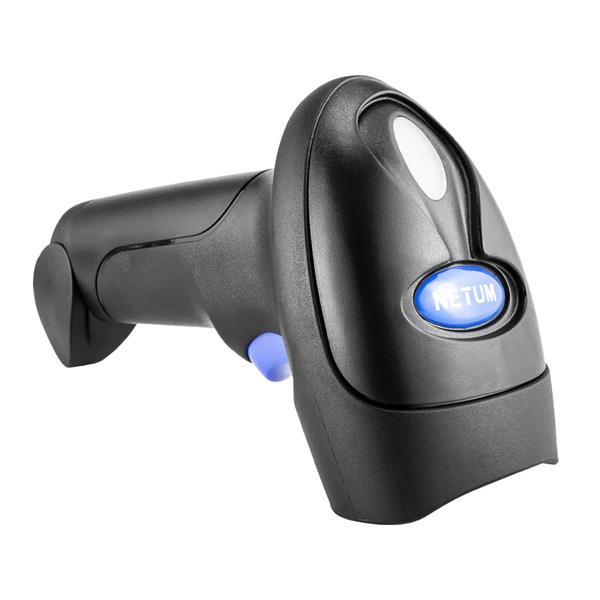

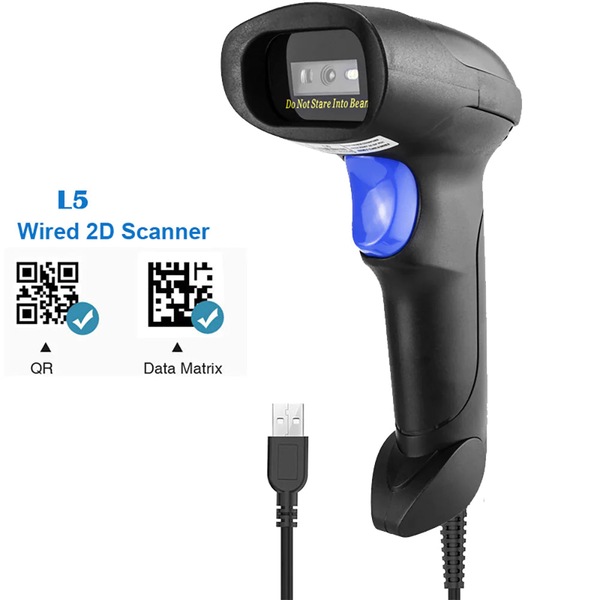

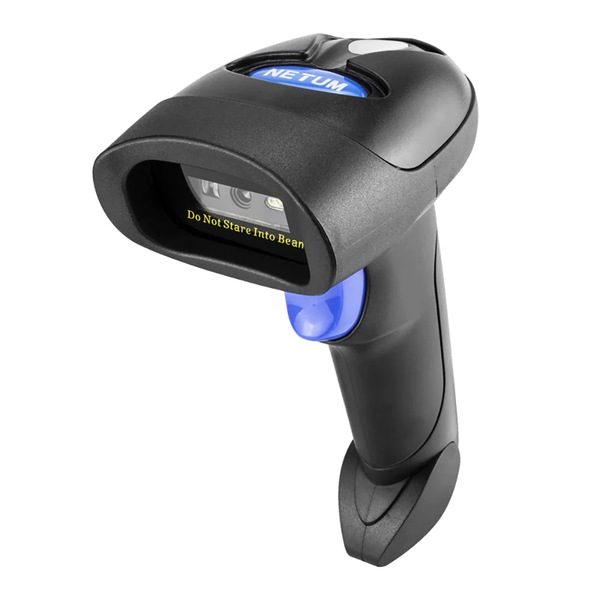

NETUM L5 2D Wired Handheld Auto Barcode Scanner

• Operation more comfortable
• Applying CMOS image technology, easy to scan
• Multiple barcode ability, fast to scan 1D/2Dbarcode and PDF417
• Best shape design, anti-knock and quake proof

Scanning Performance Characteristics

• Light Source: Indicator light: 528 nm LED; light: 630 nm
• Field of View: 34°V x 46° H
• Scan Angle: Roll360°, Pitch ±65°, Yaw ±60°

Scan Performance

• 5mil(Code39): 9.0-12.0cm; 10mil (PDF417): 5.0-22.5cm
• 13mil(100%UPC/EAN): 3.0-30.5cm; 10mil(Data matrix): 5.2-24.0cm
• Static current 20mil(Code 39): 3.0-42.0cm

Symbology Decode Capability

• 1D: UPC/EAN with supplementals, Code39, Code39 FullASCII, TriopticCode39, RSSvariants, UCC/EAN 128, Code128, Code128Fu, llASCII, Code93, Codabar(NW1), Interleaved 2 of 5,Discrete 2 of 5,MSI, Code ll, IATA, Book l and EAN, Code 32
• PDF417: PDF417,microPDF417 and composite codes
• Postal: U.S. Poste and Planet, U.K., Japan, Australian, and Dutch
• 2D: Maxi Code, Data Matrix (ECC 200), QR Code
• Print Contrast: >25%
• Interfaces: USB

Imaging Characteristics

• Image(Pixels): 0.35 Megapixel, 752 pixels (H)x 480 pixels (V)
• Graphics Format: Bitmap, Jpeg, Tiff
• Image Transfer Speed: USB 1.1:Up to 12 Megabits/s
• Image Transfer Time: Typical USB application is 0.2 seconds with a compressed Jpeg of 100 kb

Physical Characteristics/User Environment

• Voltage and Current: 5±10% VDC/350 mA
• Operating Temperature: 0°- 50° C
• Storage Temperature: -40°-70°C
• Humidity: 5%-95%
• Size: 17*9.6*6.6cm
• Weight: 205g
• Cable Length: 1.6M

• Scanner with USB Cable × 1
• User's guide ×1
