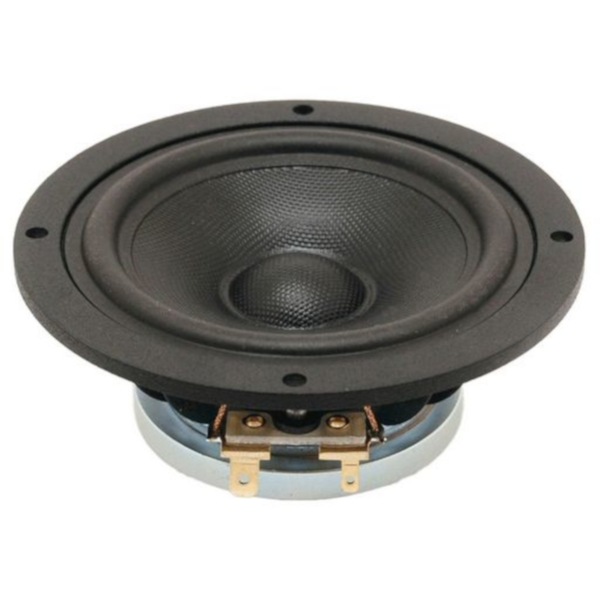

DISCOVERY
10cm Fullrange 8ohm, Large Neo Magnet, Coated Fiberglass Cone. The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point.
Very wide Frequency Range
Coated NRSC Fibre Glass Cone (patent)
Compact Size, Neo magnet, Alu. Chassis
High Sensitivity 87dB / 2,83V
SBR Rubber Surround
Copper Cap on Pole Piece
Specifications
Code | 10F/8424G00 |
Description | 10cm Fullrange 8 ohm, Large Neo Magnet, Coated Fiberglass Cone |
Le | 0.13mH |
Qts | 0.37 |
Mag. | 0.3kg |
Qes | 0.41 |
Rms | 0.45kg/s |
Power (RMS) | 0-50 Watt |
Cms | 1.13mm/N |
Power | 15Wrms |
Vas | 2.10L |
Mms | 2.77g |
Coil | 20mmØ |
Inch | 3 |
Size | 3" |
Qms | 3.49 |
Sd | 36cm² |
Depth | 40mm |
Re | 6.5Ω |
Impedance (Ohm) | 8 ohm |
Sens. | 86.6dB |
Zn | 8Ω |
Impedance | 8Ω (Re 6.5Ω) |
Fs | 90Hz |
Width | 98mm |
Series | Discovery |
Price Type | each |
Type | Full Range |
Manufacturer | Scan-speak |
