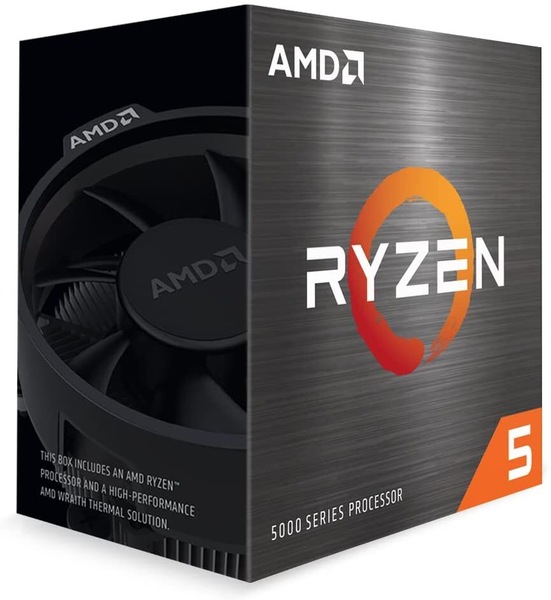

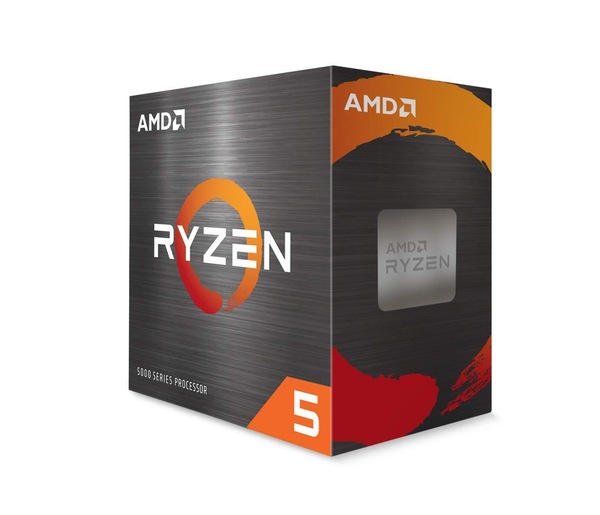

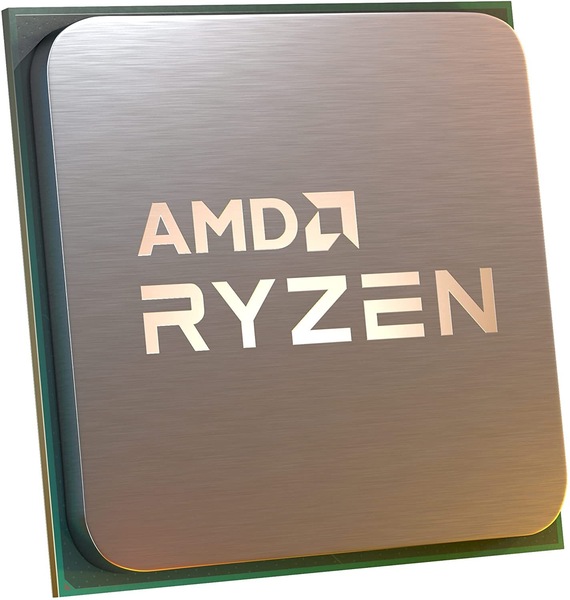

AMD Ryzen 5 5500

AMD Ryzen 5 5500, 6-Core/12 Threads UNLOCKED, Max Freq 4.20GHz, 19MB Cache Socket AM4 65W, With Wraith Stealth cooler

100-100000457BOX

General Specifications

• Platform: Desktop
• Product Family: AMD Ryzen™ Processors
• Product Line: AMD Ryzen™ 5 Desktop Processors
• # of CPU Cores :6
• # of Threads :12
• Max. Boost Clock :Up to 4.2GHz
• Base Clock: 3.6GHz
• L1 Cache :384KB
• L2 Cache:3MB
• L3 Cache: 16MB
• Default TDP :65W
• Processor Technology for CPU Cores :TSMC 7nm FinFET
• Unlocked for Overclocking :Yes
• CPU Socket :AM4
• Socket Count :1P

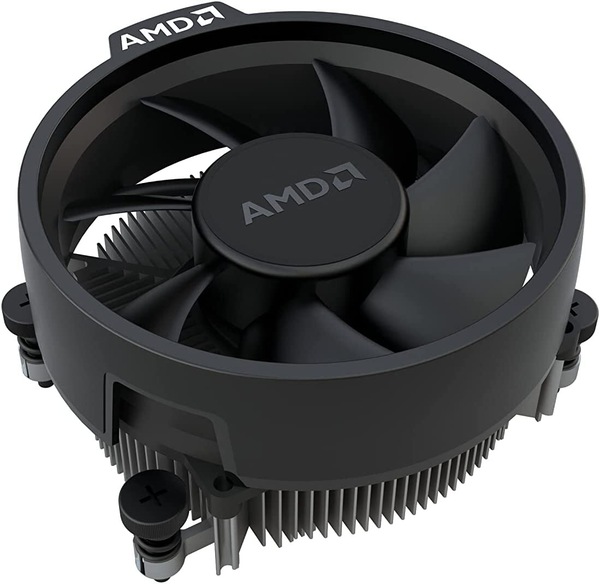

• Thermal Solution (PIB) :AMD Wraith Stealth
• Max. Operating Temperature (Tjmax) :90°C
• *OS Support
  Windows 11 - 64-Bit Edition
  Windows 8.1 - 64-Bit Edition
  RHEL x86 64-Bit
  Ubuntu x86 64-Bit
  *Operating System (OS) support will vary by manufacturer.

Connectivity

• PCI Express® Version: PCIe 3.0
• System Memory Type: DDR4
• Memory Channels: 2
• System Memory Specification: Up to 3200MHz
• Max Memory Speed:

  2x1R DDR4-3200

  2x2R DDR4-3200

  4x1R DDR4-2933

  4x2R DDR4-2667

Product IDs

• Product ID Boxed: 100-100000457BOX
• Product ID Tray: 100-000000457

Key Features

• Supported Technologies
• AMD StoreMI Technology
• AMD "Zen 3" Core Architecture
• AMD Ryzen™ VR-Ready Premium
