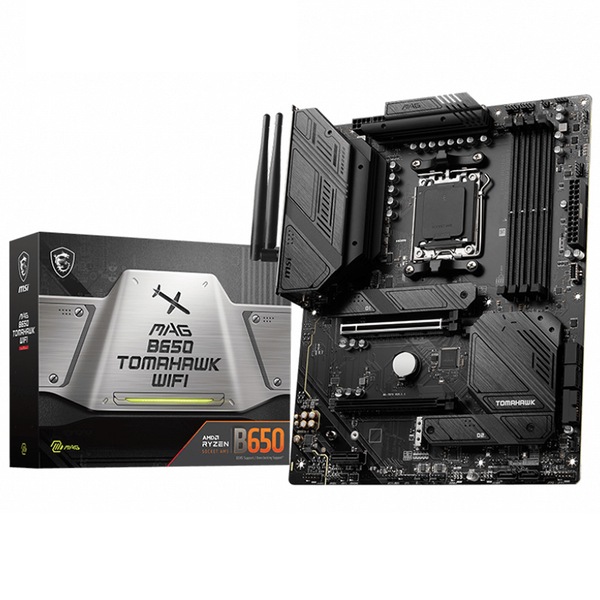

MSI MAG B650 Tomahawk WiFi AM5 ATX Motherboard (MAG B650 TOMAHAWK WIFI)

MSI MAG B650 Tomahawk WiFi AM5 ATX Motherboard (MAG B650 TOMAHAWK WIFI)

Hurry! 5 items left!
Price
$371.80
Collect 371 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Unable to calculate delivery for , please Contact Us Delivery unavailable to Change

Quantity
Maximum item limit (5) has been reached.







SPECIFICATIONS:

Chipset

AMD B650

CPU

Supports AMD Ryzenâ„¢ 9000/ 8000/ 7000 Series Desktop Processors

Socket AM5

Memory

4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7600+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Audio

Realtek® ALC4080 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel

Storage

3x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260   devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260   devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260   devices
6x SATA 6G
• M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed

LAN

Realtek® RTL8125B 2.5Gbps LAN

Onboard graphics

1x HDMIâ„¢
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

2x PCI-E x16 slot
• Supports x16/x2 (For Ryzen™ 7000 Series processors)
• Supports x8/x2 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4/x2 (For Ryzen™ 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

RAID

Supports RAID 0, RAID 1, and RAID 10 for   SATA storage devices*
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
* SATA_A1_A2 do not support RAID function.

Usb

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 2.0 ports (Rear)
4x USB 2.0 ports (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

Wireless LAN & Bluetooth

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country
’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Internal IO

1x Power Connector(ATX_PWR)
  2x Power Connector(CPU_PWR)
  1x CPU Fan
  1x Pump Fan
  6x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Tuning Controller connector(JDASH)
  2x Addressable V2 RGB LED connector (JARGB_V2)
  2x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  2x USB 5Gbps Type A ports
  1x USB 10Gbps Type C ports

LED feature

4x EZ Debug LED

Back panel ports

DisplayPort 1.4

2.5G LAN Port

USB 2.0 Port

USB 3.2 Gen 1 5Gbps Type-A

Wi-Fi / Bluetooth Antenna

HD Audio Connectors

Flash BIOS Button

HDMIâ„¢ 2.1 Port

USB 3.2 Gen 2 10Gbps Type-A

USB 3.2 Gen 2x2 20Gbps Type-C

Optical S/PDIF OUT

Operating system

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB info

ATX
243.84mmx304.8mm

Box content

MSI MAG B650 Tomahawk WiFi AM5 ATX Motherboard

SATA Cable

EZ M.2 Clips

Wi-Fi Antenna

Cable Stickers

Quick Installation Guide

European Union Regulatory Notice






SKU: 65571
