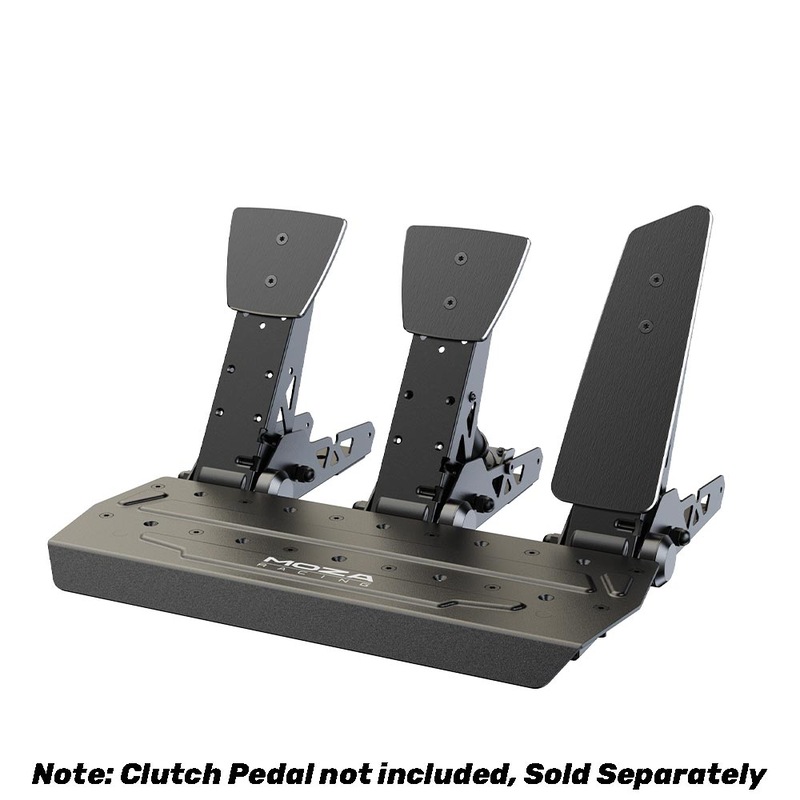

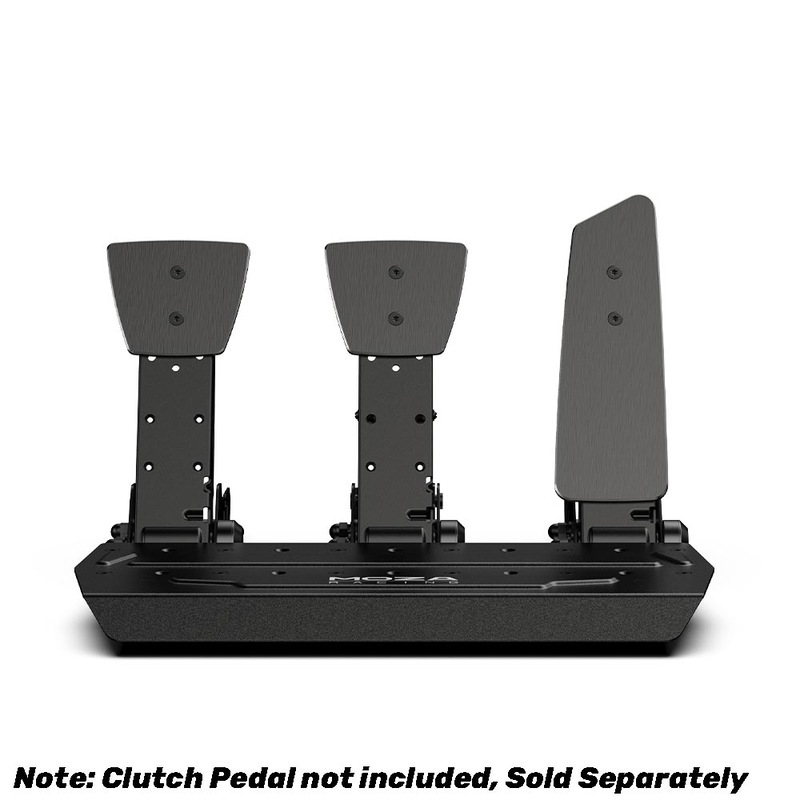

MOZA SR-P Load Cell Pedals (No Clutch)

MOZA SR-P Load Cell Pedals (No Clutch)

Hurry! 10 items left!

Price	$299.95
	Collect 299 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

MANUFACTURER'S DESCRIPTION

Load Cell for the Best Control Upgrade your racing experience with the MOZA SR-P pedals, designed for top performance and precision. Crafted with high-strength steel and featuring a high-precision pressure sensor capable of detecting up to 75KG, these reliable pedals ensure solid responsive inputs. A 16-bit high-precision magnetic encoder captures every movement with exceptional detail. Customize your setup with adjustable pedal spacing for optimal comfort and directly connect it to your PC via USB for seamless integration. Experience smooth and controlled braking with the combined braking spring and damping block.

FEATURES

Made with High-strength Steel

The pedal is machined with high-strength steel, giving superior quality and endurance.

Organ Type Accelerator Pedal

The organ-type accelerator pedal allows the driver's foot and pedal to follow the same trajectory. Which makes throttle control easier and more accurate.

High-Precision Load Cell: Maximum Capacity of 100 KG

The MOZA SR-P pedals feature high-tech load cell sensors with a 100KG capacity. These sensors detect precise braking pedal pressure, allowing users to achieve the ideal braking force by controlling pressure application.

16-bit High Precision Magnetic Encoder

The brake, clutch and throttle pedals all use 16-bit precision magnetic encoder with 65536 PPR resolution, a much higher resolution and more stable than a Hall sensor.

Dual Sensor Fusion Algorithm

The brake utilizes a pressure and angle sensor, allowing fine tuning of braking. The initial stage is dominated by the angle sensor, allowing racers to control the braking angle, the mid and last stage is controlled by the pressure sensor, which makes the pedal easier to control.

Direct connection with PC through USB

The MOZA SR-P Pedals effortlessly link to your PC via USB and can be easily calibrated using the intuitive MOZA Pit House software. Its universal compatibility with all sim racing gear ensures a smooth and hassle-free experience for all racing enthusiasts.

Detachable Pedal Design

Pedals can be detached and mounted onto other professional brackets with ease. For hardcore users, the pedals can also be reversed.

Pedal Output Curve Adjustment

MOZA's Pit House allows for easy configuration of the pedal output curves accommodating diverse needs and preferences.

Compatibility

Specifications:

SR-P Pedal Set
Material	High-strength steel
Plate Material	High-strength steel
Colour	Black
Brake Sensor	Load cell + angle sensor
Max Capacity	100KG
Throttle Sensor	Angle sensor
Clutch Sensor	Angle sensor
Angle Sensor Resolution	16-bit (65536ppr)
Pedal Spacing	Adjustable
Pedal Plate Height	Adjustable
Pedal Connection Port	USB
Pedal Travel Software Adjustment	Yes
Pedal Travel Reverse Function	Yes
Anti-Slipping Pad	Included

DETAILS

Seller	The Gamesmen
Seller's Product Code	POS-202657
Barcode	6973137270292
Manufacturer	Moza Racing
Weight	3.71 kg
Dimensions (Packaged)	30 x 16 x 40 cm

GTIN: 6973137270292
