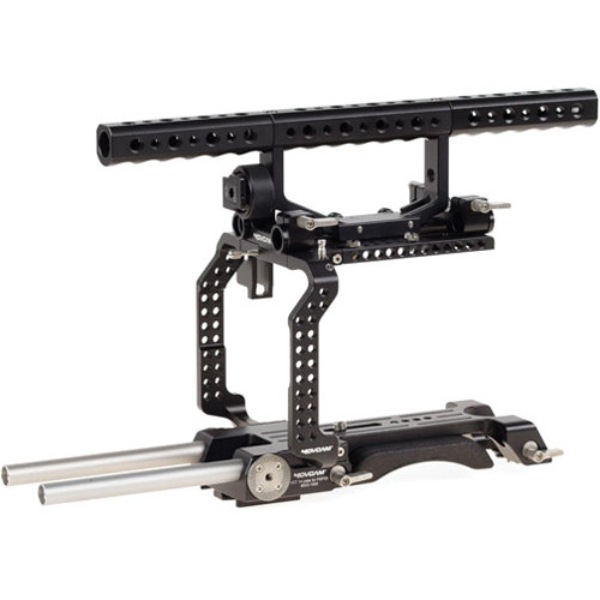

The Movcam F5/F55 VCT Cage Kit outfits your Sony F5 or F55 cinema camera for life on set by adding essential accessory mounting points, 15mm rod clamps, and rig mounting options. The kit includes a VCT 15mm baseplate custom-designed for use with the F5/F55 that features a built-in shoulder support, side rosettes for attaching optional hand grips, and 15mm LWS rod clamps in the front and rear for attaching rod-mounted accessories such as a follow focus, matte box, and battery plate. A V-lock interface at the bottom allows you to mount the baseplate directly to VCT compatible tripod plates. The kit also includes a camera cage comprised of a bolt-on top plate with front and rear 15mm rod clamps, a long top handle, a mount and plug protector for the F5/F55's EVF, and side brackets that attach to the top plate and the VCT baseplate. Numerous 1/4"-20 and 3/8"-16 threaded holes are found on the cage components, providing a plethora of attachment points for accessories.
Top Handle with Extensions for Sony PMW-F5/-F55 4K Camcorders
The Top Handle with Extensions from Movcam is designed for use with Sony PMW-F5 and PMW-F55 4K camcorders. The top handle comes with front and rear extensions, and requires the Top Plate (sold separately) for mounting.
Top Plate for Sony F5/F55 Cameras
The Movcam Top Plate directly attaches to the top of the Sony F5/F55 after the camera's original hand grip is removed. The plate features multiple 1/4" and M4 threads to mount various accessories. A Weaver rail mount on top allows mounting of the MOV-303-1306 or MOV-303-1901 top handle (available separately). A pair of 15mm rods (available separately) can be attached to the front and rear rod clamps of the top plate to mount accessories such as a battery bracket, follow focus, or matte box.
Left Side Bracket for Sony PMW-F5/-F55 4K Camcorders
The Left Side Bracket from Movcam is designed for use with Sony PMW-F5 and PMW-F55 4K camcorders.
Right Side Bracket for Sony PMW-F5/-F55 4K Camcorders
The Right Side Bracket from Movcam is designed for use with Sony PMW-F5 and PMW-F55 4K camcorders.
VCT Lightweight Support for Sony PMW F5 / 55 Cameras
The Movcam VCT Lightweight Support is designed for use with the Sony PMW F5 / 55 CineAlta Digital Cinema Cameras.
EVF Mount for Sony PMW-F5/-F55 4K Camcorders
The EVF Mount from Movcam is designed for use with Sony PMW-F5 and PMW-F55 4K camcorders. It is used for mounting EVF (Electronic Viewfinder) accessories.
EVF Plug Protector for Sony PMW F5 / 55 Cameras
The Movcam EVF Plug Protector is designed for use with the Sony PMW F5 / 55 CineAlta Digital Cinema Cameras.
Specifications:
For Use with: Sony F5/F55 camera
Compatible with: MOV-303-1306 and MOV-303-1901 top handles
Threads: 1/4" and M4
Material: Aluminium alloy
Dimensions: 6.54 x 4.01 x 1.5" (166 x 103 x 37 mm)
Weight: 0.77 lb (0.35 kg)
In the Box:
- Top Handle
- Top Plate
- Side Bracket - Left
- Side Bracket - Right
- VCT Support Base
- EVF Mount
- EVF Plug Protector
