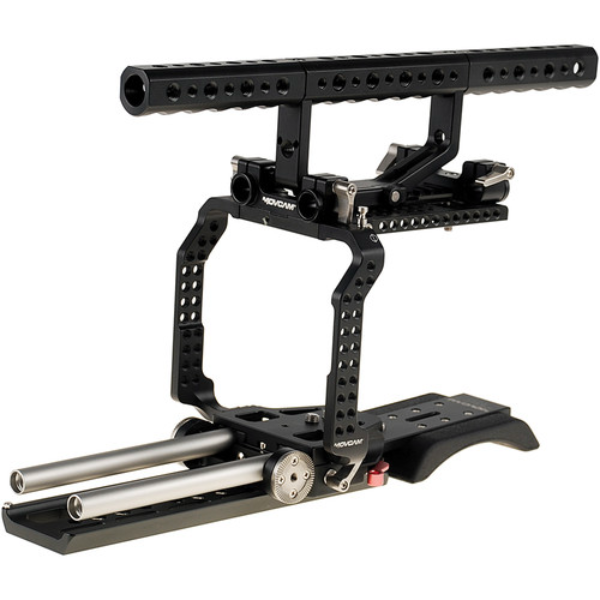

The Movcam Cage Kit for Sony F5/F55 includes a top handle, top plate, side brackets, camera riser plate, universal LWS base plate, rosette bracket adapter, shoulder pad, 9" mini dovetail plate, and a pair of 8" long 15mm aluminium rods. When assembled, the kit forms a sturdy support system for the Sony F5/F55 and allows you to safely carry your camera via the top handle for ground-level shots. You can also add optional hand grips to use the cage for shoulder-mounted shooting. The kit components also provide multiple attachment points for various accessories.
Top Handle with Extensions for Sony PMW-F5/-F55 4K Camcorders
The Top Handle with Extensions from Movcam is designed for use with Sony PMW-F5 and PMW-F55 4K camcorders. The top handle comes with front and rear extensions, and requires the Top Plate (sold separately) for mounting.
Top Plate for Sony F5/F55 Cameras
The Movcam Top Plate directly attaches to the top of the Sony F5/F55 after the camera's original hand grip is removed. The plate features multiple 1/4" and M4 threads to mount various accessories. A Weaver rail mount on top allows mounting of the MOV-303-1306 or MOV-303-1901 top handle (available separately). A pair of 15mm rods (available separately) can be attached to the front and rear rod clamps of the top plate to mount accessories such as a battery bracket, follow focus, or matte box.
Left Side Bracket for Sony PMW-F5/-F55 4K Camcorders
The Left Side Bracket from Movcam is designed for use with Sony PMW-F5 and PMW-F55 4K camcorders.
Right Side Bracket for Sony PMW-F5/-F55 4K Camcorders
The Right Side Bracket from Movcam is designed for use with Sony PMW-F5 and PMW-F55 4K camcorders.
Camera Spacer for Sony F5/F55
The Camera Spacer from Movcam is designed for mounting the Sony F5/F55 camera. It is installed below the camera body and can also work with the 303-1125 Universal Quick-Release Baseplate (available separately). This spacer allows you to raise the camera's height in order to align the lens with accessories such as a matte box and follow focus. It features a quickly detachable design and comes with 1/4" and 3/8" screws.
Universal Shoulder Pad for Sony F5/F55 Camera
The Universal Shoulder Pad from Movcam is designed to be used with the Sony F5/F55 camera.
Universal Quick Release Base Plate
The Universal Quick Release Base Plate from Movcam is a baseplate compatible with Arri BP8 and Arri BP9 Bridgeplates.
Rosette Bracket
Made to attach to the Universal Baseplate, the Movcam Rosette Bracket adds two rosette mounts for hand grips and accessories.
Universal LWS Dovetail Plate
The Movcam Universal LWS Dovetail Plate is a baseplate compatible with Arri BP8 and Arri BP9 Bridgeplates.
15mm Aluminum Rod - 8" Long
The 15mm Aluminum Rod - 8" (203.2mm) Long from Movcam is a single rod made of aluminium and is 8" (203.2mm) in length.
Specifications:
Top Plate for Sony F5/F55 Cameras
- For Use with: Sony F5/F55 camera
Compatible with: MOV-303-1306 and MOV-303-1901 top handles
- Threads: 1/4" and M4
- Material: Aluminium alloy
- Dimensions: 6.54 x 4.01 x 1.5" (166 x 103 x 37 mm)
- Weight: 0.77 lb (0.35 kg)
Camera Spacer for Sony F5/F55
- Dimensions: 3.7 x 3.3 x 0.5" (9.4 x 8.5 x 1.2 cm)
- Weight: 3.5 oz (100 g)
Universal Shoulder Pad for Sony F5/F55 Camera
- Compatibility: Sony F5/F55 camera
Universal Quick Release Base Plate
- Compatibility: Arri BP8 and Arri BP9 Bridgeplates
- Dimensions: 3.3 x 3.7 x 1" (85 x 94 x 27 mm)
- Weight: 0.5 lb (0.25 kg)
Rosette Bracket
- Dimensions: 3.9 x 1.2 x 1.2" (99.5 x 32.5 x 32.5 mm)
- Weight: 0.2 lb (0.1 kg)
Universal LWS Dovetail Plate
- Compatibility: Arri BP8 and Arri BP9 Bridgeplates
- Dimensions: 10.0 x 2.6 x 0.5" (256 x 68 x 14 mm)
- Weight: 0.5 lb (0.25 kg)
15mm Aluminum Rod - 8" Long
- Material: Aluminium
- Rod Diameter: 15 mm
- Rod Length: 8" (203.2 mm)
In the Box:
- Top Handle
- Top Plate
- Side Bracket - Left
- Side Bracket - Right
- Riser Plate
- Shoulder Pad
- Universal LWS Base Plate
- Rosette Adapter Bracket
- Universal LWS Dovetail
- 2 x 8" 15mm Rods
