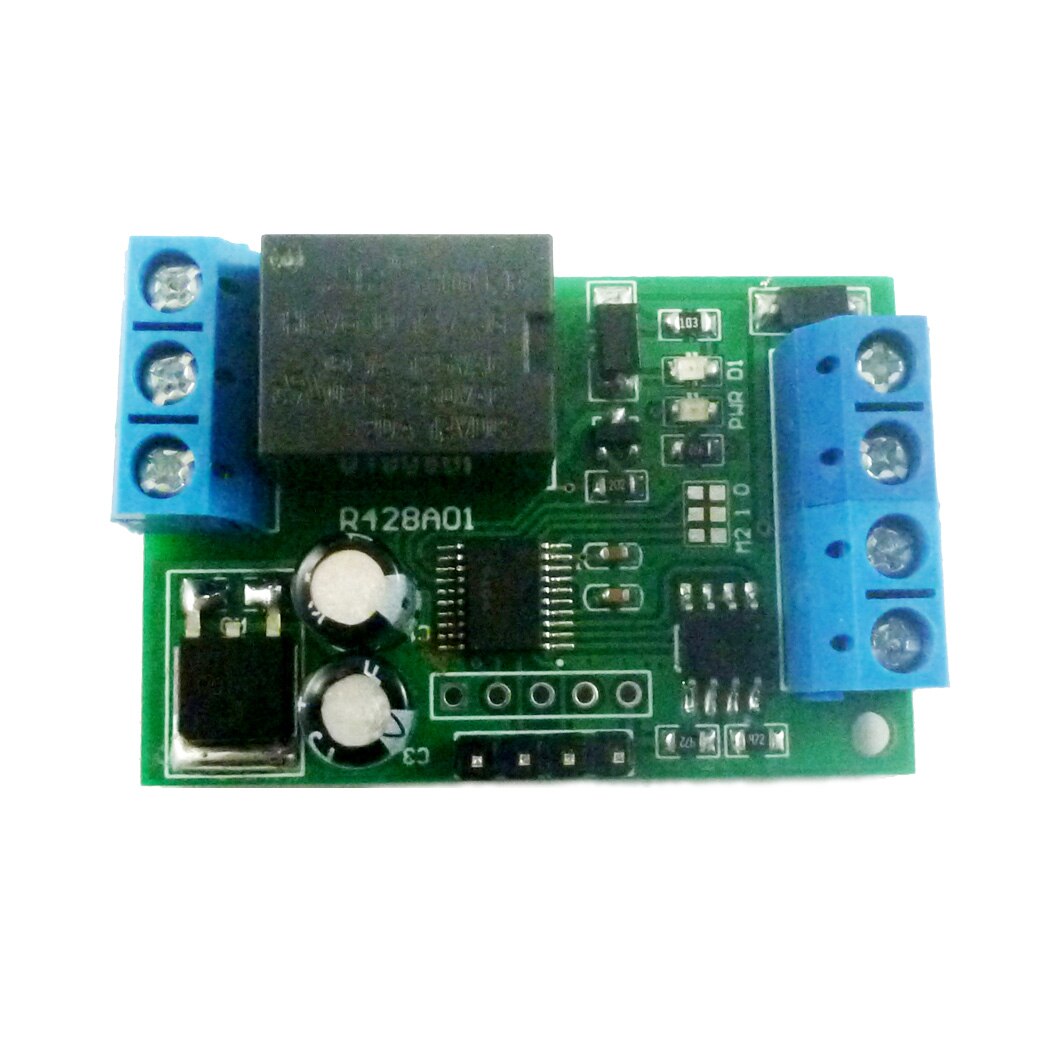

mini DC 12V RS485 Delay Relay Module Modbus-Rtu Uart Switch Board

mini DC 12V RS485 Delay Relay Module Modbus-Rtu Uart Switch Board

Price	$28.02
	Collect 28 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:
?

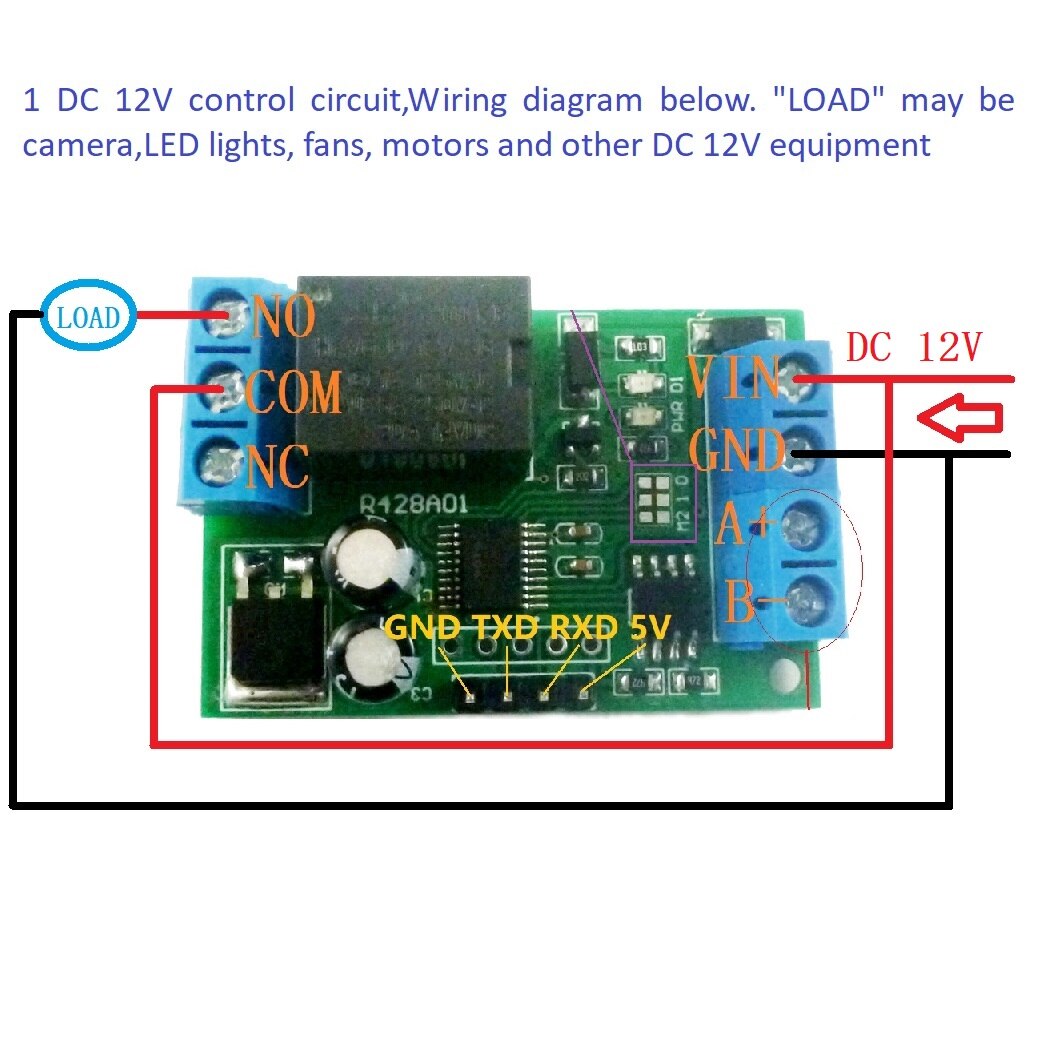

1: DC 12V power supply
2: Standby current (all relays closed) 7-8MA, 1 relay open 40MA

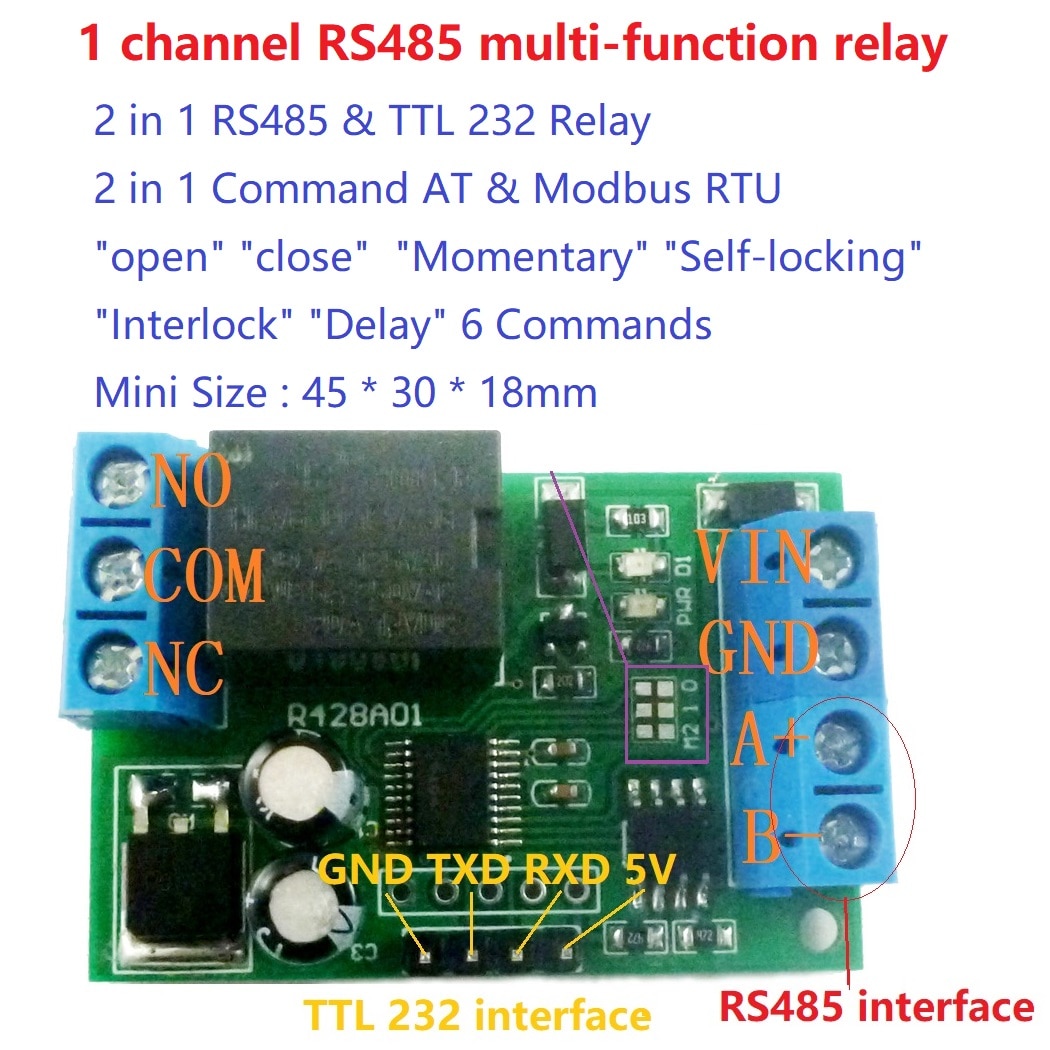

3: ''open'' ''close''? ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands

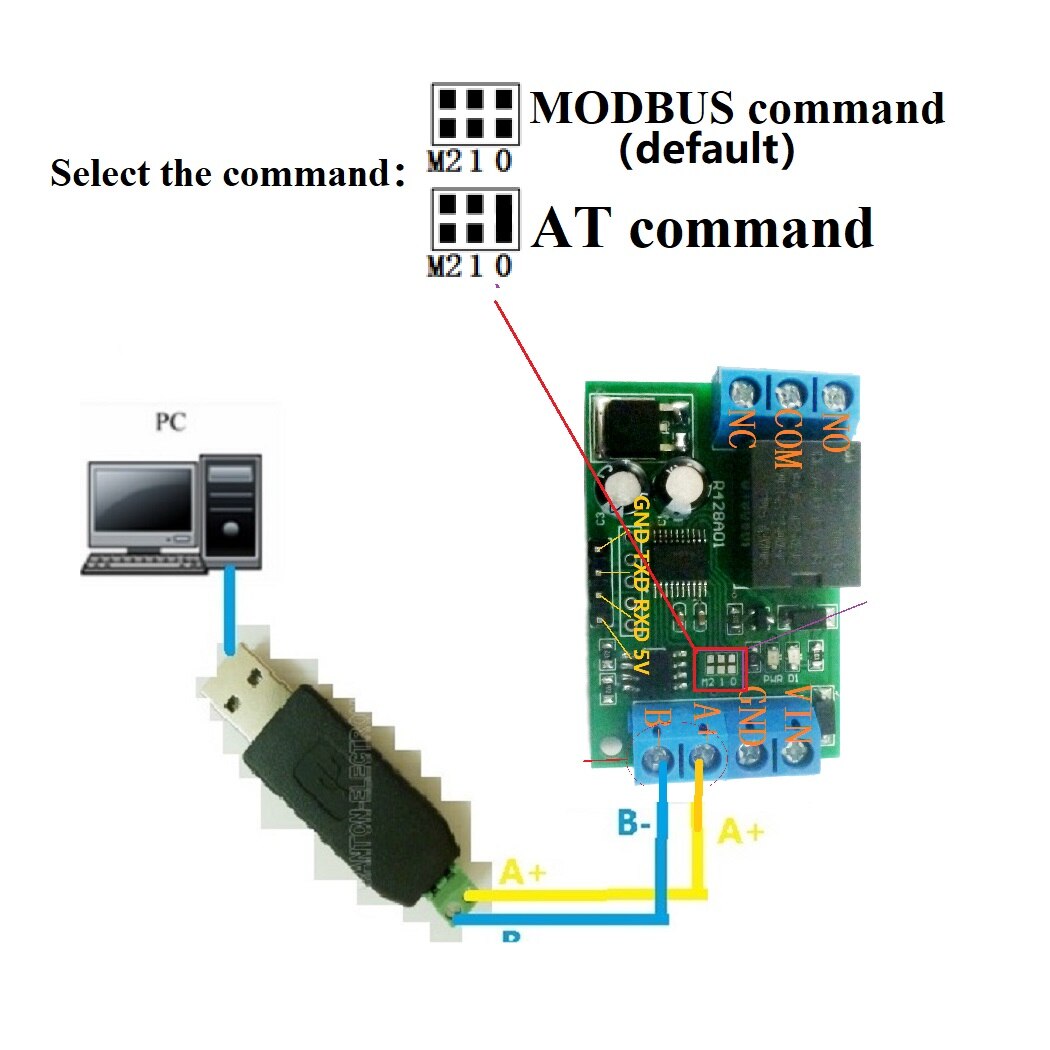

4: Two instruction-control mode : AT command and MODBUS command
5: Under the AT command ,the maximum delay is 9999 seconds
??? Under the MODBUS command ,the maximum delay is 255 seconds

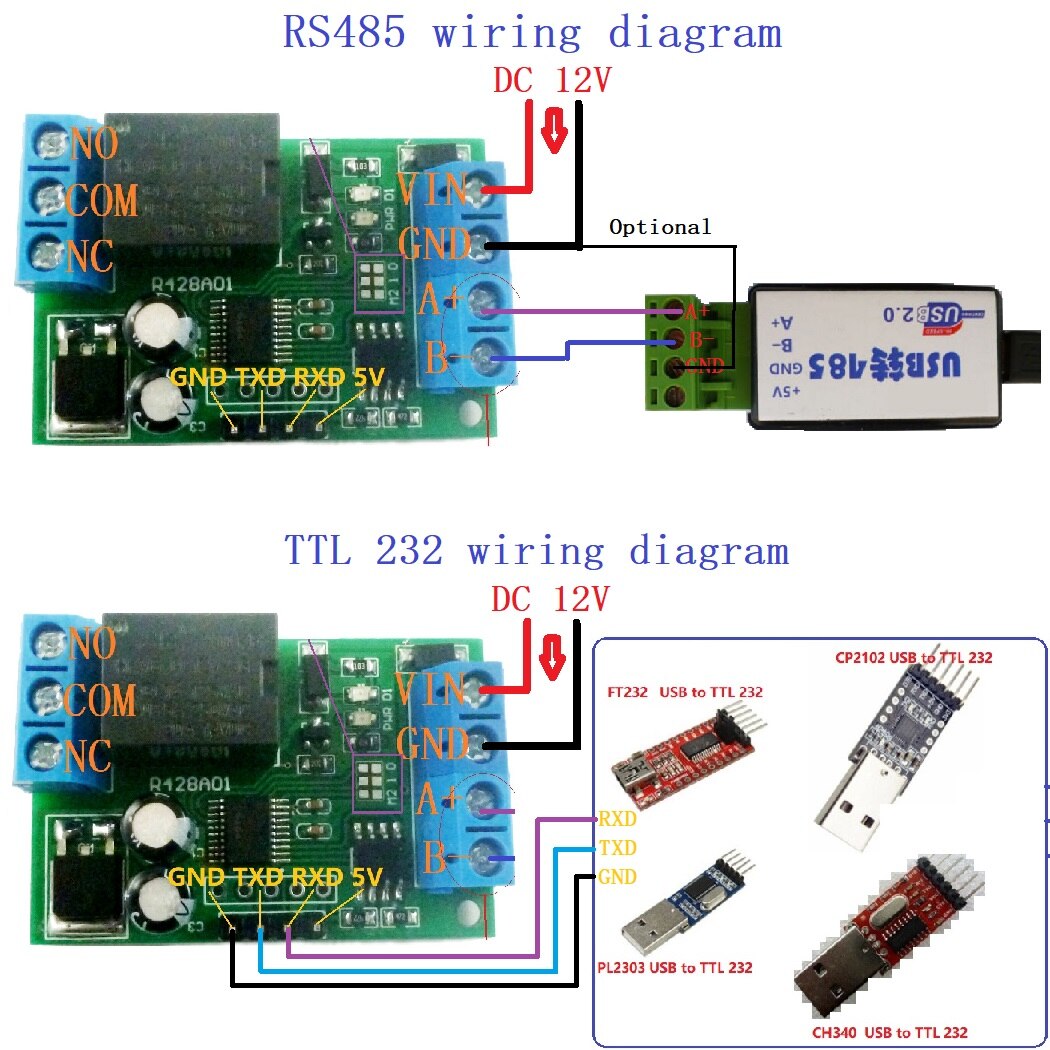

6 AT commands can be made serial HyperTerminal (serial assistant) Enter; MODBUS commands can be made serial HyperTerminal (serial assistant)? OR ''Modbus Poll'' Enter;
7 Under the MODBUS command mode, it can support up to 247 devices in parallel
8 Size: 40 * 30 * 18mm ;
9 Weight: 17.5 g;
10 Maximum load: 20A 14VDC;20A/125VAC;10A/250VAC
?
Application??
?
Automated industry PLC
Smart Home,Home Automation ,Wiser Home;
Identification system;
Motor FW & BW
CCTV Camera PTZ Control?
Security system
LED dot matrix screen

Package inlcuded: 1 x DC 12V 1Ch RS485 Modbus & AT command? Relay Board

GTIN: 774048925655
