Mercator Ikuu SSWM-DIM - Smart Push Button Dimmer Mechanism - Wi-Fi

Mercator Ikuu SSWM-DIM - Smart Push Button Dimmer Mechanism - Wi-Fi

Hurry! 19 items left!

Price	$72.54
	Collect 72 Everyday Rewards points Log in to MyDeal to link your card
Shipping	$15.95 Australia-wide
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Mercator Ikuu SSWM-DIM | Smart Push Button Dimmer Mechanism | Wi-Fi

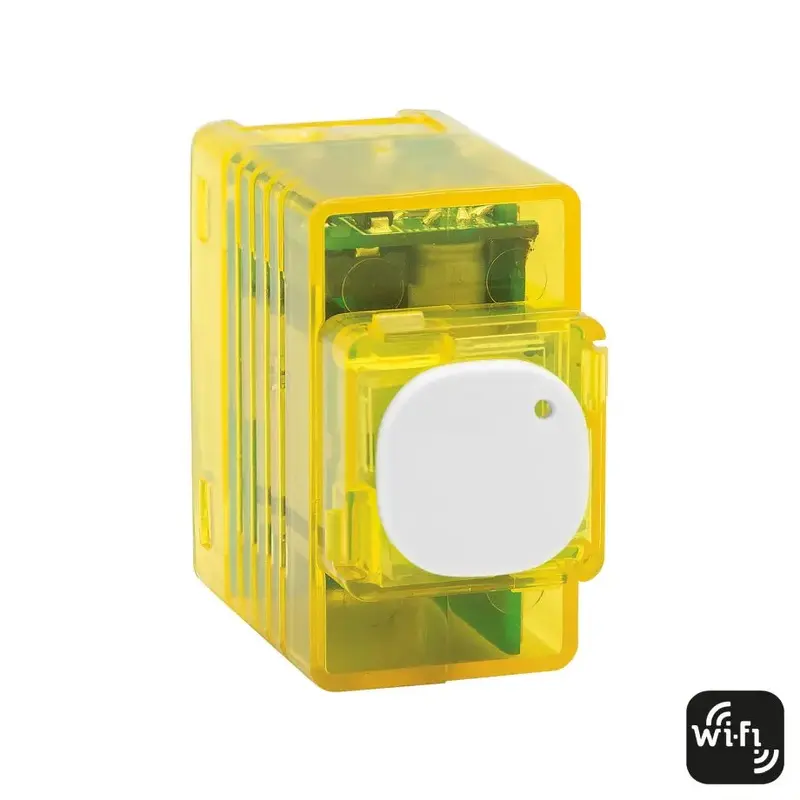

The Mercator Ikuü SSWM-DIM Smart Push Button Dimmer Mechanism delivers efficient and flexible lighting control for modern homes and businesses. With built-in Wi-Fi connectivity, this dimmer eliminates the need for a hub, connecting directly to your 2.4GHz network. Control your lighting through the press button, the Ikuü app, or hands-free with Amazon Alexa and Google Assistant.

Designed for trailing edge dimming, the SSWM-DIM is compatible with most dimmable LED and halogen lights, ensuring smooth, flicker-free operation. Its slim design fits popular switch plates and supports single, double, or multi-gang setups, combining functionality with modern aesthetics.

Mercator Ikuü SSWM-DIM Features:

Wi-Fi Enabled: Connects directly to your 2.4GHz network without a hub.
Flexible Control Options: Operate via press button, the Ikuü app, or voice assistants like Alexa and Google Assistant.
Trailing Edge Dimming: Delivers smooth performance for dimmable LED and halogen lights.
LED Indicator: Displays on/off status at a glance.
Universal Compatibility: Fits most popular switch plates and supports single, double, or multi-gang setups.
Robust Design: Features durable polycarbonate housing with brass contact materials.
User-Friendly Terminals: Supports up to 3 x 1.5mm² building cables for easy installation.
Energy Efficient: Consumes less than 1W in standby mode.

Mercator Ikuü SSWM-DIM FAQ:

Q: Does this dimmer require a hub to operate?
A: No, it connects directly to your 2.4GHz Wi-Fi network.

Q: Is this dimmer compatible with all lighting types?
A: It works with most dimmable LED and halogen lights but is not suitable for non-dimmable lights, ceiling exhausts, or sweep fans.

Q: Can I control this dimmer with voice assistants?
A: Yes, it is compatible with Amazon Alexa and Google Assistant for hands-free operation.

Q: What is the maximum wiring capacity for the terminals?
A: The terminals can accommodate up to 3 x 1.5mm² building cables.

Q: Is this dimmer suitable for outdoor use?
A: No, it is rated IP20 and designed for indoor use only.

Specifications:

Specification	Details
Model	SSWM-DIM
Connectivity	Wi-Fi
Network Requirements	2.4GHz Wi-Fi network
Protocol	IEEE 802.11 b/g/n
Wireless Frequency	2.4GHz
Neutral Required	Yes
Supply Voltage	230 - 250V a.c. 50Hz
Standby Wattage	<1W
Operating Load	LED: 5W - 250W Incandescent: 5W - 250W
Dimming Method	Trailing edge
Output Power	0-100% (limits set via app)
IP Rating	IP20 (Indoor use only)
Material	Polycarbonate
Dimensions	24mm x 40mm x 47mm
Weight	35g
Features	- On/off & dimming control via app - Customizable timers & schedules - Works with Amazon Alexa and Google Assistant - Interchangeable with most popular brands
Compliance Standards	AS/NZS 4268, AS/NZS 60669.1, AS/NZS 60669.2.1, CISPR 15, CISPR 32
Warranty	3 Years

Warranty starts from Invoice Date

Domestic Use: 3 Year
Commercial Use: 3 Year
Warranty Method: This product is valid for 3 years warranty from the date of purchase. Mercator requires a copy of "certificate of compliance' from the installing electrician to complete the claim.

GTIN: 9312699205439
