Mercator Ikuu SSW03GN-ZB | Smart Triple Light Switch 10A Requires Neutral | Zigbee

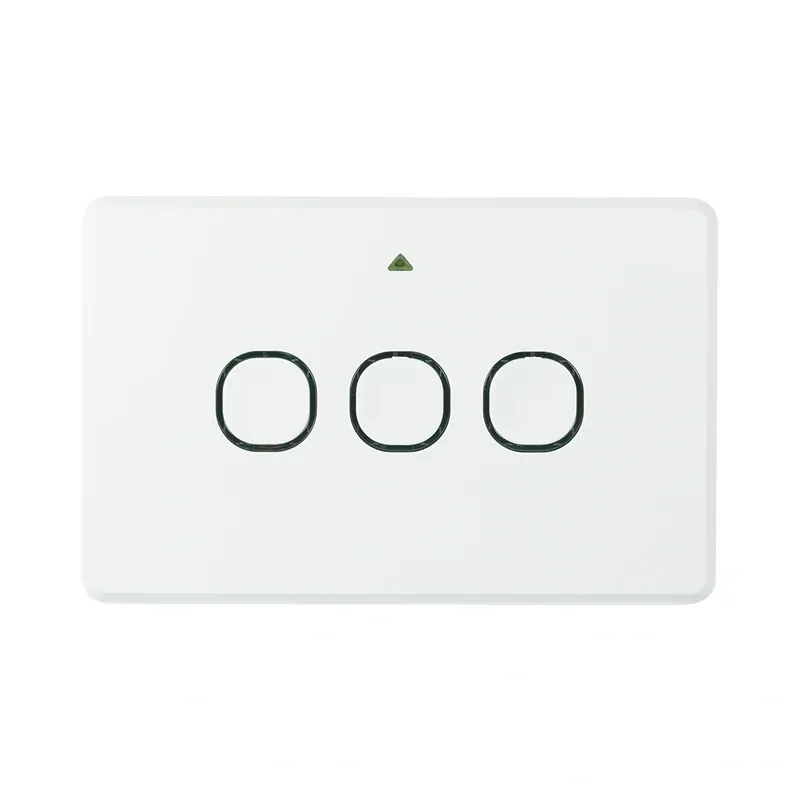

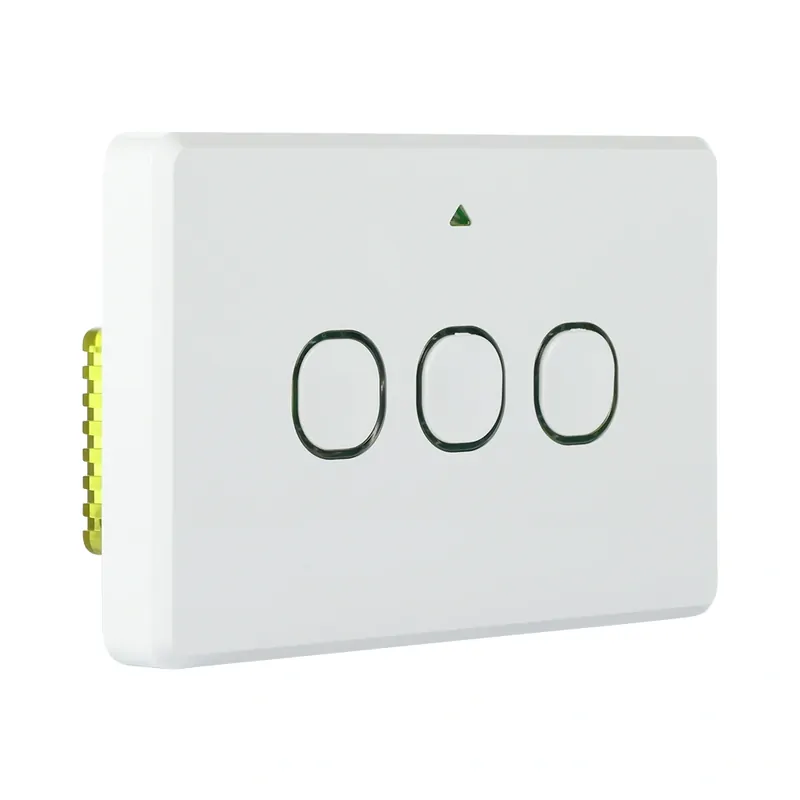

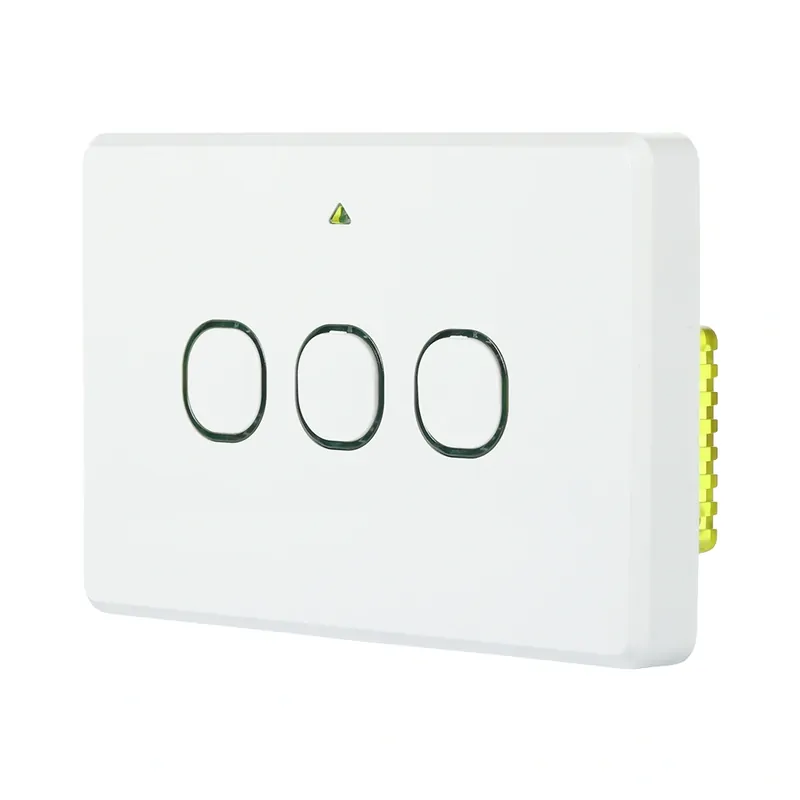

The Mercator Ikuu SSW03GN-ZB is a smart triple light switch designed for Zigbee 3.0 networks. It requires a neutral wire for installation and features touch-sensitive capacitive switches for smooth operation. A blue backlight indicator provides clear status visibility. Made from UV-resistant white polycarbonate, this switch fits standard mounting brackets and includes combination head screws for secure installation.

This switch enables app-based control for both individual and master switches, allowing users to customize timers and schedules via the Mercator Ikuu app. Compatible with Amazon Alexa and Google Assistant, it integrates seamlessly with smart home ecosystems. Designed for indoor use, the SSW03GN-ZB operates on 230-250V AC at 50Hz, supporting resistive, incandescent, and LED loads. It comes with a three-year in-home warranty for added peace of mind.

Key Features:

Zigbee 3.0 compliant for reliable smart home integration with Mercator Ikuu Zigbee hubs.
Touch capacitive switches provide smooth, responsive control with a modern interface.
App & voice control allows scheduling, timers, and hands-free operation via Alexa and Google Assistant.

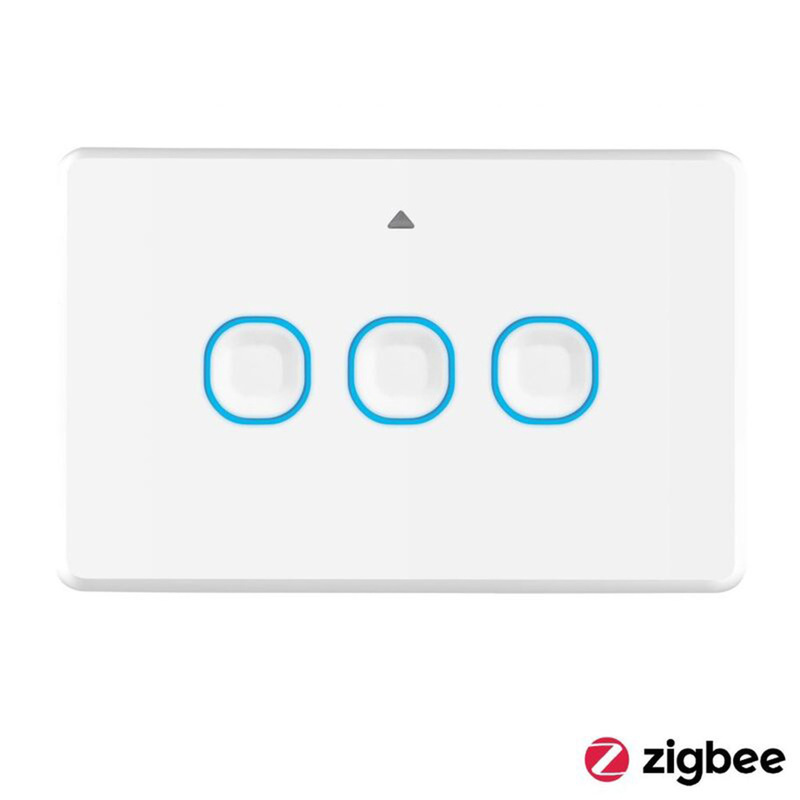

Backlit indicator with a blue LED for easy status visibility.

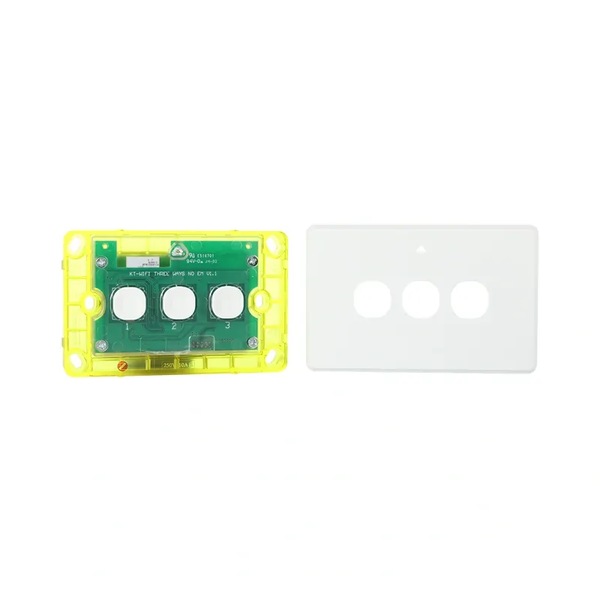

Easy installation with standard mounting bracket compatibility and included faceplate and screws.
Durable build made from UV-resistant white polycarbonate with brass contacts.

Mercator Ikuu SSW03GN-ZB FAQ

Q: Does this switch require a neutral wire for installation?
A: Yes, a neutral wire is required for proper operation.

Q: Can this switch be controlled remotely?
A: Yes, it supports app-based control, timers, and schedules via the Mercator Ikuu app.

Q: Is it compatible with voice assistants?
A: Yes, it works with Amazon Alexa and Google Assistant for hands-free control.

Specifications:

Specification	Details
Model	SSW03GN-ZB
Switches	3
Neutral Required	Yes
Connectivity	Zigbee 3.0
Protocol	IEEE 802.15.4
Wireless Frequency	2.4GHz
Supply Voltage	230 - 250V AC, 50Hz
Standby Wattage	<0.05W
Operating Load (All Channels Combined)	Resistive: 2500W (max) Incandescent: 2500W (max) LED: 250W (max)
Operating Load (Each Gang)	Resistive: 300W Incandescent: 300W LED: 300W
Switched Poles	Active
IP Rating	IP20 (Indoor use only)

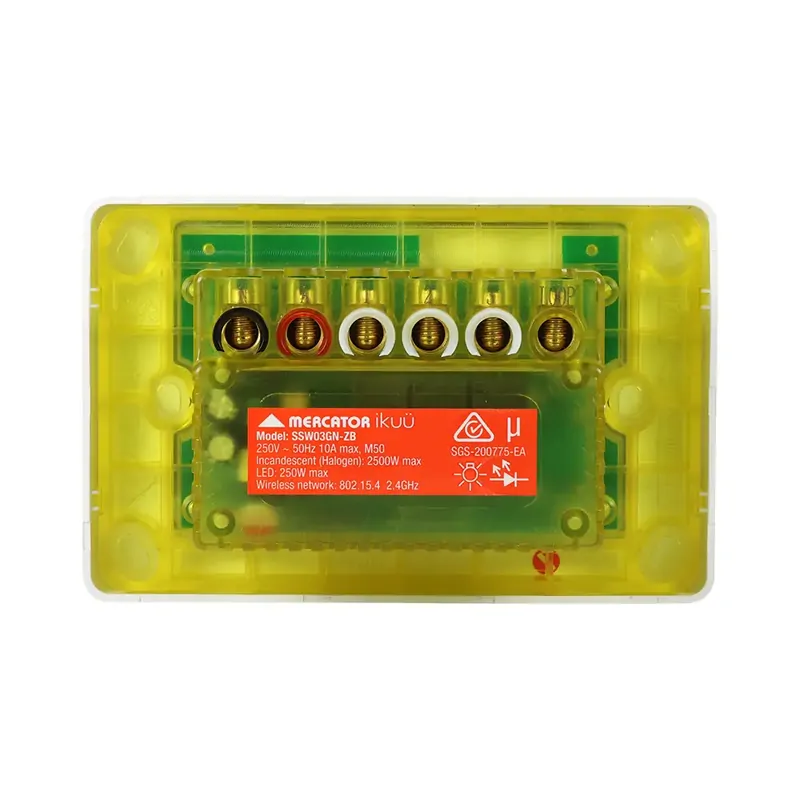

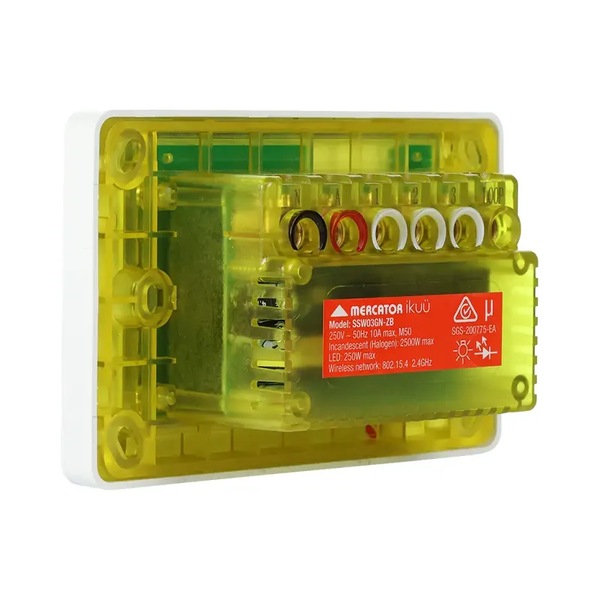

Terminal Size	6mm² (Fits up to 3 x 2.5mm² wires per terminal)
Housing Material	Polycarbonate
Contact Material	Brass
Weight	145g

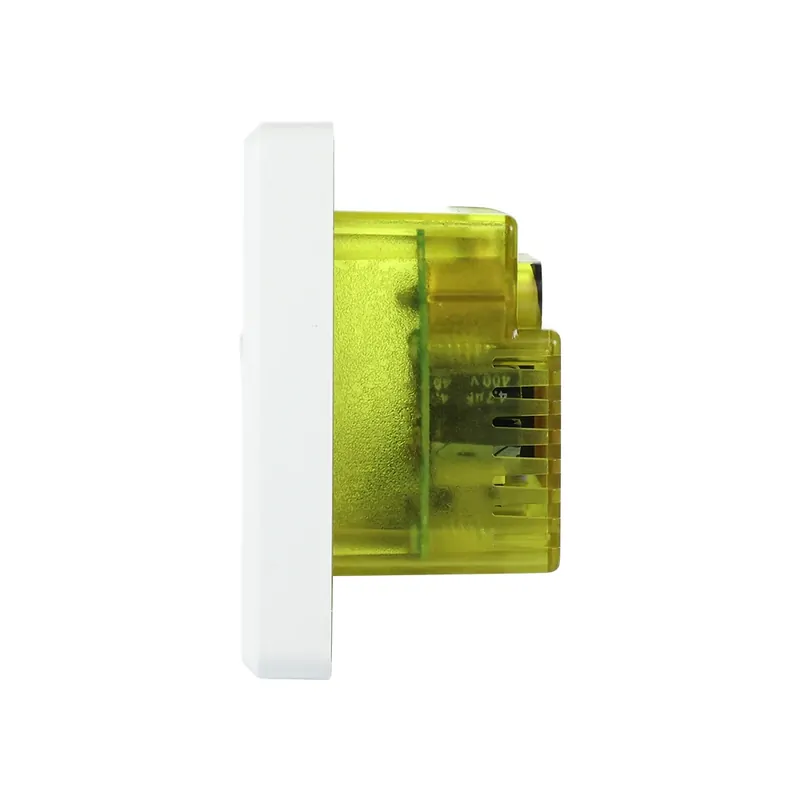

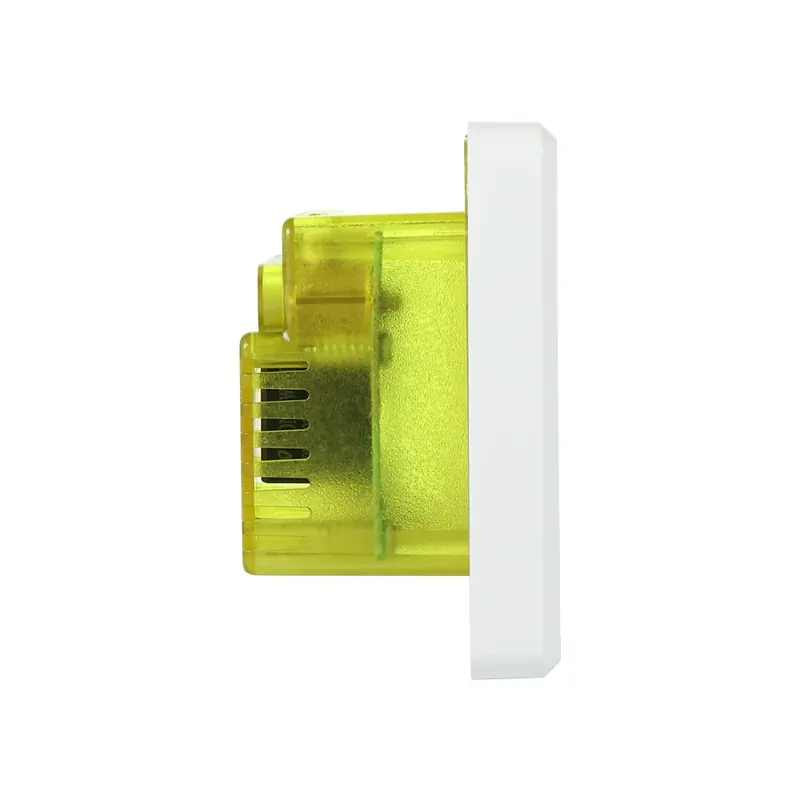

Dimensions	115mm x 74mm x 44mm
Cut-out Dimensions	80mm x 50mm
Mounting Centres	84mm
Compliance / Standards	AS/NZS 4268, AS/NZS 60669.1, AS/NZS 60669.2.1, CISPR 15, CISPR 32, AS/NZS 2772.2
Touch Capacitive Switches	Yes
Backlight Indicator	Blue backlight to indicate switch status
Smart Home Integration	Compatible with Amazon Alexa and Google Assistant
Warranty	3 years in-home

Warranty starts from Invoice Date

Domestic Use: 3 Year
Commercial Use: 3 Year
Warranty Method: This product is valid for 3 years warranty from the date of purchase. Mercator requires a copy of "certificate of compliance' from the installing electrician to complete the claim.

GTIN: 9312699215193
