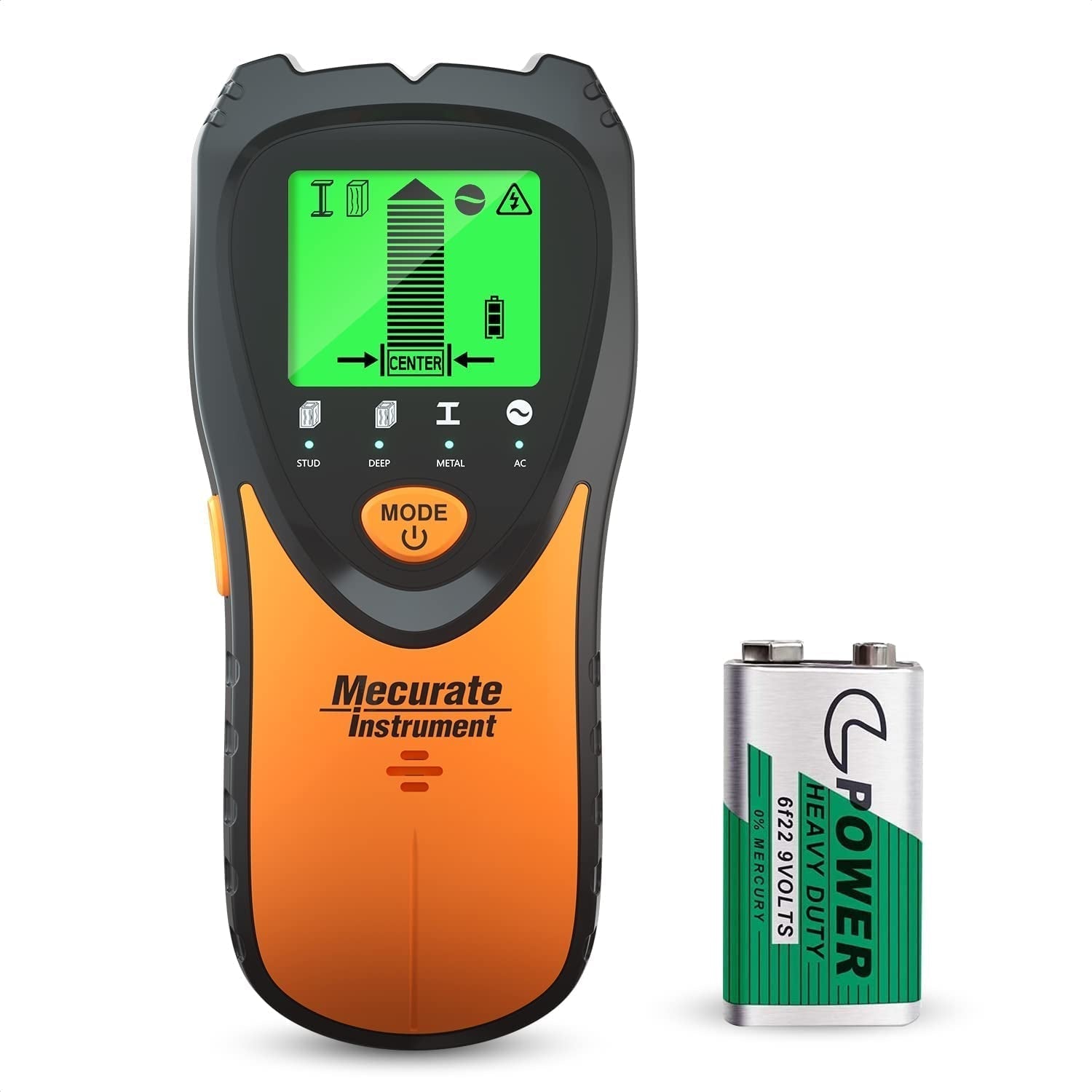

Mecurate Stud Finder Wall Scanner Sensor - 5 in 1 Electronic Stud with LCD Display & Audio Alarm for Wood AC Live Wire Metal Studs Detection Joist Pipe

• 【Accurate】A fully self-calibration before using according to different walls which provides users with maximum reliability and accuracy, it can quickly locate metal, wood or AC wires hidden in the walls, floors and ceilings, helping you find the exact location while installing TVs, cabinets, garage shelves etc.
• 【Multi-functional】 The stud finder has 5 scanning modes for distinct application, including 3/4" and 1-1/2" scanning mode for wood, metal scanning mode, AC scanning mode and buzzer mode. 3/4" and 1-1/2" scanning mode to locate the center and edge of woods, beam, joist, metals or deeply embedded objects; Metal scanning mode to detect ferrous and non-ferrous metal ; AC scan detects unshielded 80 to 240 AC voltage.
• 【Easy to use】The stud finder has audible warnings and noticeable moving direction arrow on the LCD display. The signal bar on the LCD display alerts you to the distance and direction of the approaching object, and a beep sounds to determine the location.This LCD display is also backlit which can provide clear display even in low light conditions.

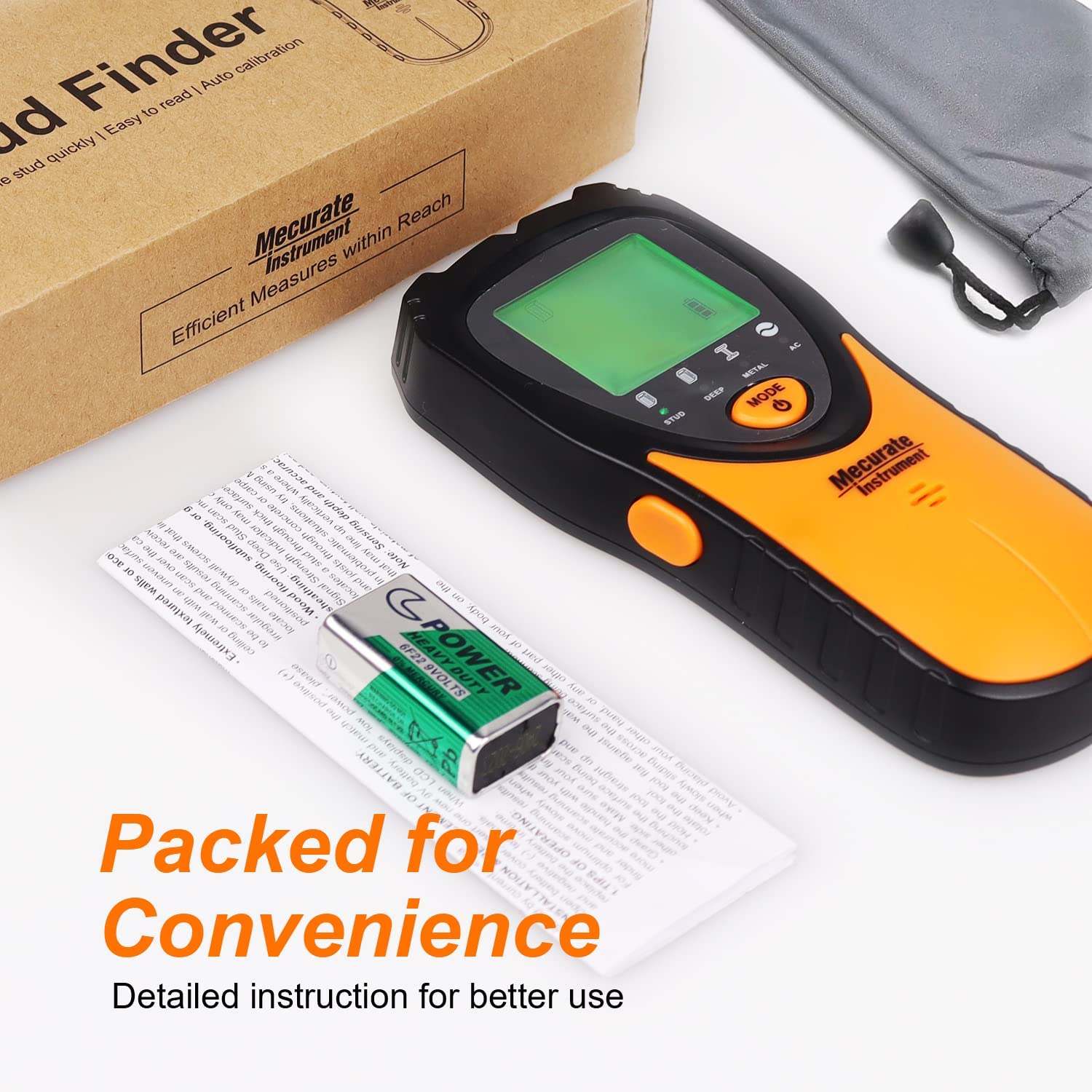

• 【Packed for convenience】9V battery, dustproof bag and user manual are included in the stud finder package, our user manual has sufficient operation method, detailed instruction and common issues for the stud finder while scanning the walls, it is greatly helped with using and accurate measurement.

Do not rely solely on the stud finder to locate objects on the scanned surface, but make full use of other sources of information to help locate objects.

The STUD mode on wall scanner is only suitable for dry wall, wooden board and interior walls. New walls might take a week or longer time to dry after being painted.

It is notable that sensing depth and accuracy may vary depending on humidity, material content, wall texture and oil paint. Material are not suitable for scanning: such as, ceramic floor, tile carpet, packed slat, foam-covered insulating board, glass or cement brickwork.

In AC mode, if the wire is more than 51MM away from the scanning surface, in concrete, wrapped in pipe, behind a plywood shear wall or metal wall, in the environment or in the presence of moisture on the scanning surface, the AC wire may not be detected.

Press Power Button to turn on the tool, press Mode Button to switch to the desired mode

• Start with Stud Mode for 3/4 in. (19mm)
• Deep Stud Mode: 1 1/2 in. (38 mm)
• Metal Mode for locating metal
• AC Mode for locating live AC wiring

• Press Scan Button on the side to start calibration, the decreasing bars will disappear and buzzer will beep one time, which means calibration is completed.
• When take multiple readings, it is important to wait for calibration to complete (2-3 seconds) every time before moving the scanner.

• Place the tool flat against the wall.
• Slowly slide tool across the surface, the pointed arrow indicate the direction need to move to, the EDGE indication shows when reach edge of the stud.

• Continue sliding tool, when the center of a wood stud or metal stud is located, the full bars on the Signal Strength Indicator, the CENTER indication will show and the buzzer will sound.
• If the stud is deeper than the mode selected, not full bars will show on the screen, set the device in Deep Scan mode, re-calibrate and run another scan.
