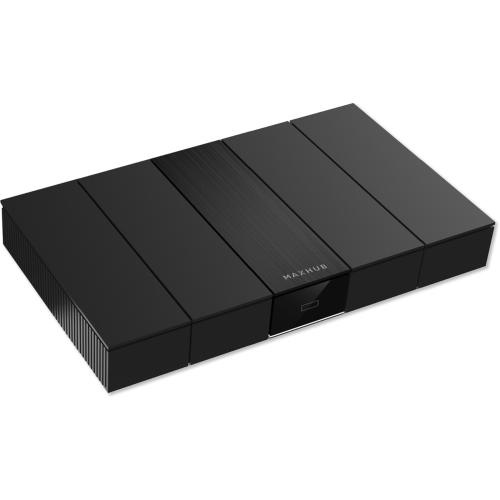

Maxhub WB05 4K 60Hz PoE Wireless Screen Sharing Box with Dual HDMI Output

MAXHUB Screen Sharing Box WB05
One-click easy for 4K Ultra HD output. Convenient screen sharing for maximized meeting experiences.



Effortless Sharing, Efficient Conferencing
Messy cables, complex external devices, incompatible interfaces and unnecessary preparation time.
With a screen sharing box, you can cast content directly from your computer, phone, or table. All without the wires and cables. Freed from the need for complex cables, you can now focus your time and energy on what matters most - the task at hand.


Rapid Screen Sharing, Small to Large Screening in a Single Step
With no need for complex wiring, you can now transform any traditional screen you currently own into a professional meeting screen. Step up from small screens to large displays, with plug and play ease.
- 0.15s Rapid Connection
- Wireless Screen Sharing device* One-click Screen Sharing
- Multi-protocol Support No Installation or Driver Required


4K Ultra HD Output, Authentic Details, Smooth Visuals
With a 4K output resolution and 60Hz high frame rate display, you can enjoy videos in hyper-realistic and vibrant color. H.264 decoding technology offers smooth visuals from one scene to the next, without impacting network speed.
- 4K Ultra HD Resolution
- 60Hz High Frame Rate Display
- H.264 Video Decoding


9-way Split-screen Display, See More at a Glance
Supports up to 9 split-screen displays, making optimal use of screen space when visually showcasing both individual and selected content.
9-way Split-screen
Split your screen 9 ways to better utilize large LED or tiled screen spaces. Enable clearer streaming of visuals or content for multi-party conferences and meetings.


Dual Screen Display, Enjoy Endless Possibilities with Twice the Screen Space
Double your utility with dual HDMI interfaces, for the ability to use dual-screen outputs when screening your content. Enjoy flexible content display at your fingertips, with both main and secondary screen pairing.


Professional-grade Screen Sharing Channel, High Bandwidth with Ultra-low Latency
A dual-frequency Wi-Fi module integrated with a 2T2R high-gain antenna configuration provides twice the data output compared to singular antenna designs. Enjoy ultra-low latency, improved clarity, and simultaneous internet access when screen mirroring via the device.
- 2.4GHz/5GHz Dual-frequency Wi-Fi
- Dual Reception, Dual Transmission - High-gain Antenna Design
- High-Bandwidth Capability - Simultaneous Accessibility


Enhanced Security Privacy, Protection under Control
Supports Extended Screen Mode*, where the large screen displays files simultaneously as the small screen views private information such as emails, keeping your personal information private.
- Extended Screen Mode - Privacy Protection
- Application Windows Sharing - Focused Content and Experience


Deviced Management System*, Centralized Control for Multiple Rooms & Devices
Have total control over multiple meeting rooms and Display Devices* with one centralized back-end system, making managing content distribution, corporate communications, and welcoming displays easier than ever. The system also allows for pre-scheduled power on/off, for truly cost and energy-effective maintenance.
- Scheduled Power On/Off - Cost-effective and Energy-saving
- Content Broadcasting - Efficient Presentation
- POE Power Supply - Clean Wiring


All-in-one Compatibility, Professional Meetings at Your Fingertips
Compatibility with various Mainstream Conference Display Devices* such as TVs, projectors, LED screens and videos walls makes it ideal for a variety of office meeting scenarios.


Medium/Large Conference Rooms
Say goodbye to back-end control. Mirror files and content straight from your mobile phone or tablet, without the need for copying to a dedicated computer device.


Lecture Halls
Enjoy intuitive learning experiences empowered by wireless screen sharing that supports multi-screen display.


Briefing Rooms
A projection/large-size TV and the Screen Mirroring Box are all you need for a professional meeting experience, while having total control over multiple meeting rooms with centralized management.


*PC Compatibility: Supports Windows 7 and above, macOS 10.10 and above. Mobile and Tablet Screen sharing Compatibility: Supports Android 5.0 and above, iOS 9.0 and above.
Wireless Screen sharing requires MAXHUB Wireless Screen sharing Device or installation of MAXHUB Share App. MAXHUB Share supports Android 5.veMAXHUB interactive flat panel upon first use.
For computers, mobile devices, and tablets, screen sharing can be achieved by downloading the MAXHUB Share.
*Multi-screen Display: Supports simultaneous screen shaing of up to 9 screens/devices.
*One-click Easy Screen Sharing: For MAXHUB Wireless Screen sharing, the wireless screen sharing device needs to be paired with theMAXHUB interactive flat panel upon first use.
For computers, mobile devices, and tablets, screen sharing can be achieved by downloading the MAXHUB Share.
*0.15s Fast Screen Sharing: Results obtained from testing wireless screen sharing from an 11-inch MacBook Air to MAXHUB Screen Mirror Box in a MAXHUB lab environment, with no other interference.
*Traditional TV Connectivity: Requires HDMI interface for connecting TVs or projectors to the MAXHUB Screen Sharing Box. Simply connect via a cable.
*Wireless Screen Sharing Device: While not included, this can be purchased separately. Needs to be paired for first-time use.
*Extended Screen Mode: After installing the driver on the sender's device, select Extended Mode for wireless screen sharing to use the large screen as a secondary display.
*Mainstream Conference Display Devices: Devices need to be equipped with an HDMI interface.

Basic performance

HDMI output resolution
4K @ 60Hz, 1080p @ 60Hz

Video encoding/decoding: Encoding
H.264/MVC/VP8; Decoding: H.264/H.265/VP9

Wireless transmission communication protocol
Wi-Fi

Wi-Fi Protocol
802.11b/g/n/ac/a/ax

Wireless frequency band
2.4 GHz, 5 GHz
Wi-Fi antenna

Built-in 2T2R

Wi-Fi working distance
0-10 m

Cable Network
Gigabit Port

Compatible transmitter type
General

Operating System

System Version

Android 9.0

CPU

Cortex-A72 Dual-Core; Cortex-A53 Quad-Core

GPU
Mali-T860MP4

RAM
4 GB

ROM
16 GB

Power

Power Requirements

DC 12 V 3 A/ PoE (802.3af)

Power Adapter AC Input

100~240 Vac

Power Adapter DC Output

12 V 3 A

Power Consumption
23.3 W

Input/Output Port

USB Type-C
1

USB3.0
1
AUDIO OUT
1
HDMI OUT
2
DC2.0
1
RJ45
1

Environmental Conditions

Operation Temperature
0 ~40 C

Operation Humidity
10%~90%RH

Storage Temperature
-20 ~60 C

Storage Humidity
10%~90%RH

Altitude
Below 5000 meters
Physical Specifications

Dimension L×H×D
255×147×38 mm (10.04x5.79x1.50 inch)

Net Weight
0.8 kg (1.76 lb)

Package Dimension L×H × D
Product package 1 pc: 310×275×75 mm (12.20x10.83x2.95 inch)

Gross Weight
Product package 1 pc: 1.43 kg (3.15 lb)

Accessories

HDMI Cable

x1
Power Adapter

x1
Wall-mount Bracket Assembly
x1
