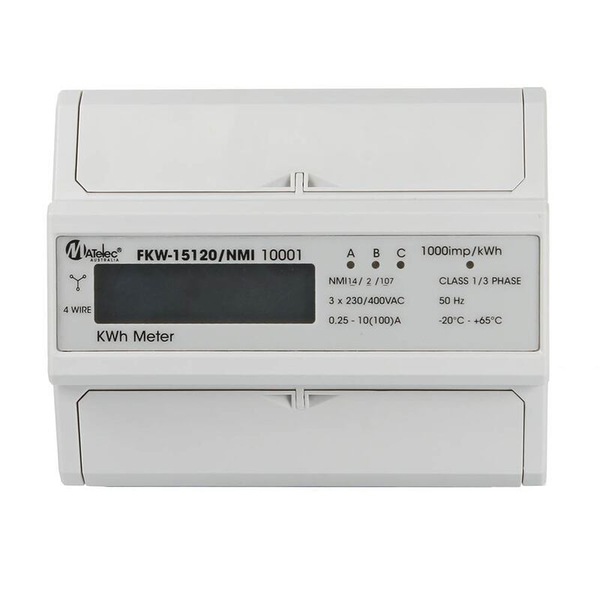

Matelec NMI Approved Three Phase 100A Din Rail KWH Meter

Matelec NMI Approved Three Phase 100A Din Rail KWH Meter

Hurry! 1 items left!

Price	$445.50
	Collect 1335 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Features

New slimline design
Digital LCD display
Polyphase - Suitable for 1, 2 and 3 phase metering
Tamper seal kit available
1 year warranty
Note - Not suitable for solar applications

Specifications

Materials: Housing - Fire resistant ABS
Weatherproof rating: IP51
Display: Backlit blue LCD
Accuracy class: Class 1
Insulation class: Class 2
Maximum rated current: 100 Amp
Operational current range: 0.25 - 100 Amp
Over current withstand: 1000 Amp for 0.1s
Nominal voltage: 230/415Vac
Operating frequency: 50 - 60Hz
Maximum cable capacity: 25mm2 (neutral 2.5mm2)
Operating temperature: -20°C to 65°C
Test output flash rate: 1000 impulses per kWh
Power supply indicator: Mains power ON
Consumption indicator: Flashing on load
Conforms to: IEC62052-11, IEC62053-21
Dimensions: 100mm (H) x 122mm (W) x 65mm (D) 7 Modules

GTIN: 9338999004923
