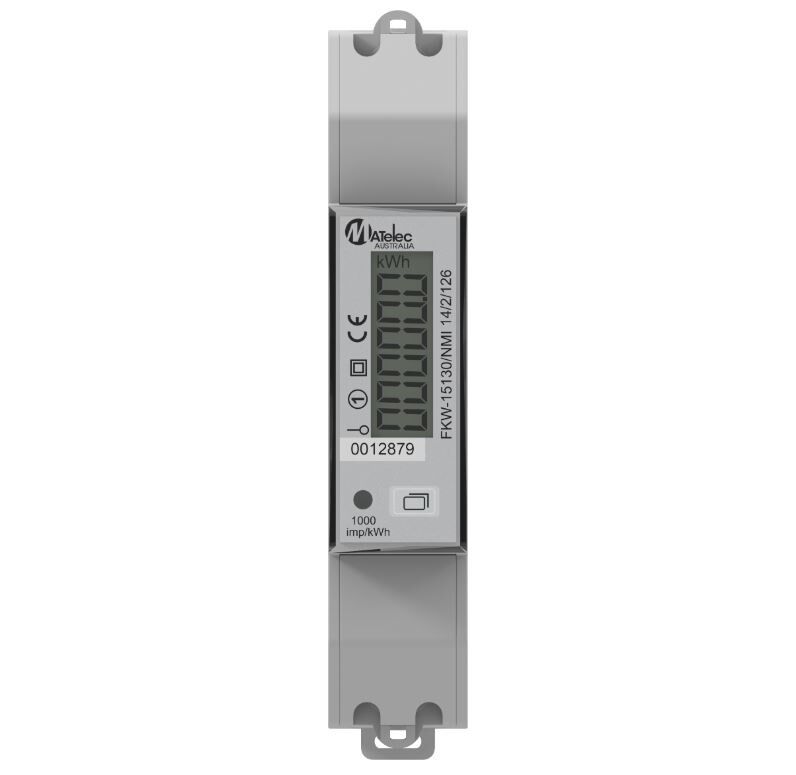

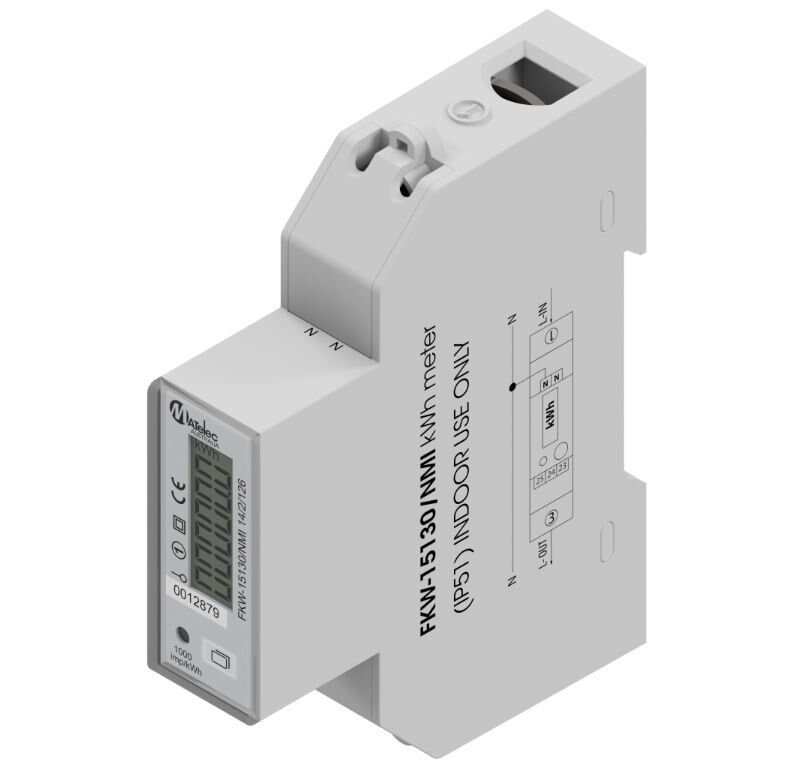

MATelec FKW-15130/NMI Single Phase KWH Meter – NMI Approved

The FKW-15130/NMI Single Phase KWH Meter is a compact, reliable, and versatile energy metering solution, designed for residential, commercial, and solar applications. With its slimline DIN rail mount design, NMI approval for billing, and advanced features, this meter ensures accurate energy monitoring for efficient power management.

Key Features

NMI Approved: Fully certified for billing applications, ensuring compliance with Australian standards.
Slimline Design: Space-saving DIN rail mount, ideal for installations with limited space.
Solar Compatibility: Perfect for monitoring energy consumption in solar-powered setups.
Digital LCD Display: Backlit blue LCD provides clear and easy-to-read energy data.
Tamper Seal Kit Included: Ensures meter security and prevents unauthorized access.

Specifications

Housing Material: Fire-resistant ABS
Weatherproof Rating: IP51
Accuracy Class: Class 1
Insulation Class: Class 2
Maximum Rated Current: 100 Amp
Operational Current Range: 0.25 - 100 Amp
Overcurrent Withstand: 1000 Amp for 0.1 second
Nominal Voltage: 230 Vac
Operating Frequency: 50 - 60 Hz
Maximum Cable Capacity: 25mm² (neutral: 2.5mm²)
Operating Temperature: -20°C to 65°C
Test Output Flash Rate: 1000 impulses per kWh
Dimensions: 90mm (H) x 18mm (W) x 72mm (D)
Warranty: 1 year

Applications

Residential: Track and monitor energy usage for accurate billing and cost control.
Commercial: Manage energy consumption in offices, retail spaces, and industrial units.
Solar Systems: Ideal for solar installations to monitor generated and consumed energy.

The FKW-15130/NMI Single Phase KWH Meter combines reliability, accuracy, and versatility, making it the perfect choice for managing energy usage in residential, commercial, and solar applications. Ensure precise power monitoring with this state-of-the-art energy meter today!

Specifications:

Report/Certification Number	Date Issued
UL, LLC test report reference no. R11456868-NMI (NMI M6-1)	27 - 07 - 2017
NMI M6 Clause A.2.16 Short Term Overcurrent Test C, Ref PL1545-R1	19 - 04 - 2017
National Measurement Institute CoA NMI 14/2/100	04 - 10 - 2017
IEC Test Report IEC62053-21:2003, IEC 62053-11:2003, SICEM Ref WJ14297 (IEC 62053-21:2003 and IEC 62052-11:2003)	12 - 12 - 2014

GTIN: 9338999010276
