Matelec FKW-15130-NMI | Bi-directional NMI Approved DIN Kilowatt Hour Meter
The Matelec FKW-15130-NMI bi-directional kilowatt-hour meter provides accurate and reliable energy monitoring in a compact, slimline design. NMI-approved for billing applications, this meter is ideal for residential and commercial installations, including solar energy setups. The backlit blue LCD ensures clear readings, and the included tamper seal kit enhances security.
Constructed with durable, fire-resistant ABS housing and rated at IP51, the FKW-15130-NMI is built to withstand challenging environments. Its wide operational current range of 0.25–100A, overcurrent withstand of 1000A for 0.1 seconds, and Class 1 accuracy guarantee precision. Designed for 230VAC at 50–60Hz, this 1-module meter is easy to install on a DIN rail and includes indicators for mains power and load consumption.
Bi-directional Kilowatt Hour Meter Features:
- NMI Approved: Suitable for billing applications and solar systems.

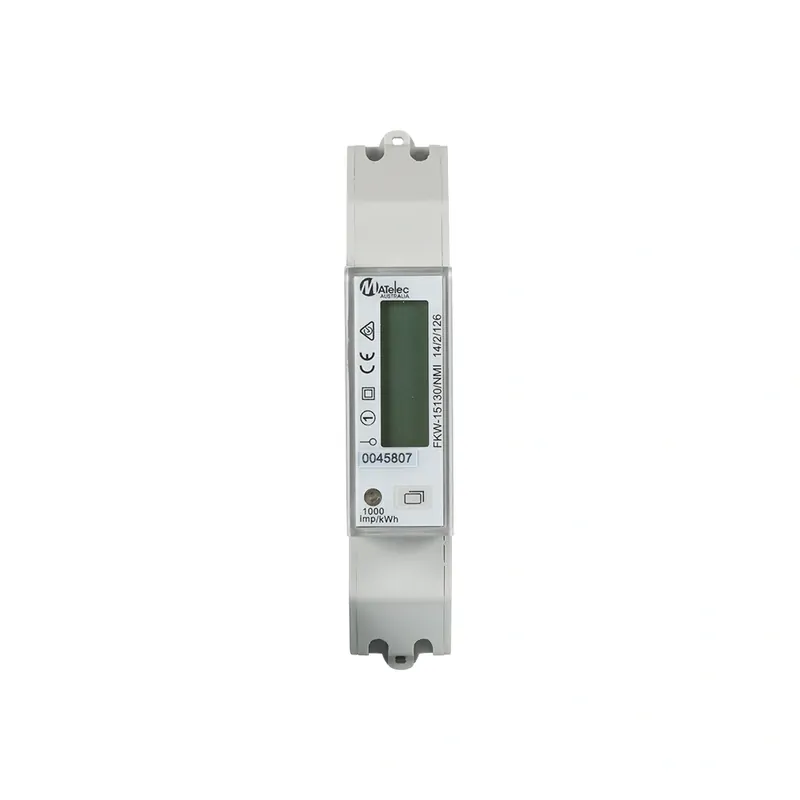

- Digital Display: Backlit blue LCD for clear energy monitoring.
- Durable Build: Fire-resistant ABS housing with IP51 protection.
- Wide Current Range: Operational range of 0.25 to 100A with Class 1 accuracy.
- Compact Design: Slim 1-module size for easy DIN rail installation.
FKW-15130-NMI FAQ:
What is the maximum current capacity?
The meter supports up to 100A with overcurrent withstand of 1000A for 0.1 seconds.
Is this meter suitable for solar applications?
Yes, it is bi-directional and ideal for solar energy systems.
Does it include a tamper seal kit?
Yes, the meter comes with a tamper seal kit for added security.
