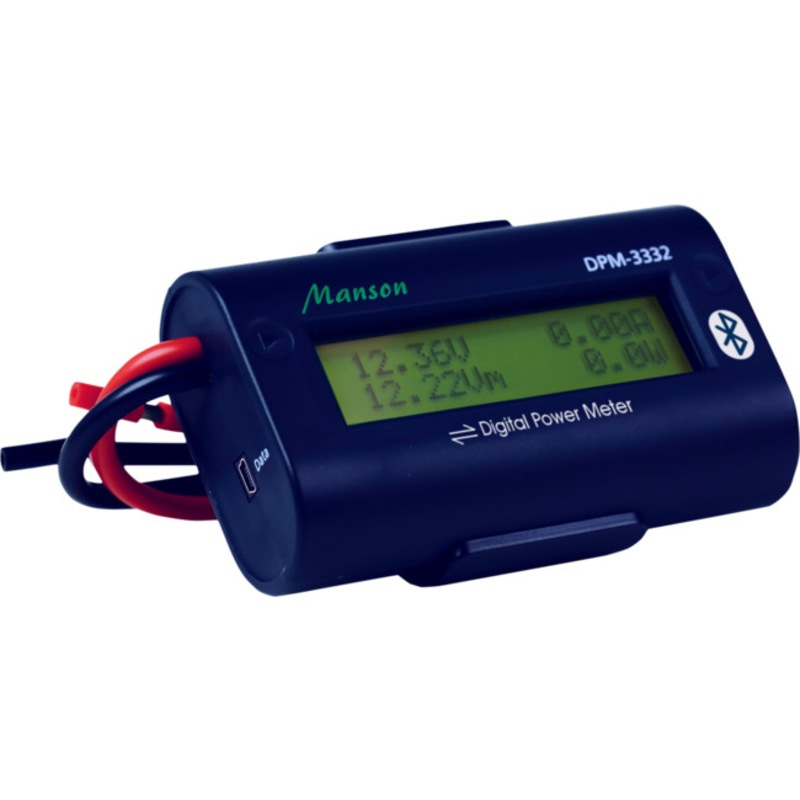

MANSON DPM3332 0-30A 3-60V DC Power Meter 4 Digits Bt USB With Internal Shunt

MANSON DPM3332 0-30A 3-60V DC Power Meter 4 Digits Bt USB With Internal Shunt

Hurry! 16 items left!

Price	$136
	Collect 408 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/01/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Overview

DPM-3332 Digital DC power meter with Internal Shunt measures: 0-30A (0.01A), 5-60V (0.01V).

Features

Bidirectional current sensing;
Build in USB port for connecting PC;
Constantly display the Current, Voltage, Power;
Scrolling to display Max V, Max I, Min. V, Min. I, Watt Hour, Amp Hour, and total operation time in hours, minutes, and seconds;
Any one of_the scrolling_displays can be selected for continuous display;
Built-in Bluetooth for iPhone and Android smartphones to monitor and download the data;
Real-time monitoring of charging parameters;
Easy download of stored data;
Adjustable logging_intervals_range from 30 seconds to 180 seconds;
3,600 sets of V& I with time and_the last_set of scrolled displays are stored;
180 hours of recorded time when logging interval set to 180 sec;
Data stored in the meter can be downloaded to_a PC_through_a USB_connection;
Wireless data monitor and download;
The unit_can be mounted on a supplied snap-on bracket or magnetically on_an iron_surface;

Bidirectional measurement

DPM can measure the current in both directions or just one direction.

In typical applications using a battery bank as a base reference, the DPM data logs the discharging current (negative current) & discharging Ah or the charging current (positive current) & charging Ah.

This unique capability brings in related both the negative and the positive ampere hour, peak current & etc. values.

The support of bidirectional current measurement reduces the complication of wiring and several meters when in-and-out current measurement is needed.

Built-in Bluetooth for monitoring & download by smartphones

Each standard the DPM-3332 is capable of real-time monitoring of charging parameters and data download by using smartphones with installed Apps.

Large internal data storage

The extra large data bank allows for storing more data. It can store 30 hours of data at 30 sec sampling rate_or_60 hours at 60 sec or 180 hours at 180 sec sampling rate. There are 20 groups of data with selective sampling rates available, each time the DPM is powered up a new group with a selective sample rate is formed.

Build-in USB for PC connectivity

This self-contained DC Power Meter has a built-in data adapter to download logged data directly to a PC via USB.

Downloading data is simple with only one connection to the micro USB port of the power meter and the USB port of the PC with the provided USB cable.

Typical Applications

Battery Charging Analysis and Monitoring. Dust and_moisture proof_construction. Overload Protection, Short Circuit Protection, Reverse Polarity Protection, Over Voltage Protection, Over Temperature Protection
Battery Discharge Analysis and Monitoring.
Drone DC power consumption Analysis and Monitoring.
Solar Panel Power Analysis and Monitoring.
Wind Turbine DC Power Analysis and Monitoring.
Bicycle DC Generator Power Analysis and Monitoring.

What's In The Box?

DPM3332 with mounting bracket × 1
User manual × 1
USB A to Micro USB B lead × 1

Specifications

Measured Parameters	Current Range Amp.	−20Amp to 20Amp continuous, 30Amp (−30Amp) max. for 30−, 60Amp (−60Amp) max. for 5 seconds and non-repeatable within 60 second
Voltage Range Volt.	5-60V or 0-60V with external DC source
Resolution of V & I	0.01V, 0.01A
Scrolling Display of Registered Parameters	Ampere Hour (AH)	Max. recorded AH: 99,999AH; −99,999Ah Resolution of AH:0.01AH for −1,000Ah< total recorded AH < 1,000AH 0.1AH for 10,000 > total recorded AH > 1,000AH or −10,000 < total recorded AH < −1,000AH1AH for total recorded AH > 10,000AH or total recorded Ah< −10,000AH
Power Watt (Wp) registered	Max. recorded W: 3600W;-3600W Resolution of W: 0.1W
Energy: Kilo Watt Hour (KWH)	Max. recorded KWH: 9999.9KWH;-999.9KWH Resolution of KWH: 0.1KWH
Registered Peak Voltage (Vp), Min. Voltage (Vm), Peak Current (Ap), Negative Peak Current (−Ap)	The new high and low values of voltage and current will replace the old ones during the metering period and registered at the finish of the metering period
Accumulative Max. Operation Period logged	180 hours
Scrolling speed on LCD	3 seconds for one parameter
Data logging interval	Select-able from 30s to 180s
Operation	Operation Voltage & Current	5-60V and 20mA
5V USB Power Bank	5V, 20mA
Operation Condition	0-40°C, non-condensing humidity
Storage Condition	−10°C to 60°C
Construction	LCD Display	VA=54 × 14.4mm, 16 character × 2 row STN 5*8 dots
Housing Material	Poly-carbonate
Packaging	Dimensions (L×W×D)	75mm × 45mm × 23mm
Weight	100g approx.
Supplied Accessories	Snap-on mounter, 2 screw-on type connector blocks, USB Cable
