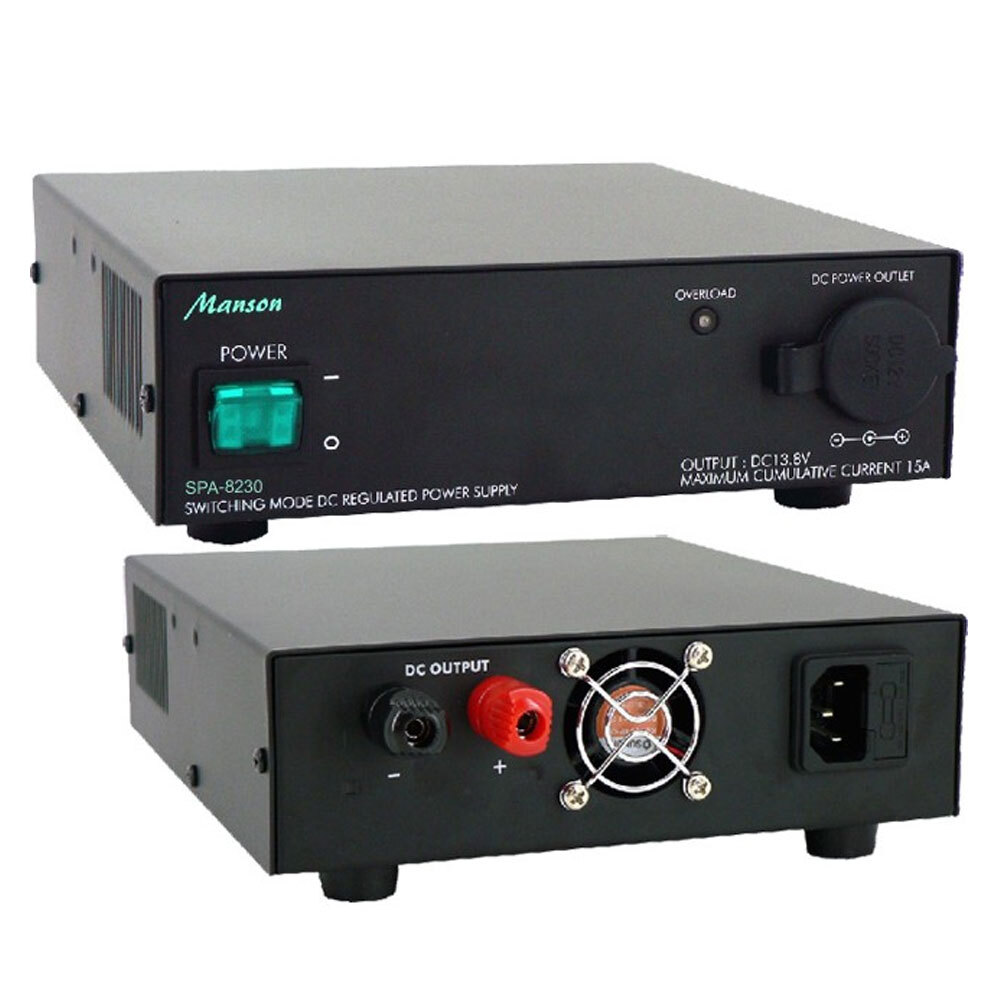

Manson 23A CONT 25A MAX 13.8V Power Supply Bench Top w/LED Indicator Dark Grey

Manson 23A CONT 25A MAX 13.8V Power Supply Bench Top w/LED Indicator Dark Grey

Hurry! 12 items left!
Price
$285.30
Collect 285 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Free Shipping

Quantity
Maximum item limit (12) has been reached.


Manson 23A CONT 25A MAX 13.8V Power Supply Bench Top Dark Grey

  • This series of convection cooled switching mode power supply is designed for radio equipment.

  • It is exceptionally immune to Radio Frequency Interference at close range.

  • Heat is dissipated from the heat sink and the aluminium base for efficient natural cooling.

  • It has the small footprint of popular radio transceivers, and the low profile casing makes it fall in place with a host of equipment in a tight spot.

  • The constant current protection, over-temperature protection with constant current and output Over Voltage Protection (OVP) ensure better reliability and safer protection to both the power supply and its connected load.

  • One main DC output at the rear and a front-mounted cigar socket provide convenient DC connectivity.

  • It has excellent line and load regulation, low ripple and noise, optimal efficiency of 80% and a power factor of 0.7

Features:

  • High RFI immunity

  • Fan cool

  • Binding pole and cigar socket DC output.

  • Over Load, Short Circuit, Over Temperature protections by constant current circuitry.

  • Output Over-Voltage Protection

  • Power Factor Control

  • User adjustable fine tune setting 13.3 -14.5V (SPA-8230) & 26.6-29V (SPA-8232)

Specifications:

  • Colour: Dark Grey

  • Output Voltage: Fixed 13.8Vdc ±0.5V

  • Output Current( Main output posts):  23A Cont.,  25A Max. ( 1 min. 50% duty cycle)

  • ( Main output posts + Cigar Socket): 23A Cont. , 25A Max. ( 1 min. 50% duty cycle)

  • Ripple & Noise: <=50mVp-p,5mVrms

  • Load Regulation: <=100mV (0 - 100% Load)

  • Line Regulation: <=50m V ( ± 10% Variation)

  • Input Voltage: 230Vac , 50Hz- ( or on request)

  • Indicators: Red Color Overload LED Indicator

  • Cooling System: Fan Cool

  • Operating Temperature: 0- 40°C

  • Protections: Over Load, Over Temperature, Short Circuit protections by Constant Current Circuitry and Output Over Voltage Protection

  • Approvals: CE EMC: EN 55022, LVD: EN 60950

  • Dimensions: 18.1 x 6.3 x 19 cm (WxHxD)

  • Weight: Approx. 1.55 kg

This item comes with a 12-month warranty.

GTIN: 9328202033246

Estimated Delivery Time Frame: 2-7
