Major Tech MT985 | Digital Milliohm Meter

Description:

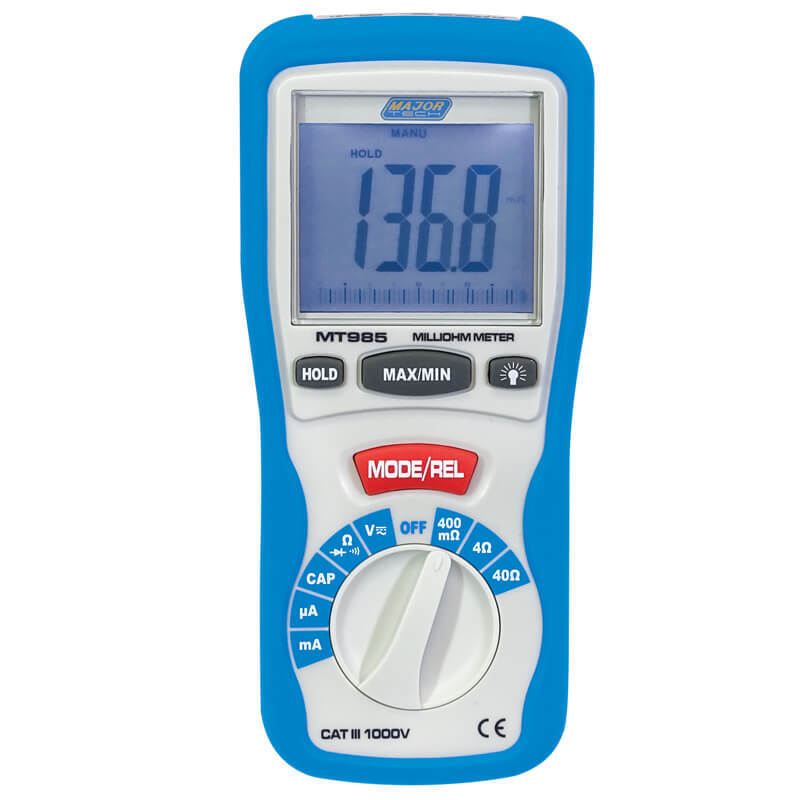

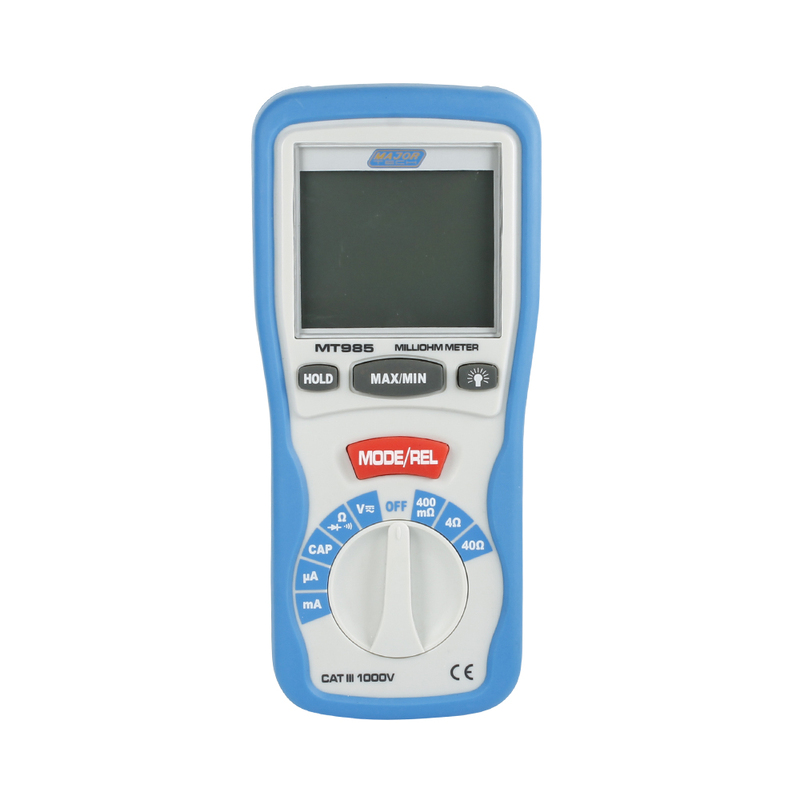

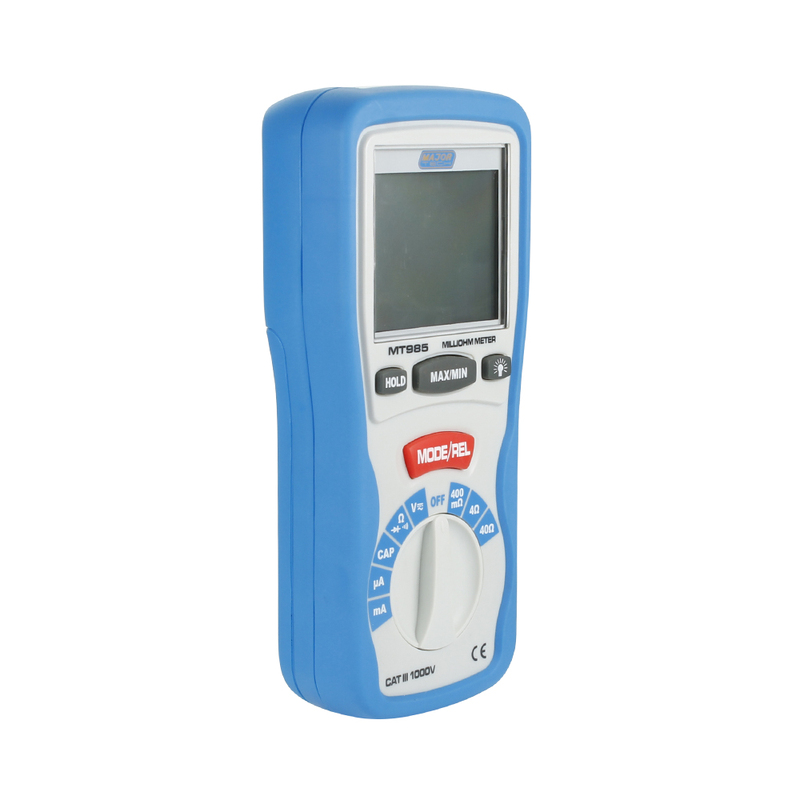

The MT985 is a handheld Milliohm/Multimeter combination that measures low resistance from 400mΩ to 40Ω with a resolution of 0.1mΩ and a test current of 200mA. With a two times per second sampling rate, this unit provides fast and accurate measurements on a large high contrast 4000 count LCD Display with a bargraph and back light. The Multimeter function measures AC/DC voltage, AC/DC current, resistance, capacitance, continuity, and includes a diode test offering excellent performance and is ideal for any industry.

Features:

CAT IV 600V and CAT III 1000V

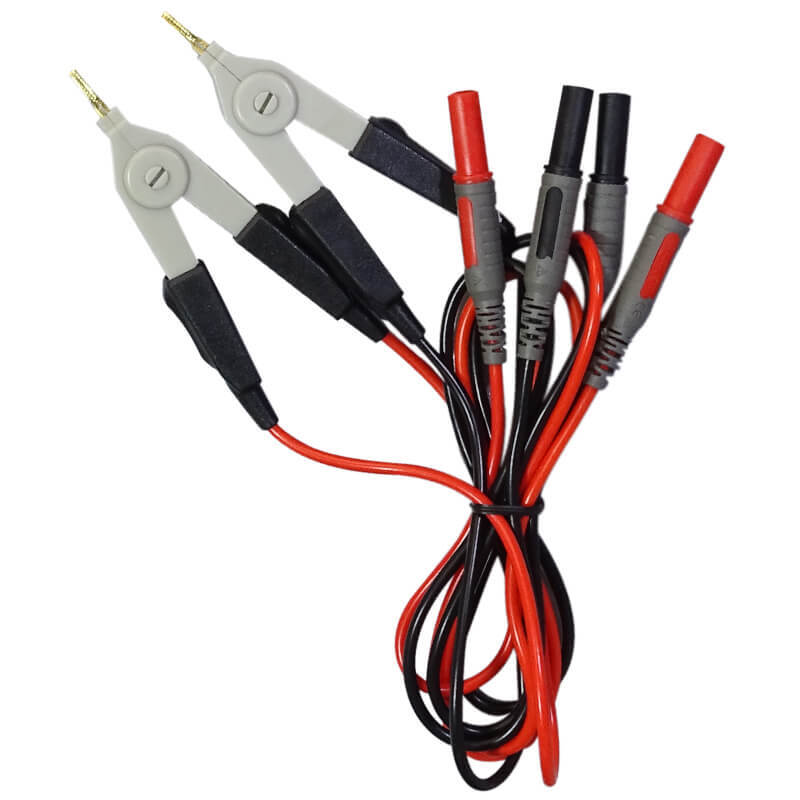

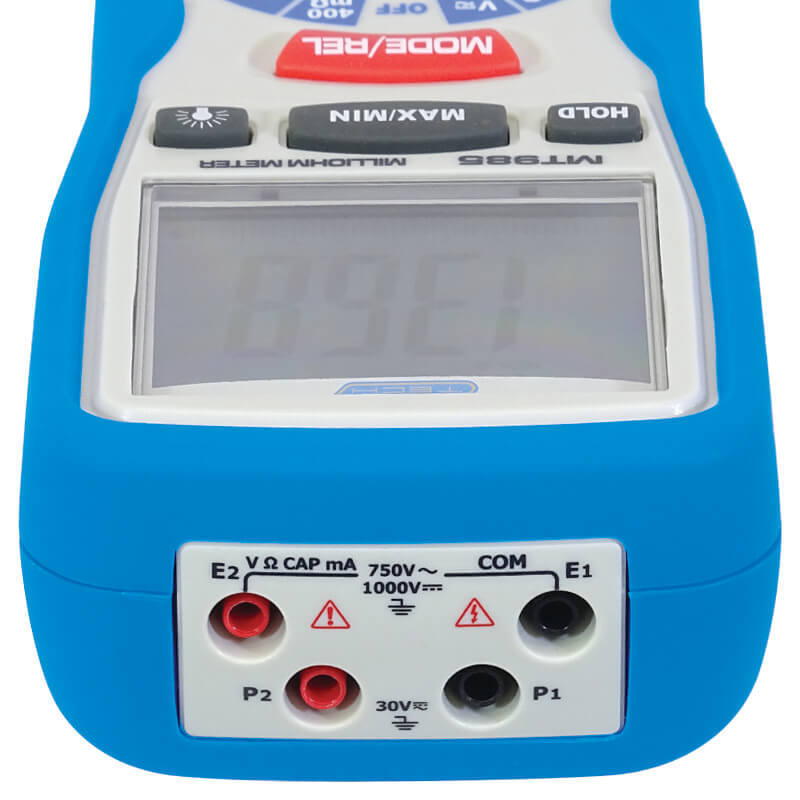

4 Terminal Kelvin measurements
High resolution 0.1mΩ
Test current of 200mA
AC Voltage 750V
DC Voltage 1000V
AC/DC Current 400mA
Capacitance 1pF to 40mF
MIN / MAX
Relative mode
Data Hold
Continuity
Diode Test
4000 Count LCD
Bargraph and backlight
Low battery indication
Overload protection

Specifications:

Specifications

Function	Range	Resolution	Accuracy
Low Resistance	400mΩ – 40Ω	0.1mΩ	±(1% + 10 Digits)
DC Voltage	400mV – 1000V	0.1mV	±(1% + 5 Digits)
AC Voltage	400mV – 750V	0.1mV	±(1.2% + 10 Digits)
DC Current	400μA – 400mA	0.1μA	±(1.0% + 2 Digits)
AC Current	400μA – 400mA	0.1μA	±(1.5% + 5 Digits)
Resistance	400Ω – 40MΩ	0.1Ω	±(1.0% + 4 Digits)
Capacitance	4nF – 40mF	1pF	±(5.0% + 20 Digits)
Output Current	220mA – 2mA
Digital Display	Large LCD Display
Continuity	Yes
Diode Test	Yes
Bargraph	Yes
Overrange Indication	Yes
Min Max	Yes
Data Hold	Yes
Back Light	Yes
Enclosure	Double moulded case
Low Battery Indication	Yes

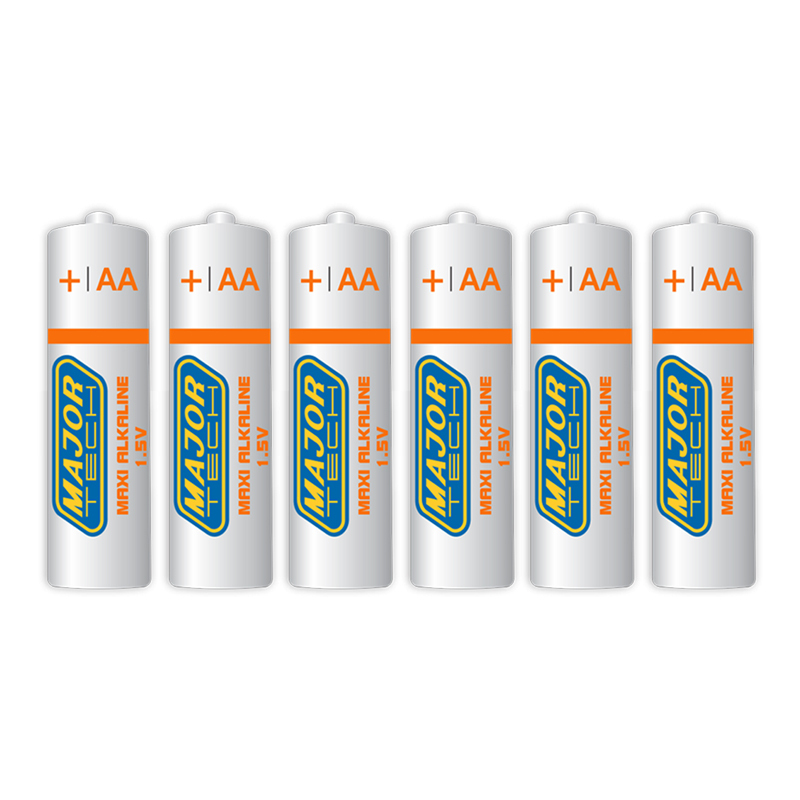

Batteries	6 x AA
Weight	700g
Dimensions	200 x 92 x 50mm
Safety Specs	IEC61010-1 CAT III 1000V
