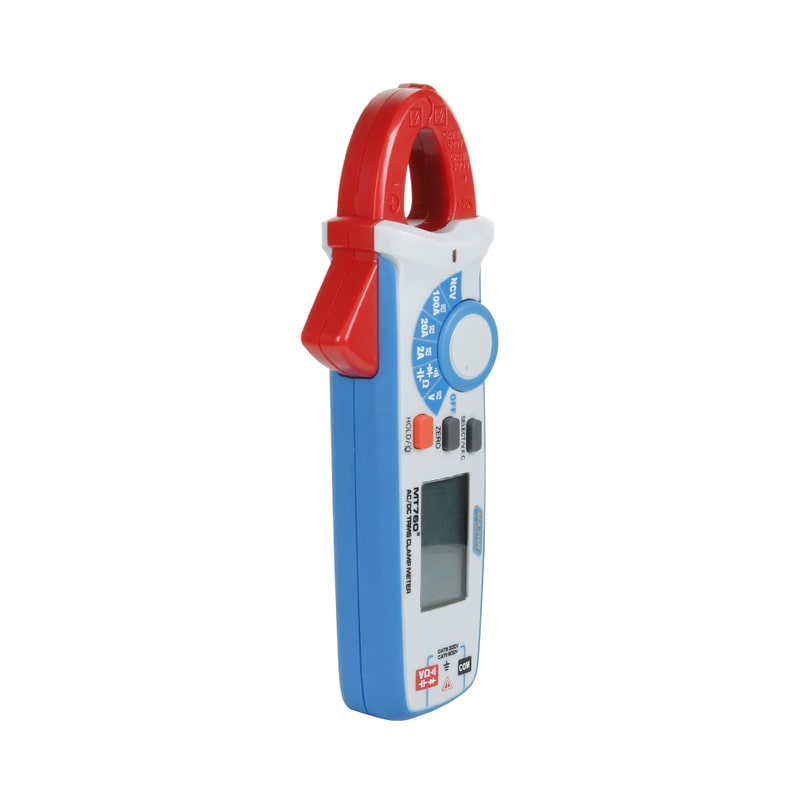

Major Tech MT760 | 100A AC/DC Clamp Meter

Description:

The MT760 is a CAT III 300V, 2000 count True RMS 100A AC/DC digital clamp meter with a resolution of 1mA. The MT760 has a compact design, high reliability and safety, and provides fast sampling time with high accuracy and all readings are indicated on a large backlit LCD display. The meter measures 600V AC/DC, capacitance, resistance measurements, plus a continuity buzzer and diode test function. The VFC function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Zero/Relative mode for Capacitance Zero, resistance, DCV, ACV, DCA and ACA offset adjustment and Non- Contact voltage detection. Housed in a modern double moulded rubber housing.

Features:

CAT III 300V and CAT II 600V
Current measurement from 1mA
Measures AC and DC current to 100 Amps
Ø17mm Cable Clamp size
2000 count backlit LCD display
Measurement of DC voltage and AC voltage up to 600V
Capacitance to 20mF
VFC – Variable Frequency Drive voltage value
Microprocessor Zero adjustment
NCV – Non-Contact Voltage Detector
Continuity buzzer and Diode Test
Data Hold function
Auto Power Off

Specifications:

Specifications

Function	Range	Resolution	Accuracy
DC Current	2.000A – 100.0A	1mA	±(2% + 8 Digits)
AC Current	2.000A – 100.0A	1mA	±(3% + 10 Digits)
DC Voltage	200.0mV – 600V	0.1mV	±(0.7% + 5 Digits)
AC Voltage	2.000V – 600V	1mV	±(1% + 3 Digits)
AC Voltage VFD	200.0V – 600V	100mV	±(4% + 3 Digits)
Resistance	200.0Ω – 20.00MΩ	0.1Ω	±(1% + 2 Digits)
Capacitance	2nF – 20.00mF	1pF	±(4% + 5 Digits)
True RMS Measurements	ACA, ACV
AC Bandwidth	50Hz to 400Hz
Digital Display	2000
Non-Contact Voltage (NCV)	Yes
Overrange Indication	Yes
Continuity	Yes
Diode Test	Yes
Jaw Size	17mm
Input Impedance	>1MΩ DCV & >1MΩ VAC
Min Max	Yes
Data Hold	Yes
Back Light	Yes
Enclosure	Over moulded case
Low Battery Indication	Yes
Batteries	2 x AAA
Weight	170g
Dimensions	175 x 60 x 33.5mm
Safety Specs	IEC61010-1 CAT II 600V
