Major Tech MT745 - 3000A AC True RMS Clamp Meter

Major Tech MT745 - 3000A AC True RMS Clamp Meter

Hurry! 2 items left!

Price	$320.65
	Collect 960 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/01/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	$13.95 Australia-wide
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Major Tech MT745 | 3000A AC True RMS Clamp Meter

Description:

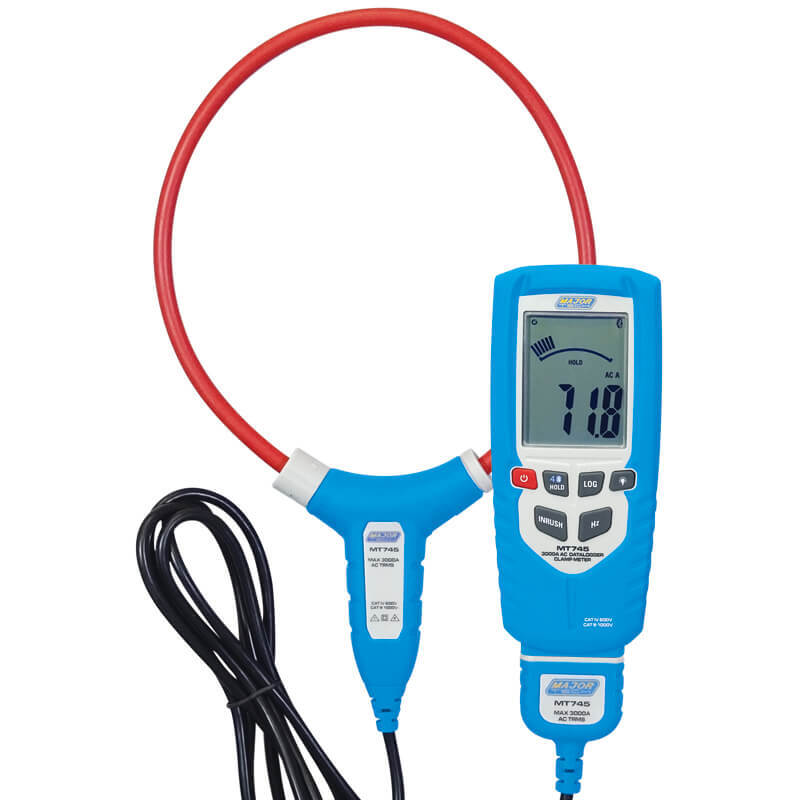

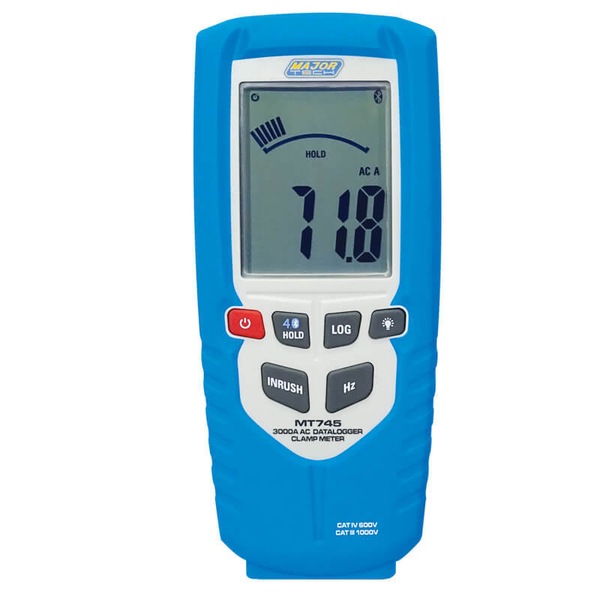

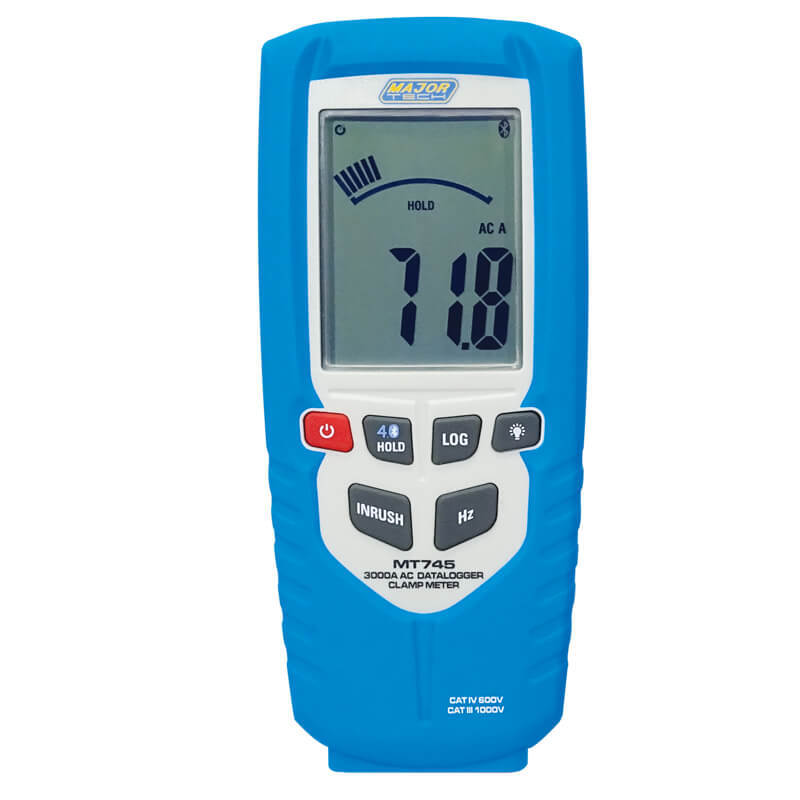

The MT745 3000A AC Flexible Current Clamp Meter with Data Logging is ergonomically designed for ease of use in confined spaces. The 8mm flexible coil can easily fit around flat busbar or parallel supply cables and can also be maneuvered into cable trays where conventional hard jaw clamps cannot reach. The Bluetooth feature can be used to perform live recordings or to transfer recorded data to a smart phone app. Using the Log Key will start a recording that will be stored on the instrument. The smart phone app allows the user to retrieve Data as well as set up recording sample rate. The unit features inrush current measurement as well as frequency measurement and has a large backlit LCD display making it easier to read measurements.

Features:

CAT IV 600V and CAT III 1000V
AC current True RMS measurements
3000 count Backlight LCD
Analogue Bar graph
Bluetooth interface

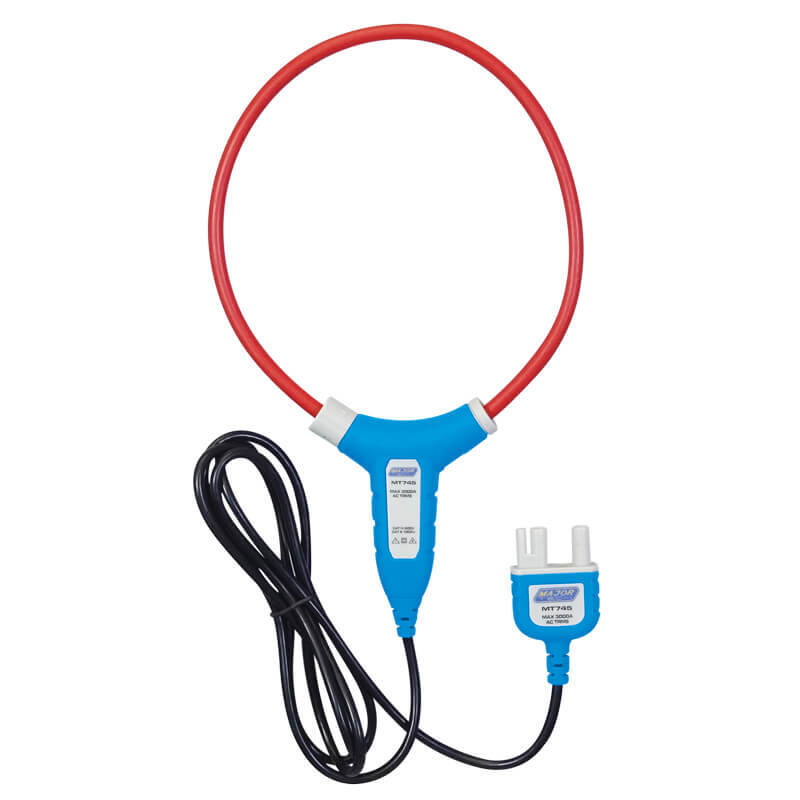

3000A AC flexible clamp
Data Hold
Inrush Current
Frequency Measurement

Specifications:

Specifications

Function	Range	Resolution	Accuracy
AC Current	0.5 to 3000A	0.01A	±(3.0% + 5 Digits)
Frequency	50Hz – 400Hz	0.1A	±(3.0% + 5 Digits)
True RMS Measurements	ACA
AC Bandwidth	50 to 400Hz
Digital Display	3000
Bargraph	Yes
Data Logging	Yes
Overrange Indication	Yes
Jaw Size	150mm Flexi Clamp
Min Max	Yes
Data Hold	Yes
Back Light	Yes
Enclosure	Moulded case
Low Battery Indication	Yes

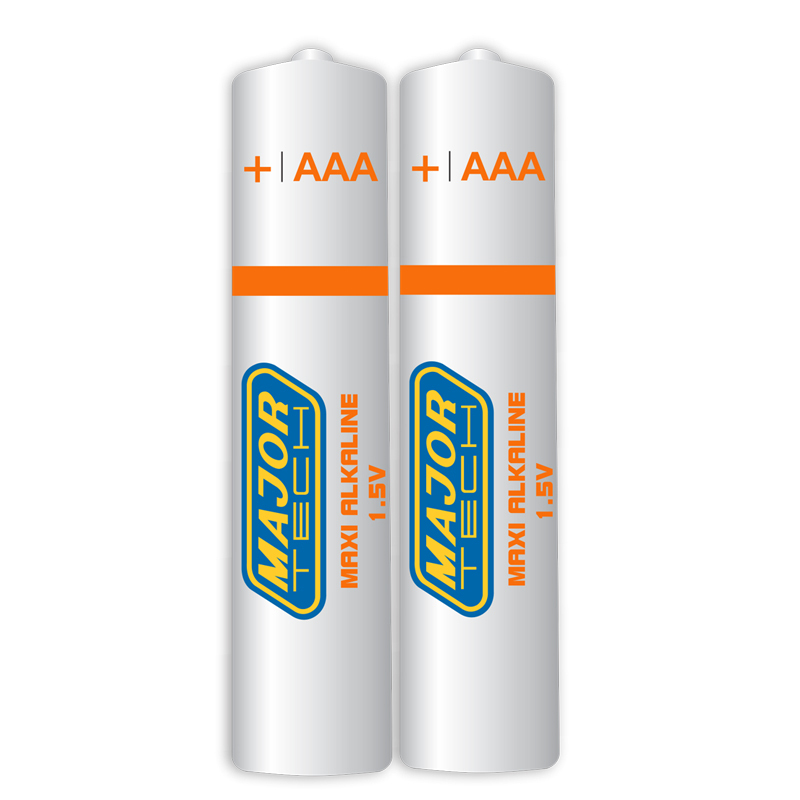

Batteries	2 x AAA
Weight	315g
Dimensions	230 x 76 x 40mm
Safety Specs	IEC61010-1 CAT IV 600V

Warranty starts from Invoice Date

Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct

GTIN: 6008229030024
