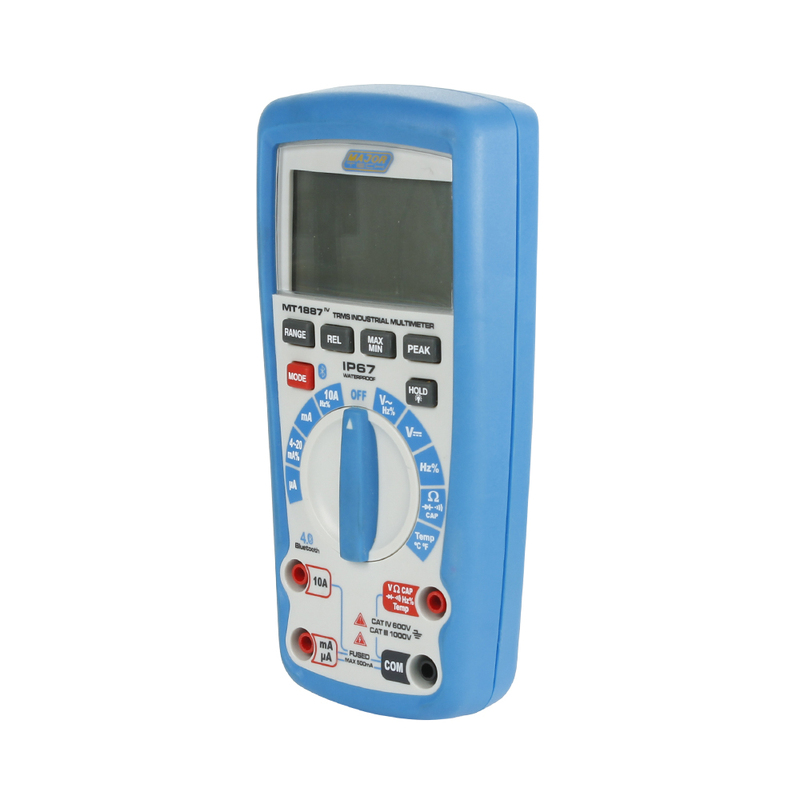

Major Tech MT1887 | 1500V DC IP67 True RMS Bluetooth Multimeter

Description:

The MT1887 is a True RMS professional multimeter having improved measurement functions, troubleshooting feature, resolution and accuracy to solve problems on power distribution, motor drives, electromechanical equipment and plant automation with the 4-20mA% loop measurements. The meter has a large 40 000 count backlit LCD with the added advantage of a 41 segment analogue bargraph. NCV function, automatic Non-Contact voltage detection, the LCD backlight will be in red when AC voltage above 110V is sensed. Specially designed for the Solar Industry the DC voltage range measures up to 1500V DC, other measuring ranges include ACV to 1000V, Micro Amps and Amps, Frequency, Resistance, Duty Cycle, capacitance and temperature measurements. The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organising and sharing recordings. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.

Features:

CAT IV 600V and CAT III 1000V
IP67 Dust & waterproof with O-ring sealed casing
40 000 count LCD display with 41 Segment Bargraph
Measures DC voltage up to 1500V
Measures AC voltage up to 1000V

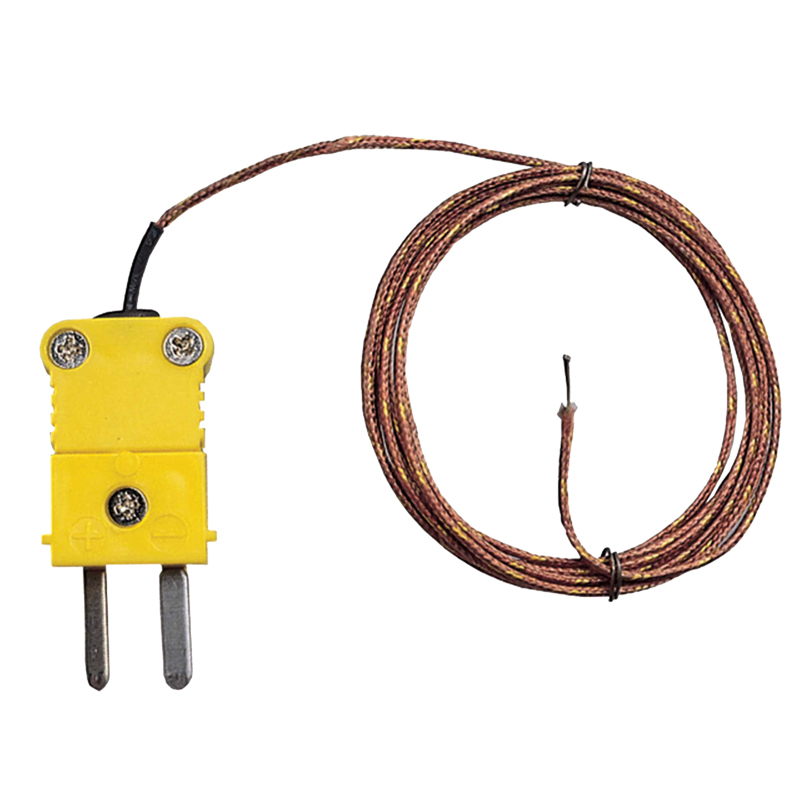

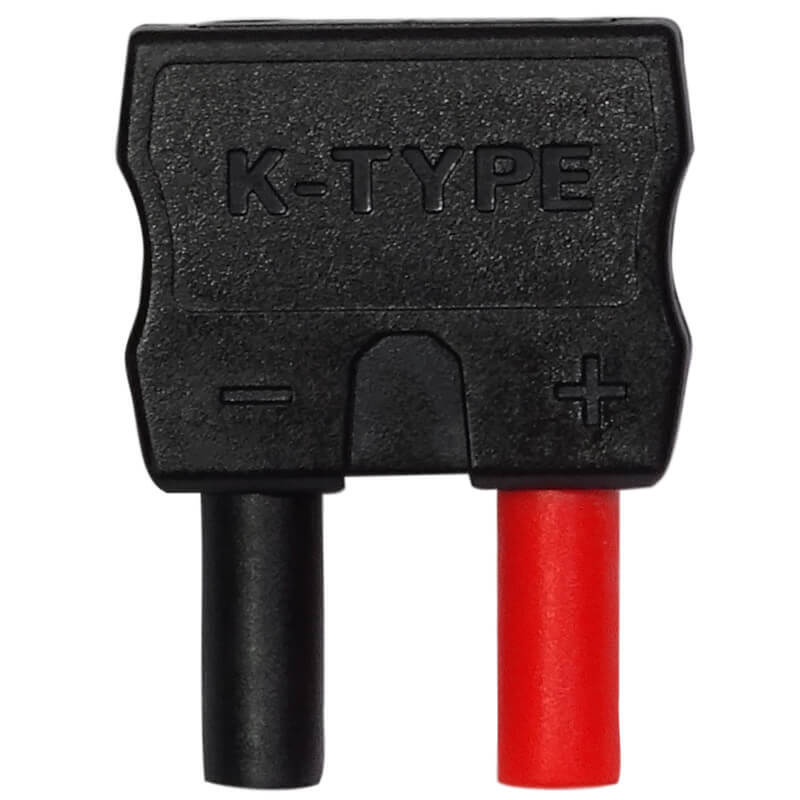

Temperature measurement from -50⁰C to 1000⁰C
AC & DC Micro Amps up to 10A
4-20mA process loop measurements with % reading
Capacitance to 40mF
Frequency to 100MHz
Duty Cycle
Relative mode
Automatic non-contact voltage detector above 110V AC, LCD turns red
Min, Max and Data Hold
Auto Power Off

Specifications:

Specifications

Function	Range	Resolution	Accuracy
DC Voltage	400mV – 1500V	1V	±(0.1% + 6 Digits)
AC Voltage	4V – 1000V	0.1V	±(1.0% + 8 Digits)
DC Current	400uA – 10A	0.001A	±(1.0% + 3 Digits)
AC Current	400uA – 10A	0.01A	±(1.5% + 8 Digits)
Resistance	400Ω – 40MΩ	0.01MΩ	±(0.5% + 8 Digits)
Capacitance	40nF – 40mF	0.01mF	±(2.5% + 10 Digits)
Temperature	-50°C – 1000°C	1°C	±(1.0% + 2.5°C Digits)
4-20mA%	25 to 15%	0.01%	±50 digits
Frequency (Electronic)	40Hz – 100MHz	0.01MHz	±(0.1% + 1 Digits)
Frequency (Electrical)	40 ~ 400Hz	0.01Hz	±(0.5% reading)
Duty Cycle	5% – 95%	0.01%	±(1.2% + 2 Digits)
AC Response	True RMS
Digital Display	40 000 Count
Bargraph	41 Segmented
Continuity Test	Audible signal if the resistance is approx. 50Ω or less
Diode Test	Test current 0.9mA typical, open circuit voltage 3.2V DC typical
Peak	>1ms
Non-Contact Voltage	Detection above 110V AC, LCD display turns red
Bluetooth	Bluetooth 4.0 Technology
Data Hold	Yes
Back Light	Yes
Enclosure	IP67 Dust & Waterproof Double Moulded

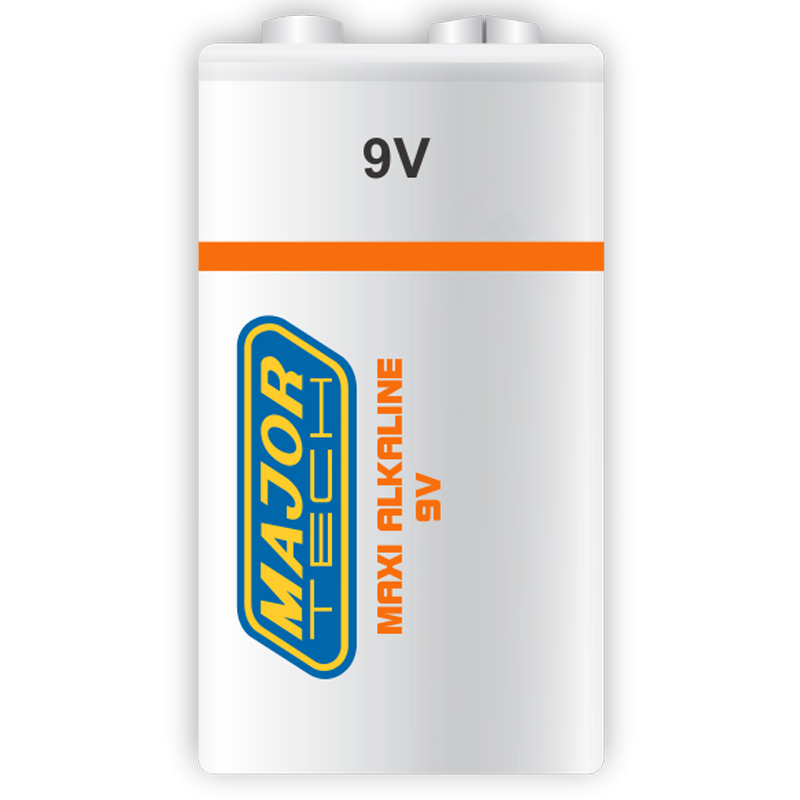

Battery	9V
Dimensions	187 x 81 x 50mm
Weight	342g

Warranty starts from Invoice Date

Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct

GTIN: 6008229006371
