Lumatek Utopia HPS/CMH Controllable Fixture Only - 600W/630W - DE - 220 - 240V

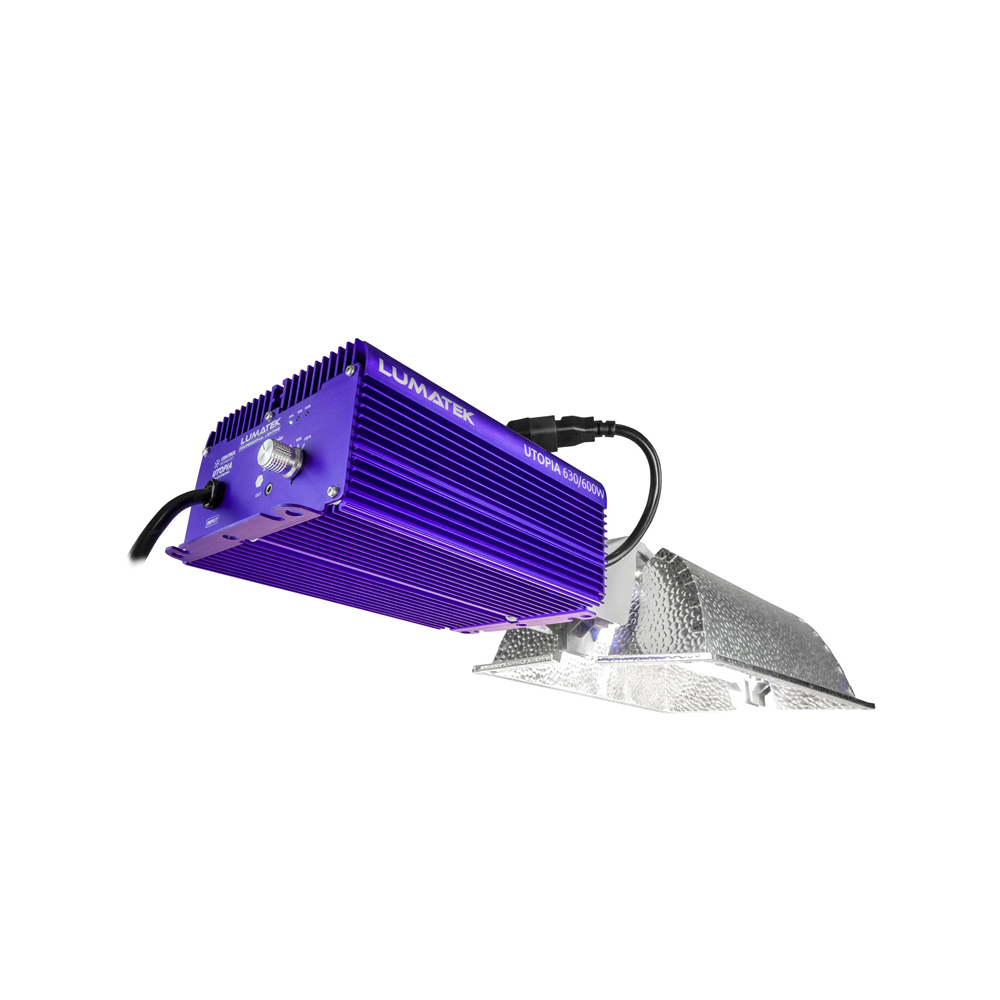

220-240V Current Utopia 630W/600W Fixture designed to run CMH & HPS Lamps under a 97% reflective Hammertone Focal Reflector Lumatek continues to innovate by introducing to you, the next generation of HID digital ballast technology for the horticultural grow lighting sector… The all-new ​Lumatek Utopia 630W/600W DE CMH/HPS ​controllable fixture uses the latest in microprocessor-controlled electronics, to power both high-voltage CMH and HPS grow lamps – which are the most efficient HID light source for horticulture farming – allowing for both possibilities without additional expense. Designed for use in climate-controlled grow rooms, tents & greenhouses, the Utopia is an integrated all in one fixture with a hybrid digital ballast linking to a double-ended (DE) lamp holder in a premium 97% reflective hammer-tone and aluminium focal reflector. The Utopia 630W/600W fixture/ballast can drive both high or low voltage 600W HPS and 630W CMH DE grow lamps. Reducing the need for different ballasts/fixtures for each light source and thus reducing cost and maximising efficiency and flexibility to all growers. Using our HID extension cable the Utopia fixtures ballast can also be disconnected from the reflector and used remotely for more flexibility. The Utopia controllable is also available as an individual remote digital ballast that can be used with the reflector of your choice and offers the same hybrid tech The Utopia fixture is both manually dimmable and can be externally controlled using the Lumatek Control Panel for up to 400 fixtures per controller unit, with automated and temperature-controlled dimming and safety protection for even greater precision, assurance and control. It features three manual power settings at 80%-90%-100% with externally-controlled light intensity from 80% – 110% in 1% increments using a Lumatek control panel.

Feature

• High output and efficacy
• Powers two different technologies: CMH & HPS
• Designed for best performance with 600W HPS & 630W CMH Lamps
• 97% reflective Hammertone Focal Reflector
• Complete & Balanced Fixture
• Detachable ballast for remote use
• Plug & Play installation
• Manually dimmable 80%-90%-100%
• Externally-controllable with Lumatek Digital Panel
• Lamps sold separately
• 97% reflective Hammertone Wide Reflector also available

Specification

• Input Voltage: 220-240V 50/60Hz
• Power Consumption (at 100%): 660W
• Input Current: 2.7 – 3.0A
• Efficacy: 95%
• Light Distribution: 140º
• Lamps: 630W CMH DE 240V & 600W HPS DE 400V
• Reflector: 97% reflective Alanod Hammertone Focal
• Dimmable: 80%-90%-100%
• Power Factor: >0.98
• THD: <10%
• External Control: With Lumatek Digital Panel
• Dimensions: 712x251x108 mm
• Weight: 4.35 Kg
• Certificates: CE

What's In The Box

• [1] x Lumatek Utopia Fixture - 630W CMH | DE | 220 - 240V
• [1] x Fixture, Housing and connecting cables
• [1] x 97% reflective Hammertone Focal Reflector
• [2] x Metal Hooks
• [1] x Steel Cable (Remote Hanging)
• [1] x Manual
