Lumatek Utopia HPS/CMH Controllable Fixture - 600W/630W | DE | 220 - 240V
220-240V Current Utopia 630W/600W Fixture designed to run CMH & HPS Lamps under a 97% reflective Hammertone Focal Reflector
Lumatek continues to innovate by introducing to you, the next generation of HID digital ballast technology for the horticultural grow lighting sector…
The all-new Lumatek Utopia 630W/600W DE CMH/HPS controllable fixture uses the latest in microprocessor-controlled electronics, to power both high-voltage CMH and HPS grow lamps – which are the most efficient HID light source for horticulture farming – allowing for both possibilities without additional expense.
Designed for use in climate-controlled grow rooms, tents & greenhouses, the Utopia is an integrated all in one fixture with a hybrid digital ballast linking to a double-ended (DE) lamp holder in a premium 97% reflective hammer-tone and aluminium focal reflector.
The Utopia 630W/600W fixture/ballast can drive both high or low voltage 600W HPS and 630W CMH DE grow lamps. Reducing the need for different ballasts/fixtures for each light source and thus reducing cost and maximising efficiency and flexibility to all growers.
Using our HID extension cable the Utopia fixtures ballast can also be disconnected from the reflector and used remotely for more flexibility.
The Utopia controllable is also available as an individual remote digital ballast that can be used with the reflector of your choice and offers the same hybrid tech
The Utopia fixture is both manually dimmable and can be externally controlled using the Lumatek Control Panel for up to 400 fixtures per controller unit, with automated and temperature-controlled dimming and safety protection for even greater precision, assurance and control.
It features three manual power settings at 80%-90%-100% with externally-controlled light intensity from 80% – 110% in 1% increments using a Lumatek control panel.
Specifications
- Input Voltage: 220-240V 50/60Hz
- Power Consumption (at 100%): 660W
- Input Current: 2.7 – 3.0A
- Efficacy: 95%
- Light Distribution: 140º
- Lamps: 630W CMH DE 240V & 600W HPS DE 400V
- Reflector: 97% reflective Alanod Hammertone Focal
- Dimmable: 80%-90%-100%
- Power Factor: >0.98
- THD: <10%
- External Control: With Lumatek Digital Panel
- Dimensions: 712x251x108 mm
- Weight: 4.35 Kg
- Certificates: CE
Pro Grow Digital Double Ended HPS Lamp - 600W / 750W | 2K | DE | 400V
- Compatible with 240V & 400V digital ballasts
- Tuned for zero harmonic distortion between 80,000Hz to 120,000Hz
- Phosphor tuned for accurate & brilliant colour rendition
- Low iron quartz glass delivers the highest optical quality>
- 1 year manufacture warranty
Specifications
- Lamp Type: High-Pressure Sodium
- Kelvin: 2100
- CRI: 30
- Yield Factor: 100/100
- Medicinal Factor: 60/100
- Colour Expression: Red, orange
- Colour Description: Dawn and dusk where plants utilise All available light
- Best Used: The single lamp of choice for overall plant yield. Highest PAR output. Can be used for all stages of growth and flower, high favouring the late growth period and early to mid flowering period
- Hot restrike: 6 mins
What's In The Box

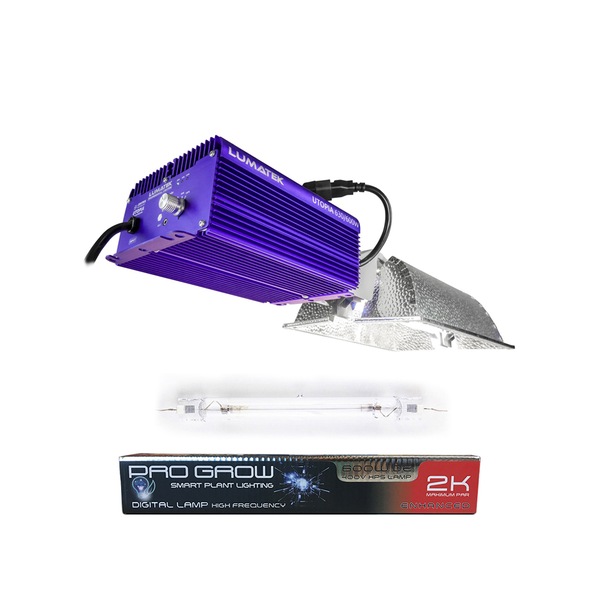

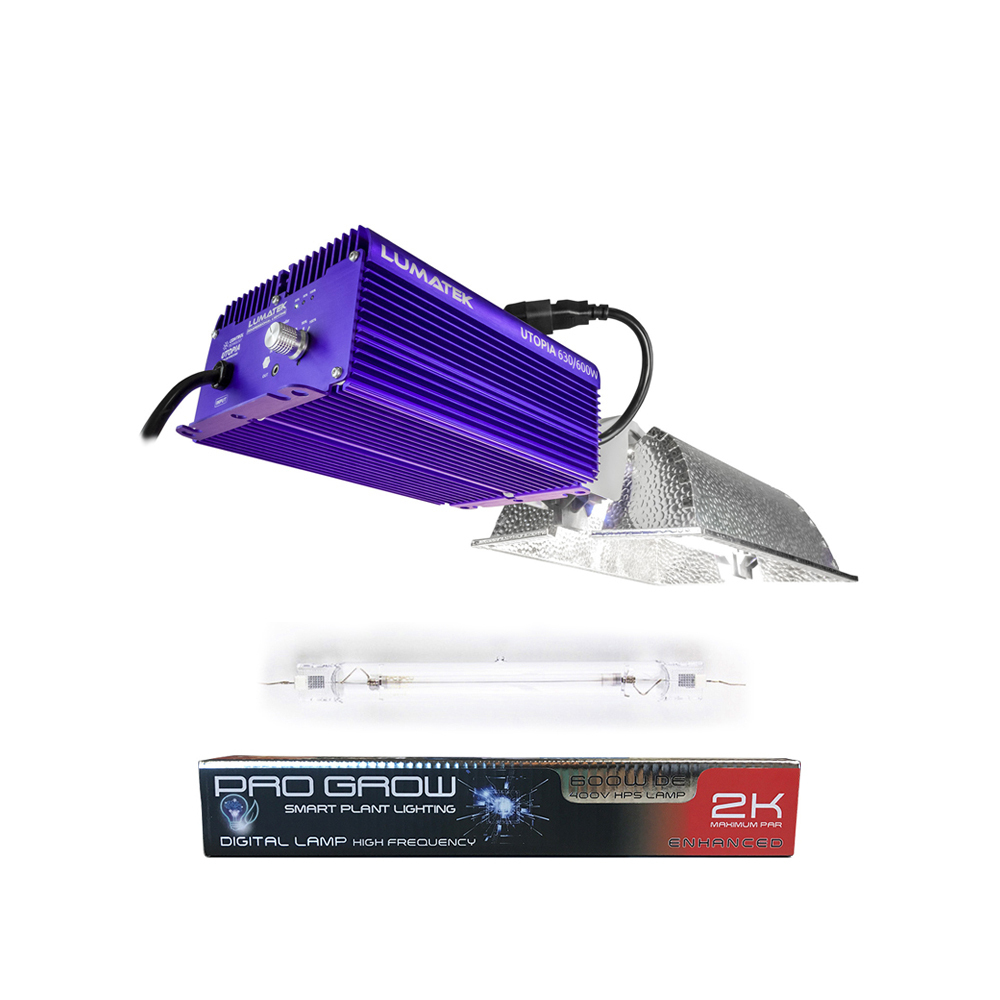

- [1] x Lumatek Utopia Fixture - 600W HPS | DE | 220 - 240V
- [1] x Pro Grow Digital Double Ended HPS Lamp - 600W / 750W | 2K | DE | 400V
