Lowara Control Boxes Single Phase 240V QPCS Series

Single-phase 240 Volt Starter Boxes- 3 Wire 4 Motors 0.37-4.0Kw

Designed for Lowara 4OS submersible single-phase Motors

Main switch for manual control

• Enclosure class: IP54
• 2 year warranty

The Lowara QPCS Control Box is suitable for the protection and control of a single-phase submersible electric pump for 4 wells. It has automatic control as well as run dry control through level probes or float switch or minimum pressure switch.

Other options available are:

• QPC Starter Box
• QPS Starter Box

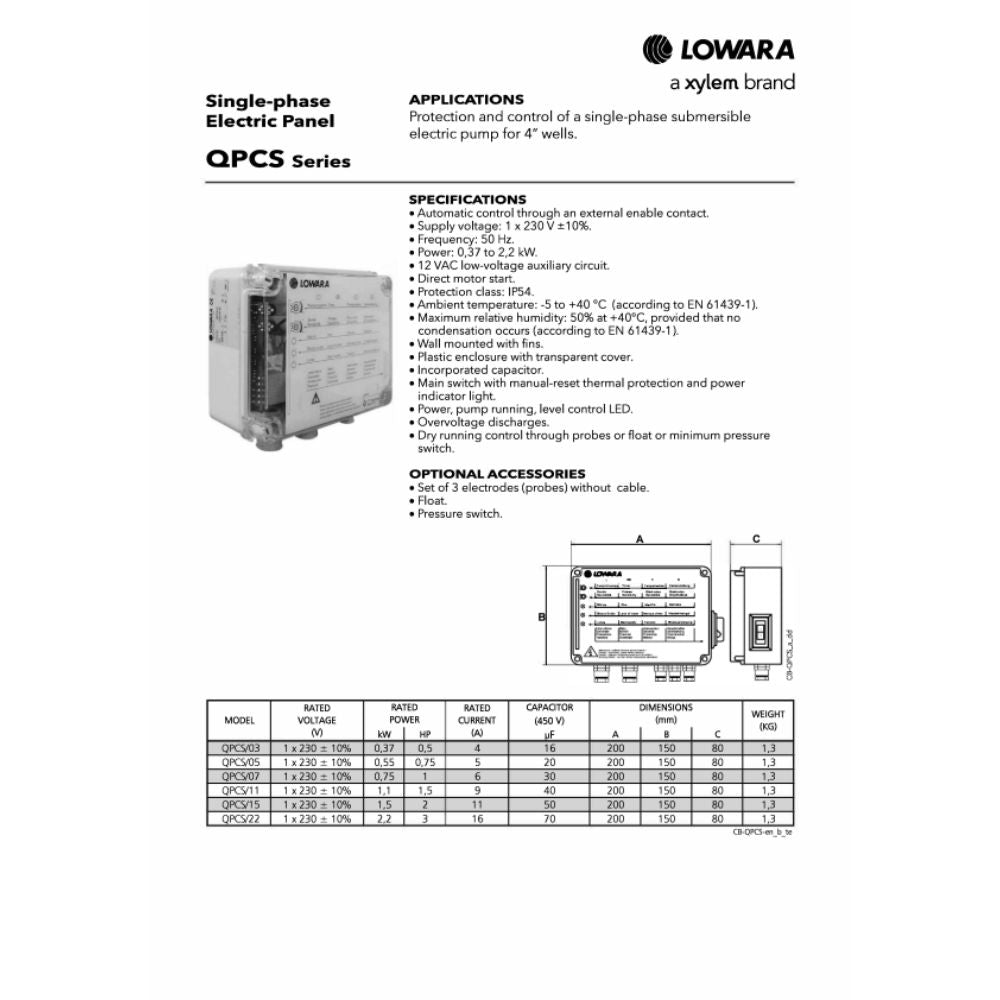

Specifications:

• Supply Voltage: 230V
• Power: 0.37kW up to 2.2kW (QPS is available up to 4.0kW)
• Direct motor start
• Protections class: IP54
• Ambient Temperature: -5°C to +40°C
• Maximum relative humidty 50% at +40°C (provided no condensation occurs)

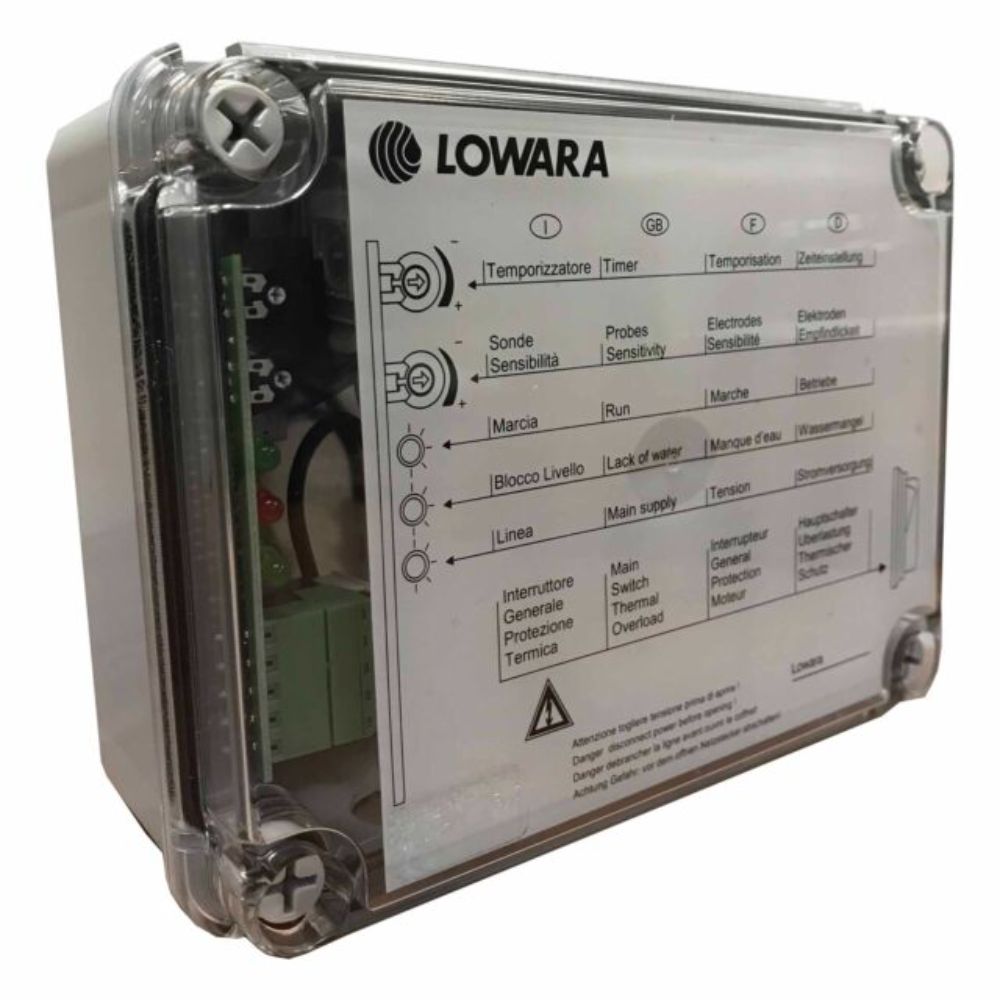

The product image shown is for illustration purpose only
