Lowara 4" Submersible Oil Filled Rewindable Motors 240V 1 Phase 50Hz 2 Wire

40S 4 Submersible motor (rewindable) with removable watertight supply cable fitting.

Submersible liquid cooled motor with rewindable stator, motor cooling fluid suitable for use with foodstuffs; complies with the FDA.

Suitable for vertical and horizontal installations.

Specifications:

• Power: 0.37kW up to 4kW for Single-phase, 0.37kW upto 7.5kW for Three-phase
• Frequency: 50Hz
• Voltages :
  • Single phase: 220 - 240V +/-6%, 50Hz
  • Three phase: 220-240V+/-6%, 50Hz; 380 - 415V +/-6%, 50 Hz
• Axial Thrusts:
  • 3000N from 0.37kW to 2.2kW;
  • 6500N from 3kW to 7.5kW
• Max Immersion Depth: 150 meters
• Max Water Temperature : 35°C (55°C possible is derated, see technical data p.g. 11)
• Insulation: 155 (F)
• Protection: IP68
• Water pH: from 4 to 8

 Applications:

• Water Harvesting/Reuse
• Irrigation / Agricultural/ Commercial
• Food & Beverage
• Agricultural / Stock Water / Transfer / Bore Hole
• Mining / Dewatering / Water Supply
• Municipal / Parks & Gardens

Materials:

• Outer sleeve: AISI 304 Stainless steel
• Cooling Liquid: non-toxic oil

Market Sectors:

• Residential
• Commercial
• Agriculture
• Irrigation
• Mining
• Municipal

Models:

• 4OS

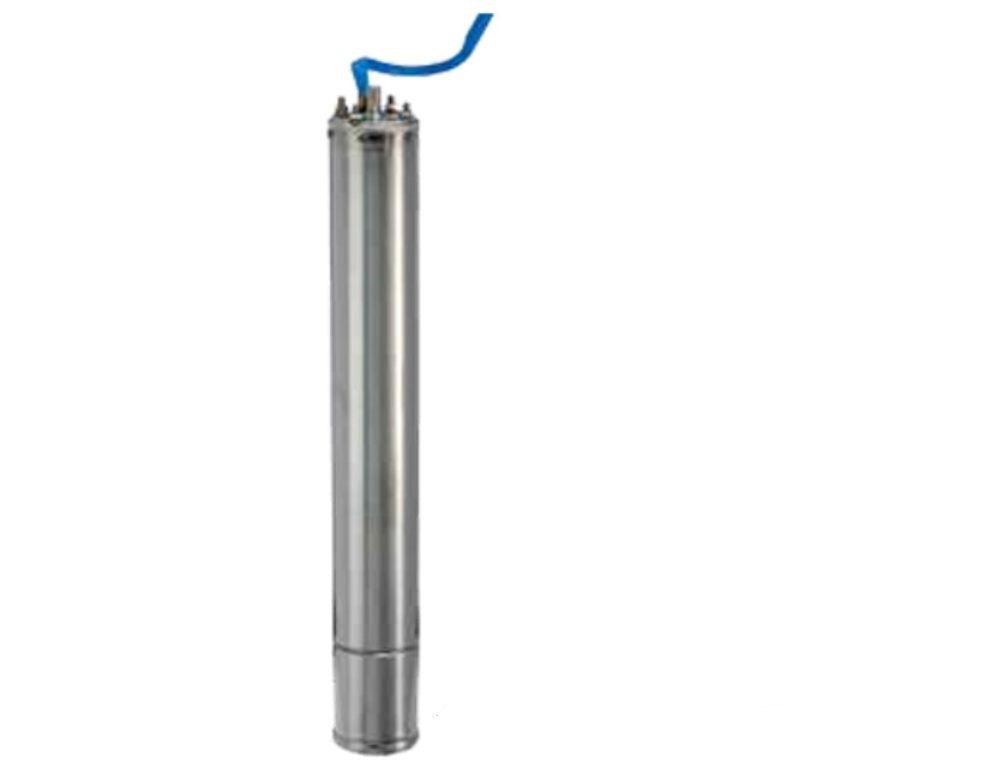

The product image shown is for illustration purpose only
