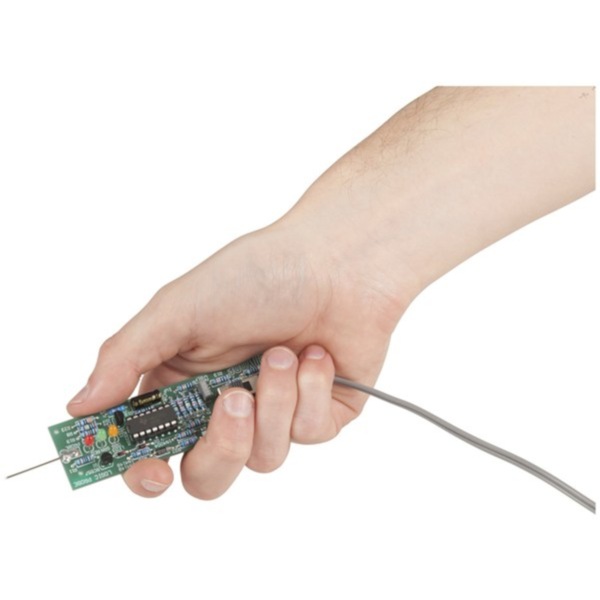

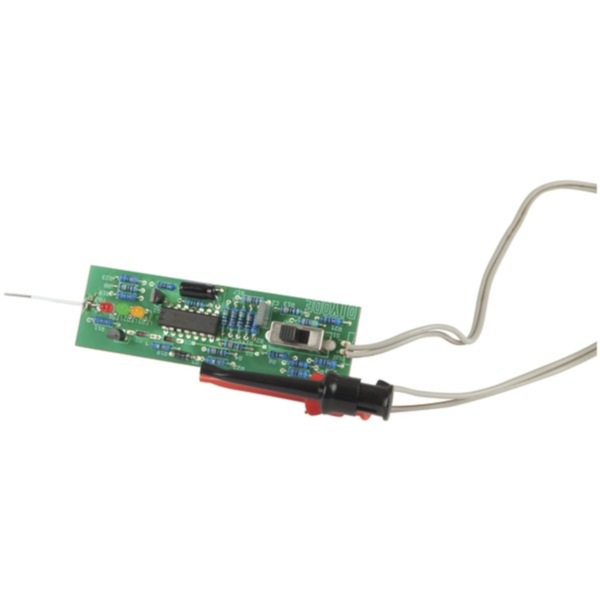

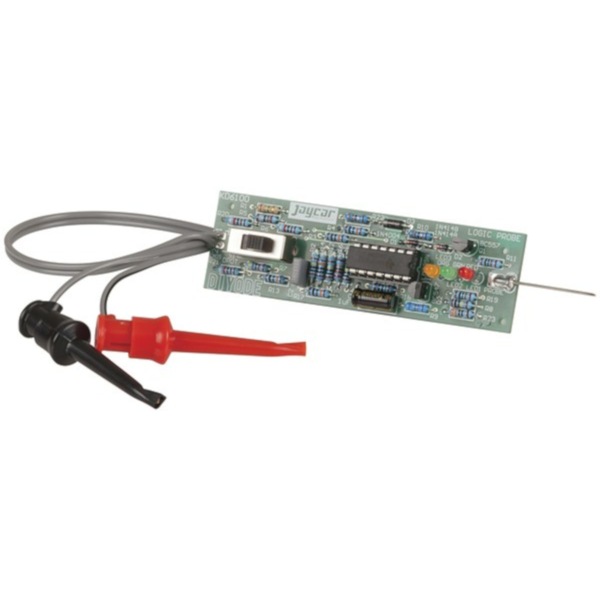

Logic Probe Kit with double-sided screen printed PCB and specified parts

This logic probe will help you diagnose and troubleshoot your 3.3V or 5V circuits, including Arduino and Raspberry Pi projects. It indicates a logic low or logic high state on the green and red LEDs, and shows a shift between states on the orange LED. There is also a switch for TTL or CMOS circuits. Kit supplied with double-sided screen printed PCB and specified parts. We’ve even thrown in the paperclip for the probe tip.

Specifications

Kit Form : Quick Kit (circuit module only)

Kit Group : General Projects

Difficulty : Detailed

Special Skills Required : SMD Soldering

Tools required : Soldering Iron
