Lockwood Padde Electric Strike 12/24V Fail Safe Secure Weather Resist 100111-060

Lockwood Padde Electric Strike
100111-060

Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

• The ES110 is a cost efficient robust aluminium strike with a solid construction, built with a one-piece cast aluminium body and stainless steel striker.
• Having a deeper than normal strike-keeper area, the ES110 is designed to work with an extensive range of locks and offers the same level of security and reliability usually provided by more expensive electric locking solutions.

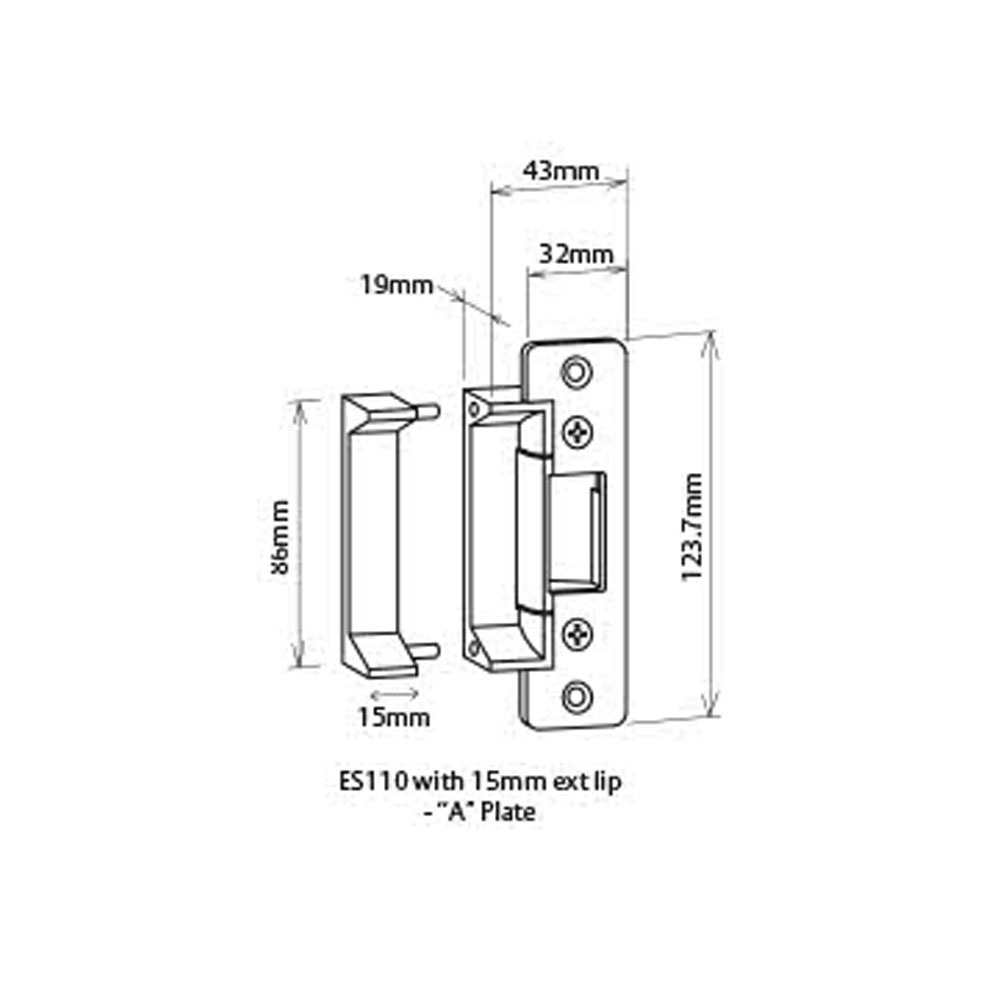

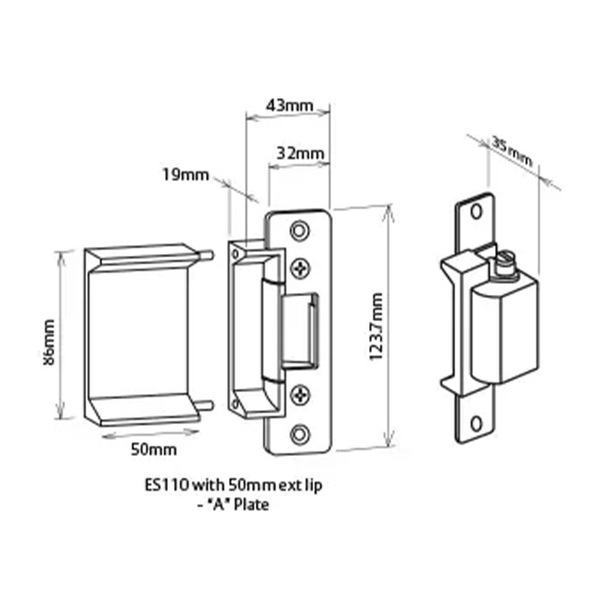

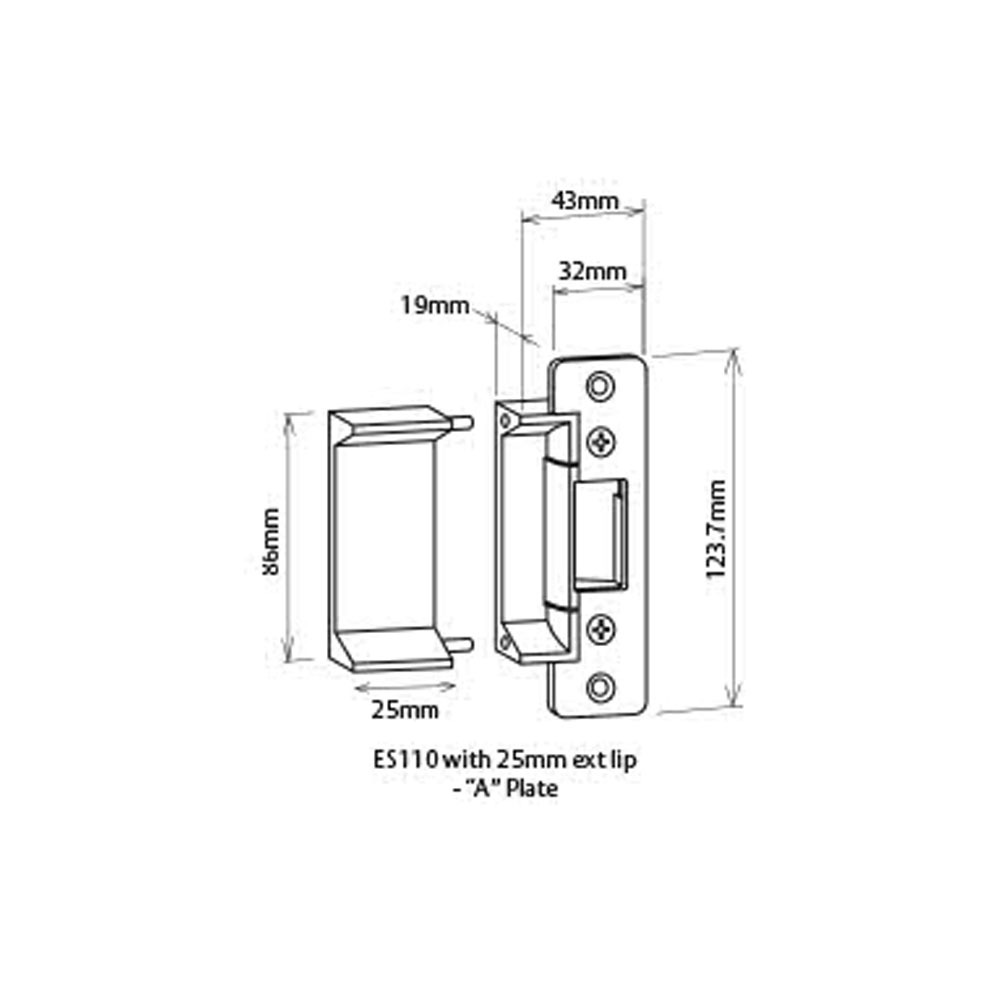

• Extension lips are available to accommodate the installation of electric strikes on door frames with different thicknesses.

Features:

• All models IP56 Weather resistant
• Fail safe/fail secure changeable on site
• Stainless steel striker for extra strength and durability
• Stainless steel locking pins
• Multi voltage 12/24Vdc
• Optional mounting kit
• Installation template
• Suitable For 15mm latch with a 3mm door gap

Applications:

• Exposed areas
• High traffic areas
• Open in/open out doors
• Suitable for use with all access control systems

Standards and Compliance:

• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1.2005 (Part 1: Fire resistant door sets)
• Approved to UL1034 (highest level)
• CE Approved
• C-Tick Certified
• Weather Resistant (IP56)

Specifications:

• Voltage: 12Vdc and 24Vdc
• Current: 243 mA @ 12Vdc - 187mA @ 24Vdc
• Solenoid: Solenoids are rated for continuous use.
• Monitoring: None
• Holding Force: 680 kg Static Strength Rating
• Endurance: Cycle tested to 1,000,000 operations
• Environment: Operational temperature range -20°C to + 60°C, Weather resistant construction Standard. (IP56)
• Body: Cast Aluminium Construction
• Keeper: Stainless Steel
• Latch: Suitable for 15mm latchbolt with 3mm door gap

Specification Statement:

• Where Power to Lock and Power to Open functions may be required in the same building, the strike must be interchangeable from either "Power to Lock" or "Power to Open" on site.
• The electric strike should not consume current greater than 243mA @ 12Vdc or 187mA @ 24Vdc and have a solenoid suitable for continuous use.
• Certifications must include CE, C-tick and 4hr fire rating.
• The strike should have a minimum holding force of 680kg, and an endurance rating of 1 million cycles.
