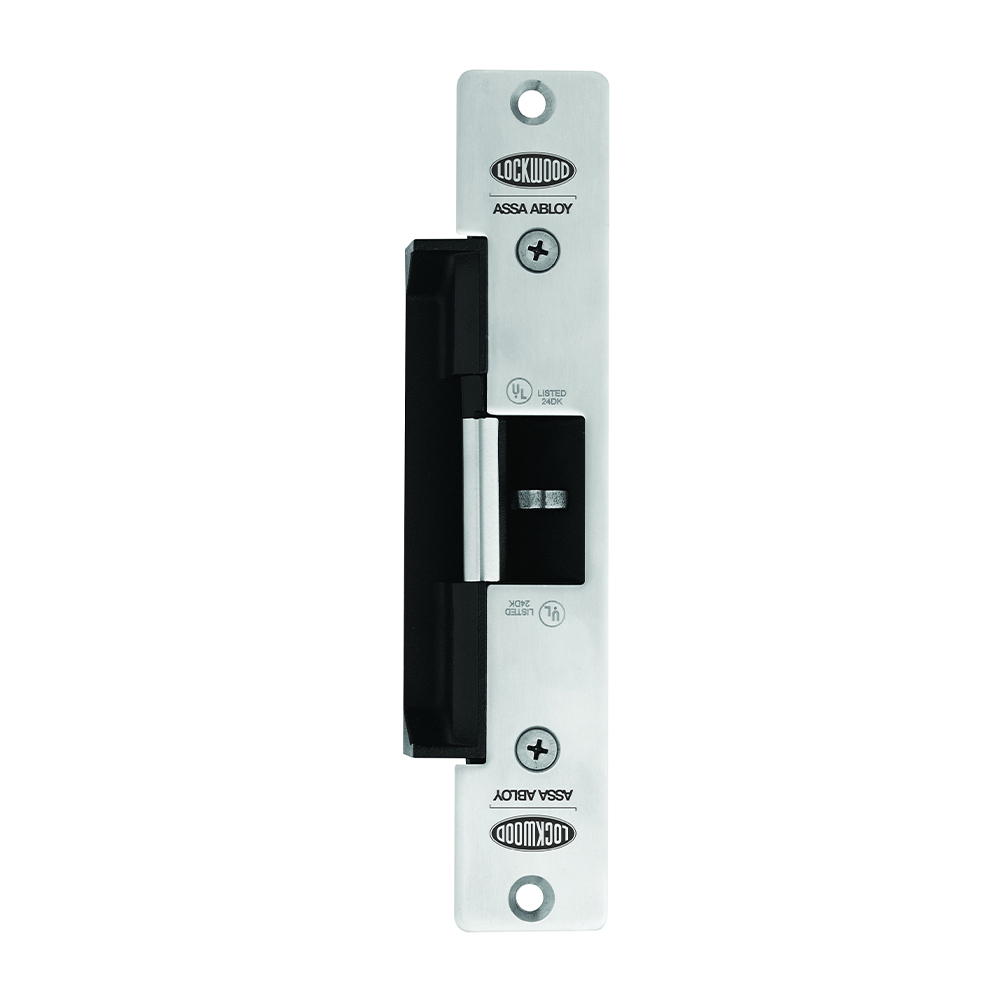

Lockwood Monitored Electric Strike 12VDC Stainless Steel ES3200-1

Lockwood Monitored Electric Strike 12VDC
ES3200-1

Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

Features:

• Designed for high security applications and manufactured from solid stainless steel
• A strong dependable and long-lasting electric strike solution and are suitable for use with any access control system
• Extremely flexible and can be changed from fail safe to fail secure and mounted on the left or right hand side of the door, thus reducing the amount of variants needed to cover each application
• Strike and Latch Monitoring
• Fail safe/fail secure changeable on site
• 1 million cycles endurance rating
• Stainless Steel locking pins
• Continuously rated solenoid
• Suitable for use with all access control systems

Specifications:

• Material: Stainless Steel
• Voltage: 12Vdc
• Holding Force: 850kg
• Latch Bolt: 18mm
• Door Gap: 3mm
• Length: 2015mm
• Width: 31.6mm
• Strike Length: 123mm
• Strike Width: 27.5mm
• Finish: Stainless Steel

Standards and Compliance

• Approved to UL1034 (highest level)
• CE Approved
• C-Tick Certified
• 1 million cycles endurance rating
