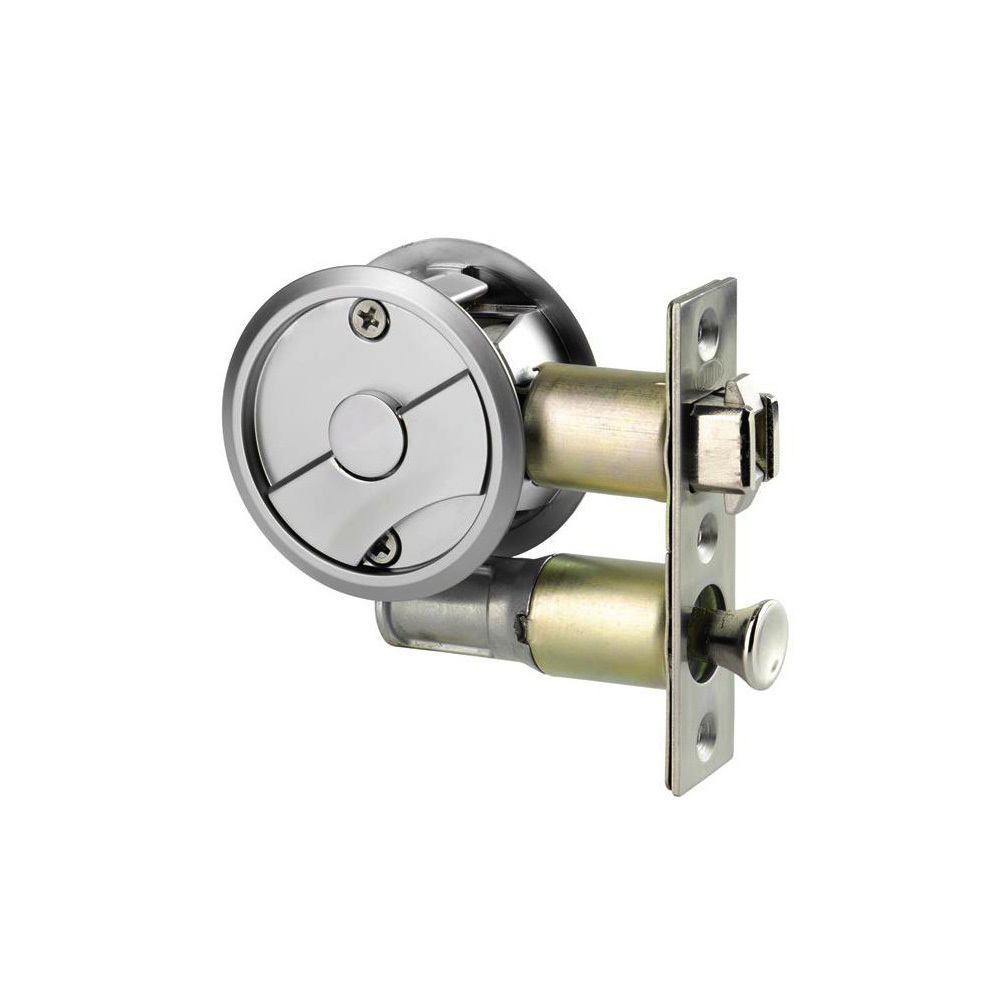

Lockwood Cavity Sliding Door Passage Latch Set Satin Chrome Pearl 7410SP

Lockwood Cavity Sliding Door Passage Latch Set
7410SP

Passage ideal for interior hallways, closets and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

• Lockwood's sliding door lock range is possibly the most innovative and aesthetically pleasing lock for a cavity sliding door in Australia. Combining elegance and ease of use, the Symmetry 7400 series is ideal for any home décor and security solution.
• Not only will the internal bathroom or lounge room sliding door have a contemporary look, but the interconnecting door from the garage can be fitted with a key lockable entrance-set for security.

Features:

• Designed in Australia for specific Australian market conditions
• Easily fitted into a standard 54mm door preparation with a 60mm backset
• Fitted flush against the panel of the sliding door for full recess into the door cavity
• Key lockable solution
• Key locking and turn function protects the secondary external application for an interconnecting sliding cavity door
• Australian standards compliance AS41452.2-2008: Tested to exceed 30,000 turn cycles withstanding 3 kN of pull force

Specifications:

• Furniture plate: Zinc Alloy
• Bolt: Nickel Plated Zinc (12.4mm projection)
• Bolt Beak: Stainless Steel
• Front End Plate: Stainless Steel
• Retractable Door Pull: Zinc Plated
• Strike Plate: Stainless Steel
• Strike Box: Zinc Plated
• Keys: Brass
• Fitting/Fixing
  • Standard 54mm prep hole
  • Standard 60mm latch backset
  • Standard 25mm cross-drill
  • Retractable door pull
• Door Thickness: 32mm to 45mm
• Finish: Satin Chrome Pearl
