Voltage: 32VDC
Rating: 500A
Base: Black UL 94V-0 Glass-filled PPA.
Cover: Black flexible UL94V-0 Elastomer. Red colour optional.
Studs: M8 (zinc plated or stainless steel). x 1.25 threaded
Bus Bar: Tin plated copper.
Nuts Washers: & same material as studs.
Temperature Rating: -40 C to 125 C
Wire Size: 8mm2 to 35mm2
Accessories: Includes cover, nuts & washers. hex split
Notes: Fuse & busbar are not included.

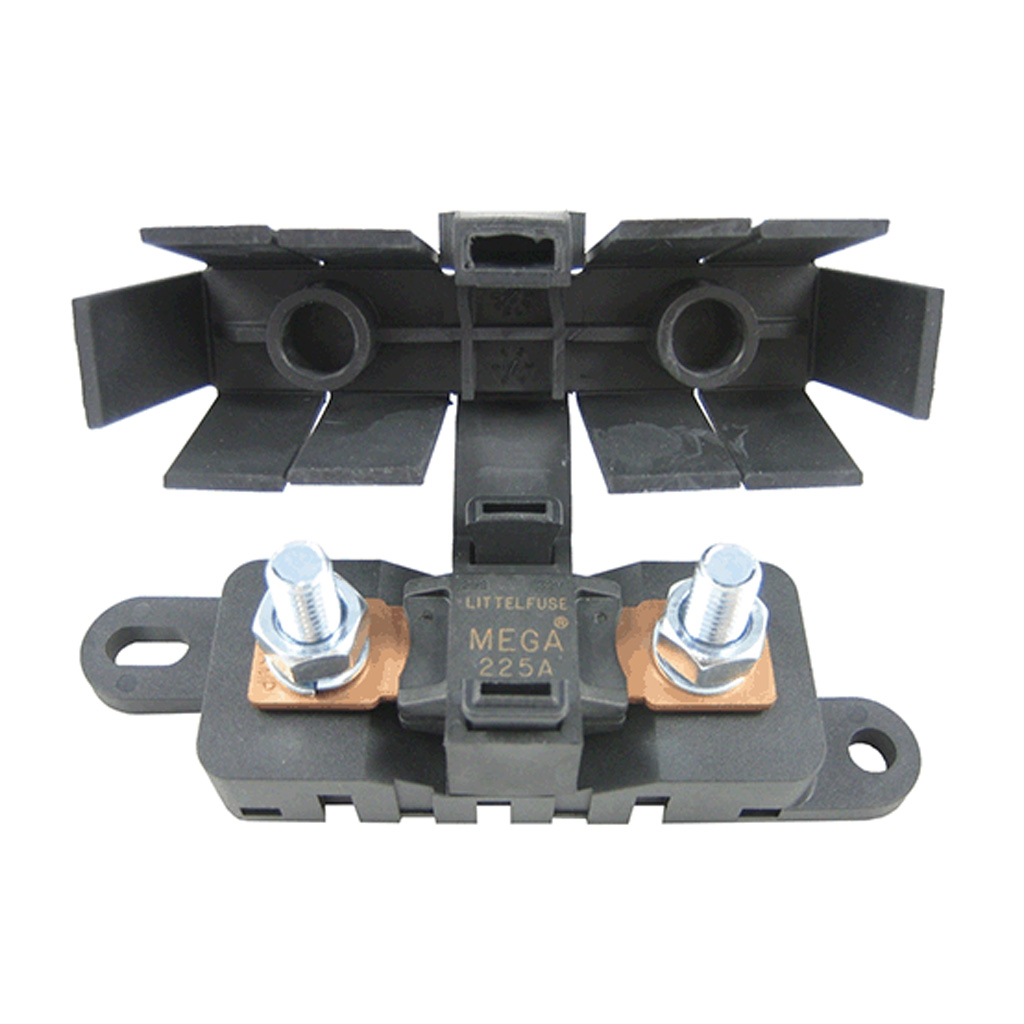

Littlefuse Flex Mega Fuse Block for MEGA/AMG fuses 500A max. 32VDC
Voltage: 32VDC
Rating: 500A
Base: Black UL 94V-0 Glass-filled PPA.
Cover: Black flexible UL94V-0 Elastomer. Red colour optional.
Studs: M8 (zinc plated or stainless steel). x 1.25 threaded
Bus Bar: Tin plated copper.
Nuts Washers: & same material as studs.
Temperature Rating: -40 C to 125 C
Wire Size: 8mm2 to 35mm2
Accessories: Includes cover, nuts & washers. hex split
Notes: Fuse & busbar are not included.
The MEGA fuse block is used with the MEGA bolt-in fuse, available in ratings 40A to 500A.
This block features a flexible cover which allows cable entry from virtually any direction, large wire size, and ring terminal stack up.
Slots on the base allow holder to be mounted with cable ties or surface mount using standard screw holes.
Bus bars are also available for common power feed across multiple holders.

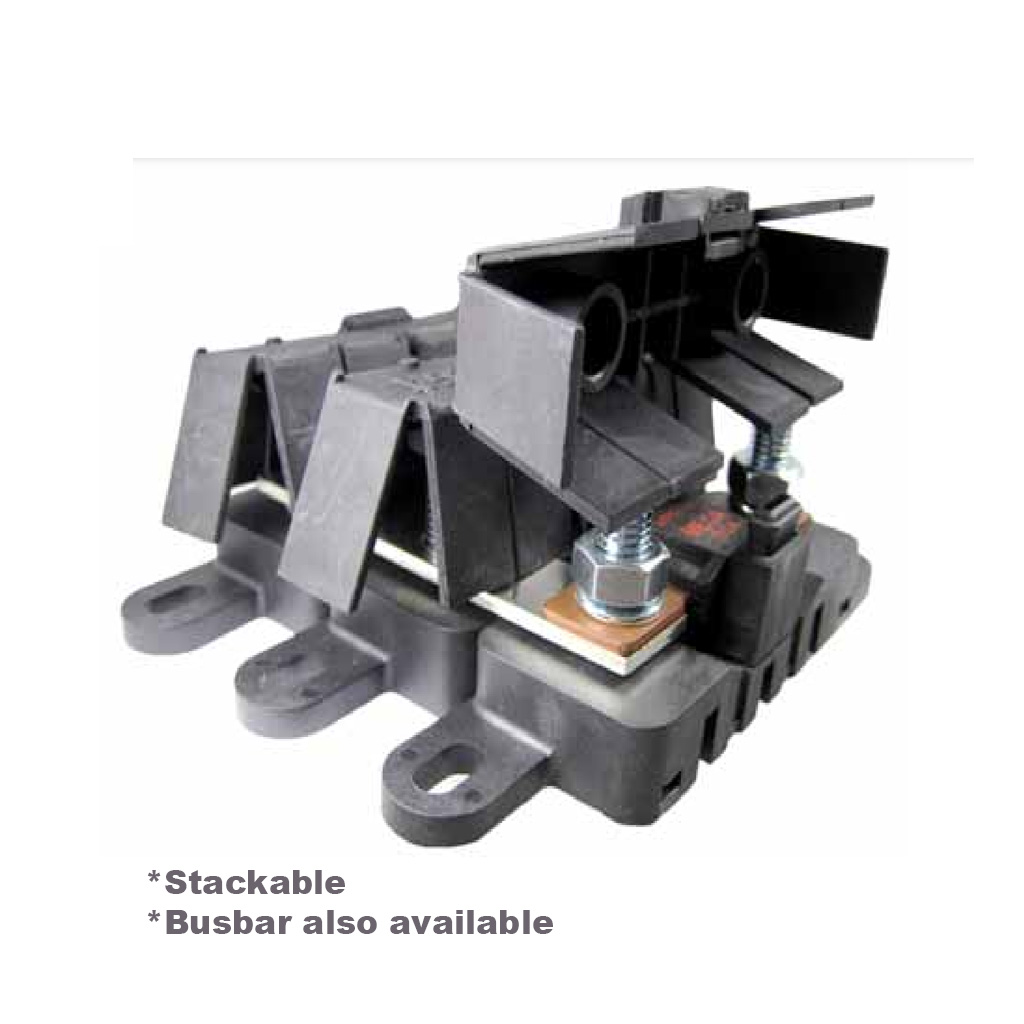

Dovetail features allow you to interlock multiple MEGA-Flex holders together for a high power distribution block
or it can interlock with other littlefuse products including , EPC, HWA20, HWB60 & Midi-Flex
