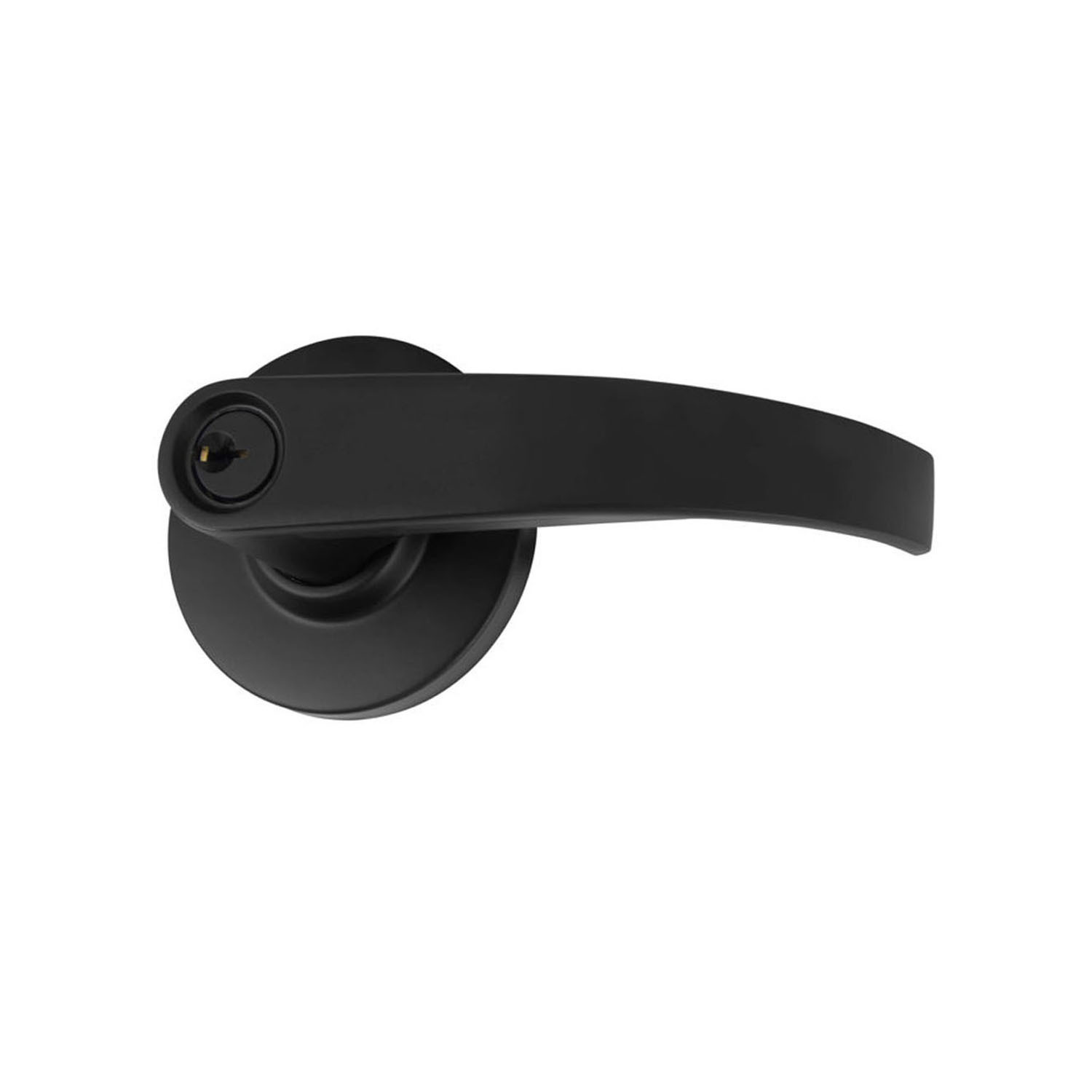

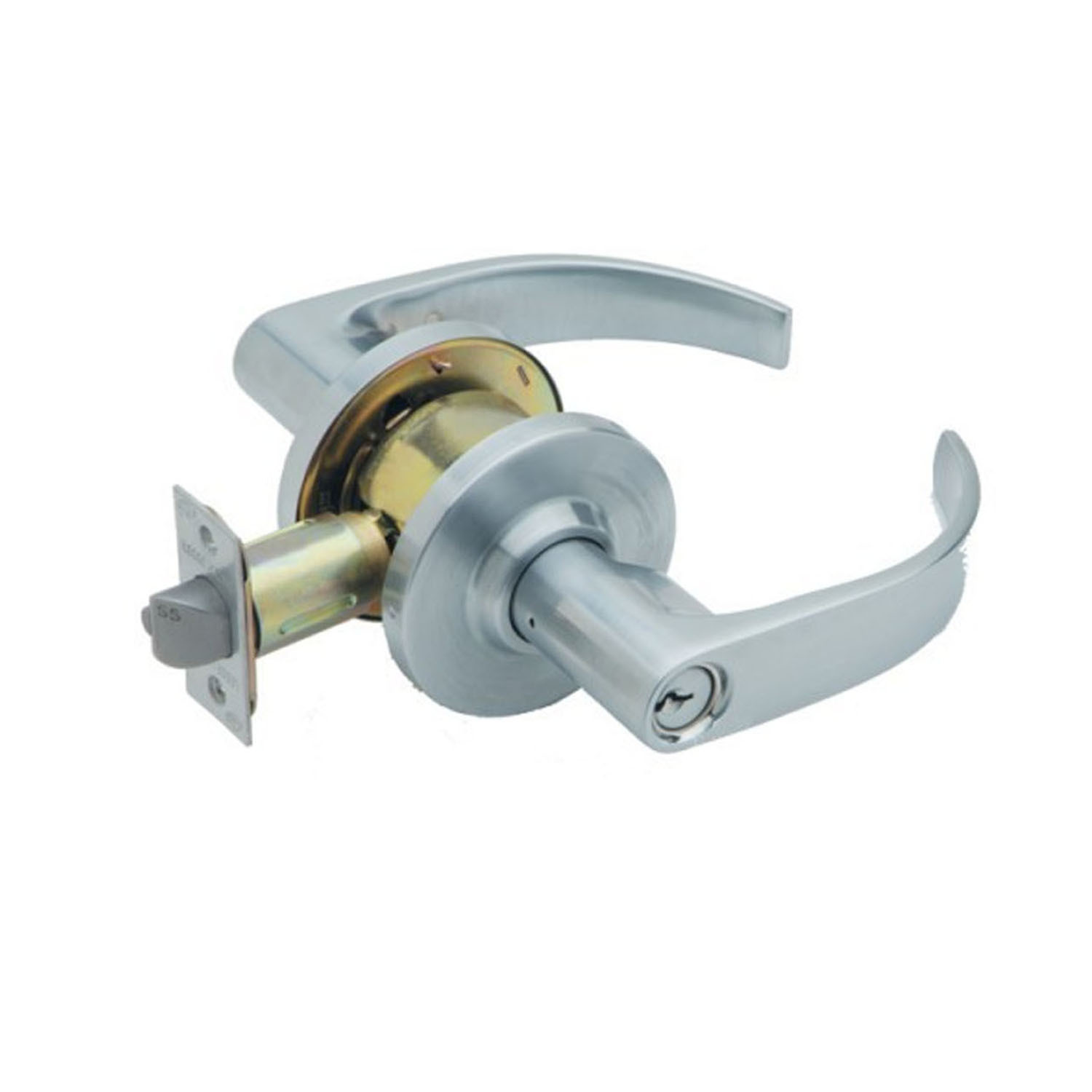

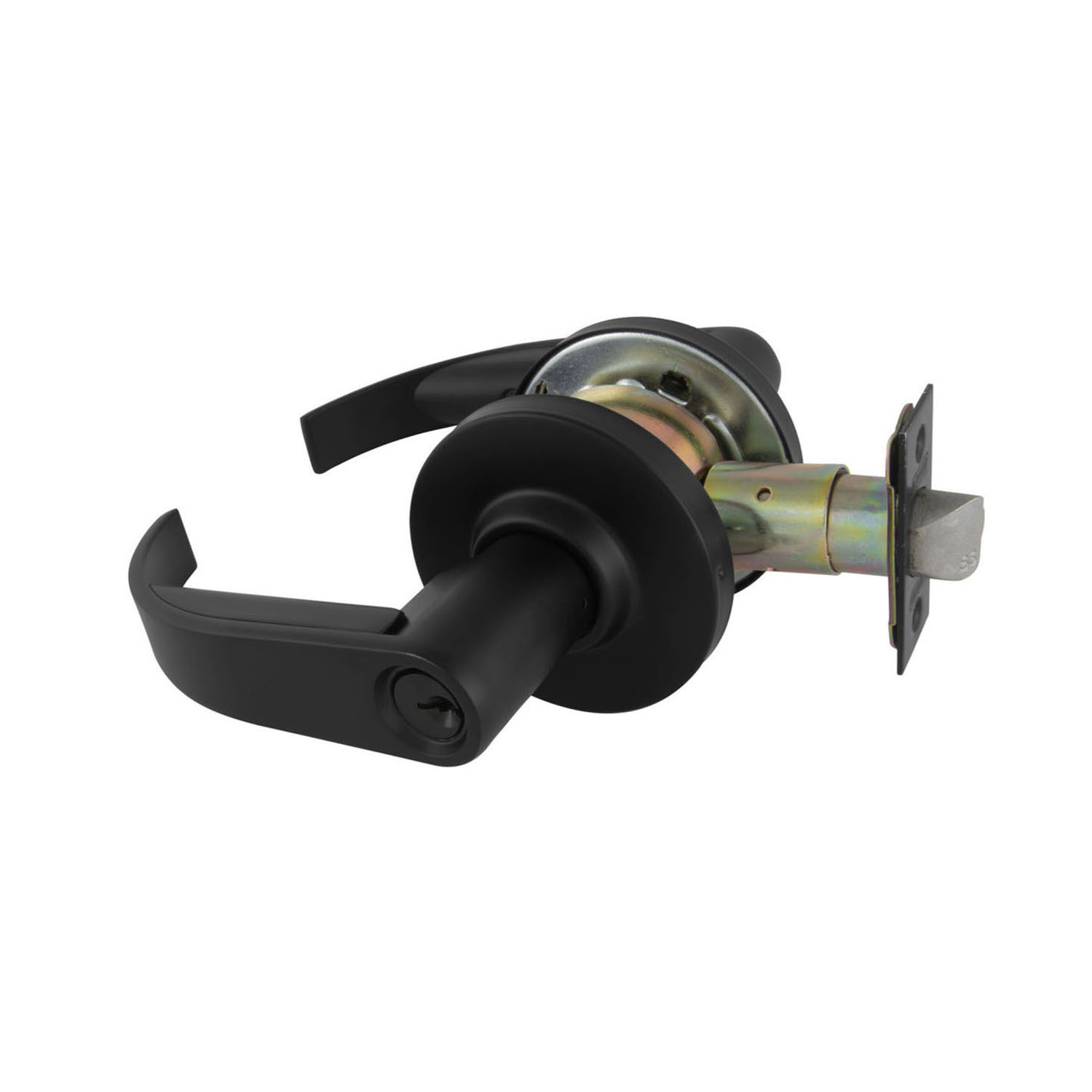

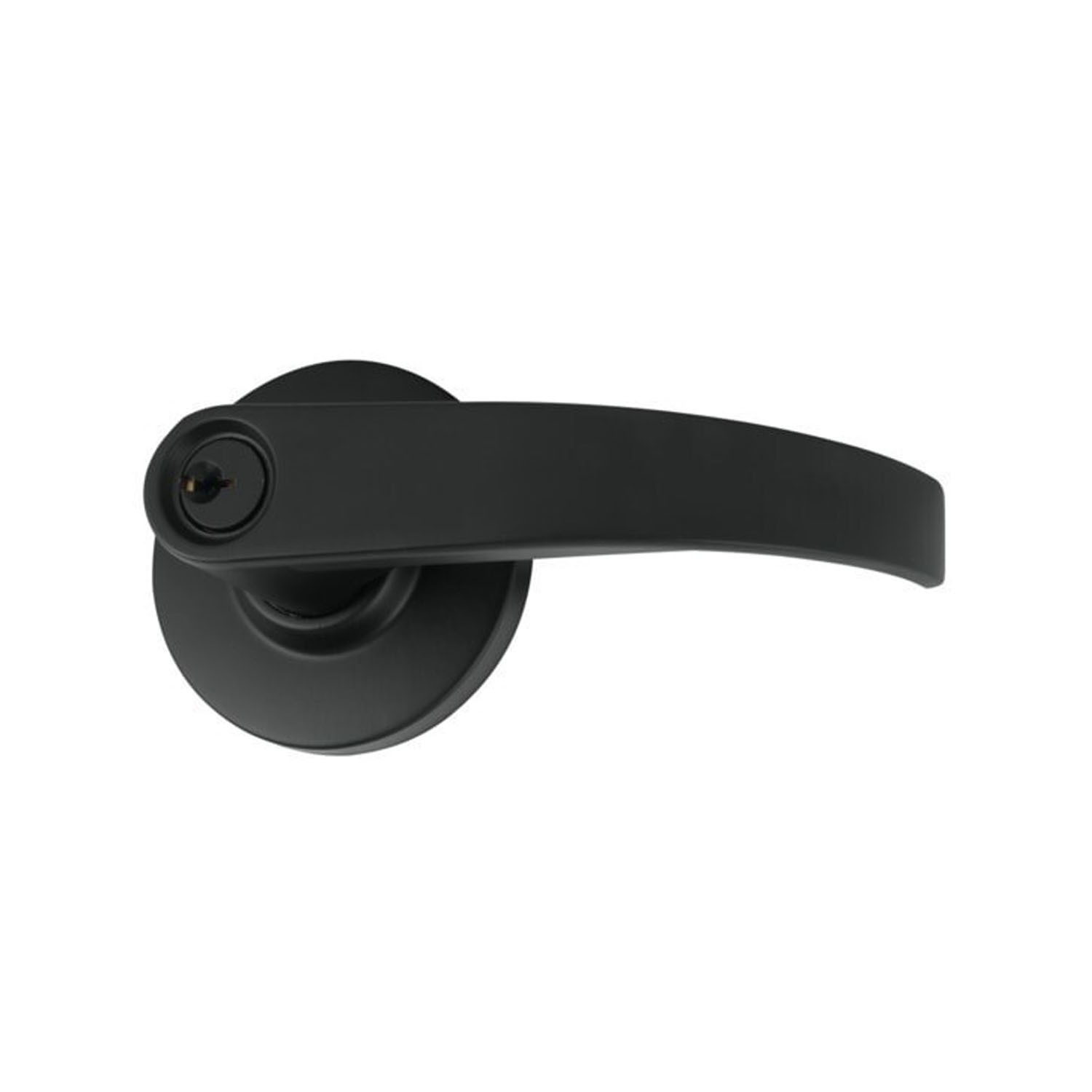

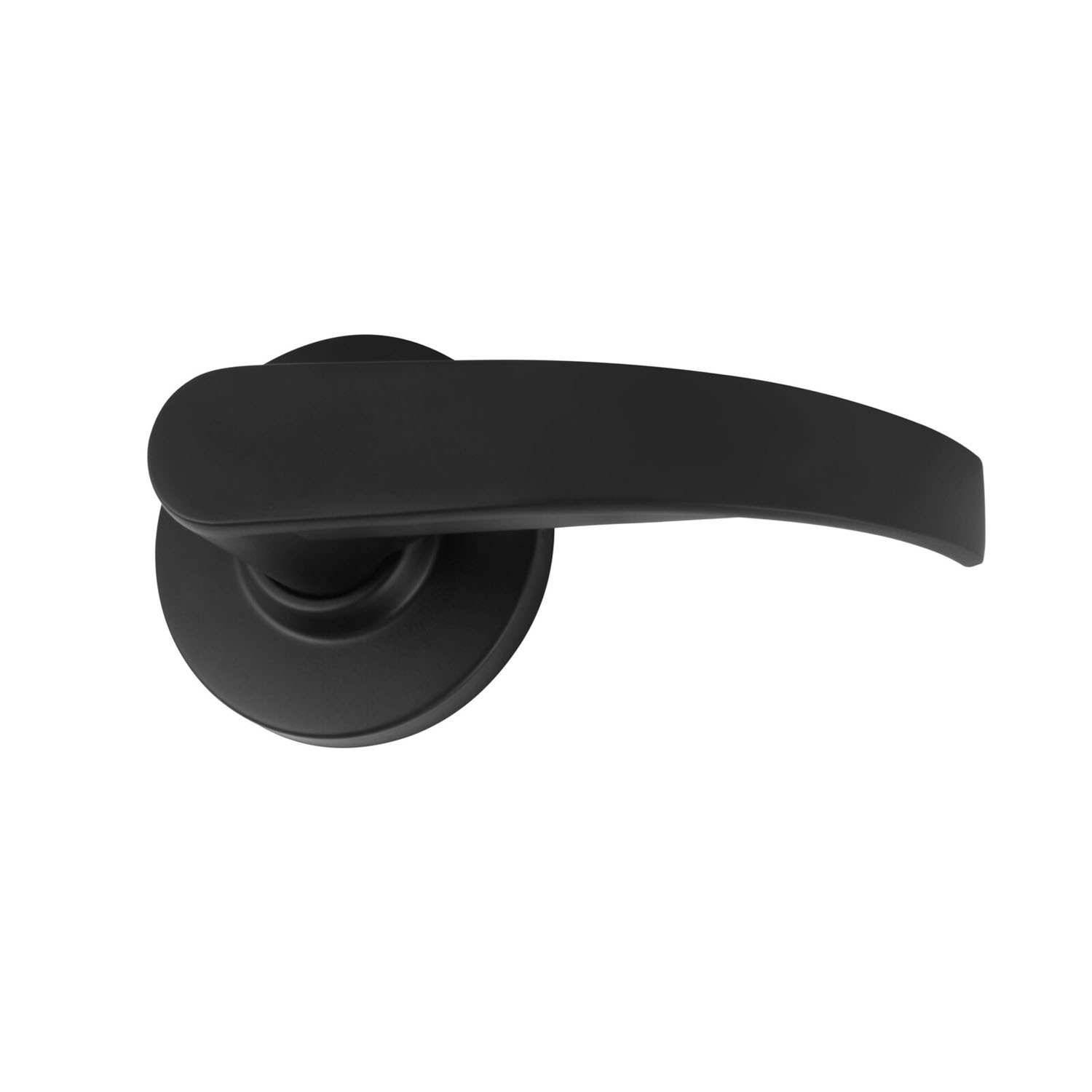

Legge Sparta G2 Series Door Lever - Available In Various Finishes and Functions

Legge Sparta G2 Bat /Bedroom Privacy Lock G40S
G2SPRIS

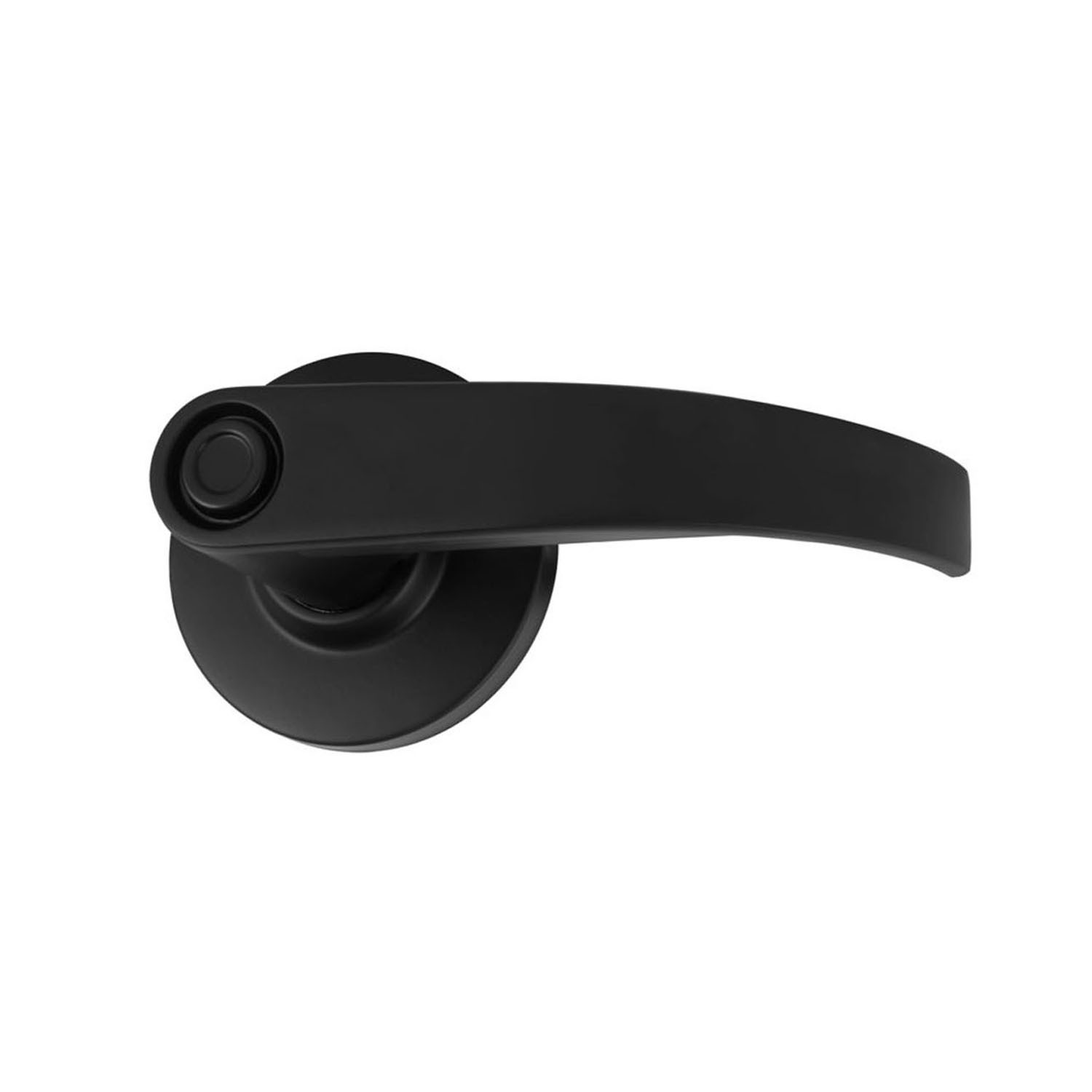

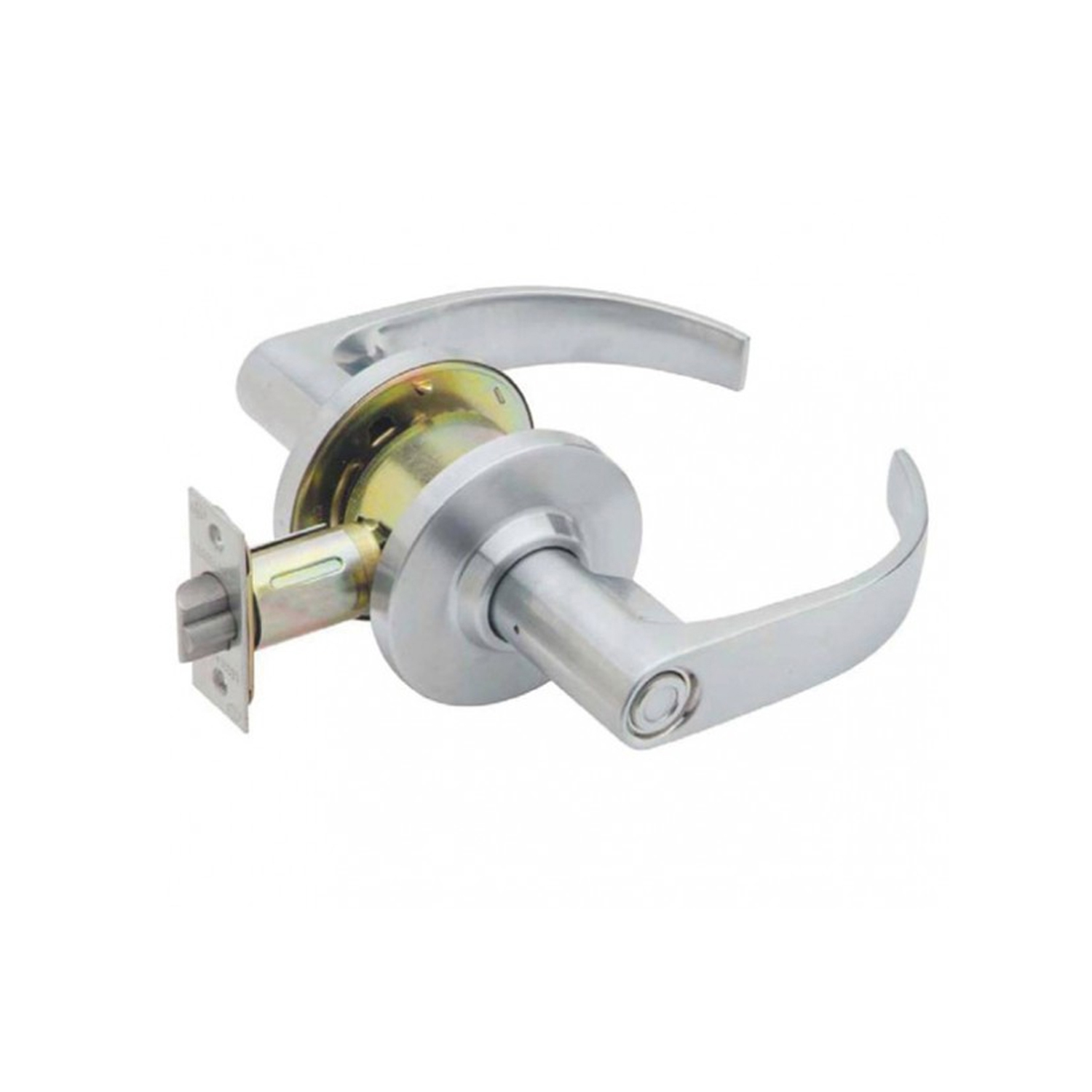

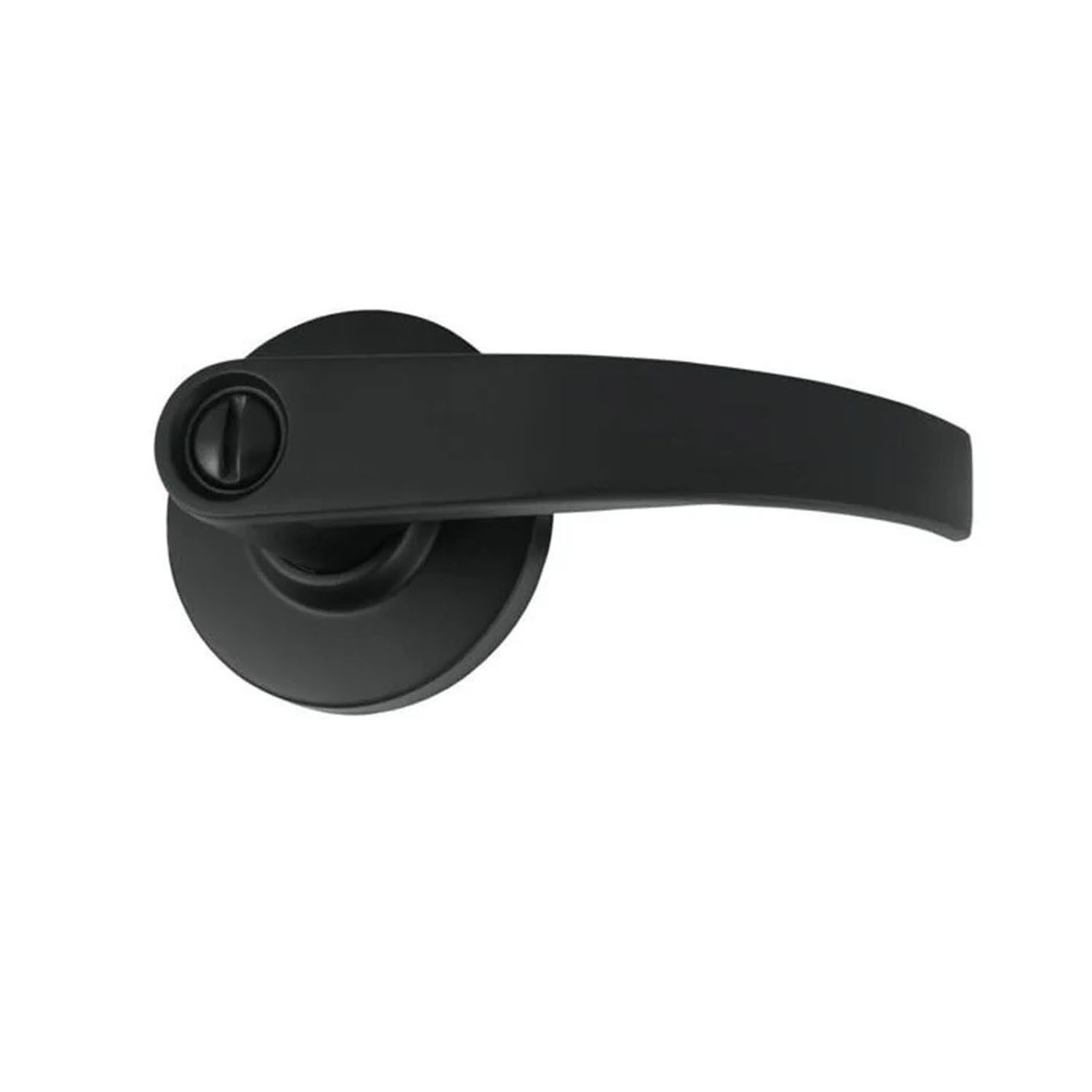

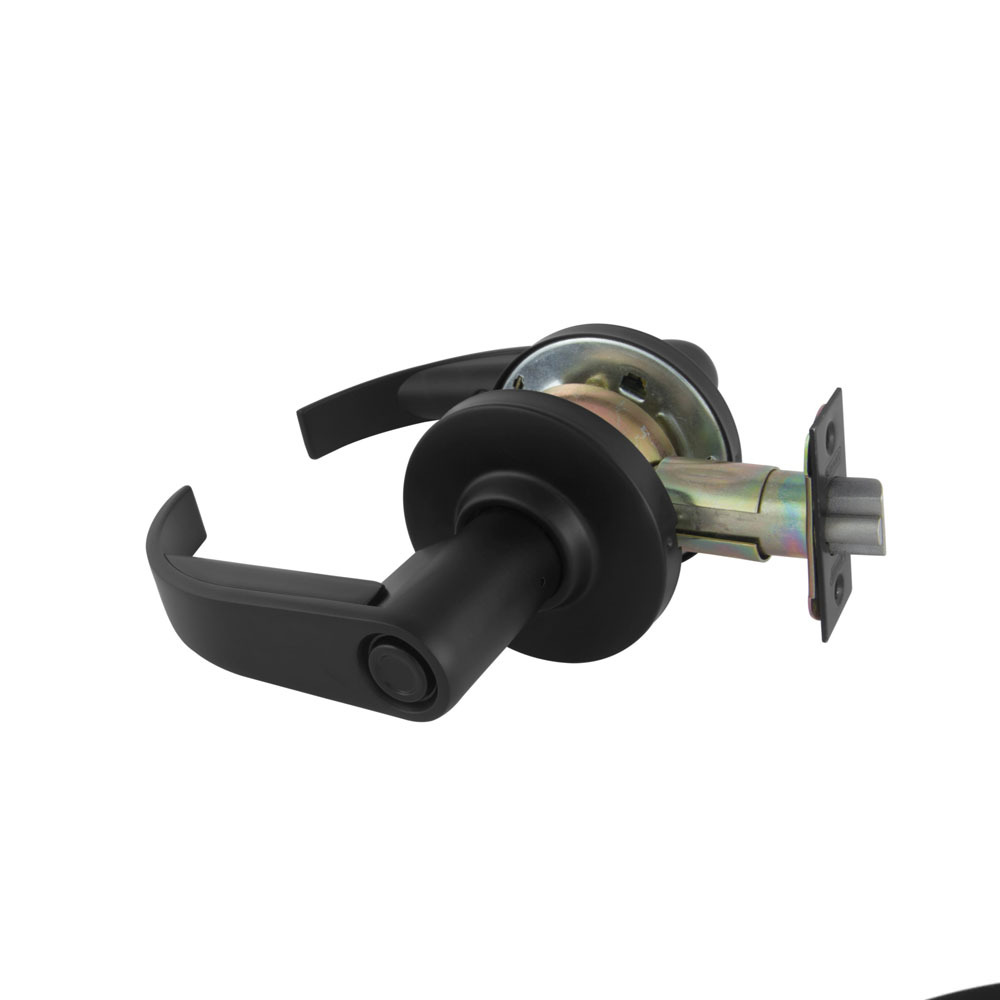

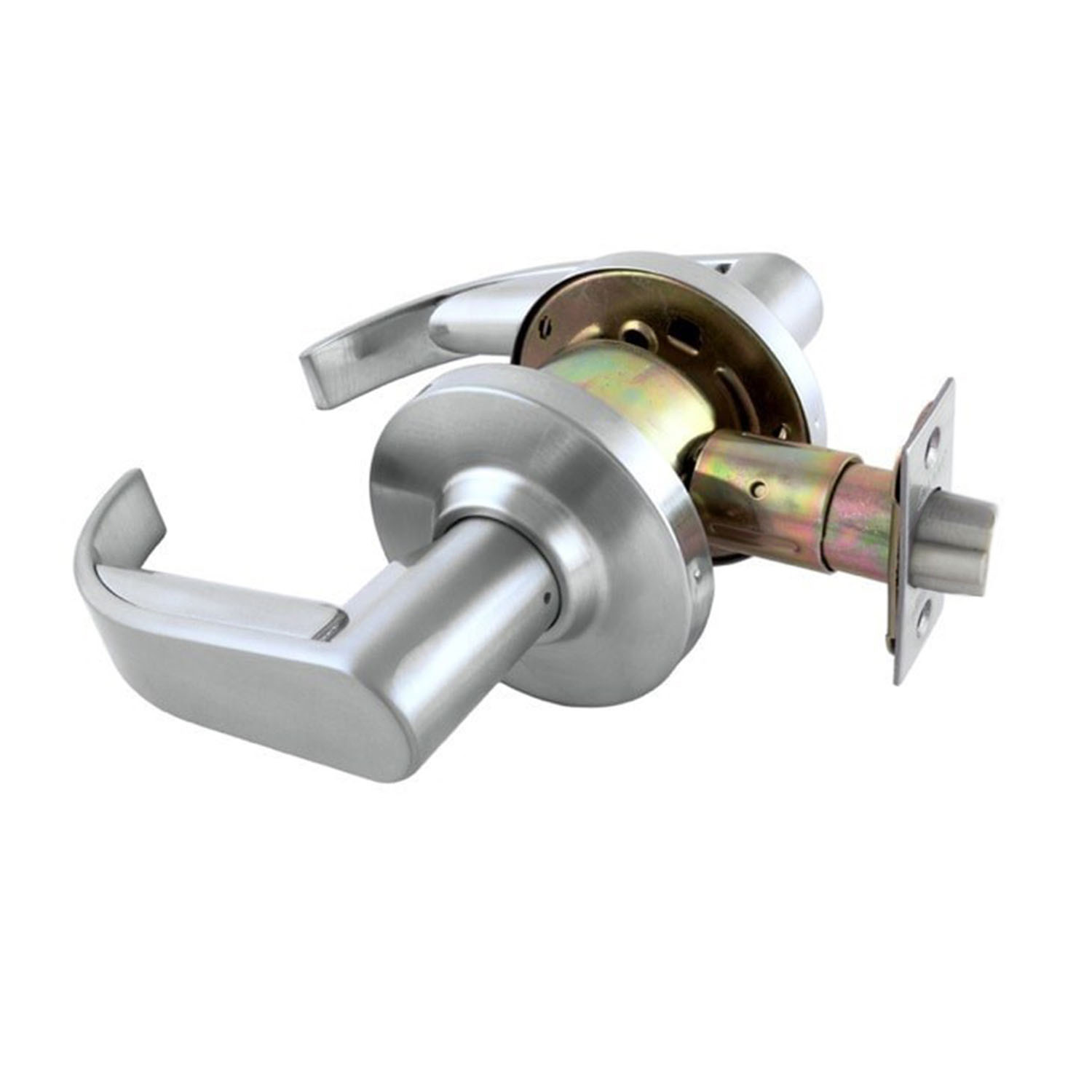

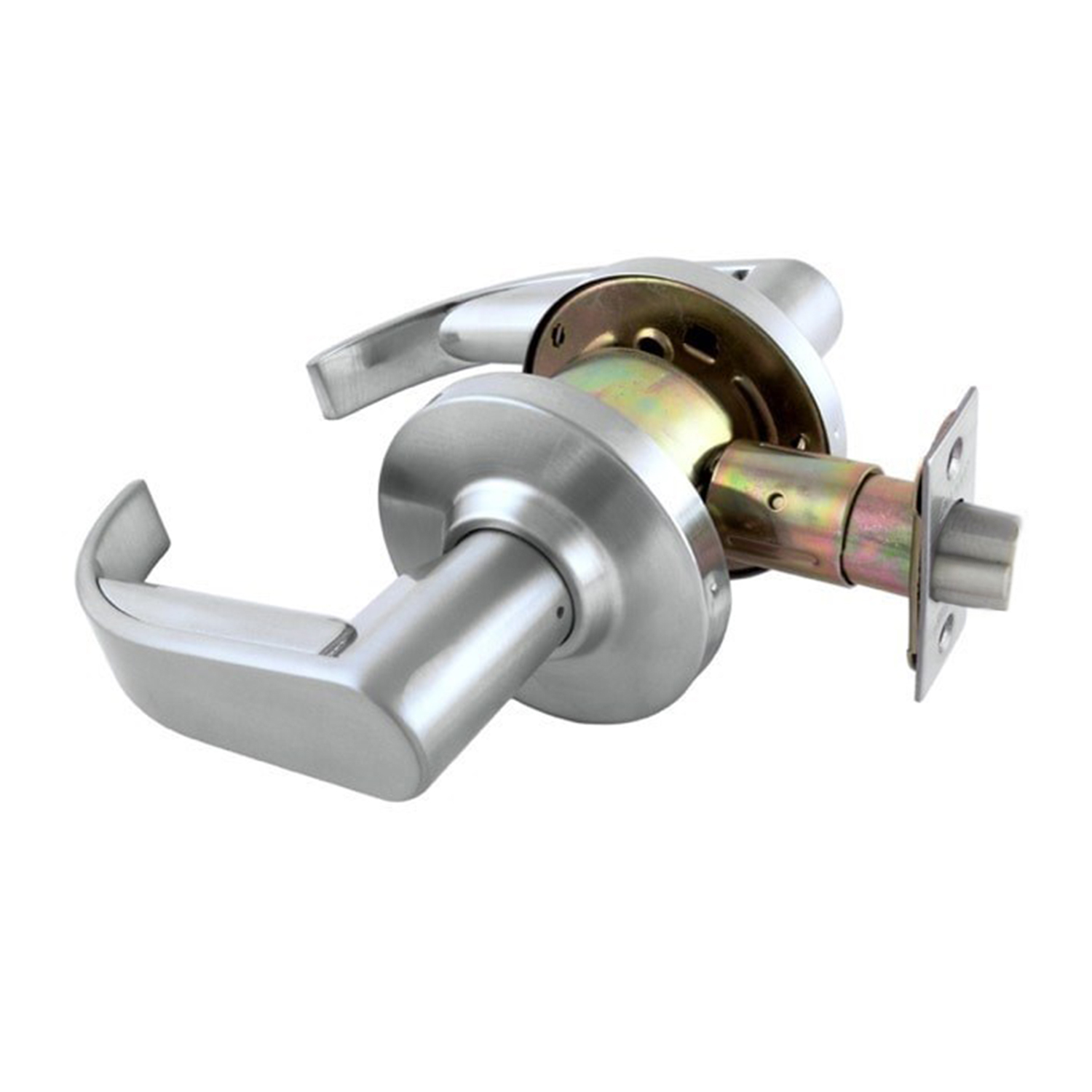

Bath/Bedroom Privacy Lock - Push-button locking locks outside lever. Turning inside lever releases button. Outside lever has emergency release.

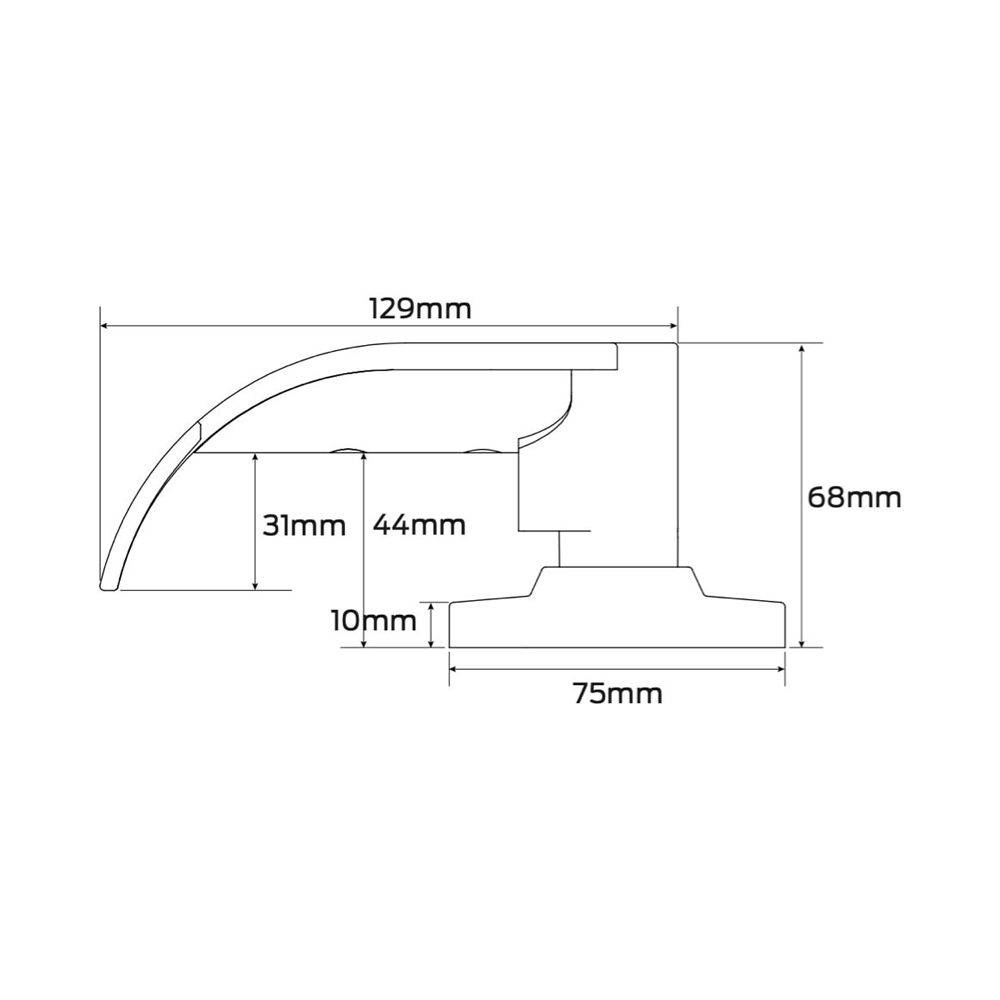

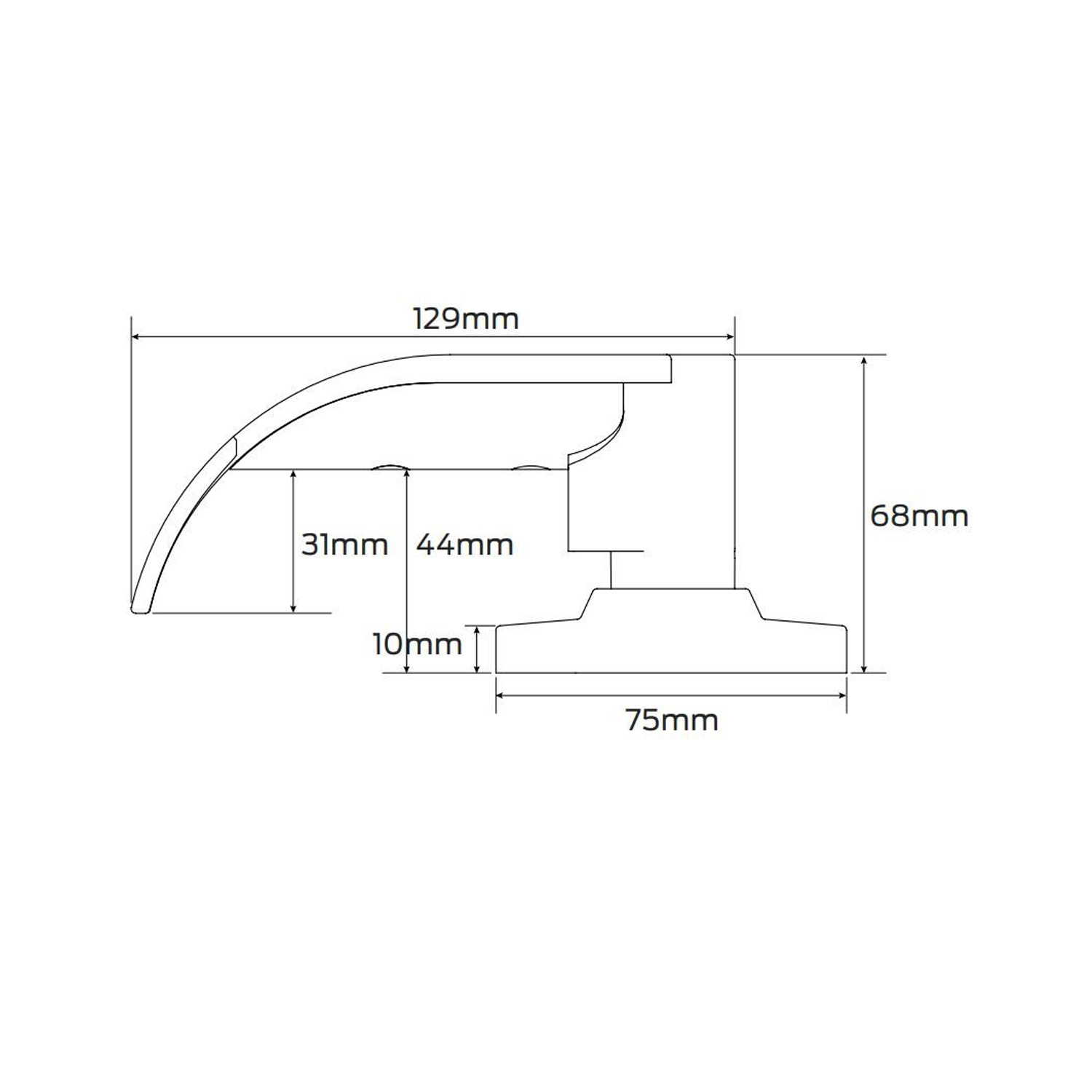

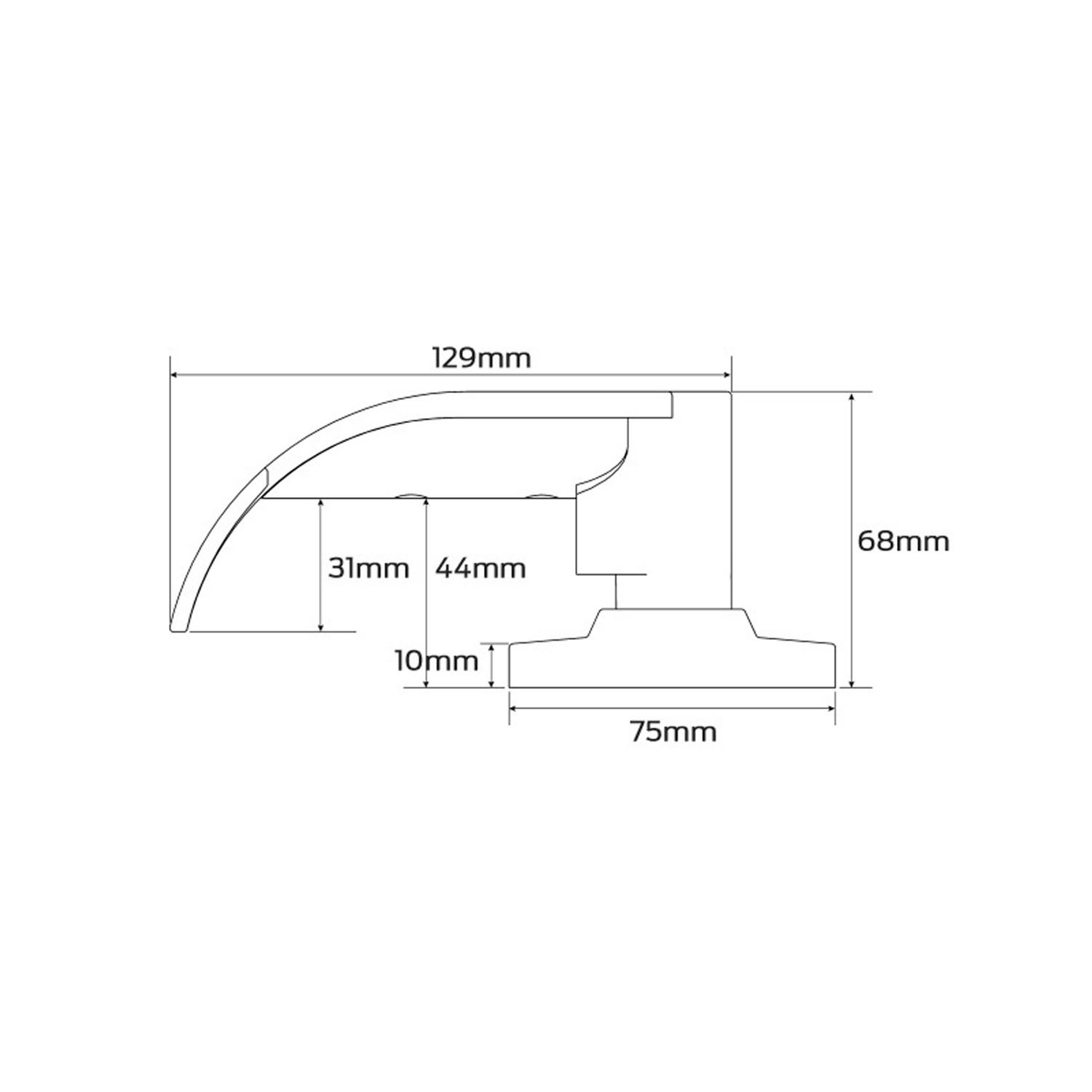

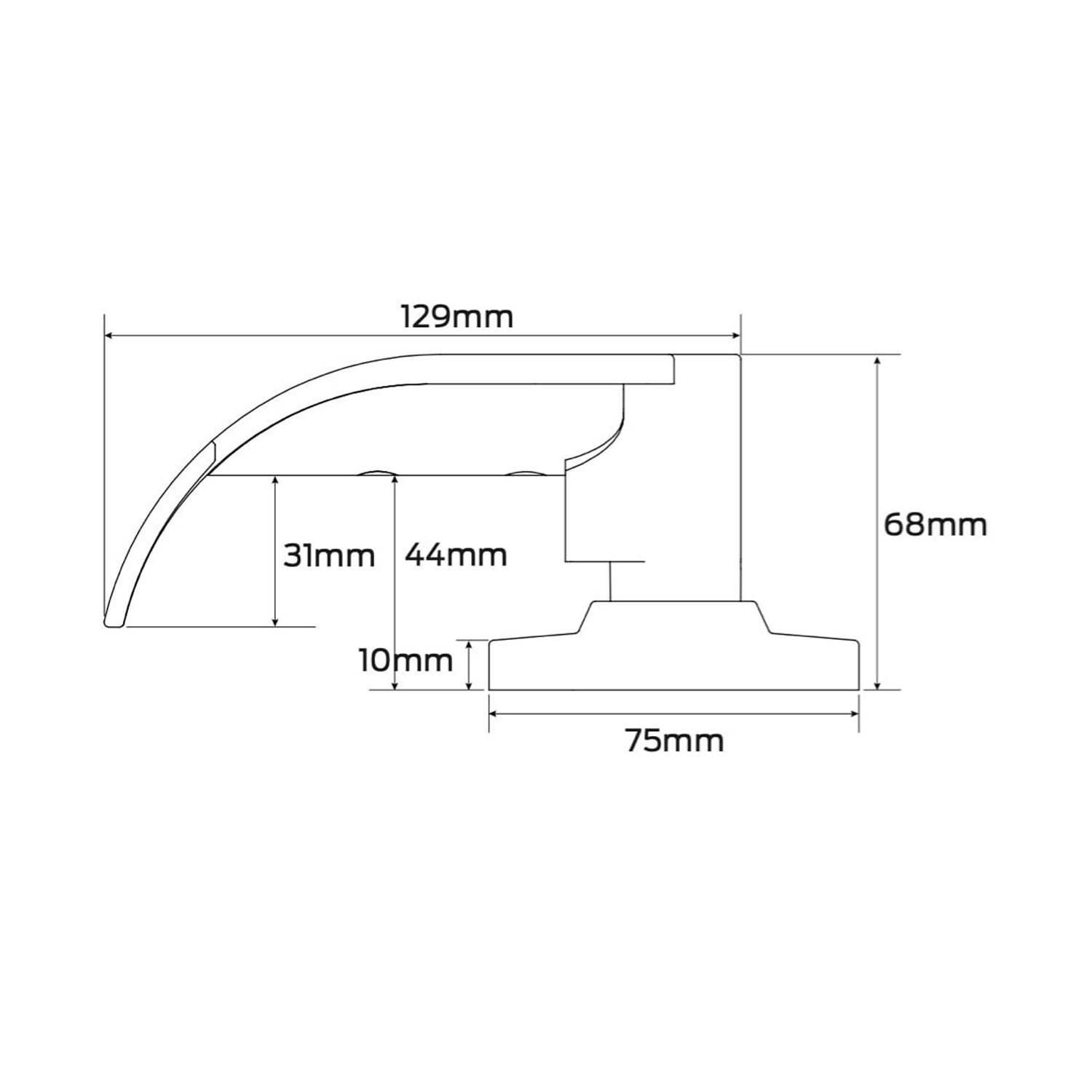

Legge has long been associated with providing Australasia industry-leading safety, security, style and convenience and the G2 cylindrical lockset is no exception. The G2 lockset offers ANSI/BHMA Grade 2 certification and the Sparta lever, with it's 35mm to 45mm clearance.

Features:

• Sparta lever is compliant with AS1428:1-2009
• Tested in excess of 400,000 operating cycles

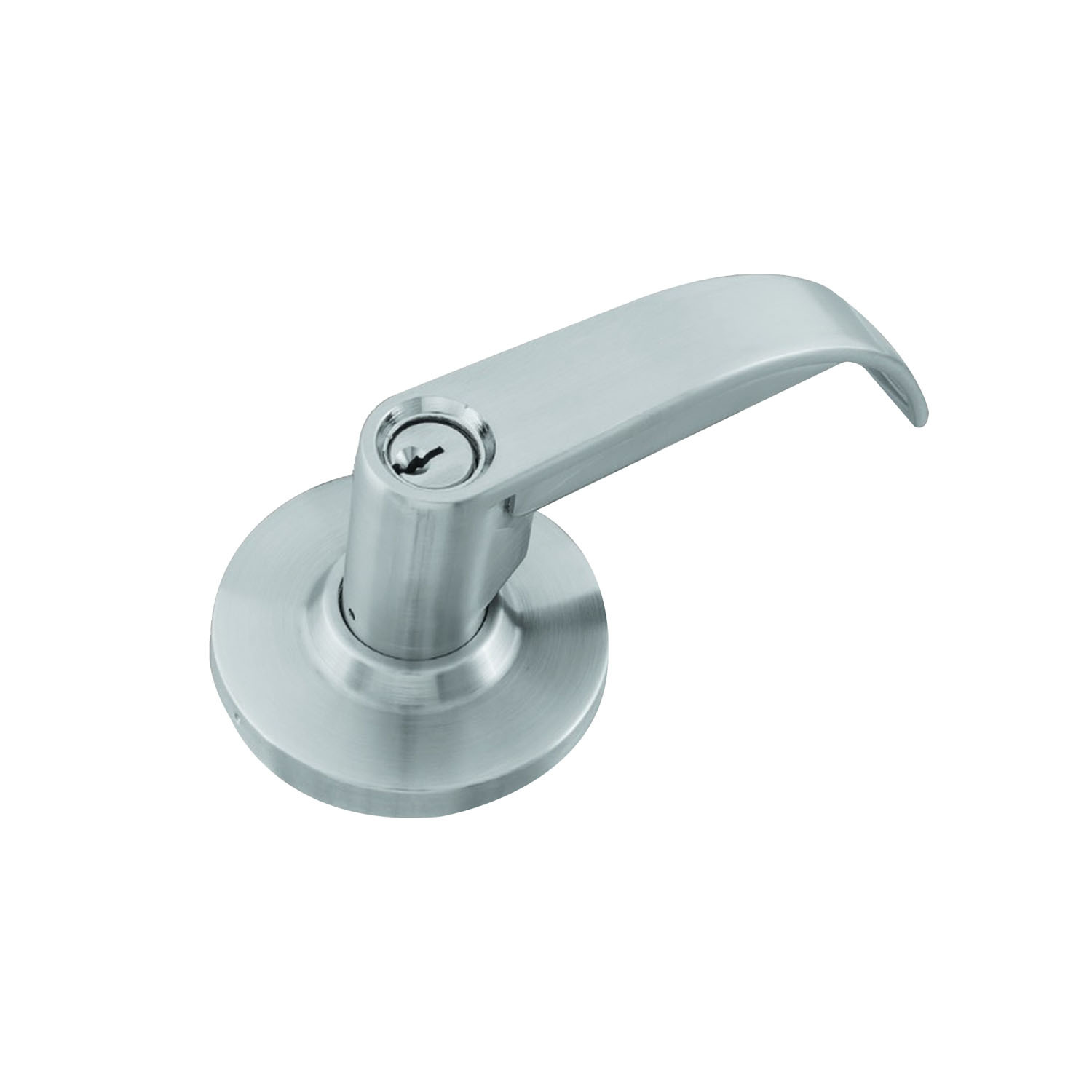

• Key removable outside lever for quick and easy cylinder placement
• Snap-on inside rose conceals mounting plate and screws
• Supplied standard with D and T strikes and spacer rings
• Two nickel silver keys per lock supplied with both
• Schlage 6 pin 'C' keyway and C4 6 pin keyway as standard
• The G2 series is ideally suited for residential, light and medium duty commercial applications
• Non-handed
• The 10 year warranty provides specifiers and users with assured quality and performance

Specifications:

• Doortype: Timber or metal
• Door thickness: 35mm to 50mm, 45mm to 60mm available
• Chassis: Steel, zinc discromate plated
• Lever: Pressure cast zinc
• Knob: Wrought brass
• Outer forend: Stainess steel
• Strike plate: Stainless steel 45mm standard 25mm optional
• Backset: 70mm standard, 60mm and 127mm backset latches available
• Key cylinder: Schlage C6 pin keyway and C4 6pin keyway standard. Schlage E6 pin keyway is optional
• Compliance: AS1428:1-2009 design for access and mobility code (Sparta lever)
• Finish: Satin chrome plate
• Warranty: 10 years mechanical

Compliance:

• Fire Rated: Tested on fire door assemblies in accordance with Australian Standards, refer fire door manufacturer for specific approval details.
