LCT1631A MPEG2 HD DIGITAL MODULATOR W/HDMI COMPONENT COMPOSITE INPUTS
3x

LCT1631A MPEG2 HD DIGITAL MODULATOR W/HDMI COMPONENT COMPOSITE INPUTS

Price
$699
Collect 2097 Everyday Rewards points
Score 3x points on every order
Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply
Log in to MyDeal to link your card
Shipping
Free Shipping

Quantity
Maximum item limit (100) has been reached.

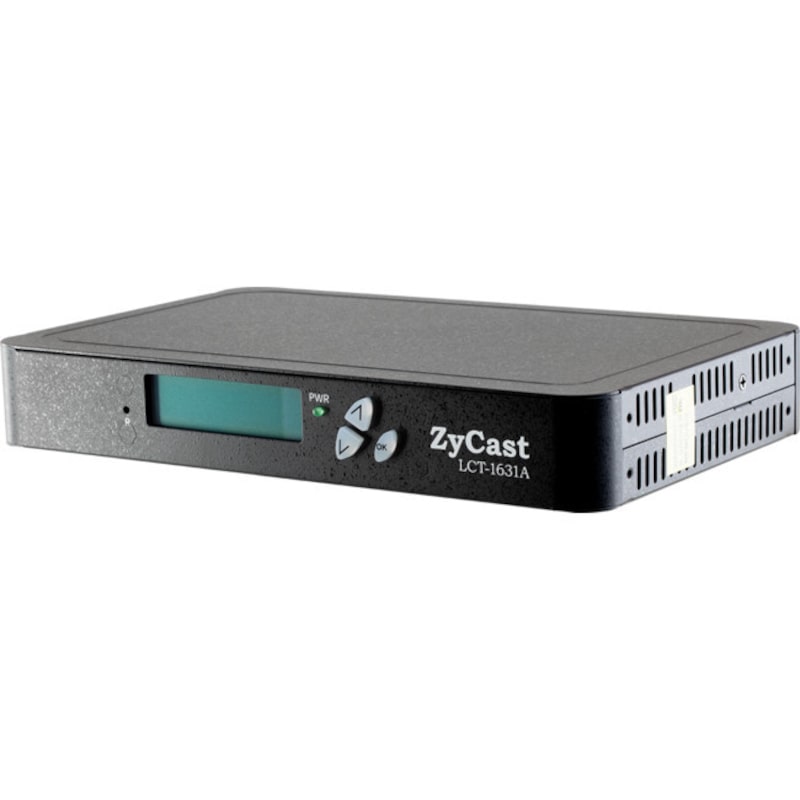

The LCT-1631A is a cost-effective, single input MPEG-2 HDEncoder/Modulator that converts Digital Video Broadcasting (DVB) high definition video and audio signalsto COFDM. The unit's front-mounted LCD allows for easy configuration and adjustments.
This compact and economical modulator is perfect for multi-video distribution solutions in the commercial and institutional market (hotels, motels, sports bars, restaurants, hospitals, casinos, business and university campuses, digital signage, etc.) as well as home entertainment systems.

Features

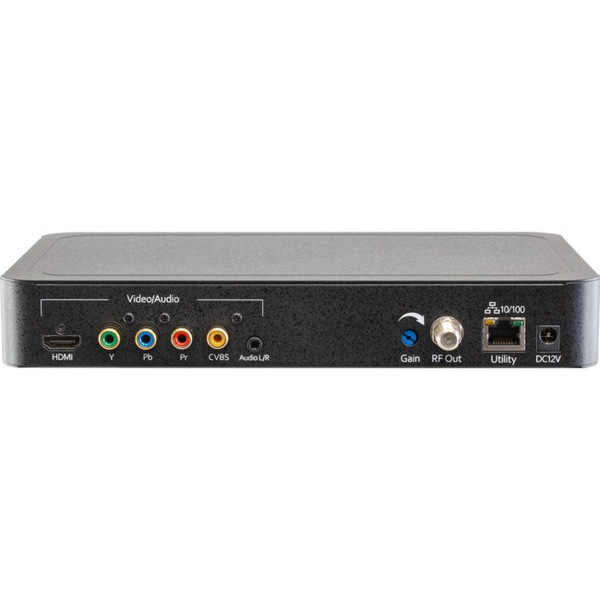

  • HDMI, Component, Composite Inputs, RF Output
  • Gain Control (20dB Manual Attenuation)
  • RJ-45 port for Web Management
  • Video resolution: Up to 1080i/1080p
  • Perfect, clean and clear HD picture on high motion video, sports, text crawls/rolls, etc.
  • Front Panel LCD
  • Cool & silent operation

Specifications

Video / Audio Input

HDMI 1.4

Connector

Single

Audio

Embedded PCM

HDCP Compliance (Test Mode)

1.4

Component / Composite

Connector

RCA x1 Set for Each

Audio

Analog 3.5mm (Phone Jack)

Video/ Audio Encoding Profile

Video

Video Codecs

MPEG-2 VBR

Bitrate (Adjustable)

DVB-T:

HD: 12.0 to 24.0Mbps

(Suggested Max. Bitrate 17Mbps for 16-QAM)

SD: 4.0 to 9.0Mbps

Resolution Output

Same as Input, Accepting Resolution as Follows:

1080p30 / 1080p25

1080i60 / 1080i50

720p60 / 720p50

576p / 480p

576i / 480i

Audio

Audio Codecs

MPEG1 Layer II / MPEG4 AAC /AC-3 Encode

Output

Standard

DVB-T

Connector

1x "F" Female

Output Level

95 dBuV Typical

(With 20dB Range Manually Adjustable)

Flatness Across Full Band

2 dB Typical

MER

38 dB Typical @ 480.5 MHz under DVB-T Mode

Output Impedance

75 ohm

RF Output Return Loss

10 dB Typical

ModulatorSTD

DVB-T (COFDM)

RF Mode

Normal / Inverted

Frequency Range

(AU / NZ)

AU: 104.5 MHz to 816.5 MHz

(Channel 5 to Channel 69)

NZ : 107.5 MHz to 858.0 MHz

(Channel S1 to Channel 69)

Constellation (Output Bitrate, Max.)

AU : 64-QAM (27.70Mbps)

NZ : 64-QAM (31.66 Mbps)

FEC

7/8

LCN Mode

AU / NZ

OFDM Mode

2k, 8k

Guard Interval

1/32

General

Local Monitoring

LCD

Web GUI Supported

Firefox, Chrome

Password Protected

GUI: User Settable

Power Supply

12VDC 1.5A

Consumption

5W

Operation Temperature

0oC to +55oC

Storage Temperature

-20oC to +70oC

Dimension

Housing: 236(L) x 145(W) x 34(H) mm

Weight

TBD

Language

English

Package Contents

  • LCT-1631A Encoder / Modulator
  • 12V DC 1.5A Power Adapter
  • 3.5mm to 2 RCA Audio Lead
  • One installation / configuration manual
GTIN: 9328202032218
