Kyoritsu 6010B | 5 In 1 Digital Multifunction Tester

Description:

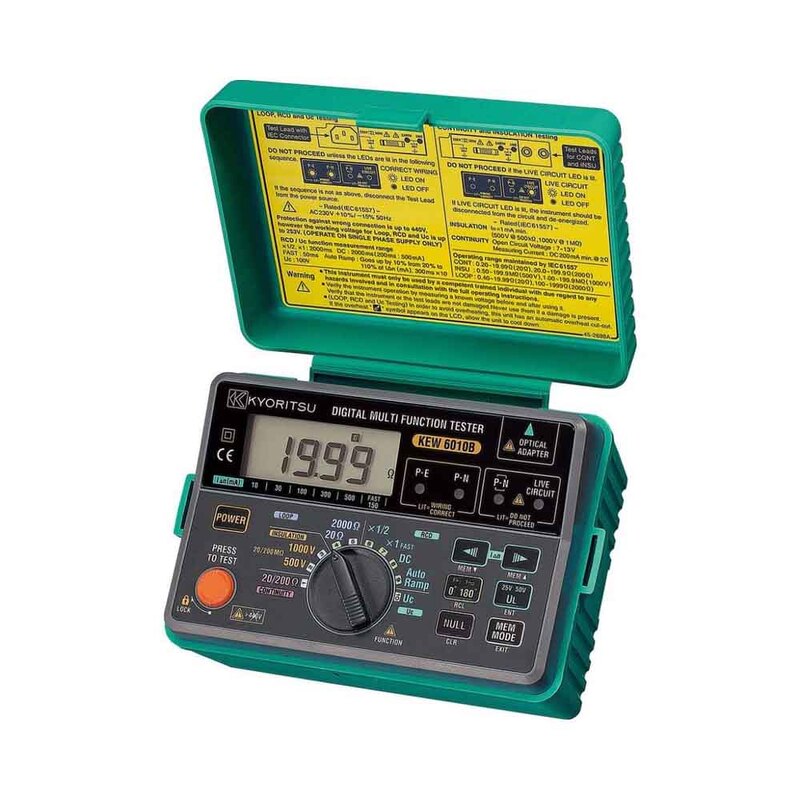

The Kyoritsu 6010B is a 5 in 1 Digital Multifunction Tester capable of continuity, insulation, loop and RCD testing as well as measuring continuous operating voltage of a protective device (U_c). The 6010B features an easy to use handheld design with built in memory (up to 300 results) and a large dual display with bright backlight and bargraph.

The Kyoritsu 6010B is an advanced multifunction meter that can perform continuity testing up to 200Ω with a short circuit currnet up to 200mA DC. Insulation resistance can also be measured up to 200MΩ with a 500 V DC test voltage. The 6010B integrates several safety features including a live circuit warning LED to indicate the circuit under test is live as well as integral overload protection on interal continuity and insulation test circuitry. Contact voltage (U_c) can also be measured up to 100V.

In addition, the Kyoritsu 6010B can perform loop and RCD testing. This includes testing across a large range of currents (10/30/100/300/500 mA) and an auto ramp function. The instrument also features a built memory to store up to 300 measured results. The results can then be downloaded to PC using the optional communication adaptor and PC software.

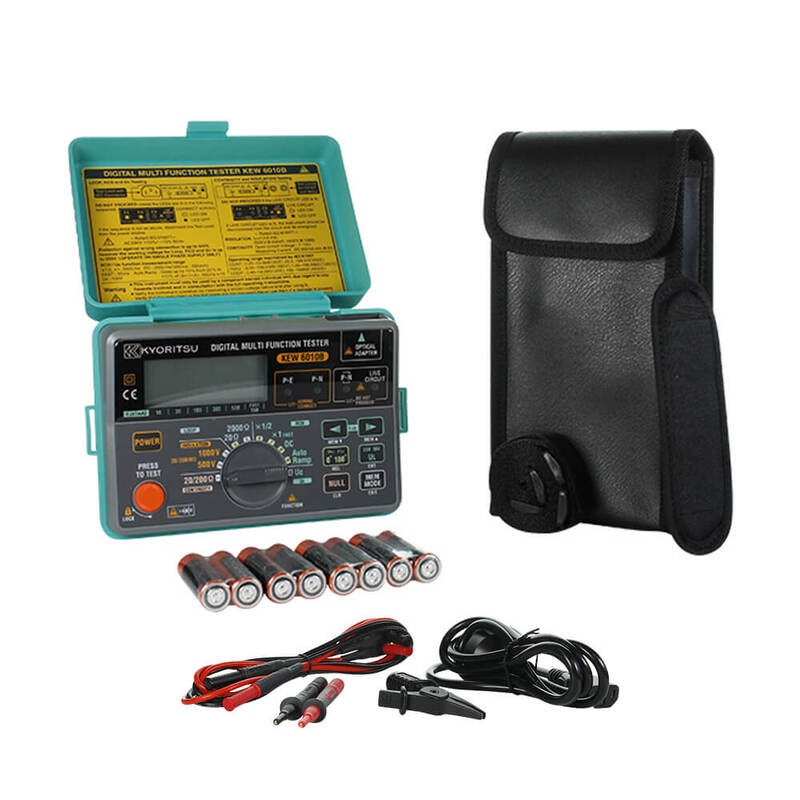

The Kyoritsu 6010B is supplied with test leads, case, shoulder strap and batteries.

Features:

5 in 1 Tester - Continuity, Insulation, Loop, RCD Testing and Uc.
RCD Testing - 10/30/100/300/500 mA ranges, Fast Trip (40ms) and Auto Ramp
Live circuit warning LED: Immediate illumination of a warning lamp if the circuit under test is live.
Built-in memory (up to 300 results).
500V DC test voltage for insulation tests.
200mA short circuit current on continuity ranges.
Wiring connection check LED’s: Immediate indication if wiring of circuit under test is correct (Loop & RCD).
Contact voltage (Uc) up to 100V.

Specifications:

Specifications:

Continuity Testing
Measuring Range	20/200Ω (Auto-Ranging)
Open Circuit Voltage	> 6V
Short Circuit Current	> 200mA
Accuracy	±(3%rdg + 3dgt)
Insulation Resistance Testing
Measuring Range	20/200MΩ (Auto-Ranging)
Test Voltage	500/1000V
Open Circuit Voltage	+20% - 0%
Rated Current	> 1mA
Accuracy	± (3%rdg + 3dgt)
Loop Impedance Testing
Impedance Range	20/2000Ω
Rated Voltage	230V + 10% - 15%(50Hz)
Normal Test Current	20Ω:25A/10ms 2000Ω:15mA/350ms max.
Accuracy	±(3%rdg + 8dgt)
RCD Testing
Test Current (Test Current Duration)	x1/2, x1	10, 30, 100, 300, 500mA (2000ms)
Fast	150mA (50ms)
DC	10, 30, 100, 300mA (2000ms), 500mA (200ms)
Auto Ramp	Goes up by 10% from 20% to 110% of IΔn. 300ms×10
Rated Voltage	230V + 10% - 15% 50Hz
Accuracy	Test Current	x1/2: -8%-2% x1, FAST: +2%+8% DC: ±10% Auto Ramp: ±4%
Trip Time	±(1%rdg + 3dgt)
Uc Testing
Measuring Range	100V
Rated Voltage	230V + 10% - 15% (50Hz)
Test Current	5mA at IΔn = 10mA 15mA at IΔn = 30/100mA 150mA at IΔn = 300/500mA
Accuracy	+5% to +15%rdg±8dgt

Safety Standard	IEC 61010-1 CAT III 300V Pollution Degree 2 IEC 61557-1, 2, 3, 4, 6, 10, IEC 60529 (IP40)
Power source	R6 or LR6 × 8
Dimensions	115(L) × 175(W) × 86(D)mm
Weight	840g approx.

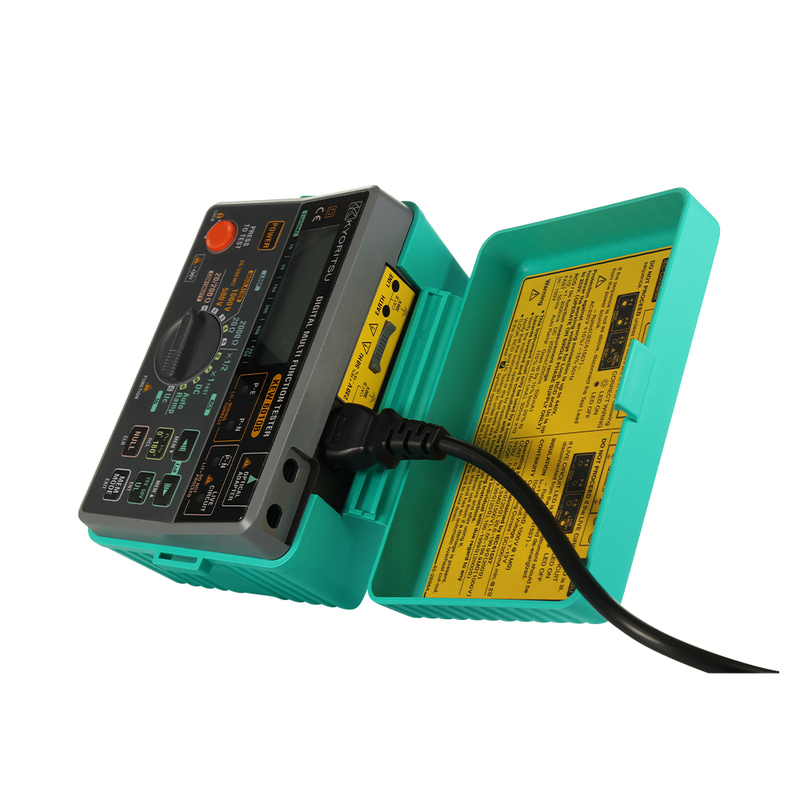

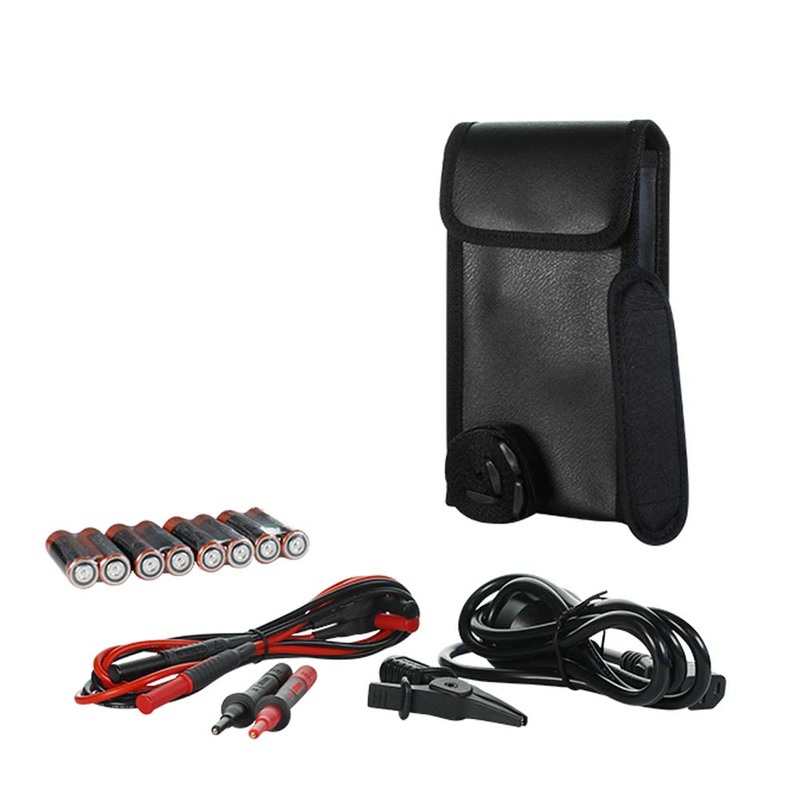

Included Accessories	7122B (Test leads) KAMP10* (Test Lead with IEC Connector) *Australian plug Pouch for Test leads Shoulder Strap Shoulder Pad Instruction Manual
Optional Accessories	7133B (Distribution board test leads) 8212-RS232C (RS232C adaptor with "KEW Report (Software)") 8212-USB (USB adaptor with "KEW Report (Software)")
