Kyoritsu 5406A - Digital RCD ELCB Tester With Auto Ramp Function

Kyoritsu 5406A - Digital RCD ELCB Tester With Auto Ramp Function

Hurry! 4 items left!

Price	$482.79
	Collect 482 Everyday Rewards points Log in to MyDeal to link your card
Shipping	$15.95 Australia-wide
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

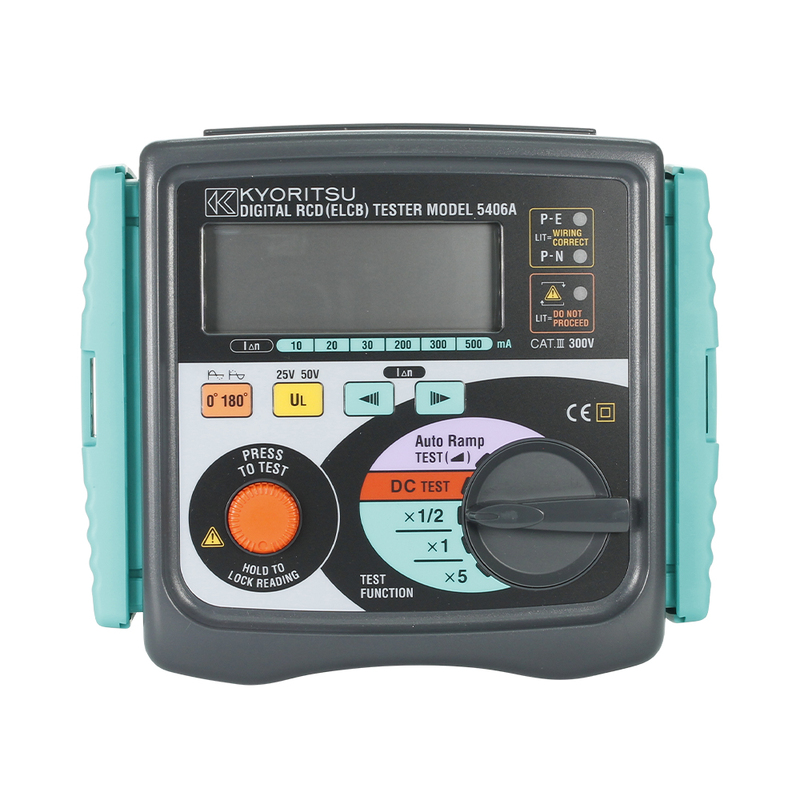

Kyoritsu 5406A | Digital RCD ELCB Tester With Auto Ramp Function

Description:

The Kyoritsu 5406A digital RCD tester is capable of testing a large variety of RCDs and features an auto ramp function. Designed to comply with an IP54 rating, the 5406A is comprised of a custom microprocessor to achieve high accuracy and reliability.

Features:

Custom microprocessor controlled for highest accuracy and reliability.
3 LEDs for checking correct wiring status.
0 and 180 degree phase angle switch permits quick tests and consistent readings.
Digital read-out of tripping time.
Constant current source circuitry ensures that a fluctuating mains voltage does not affect the accuracy of readings.
Large custom digital display readout.
Visual indication of reversed phase and neutral wiring at socket.
Designed to IP54 Rating.
Complies with IEC 61557
Test of a large kind of RCD's: Standard, Selective, AC and A (DC sensitive

Specifications:

Specifications:

Rated Tripping Current	10/20/30/200/300/500mA
Fault Condition Settings	× 1/2, × 1, × 5, × DC, AUTO RAMP
Trip Current Duration	1000ms, 200ms (×5)
Lowest Resolution	1ms
Trip Time Accuracy	±0.6%rdg±4dgt
Operating Voltage	230V+10%-15% (195V - 253V) 50Hz
Safety Standard	IEC 61557-1,-6 IEC 61010-1 CAT III 300V IEC 61010-2-031 Pollution Degree 2
Withstand Voltage	3700V AC for 1 minute
IP Rating	IEC 60529-IP54
Dimensions	167(L) × 186(W) × 89(D)mm
Weight	800g approx.

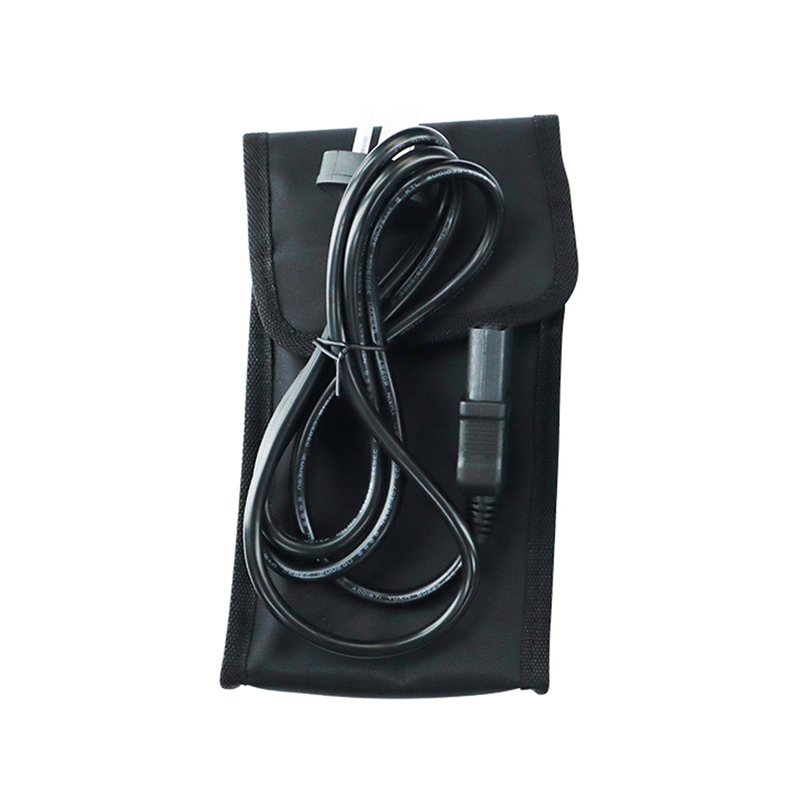

Accessories	Molded plug test leads* 9121 (Shoulder Strap) 9147 (Cord case) Instruction Manual
Optional	7121B (Simplified measurement probe)

Warranty starts from Invoice Date

Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct

GTIN: 4560187065361
