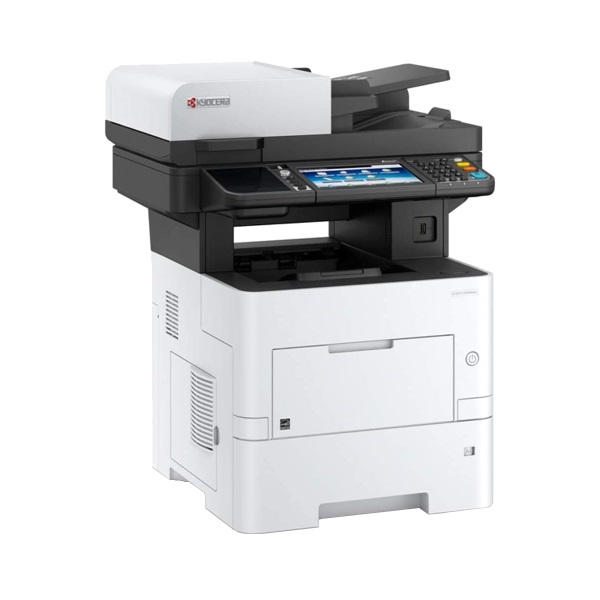

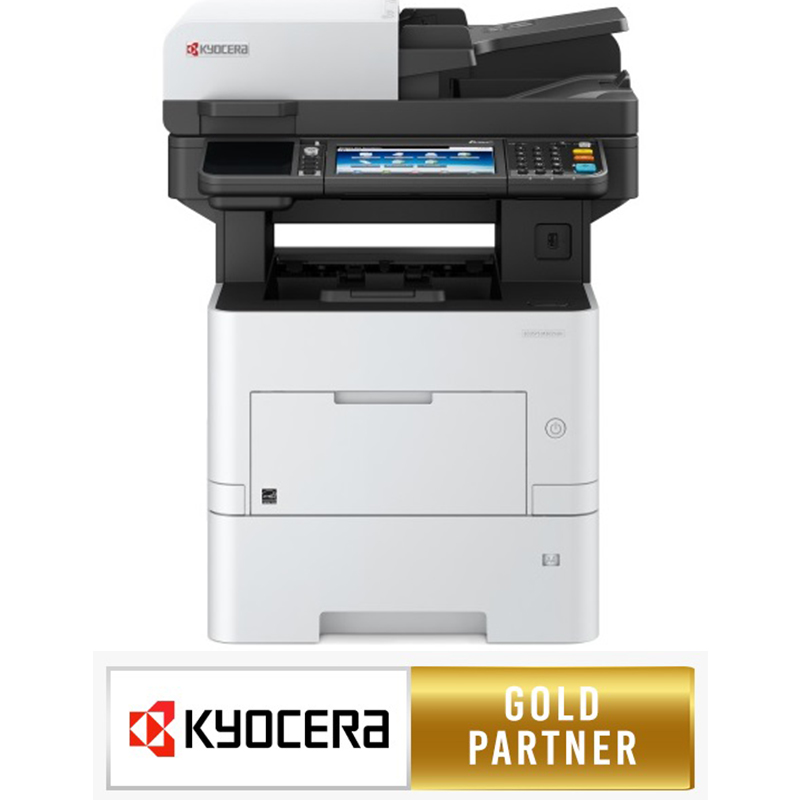

Kyocera M3655IDN/A Mono Multifunction Laser Printer

When you need the extra mile.

This very powerful 3-in-1 MFP has a print speed of up to 55 ppm and is the perfect choice for medium and large work groups. It is designed to handle even the largest print runs and its 100-sheet Single Pass Duplex document processor scans at an impressive rate of 100 ipm. It can be complemented with additional paper cassettes holding up to 2,600 pages in total and can easily be integrated into your existing business workflows thanks to the open solution platform HyPAS™. The long-life components guarantee the reliability and productivity you expect from a genuine KYOCERA device; you will certainly also appreciate their low printing costs and low environmental impact that complies with the latest regulations.

SPECIFICATIONS

Technology:

KYOCERA ECOSYS, Laser, Black & White, HyPAS™ solution platform

Operation panel:

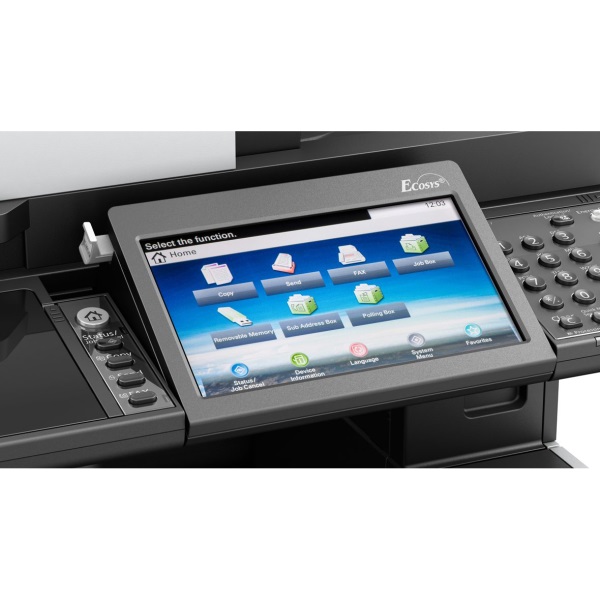

177.8 mm (7 inch) full-colour touch panel display, speaker for job notification, Tilt Mechanism Type: Desktop

Engine speed:

Up to 55 pages A4 per minute

Duplex print speed:

39.5 page per minute, A4

Duplex copy speed:

39.5 page per minute, A4

Resolution:

1200 x 1200 dpi (print), 600 x 600 dpi (scan/copy)

Warm-up time:

Approx. 25 seconds or less

Time to first print:

Approx. 4.9 seconds or less in b/w

Time to first copy:

Approx. 6 or less in b/w (DP), Approx. 7 or less in b/w (Platen)

CPU:

ARM Cortex-A9 Dual core 1.2GHz + ARM Cortex-M3 100MHz

Memory:

Standard 1GB, Max. 3GB + 128GB SSD

Standard interface:

USB 2.0 (Hi-Speed), 2 x USB Host Interface, Gigabit Ethernet (10BaseT/100BaseTX/ 1000BaseT, IPv6, IPv4, IPSec), optional Wi-Fi (IEEE 802.11b/g/n), 1 eKUIO slot for optional internal print server, Slot for optional SD Card

Integrated accounting:

100 department codes

Dimensions (W x D x H):

480 x 495 x 590 mm

Weight:

Approx. 24.1 kg

Power source:

AC 220 ~ 240 V, 50/60 Hz

Power consumption:

Printing: 711 W

Copying: 731 W

Low power mode: 30 W

Ready mode: 54 W

Sleep-mode: 0.5 W

Noise (sound pressure level: ISO 7779/ISO 9296)

Copying/Printing: 56 dB (A)

Stand-by: 30 dB (A)

Safety standards:

AS/NZS3260

This unit is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard

Paper handling:

All paper capacities quoted are based on paper thickness of max. 0.11 mm. Please use paper recommended by KYOCERA under normal environmental conditions.

Input capacity:

Multi-purpose tray: 100 sheets, 60–220g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 148 to 216 x 356 mm). Standard universal paper cassette: 500 sheet, 60–120 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (105 x 148 to 216 x 356 mm). Max. input capacity with options: 2,600 sheets A4

Duplex:

Standard duplex unit, 60–120 g/m2, A4, A5, B5, Letter, Legal

Document processor:

Dual scan document processor as standard, 100 sheets, 50–120 g/m2, A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)

Output capacity:

Max. 500 sheets face-down with paper full sensor

Print functions

Controller language:

PRESCRIBE II

Emulations:

PCL6 (5c/XL), KPDL3 (PostScript 3 compatible), PDF Direct Print, XPS Direct Print, AES support, TIFF/JPEG Direct Print Support, Open XPS, Line Printer, IBM Proprinter X24E, Epson LQ-850

Operating systems:

All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request

Fonts/barcodes:

93 outline fonts (PCL6/KPDL 3), 8 fonts (Windows), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)

Print features:

PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3

Mobile printing support:

KYOCERA Mobile Print app for iOS and Android, KYOCERA MyPanel, AirPrint, Mopria, Direct Wi-Fi (Opt), Google cloud print
