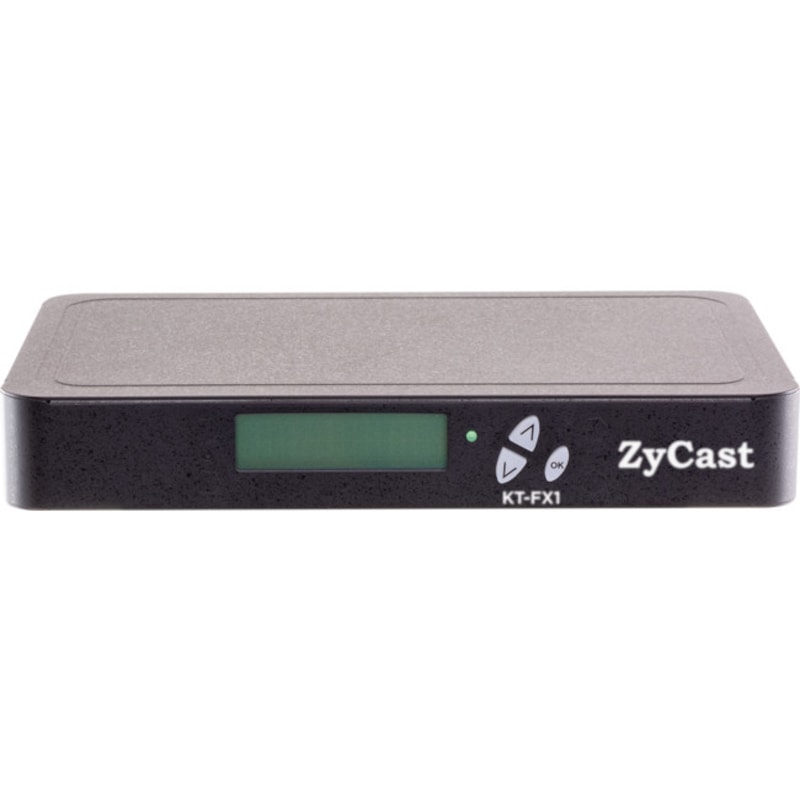

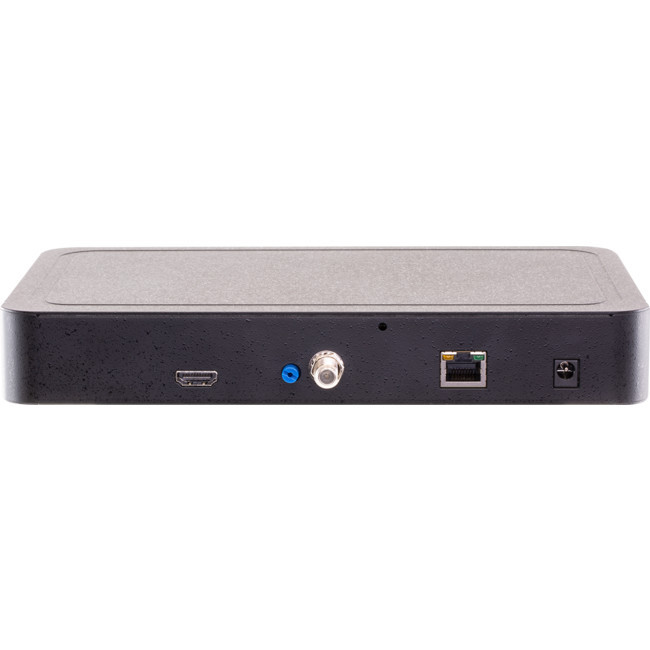

The KT-FX1 is a Foxtel-approved single input (HDMI) HD digital modulator that encodes HDMI signal to any DTV channel.
Pre-programmed with a Foxtel-approved channel listing andwith an output level of 90dB and MER of >38dB, the KT-FX1 makes use of video compression via H.264 AVC (MPEG-4) and audio compression via MPEG Layer II/AAC to distribute a crystal-clear HD picture over new or existing coaxial cable.
Programming of the KT-FX1 is done via a web GUI and front LCD panel. It uses a frequency range of 177.5MHz to 816.5MHz (6 to 69).
General
KT-FX1 |
|
Foxtel Approved Number |
F31059 |
Input |
|
Number of inputs |
1 |
Video input |
HDMI |
Video input level |
0.7 - 1.4V (Peak to Peak) |
Video mode |
PAL |
Audio input |
Stereo |
Audio input level |
0.4 to 4.8V (Peak to Peak) |
Output |
|
Frequency Range |
177.5 MHz to 816.5 MHz (6 to 69) |
HDMI loop through |
No |
Output level |
85dB |
MER |
>38dB |
Delayed audio |
|
Delayed audio output |
No |
Delay |
|
Connection type |
|
Modulation |
|
Video Resolution |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Video compression |
H.264 AVC (MPEG-4) |
Audio compression |
MPEG Layer II / AAC |
Video bitrate SD |
1Mbps to 9Mbps (Default 5Mbps) |
Video bitrate HD |
12Mbps to 24Mbps (Default 24Mbps) |
LCN |
AU (APN) |
Carrier |
2K / 8K |
GI |
1/32 |
FEC |
7/8 |
Constellations |
16 QAM / 64 QAM |
Management / Programming |
|
Front LCD |
Yes |
Web GUI |
Yes |
Power supply type |
External |
Power supply |
12VDC 1.5AMP |
Redundant PSU |
No |
Operating temperature |
0c to +45c |
Storage temperature |
-0c to +60c |
Dimensions |
236mm x 145mm x 34mm |
Weight |
0.88kg |
Warranty | 3 years |
